FAKRA Z Male Female Extension Cable Series
This FAKRA Z extension cable series is made for automotive coaxial connections that need a little more reach, a different connector gender, or a cleaner routing path. Three straight connector combinations are available: male to male, female to female, and male to female.
Rather than changing the vehicle-side interface, the cable extends or bridges compatible FAKRA Z connections between cameras, antennas, communication modules, test equipment, and other automotive electronics. This is especially useful when equipment position changes during prototype work or when the original harness simply does not reach the new mounting point.
These are passive cable assemblies. They do not convert video formats, RF signals, or communication protocols. Connector gender, cable type, length, and the equipment interface should be checked before ordering.
A Practical Way to Adjust Existing FAKRA Wiring
Vehicle wiring rarely stays where it started during development. A camera may move to another mounting point, an antenna module may need a longer route, or a test bench may require the connector outside the enclosure. An extension cable handles these changes without replacing the coaxial harness.
Choosing the correct male and female combination at the start also avoids stacking extra gender adapters into the signal path and keeps the finished installation easier to trace and service.

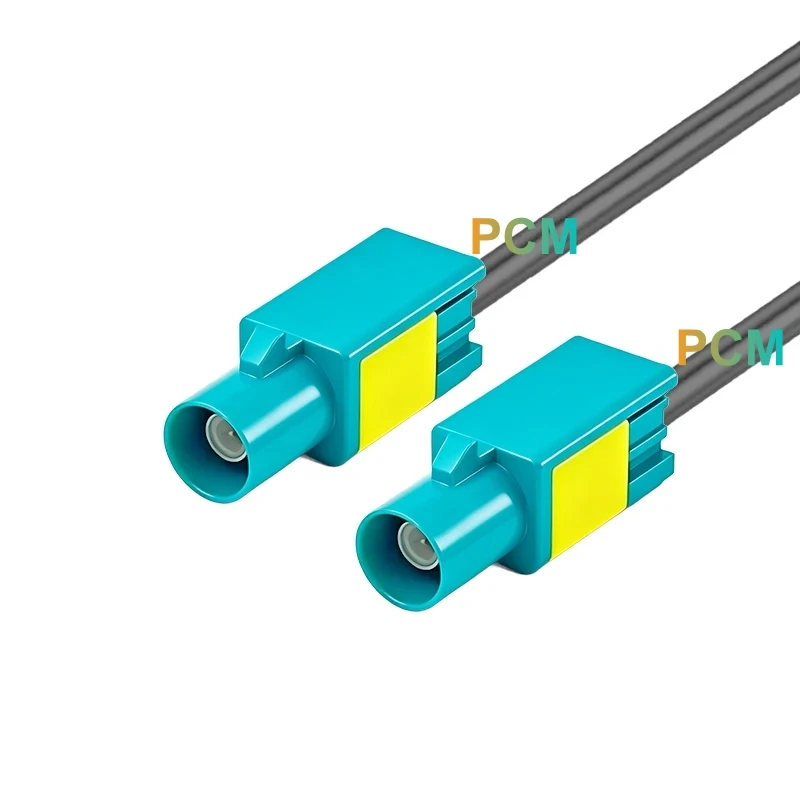

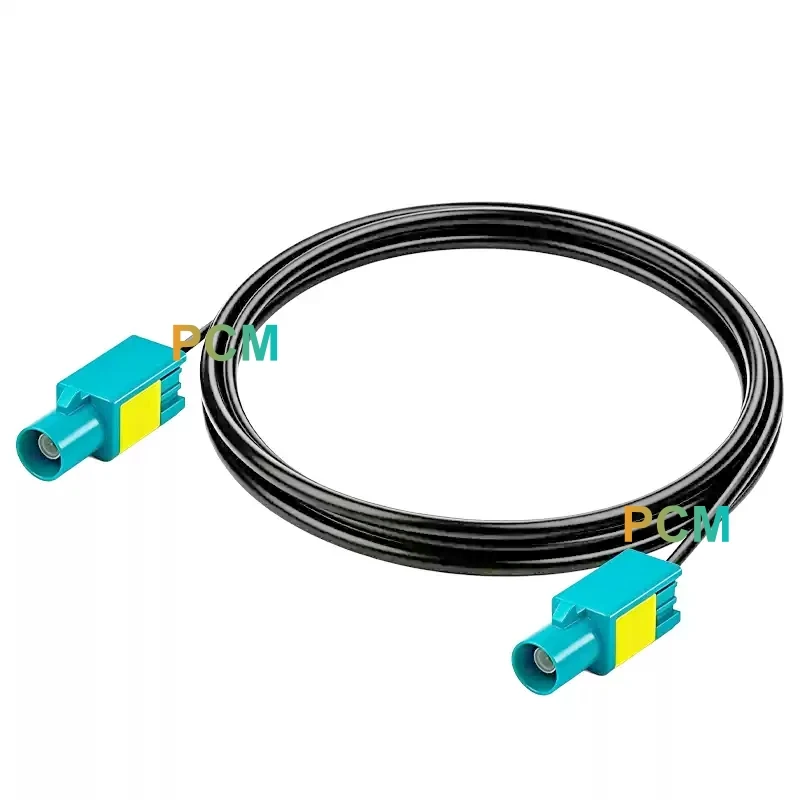

FAKRA Z Male to FAKRA Z Male Extension Cable
The male to male version is intended for connections where both mating ports require cable-side male FAKRA Z connectors. It provides a direct coaxial link without adding separate gender-changing adapters.
This configuration can be useful around automotive test fixtures, antenna equipment, development modules, and vehicle electronics where the mating interfaces are already defined as female.

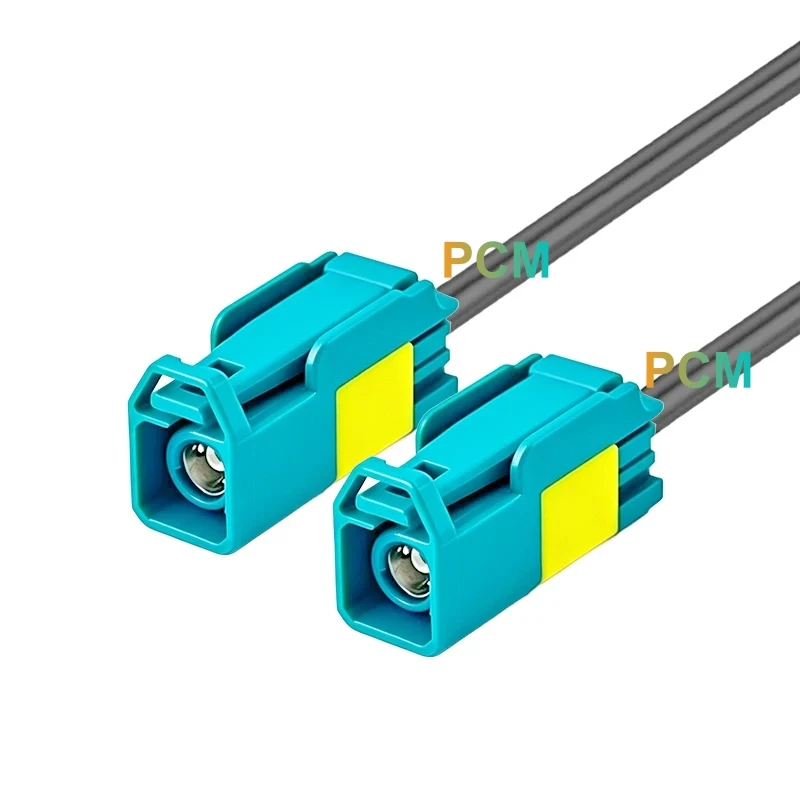

FAKRA Z Female to FAKRA Z Female Extension Cable
This version uses straight FAKRA Z female connectors at both ends. It is selected when the two mating interfaces require female cable-side connectors or when a test setup needs a female connection at each end.
For prototype vehicles and bench work, the female to female arrangement can make temporary equipment relocation easier while keeping the connector family consistent across the harness.

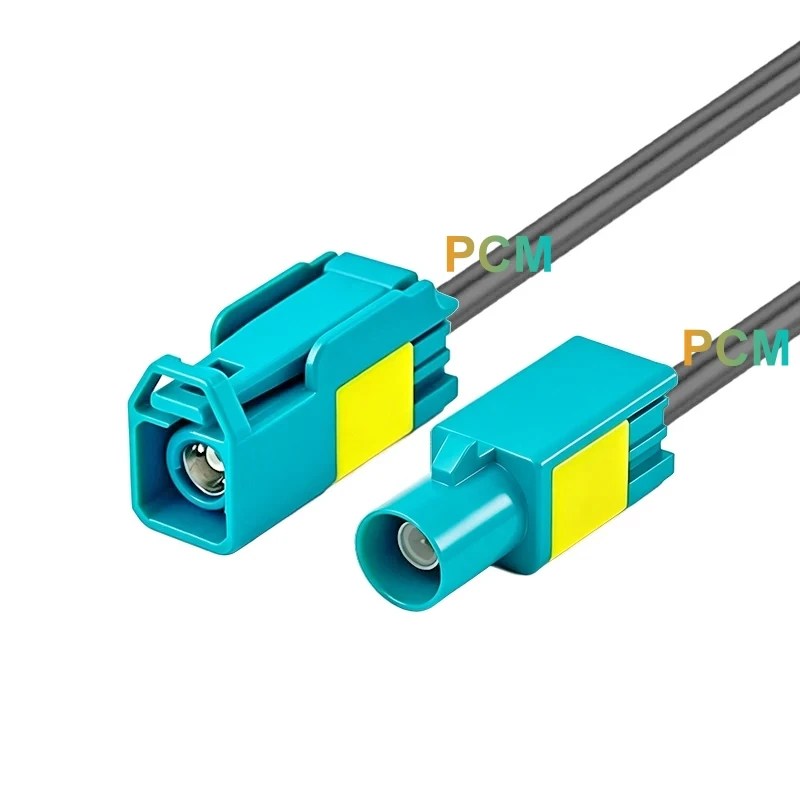

FAKRA Z Male to FAKRA Z Female Extension Cable
The male to female version works as a straightforward inline extension when an existing FAKRA Z connection needs additional cable length but the original mating relationship should remain unchanged.
It is a practical choice for camera relocation, antenna routing, telematics installation, vehicle electronics integration, and service work where the original cable falls short of the required mounting position.
Typical Applications
Built Around Real Installation Needs
Three Connector Options
Male to male, female to female, and male to female versions cover different equipment side mating requirements.
Straight FAKRA Z Interfaces
Straight connector exits suit inline cable routing where a right angle connector is not required.
Multiple Standard Lengths
0.5 m, 1 m, 2 m, 3 m, 4 m, and 5 m options make it easier to match different vehicle and bench layouts.
Passive Coaxial Assembly
Designed to extend a compatible coaxial connection without adding active conversion or signal-processing electronics.
Product Advantages
● Extend the Harness Instead of Rebuilding It
Useful when the original cable is correctly terminated but no longer reaches the final camera, antenna, module, or test position.
● Choose the Connector Gender at Cable Level
Three connector combinations allow the extension assembly to match the actual mating interfaces instead of relying on additional adapters.
● Cleaner Routing for Development and Service
Additional cable length can move a connection away from crowded areas and place it where installation, inspection, or replacement is easier.
● One Series for Several Automotive Coaxial Tasks
The same extension concept can be used across compatible camera, antenna, telematics, prototype, and test applications.
Which FAKRA Z Version Should I Choose?
| Version | Connector A | Connector B | Typical Selection Logic |
|---|---|---|---|
| 1 | FAKRA Z Male | FAKRA Z Male | Both mating interfaces require male cable-side connectors |
| 2 | FAKRA Z Female | FAKRA Z Female | Both mating interfaces require female cable-side connectors |
| 3 | FAKRA Z Male | FAKRA Z Female | Inline extension while retaining opposite genders at both ends |
Custom FAKRA Cable Assembly Options
Cable Length
Choose a standard length or provide the required finished cable length for your installation.
Connector Combination
Male and female combinations can be selected according to the actual mating interfaces.
Project Requirements
For OEM work, send the connector information, cable requirement, drawing, application, and quantity for review.
Product FAQ
Is FAKRA Z code the same as every colored FAKRA connector?
No. FAKRA housings use coding and mechanical keying. Confirm the required Z code and mating interface instead of choosing only by housing color.
Which version should I use to extend an existing cable?
Check the connector at each end of the connection first. For a conventional inline extension, the male to female version is often suitable, but the actual mating interfaces determine the correct choice.
Can I order 0.5 m, 1 m, 2 m, 3 m, 4 m, or 5 m?
Yes. These length options can be offered for the series. Other lengths can also be discussed for project orders.
Does this cable convert the video or RF signal?
No. It is a passive coaxial cable assembly. It extends or connects compatible interfaces and does not perform protocol or signal conversion.
Can I use it for an automotive camera or GPS antenna?
It can be used where the equipment uses compatible FAKRA Z coaxial interfaces. Confirm the complete system interface and cable requirement before ordering.
What information should I send for a custom order?
Please provide connector gender and coding, cable length, cable specification if known, application, quantity, and a drawing or mating connector part number when available.
