Your Professional H-MTD Supplier
Our goal is to become your true partner in the field of H-MTD in China. PCM Cable Co.,Ltd is a manufacturer specializing in connectors and customized wiring harnesses. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
-
![Audi A4 A6L Multimedia Video Cable]()
Audi A4 A6L Multimedia Video Cable1m Audi A4 A6L multimedia video cable for Android box, OEM head unit and in-vehicle infotainment retrofit applications. -
![Rosenberger H-MTD Cable Male to Male]()
Rosenberger H-MTD Cable Male to MaleRosenberger H-MTD male to male 100Ω cable for Automotive Ethernet, ADAS cameras, ECUs, sensors and high-speed vehicle data connection，PCM-ZC-0247 -
![Molex Mini50 Automotive Adapter Cable]()
Molex Mini50 Automotive Adapter CableMolex Mini50 347910040 automotive adapter cable for BCM89811 BCM89881 converters, available with Mini50, MATEnet and H-MTD interfaces. -
![Rosenberger H-MTD Radar Cable]()
Rosenberger H-MTD Radar CableRosenberger E6K14M-1CAZ5-Z H-MTD IP67 Waterproof Automotive Ethernet Cable for 10Gbps ADAS Radar, camera, and high-speed ECU sensor networking. -
![GEMnet To H-MTD Cable Assembly]()
GEMnet To H-MTD Cable AssemblyTE GEMnet 4-port Automotive Ethernet cable with GEMnet and H-MTD options for ECU, ADAS, vehicle network integration and testing. -
![H-MTD 6-Port Breakout Cable]()
H-MTD 6-Port Breakout CableH-MTD 6 Port Automotive Ethernet Breakout Cable with H-MTD and GEMnet male or female options for ADAS, ECU and vehicle network integration. -
![Automotive H-MTD Quad Cable]()
Automotive H-MTD Quad CableH-MTD Quad Automotive Ethernet Cable with Rosenberger E6K10D-1CAZ5-Z, supporting 4-channel H-MTD or GEMnet connections for vehicle networks. -
![Dual H-MTD 6 Pin Cable]()
Dual H-MTD 6 Pin Cable99K1HG-1CAZ5-Z H-MTD x2+6 Pin cable provides dual high-speed channels and six auxiliary contacts with flexible H-MTD and MATEnet breakout options. -
![Rosenberger Dual FAKRA Cable]()
Rosenberger Dual FAKRA CableRosenberger FAKRA Z code dual jack to single plug RF cable assembly, 50 Ohm Y splitter for automotive GPS antenna, ADAS camera & 5G telematics. -
![Quad HFM To 4 FAKRA Cable]()
Quad HFM To 4 FAKRA Cable4-way Quad HFM to FAKRA breakout cable for ADAS camera testing & HIL test benches. High-speed 50 Ohm automotive RF cable assembly up to 6 GHz. -
![Mini FAKRA 4 Pin Male To Female Cable]()
Mini FAKRA 4 Pin Male To Female Cable4-Channel HFM Mini FAKRA extension cable connects compact automotive cameras and sensors, supporting high-speed telematics and test connections. -
![Quad Mini FAKRA Female To Female Cable]()
Quad Mini FAKRA Female To Female Cable1m 2x2 Mini FAKRA female to female cable with four independent 50Ω channels for automotive electronics and multi-channel connections.
Why Choose Us
Production equipment: Our equipment includes high-frequency welding machines, automatic welding machines, Haba welding machines, laser welding machines, laser cutting machines, temperature and humidity cycle testers, salt spray testers, SGS testers, connector plug-in force testers, network analyzers, IP67 waterproof testers, etc. These equipment provide strong guarantees for the quality and reliability of the products.
Customized solutions: We provide customized design and manufacturing services, and customize various connectors and wiring harnesses according to customers' specific needs and application scenarios to ensure perfect matching.
Production market: Our products are well received by the market and are exported to countries and regions such as Europe and America.
Our services: In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.
Advantages of H-MTD
Versatility
Suitable for various Automotive Ethernet Systems, including ADAS, infotainment, 4k camera, vehicle-to-vehicle (V2V) communication, vehicle-to-everything (V2X) communication, in-vehicle networking (IVN), and autonomous driving systems.
Customization
Available in various configurations, including connector types, shielding options, cable lengths, and pin arrangements to meet different installation requirements.
Specification of H-MTD
|

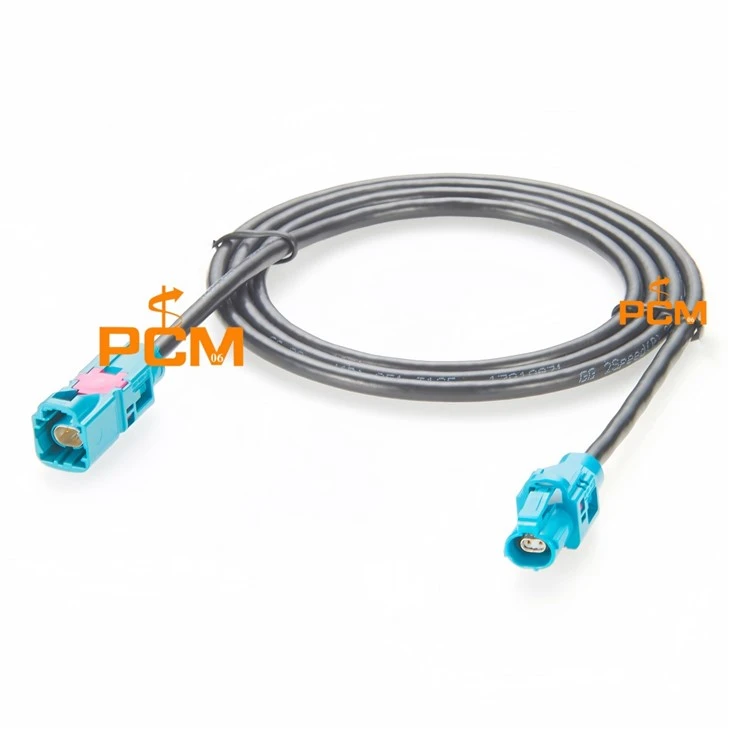

Product Name |
H-MTD Connecting Cable for 100/1000BASE-T1 Vehicle Ethernet Media Converter |
|
Part Number |
Compatible with Rosenberger LCA-101-1000-Z-Z |
|
Cable Type |
LEONI Dacar 686-3, LEONI Dacar 647-4, Or Others |
|
Connector Type |
H-MTD Connector (E6K10A-1CAZ5-Z) |
|
Gender |
Female to Female |
|
Coding |
Z Coding (Neutral Coding for Coding A To F) |
|
Number of Pins |
2 Pin (Single Port) |
|
Cable Length |
0.5m, 1m, 2m, Or Customized |
|
Color / RAL-No. |
Water Blue / 5021 |
|
Impedance |
100 Ω |
|
Frequency |
DC to 10 GHz |
|
Temperature Range |
-40 °C to +105 °C |
H-MTD Connector Types
H-MTD Standard Connector Types
Single, Double, Quad, Six.
H-MTD+ Variants
With Additional Power Pins (MQS Contacts) for Power Supply.
H-MTDe Types
Be Used in Various High-Speed Data Connection Applications, Including Unshielded Automotive Ethernet TC2.
H-MTD stands for High-Speed Modular Twisted-Pair Data,. It is a differential connector system for high-speed data transmission, supporting frequencies up to 20 GHz or data rates up to 56 Gbps.
Contained in a compact and durable housing that meets automotive industry standards, it enables easy integration into existing vehicle systems while maintaining stable performance.
Apart from these, it adopts a modular design, providing great flexibility and scalability for a wide range of automotive Ethernet applications, such as camera systems, advanced driver assistance systems, and autonomous driving systems.
Application of H-MTD
Advanced driver assistance systems (adas)
The h-mtd automotive ethernet cable can connect cameras, radar sensors, lidar, and ultrasonic sensors to the control systems to provide real-time data transmission for collision avoidance, lane departure warning, and automatic parking, enhancing vehicle safety.
In-vehicle infotainment systems (ivi)
It can be used in the ivi system to connect various electronic devices, including displays, media players, and audio systems, supporting smooth high-definition video and audio transmission for an enhanced overall in-car entertainment experience.
Electronic control units (ecus)
Used to connect multiple ecus (such as powertrain, chassis, and body control modules), ensuring efficient communication between various systems for intelligent vehicle control and management.
Autonomous driving
The h-mtd gigabit automotive ethernet cable e6k10d-1caz5-z to e6k10a-1caz5-z connects various on-board sensors to processing units, enabling real-time data transfer for object detection, path planning, and autonomous vehicle navigation, ensuring safe operation.
Packing and Shipping of H-MTD
|
Packing |
Box |
|
Shipping |
Shipped by road, sea, rail |
FAQ
PCM Cable Co., Ltd. is one of the leading h-mtd manufacturers and suppliers in China. We warmly welcome you to buy advanced h-mtd in stock here from our factory. All customized products are with high quality and low price. Contact us for quotation and free sample.
