Products Description
Dual USB 3.0 D-Series Panel Mount Cable
5Gbps Per Port | USB 3.0 Male to Female | PCM-1016

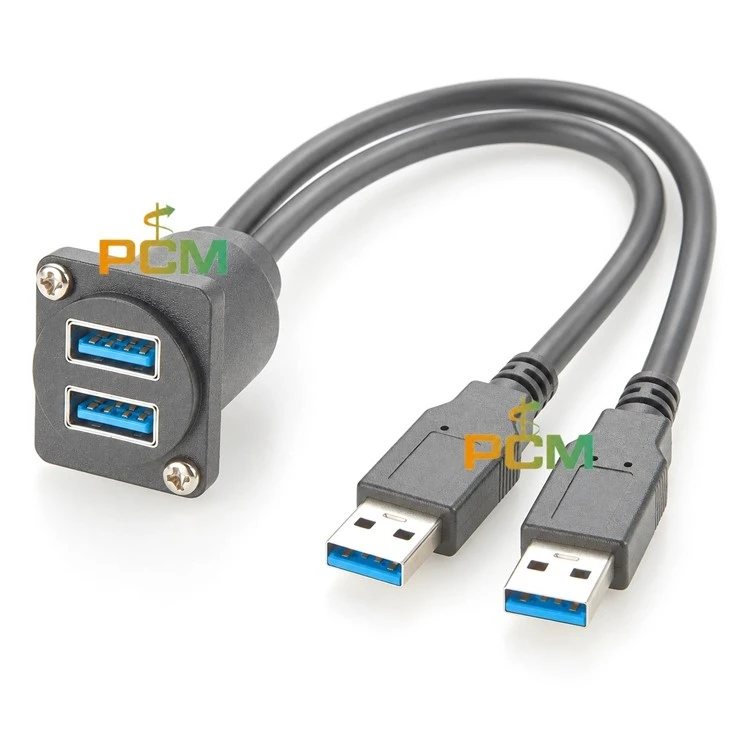

The Premier Cable PCM-1016 Dual USB 3.0 Panel Mount Cable provides two independent high-speed USB connections in a compact D-Series / XLR-format panel mounting design. It is developed for professional equipment requiring convenient external access to internal USB ports.
The assembly features 2 × USB 3.0 Type-A Male connectors to 2 × USB 3.0 Type-A Female panel ports. Each independent USB 3.0 channel supports data transmission up to 5Gbps, making it suitable for high-speed USB peripherals, control interfaces, cameras, storage devices and test equipment.
With a 30cm cable, UL2725 black PVC jacket, shielded construction and secure panel mounting, PCM-1016 is suitable for professional AV, broadcast, rack equipment, industrial computers and custom OEM systems. Cable length and assembly specifications can also be customized.
Technical Specifications
Item |
Specification |
|---|---|
| Product Name | Dual USB 3.0 D-Series Panel Mount Cable |
| Premier Cable P/N | PCM-1016 |
| Panel Format | D-Series / XLR-Format Panel Mount Style |
| Connector P1 / P3 | 2 × USB 3.0 Type-A Male |
| Connector P2 / P4 | 2 × USB 3.0 Type-A Female Panel Mount |
| Data Rate | Up to 5Gbps Per Port |
| Cable Length | 30cm / Custom Available |
| Cable Standard | UL2725 |
| Cable OD | 5.2mm |
| Cable Jacket | Black PVC |
| Connector Shell | Nickel-Plated Shell |
| Shielding | Copper Shield After Inner Molding |
| Compliance | RoHS Compliant |
| Customization | Length / Wiring / Overmold / Label / OEM & ODM |
Dual Independent USB 3.0 Channels
PCM-1016 provides two independent USB 3.0 extension channels rather than sharing one upstream connection through an integrated hub. P1 connects directly to P2, while P3 connects directly to P4.
Each channel supports USB 3.0 SuperSpeed data transmission up to 5Gbps, allowing two compatible USB devices to operate through separate host connections.
This architecture is particularly useful for equipment requiring two accessible high-speed USB ports without installing a separate USB hub inside the enclosure.
Key Product Advantages
Dual USB 3.0 Ports
Two USB 3.0 Type-A male-to-female channels provide convenient dual-port USB extension from inside the equipment to the external panel.
Up to 5Gbps Per Port
Each independent USB 3.0 channel supports data rates up to 5Gbps, suitable for high-speed data transfer and USB 3.0 peripherals.

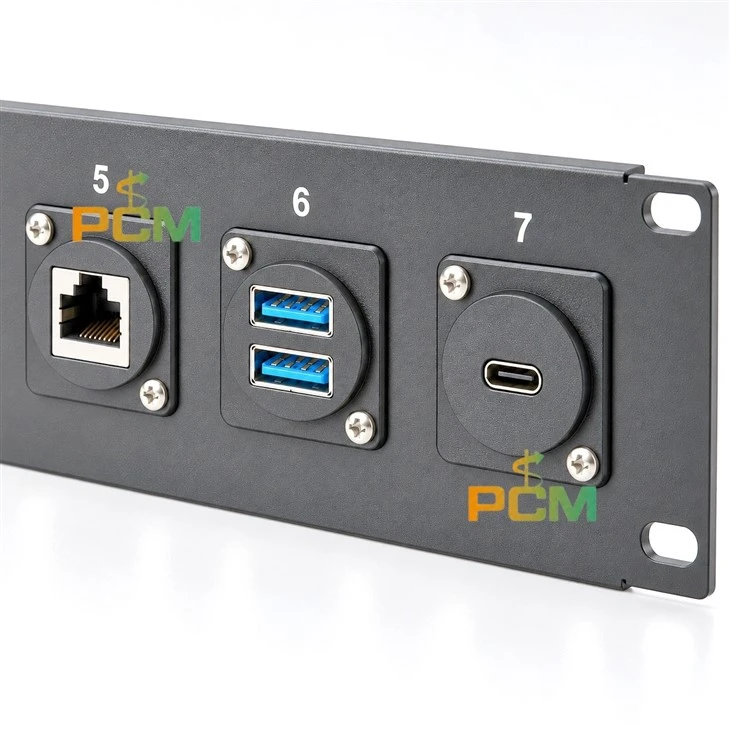

D-Series / XLR-Format Panel Mount
Compact panel interface is designed for equipment using the widely adopted D-Series style panel mounting format.

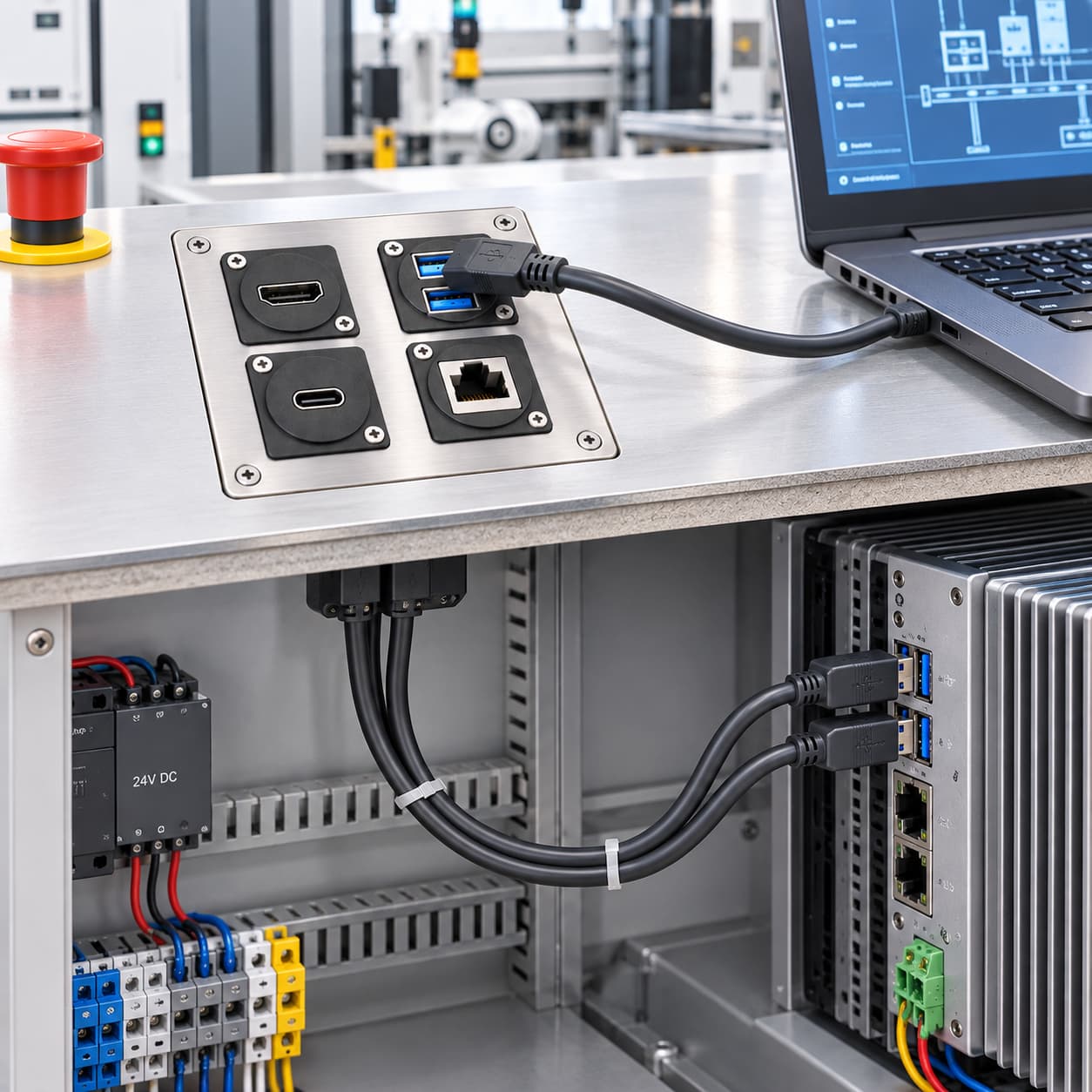

Applications
Additional Application Areas
Professional Audio Equipment • AV Control Systems • Broadcast Equipment • 19-Inch Rack Systems • Industrial PCs • Test & Measurement Equipment • Custom OEM Equipment

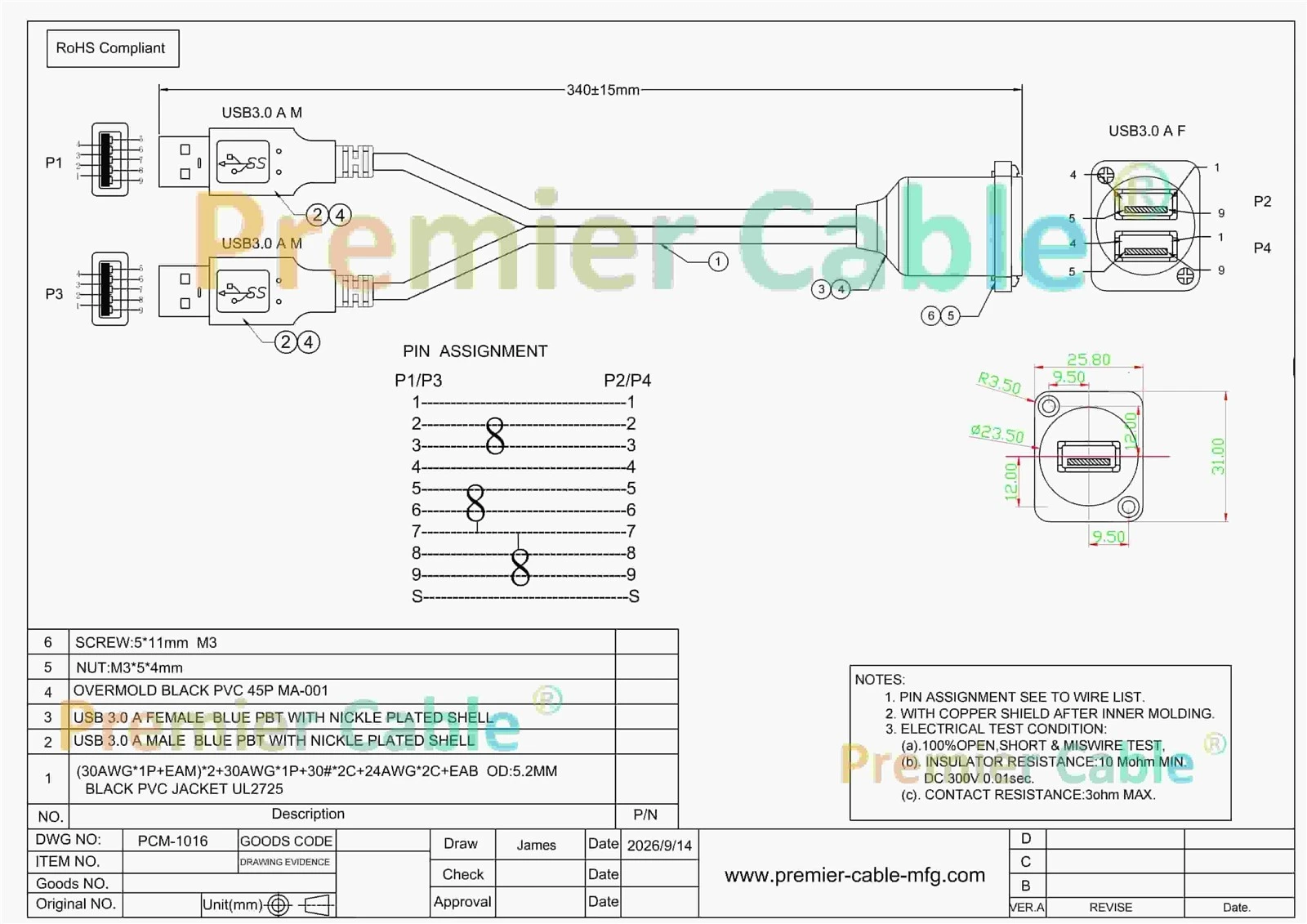

Product Drawing
FAQ
What is the PCM-1016 Dual USB 3.0 Panel Mount Cable?
PCM-1016 is a dual USB 3.0 extension cable featuring two Type-A male connectors and two Type-A female ports integrated into a D-Series / XLR-format panel mounting assembly.
Does each USB port support 5Gbps?
Yes. Each independent USB 3.0 channel supports data transmission up to 5Gbps when used with compatible USB 3.0 host and peripheral devices.
Is PCM-1016 a USB hub?
No. PCM-1016 provides two independent USB extension channels. P1 connects to P2 and P3 connects to P4 without an integrated USB hub.
Can the cable length be customized?
Yes. The standard version uses an approximately 30cm cable, while custom lengths can be produced according to equipment requirements.
Where is this USB panel mount cable typically used?
Typical applications include professional audio and AV equipment, broadcast systems, rack equipment, industrial PCs, test equipment and custom electronic enclosures.
Can Premier Cable customize PCM-1016 for OEM projects?
Yes. Premier Cable supports customized cable length, wiring, overmolding, labeling, panel configurations and OEM/ODM cable assembly requirements.
