Products Description

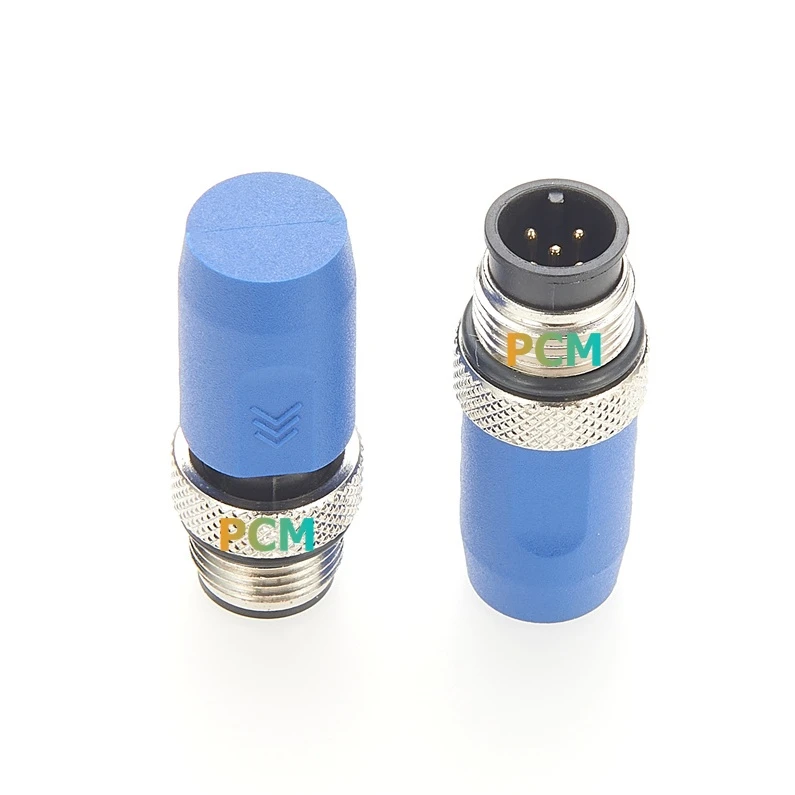

The NMEA 2000 / N2K / DeviceNet / CANopen Micro-Change Terminator introduced by PCM Cable is an M12 connector featuring an internally molded, integrated 120-ohm resistor. The PCM-HD-0078 is typically installed at both ends of the drop lines within DeviceNet, PROFIBUS DP, CANopen, and NMEA 2000 networks. Proper termination helps ensure signal integrity throughout the entire cable run. In NMEA 2000 networks, terminators play a crucial role in safeguarding signal quality and stability, while also facilitating the identification and configuration of network devices. Consequently, the correct installation and configuration of terminators are of paramount importance when building an NMEA 2000 network.
Specification
|
Product name |
M12 Terminating Resistor for NMEA2000 |
|
DWG No. |
PCM-HD-0078 |
|
Connector A |
M12 5Pin A-Code Male |
| Resistor | 120Ohm 1/4W |
Drawing
