Modern vehicles - especially Chinese EV platforms such as BYD's Dynasty Ocean series - pack more cameras than ever: front dashcam, rearview camera, 360° surround-view, and side near-range cameras. Each camera needs two things at the same time: a high-bandwidth coaxial video feed carried over a FAKRA RF connector and a 12V power supply two wires.

FAKRA Fachkreis Automobil is the de-facto automotive RF connector standard used worldwide for GPS, AM FM, TV tuner, and - increasingly - analog LVDS camera video. Within the FAKRA family, the Z-coded universal housing is the service-friendly variant: its mechanical coding is designed to mate across color bands, which is why it is shipped as a generic replacement extension harness for retrofit work.

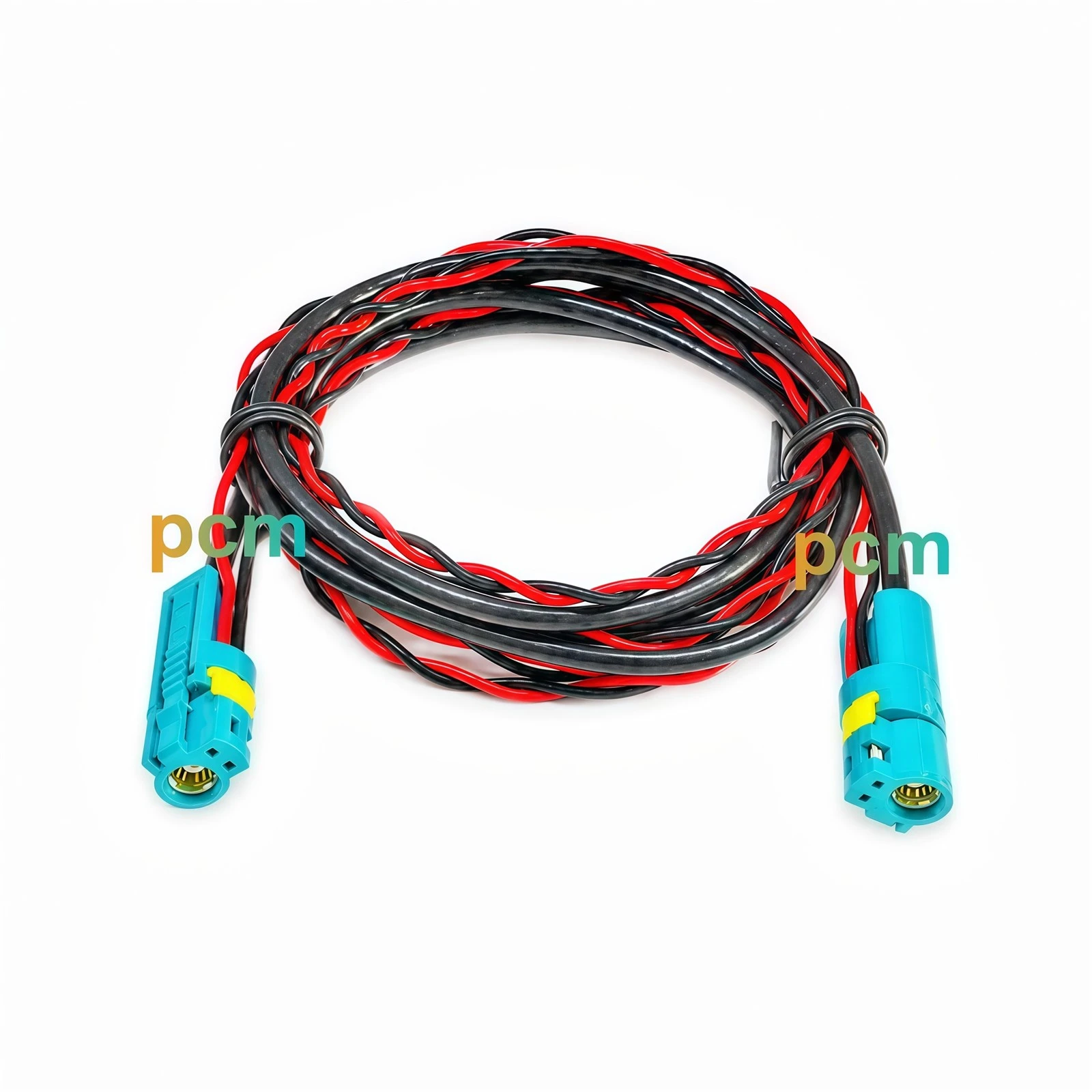

Whether you are relocating the factory dashcam on a BYD model, adding a rearview camera to an aftermarket display, or extending a surround-view camera harness to a new head unit, this FAKRA + 2-power extension is the single-cable answer: video on the FAKRA coax, 12V on the red/black pigtail, both ends pre-terminated in water-blue Z-coded FAKRA female connectors. Pick the length that matches your routing run.

Product Specifications

Item	Specification
Color Classification	Water blue
Housing Color	Water blue cyan with yellow color-coding band
Cable Jacket	Round, black, combined coax + twin-power layout
Connector Gender	FAKRA female to FAKRA female both ends identical
Connector System	FAKRA, Z-coded universal, female jack on both ends
Connector System	FAKRA, Z-coded universal, female jack on both ends
Video Path	FAKRA coaxial 50 Ω - camera video CVBS LVDS-over-coax
Power Path	2-pin pigtail: red 12V, black GND, running parallel to the coax
Length Options	0.1 m, 0.5 m, 1 m, 1.5 m, 2 m, 3.5 m custom lengths on request
Use Environment	In-vehicle electronic equipment interior camera & head-unit routing
Product Type	Automotive camera extension harness FAKRA video 2-pin 12V power
Custom Product	Yes - built to order; no return exchange unless a quality defect is found
Vehicle Fitment	BYD dashcam rearview surround-view camera systems universal Z-type

Available Configurations

Version 1

One Cable, Two Jobs - FAKRA Video + 12V Power, Pre-Terminated at Both Ends

Bullet Points

• Water-blue FAKRA Z-coded female connectors on both ends - mates directly to BYD factory dashcam camera pigtails and head-unit FAKRA jacks.

• Red +12V black GND 2-pin power pigtail runs parallel to the coax - camera power extended on the same harness, no second cable to fish through the trim.

• 6 lengths from 0.1 m to 3.5 m - bench jumpers, in-cabin runs, and door trunk-to-head-unit extensions covered.

• FAKRA coax carries the camera video signal rearview, dashcam, surround-view end-to-end with no splice in the middle.

Features

• Single-harness routing replaces two separate cables video coax + power wires - cleaner install, fewer zip-ties, lighter dashboard trim removal.

• Z-coded universal FAKRA housing works as a generic service replacement across water-blue yellow-band factory harnesses on BYD camera systems.

• Factory-terminated ends - no hand crimping of FAKRA contacts, which is the 1 cause of intermittent video no-image faults.

• Pre-tested for video continuity and power-line continuity before dispatch; custom lengths and connector combos built to your drawing.

Applications

Application	How It Is Used	What It Enables
R&D bench camera bring-up	0.1 m , 0.5 m lengths make a short bench jumper between a camera module and a FAKRA-equipped test head unit.	Fast bench connection without soldering a coax pigtail.
Rearview camera to aftermarket display	Run the FAKRA video 12V power from the tailgate camera to a new Android aftermarket head unit.	One routed cable instead of separate video RCA and 12V trigger wires.
360° surround-view camera extension	Bridge a factory surround-view camera pigtail out to a replacement head unit that expects a FAKRA input.	Avoids custom coax splicing that loses the 50 Ω impedance the camera video needs.
Aftermarket camera retrofit shops	Use as a generic extension when the factory pigtail is too short for a new mirror, screen or bracket.	Standard stock item - shop keeps 0.5 m 1 m 2 m on the shelf, installs same-day.
BYD dashcam relocation	Extend the factory FAKRA camera pigtail and 12V feed when moving the dashcam to a new bracket / behind the rearview mirror.	Reuse the OEM camera on a relocated mount without cutting the factory harness.

Closing line: Because the FAKRA contact and the 12V power lead are terminated together at the factory, you get both video and power in one plug - the most common no image no power fault on BYD camera retrofits is eliminated before the trim goes back on.

Professional Services

Custom product note: built-to-order; please confirm length, connector gender and vehicle application before ordering - no returns unless a manufacturing defect is found.

Length customization: 0.1 m–3.5 m in stock; non-standard cut lengths built to your drawing on request.

Engineering docs: Datasheet, pinout red 12V black GND and connector mating info available on request.

Quality before dispatch: 100% video-coax continuity + power-line continuity tested on every harness; test reports on request.

OEM & bulk support: aftermarket chains, dashcam installers and retrofit workshops get volume pricing and private-label packaging.

Connector customization: FAKRA male female, different color-band coding, and FAKRA-to-RCA, FAKRA-to-JVC variants quoted on request.

Product FAQ

Q1: Which length should I order?

0.1 m for bench-to-device jumpers; 0.5 m for short in-camera-gap extensions; 1 m–1.5 m for head-unit-to-dashcam runs; 2 m–3.5 m for tailgate trunk-to-head-unit or door-to-ECU routing. When in doubt, take the next length up - excess can be coiled neatly, but a harness that is too short cannot be extended in the field.

Q2: Is this FAKRA male or female?

FAKRA female jack on both ends, water-blue housing with yellow band. It extends a male-to-male factory pigtail or mates between two female FAKRA panels sockets - confirm your vehicle's connector gender against the photos before ordering.

Q3: What do the red and black wires do?

Red 12V power feed, black = ground GND. They run parallel to the FAKRA coax so the camera gets both video and 12V power from one routed harness. Connect red to a switched 12V source and black to chassis ground at the head-unit, camera end.

Q4: Which vehicles is this harness for?

It is built for BYD dashcam, rearview and surround-view camera systems that use a water-blue FAKRA Z-coded camera pigtail. It is the universal Z-type replacement extension; please compare your factory connector shape and color band with the listing photos before ordering.
