Compact MATE-AX RF Connectivity for Automotive Systems

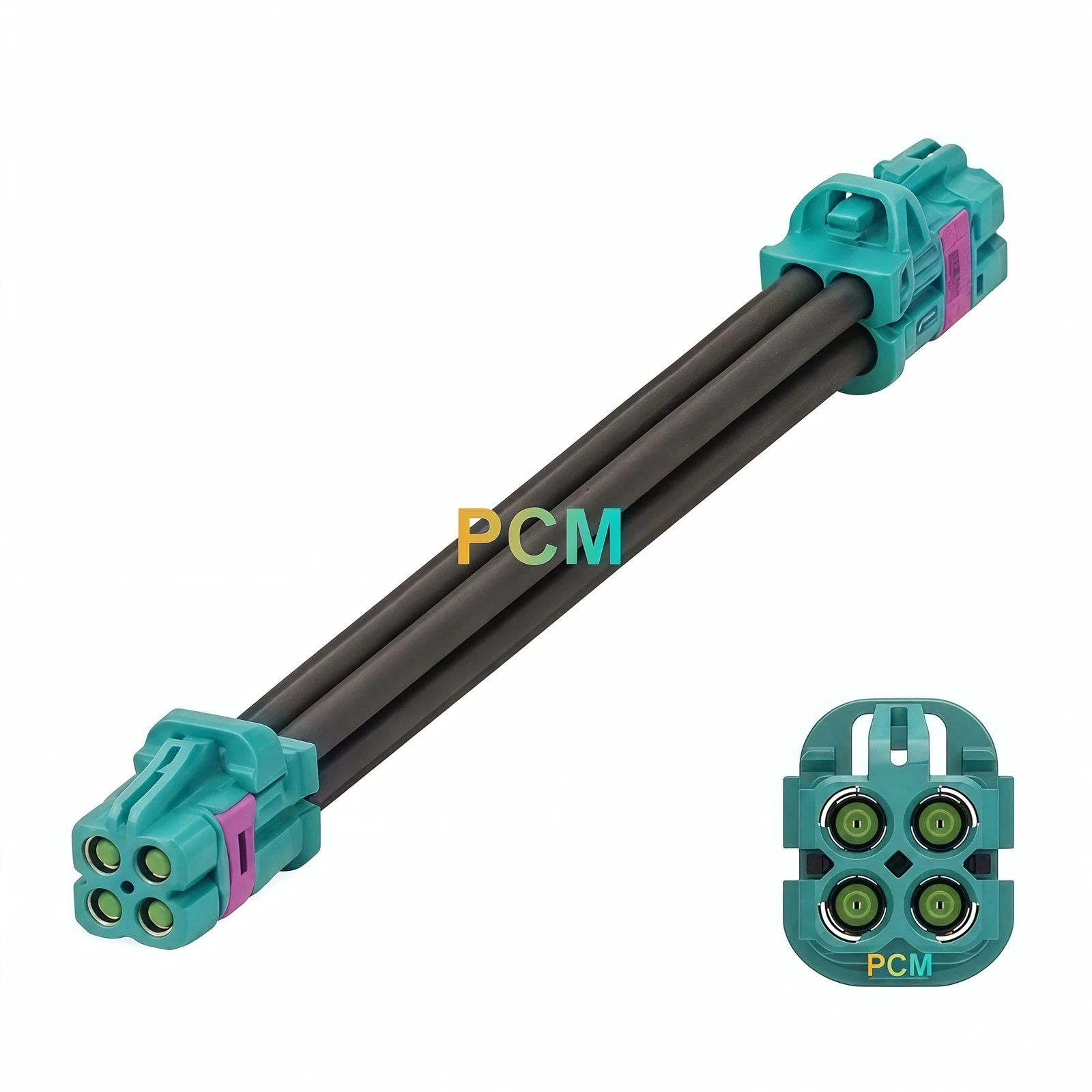

The MATE-AX Z Code Female to Female RF Cable provides a compact 50Ω coaxial connection for automotive RF and high frequency communication systems. Straight MATE-AX female connectors on both ends support space efficient integration into vehicle electronic modules and coaxial architectures.
Designed for reliable high frequency signal transmission, the cable is suitable for automotive antennas, telematics, V2X and other RF connectivity applications. Cable length, connector configuration and coaxial cable options can be customized for OEM harness integration and vehicle electronic system requirements.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Automotive RF Coaxial Cable Assembly |
| Connector A | MATE-AX Female / Jack |
| Connector B | MATE-AX Female / Jack |
| Connector Orientation | Straight to Straight |
| Coding | Z Code |
| Impedance | 50 Ω |
| Cable Type | RTK 031 |
| Frequency | Up to 9 GHz |
| Cable Length | 600 mm |
| Cable Outside Diameter | 3.3 mm |
| Cable Jacket | PVC |
| Cable Color | Black |
| Operating Temperature | -40°C to +105°C |
| Custom Cable Length | Available |
Engineered for Reliable Vehicle RF Integration
The MATE-AX Z Code Female to Female RF Cable combines a compact connector profile with a 50Ω coaxial structure, making it well suited for high-frequency signal connections where installation space is limited. The straight connector design supports neat cable routing inside vehicle electronic modules and wiring systems.
Built for automotive RF connectivity, this cable can be integrated with antenna systems, telematics units, V2X equipment, and other vehicle communication devices. Custom cable lengths and assembly configurations are available to accommodate different module locations, harness layouts, and OEM integration requirements.
Typical Applications
Product Features
Compact MATE-AX Interface
The compact MATE-AX connector profile supports space-efficient installation and cable routing in automotive electronic systems.
Z Code Connection
Z-coded connector configuration helps ensure correct mating with corresponding MATE-AX interfaces.
50Ω Coaxial Design
Maintains the standard impedance required for reliable automotive RF signal transmission.
Automotive Temperature Range
Designed for reliable operation across demanding temperature conditions found in automotive electronic environments.
Why Choose Premier Cable
Custom RF Cable Solutions
PCM provides customized MATE-AX cable assemblies with flexible cable lengths and configurations to match different automotive wiring requirements.
Precision Cable Assembly
Controlled assembly processes help maintain consistent connector fit, cable routing, and reliable RF connections for automotive electronic systems.
OEM & ODM Support
From samples and prototype development to volume production, PCM supports customized projects for automotive electronics manufacturers and system
integrators.
Flexible Production Options
Different cable lengths, connector combinations, labeling, and packaging options can be tailored to specific project and purchasing requirements.
Quality-Focused Manufacturing
PCM focuses on stable workmanship and consistent production control to support dependable cable assembly performance across production batches.
Engineering Support
Our team can assist with connector selection, cable configuration, drawings, and assembly requirements to help customers move efficiently from design to production.
Product FAQ
Q1: What makes this MATE-AX RF cable suitable for automotive applications?
The cable combines a compact MATE-AX interface with a 50Ω coaxial design, providing reliable RF connectivity while helping reduce installation space in automotive electronic systems.
Q2: Can PCM customize the cable for different vehicle projects?
Yes. PCM can customize cable length, connector configuration, labeling, and other assembly details according to wiring layouts, module locations, and specific project requirements.
Q3: What should I confirm before ordering this MATE-AX cable?
We recommend confirming the connector coding, interface type, cable length, quantity, and required electrical performance so PCM can provide an assembly that matches your application.
Q4: Can PCM support prototype samples before volume production?
Yes. Sample and prototype requirements can be supported for fit and system evaluation before larger orders, helping customers verify the cable configuration for their equipment.
Q5: What support does PCM provide for OEM cable assembly projects?
PCM supports customers from cable configuration and drawing confirmation through sample development and volume production, providing a more efficient path for customized automotive RF cable projects.
