Products Description

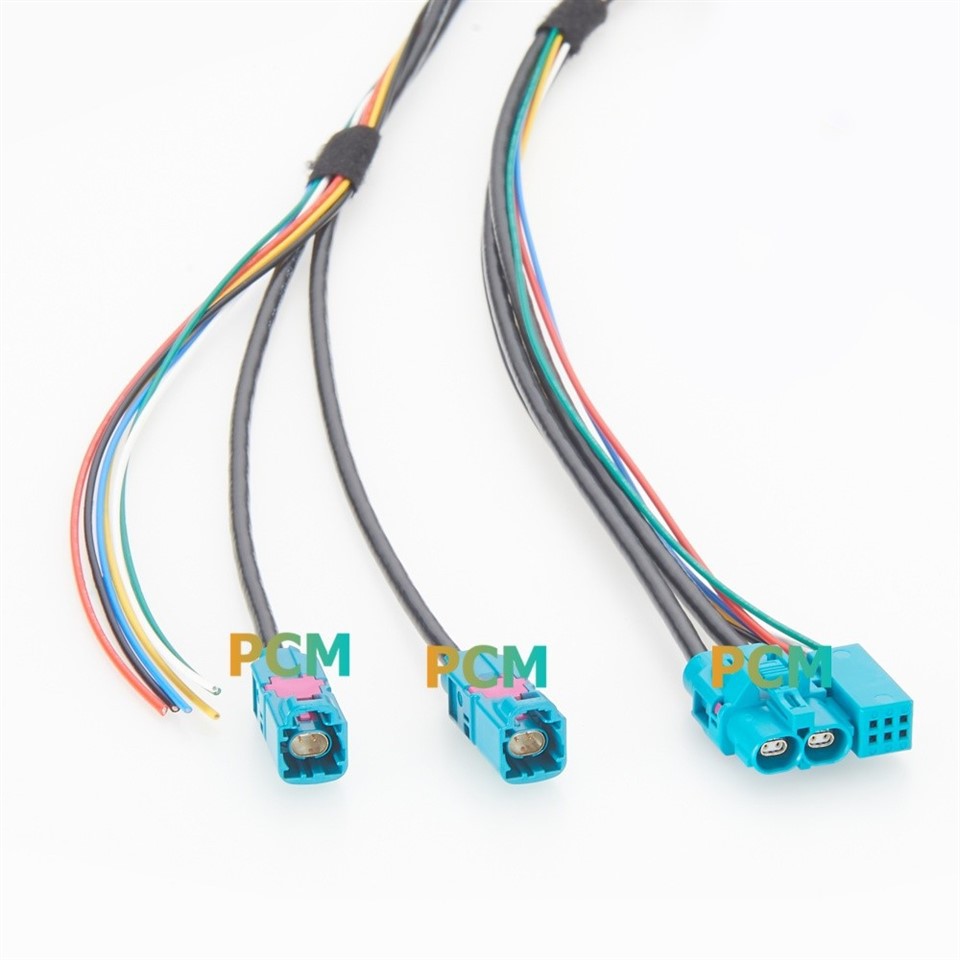

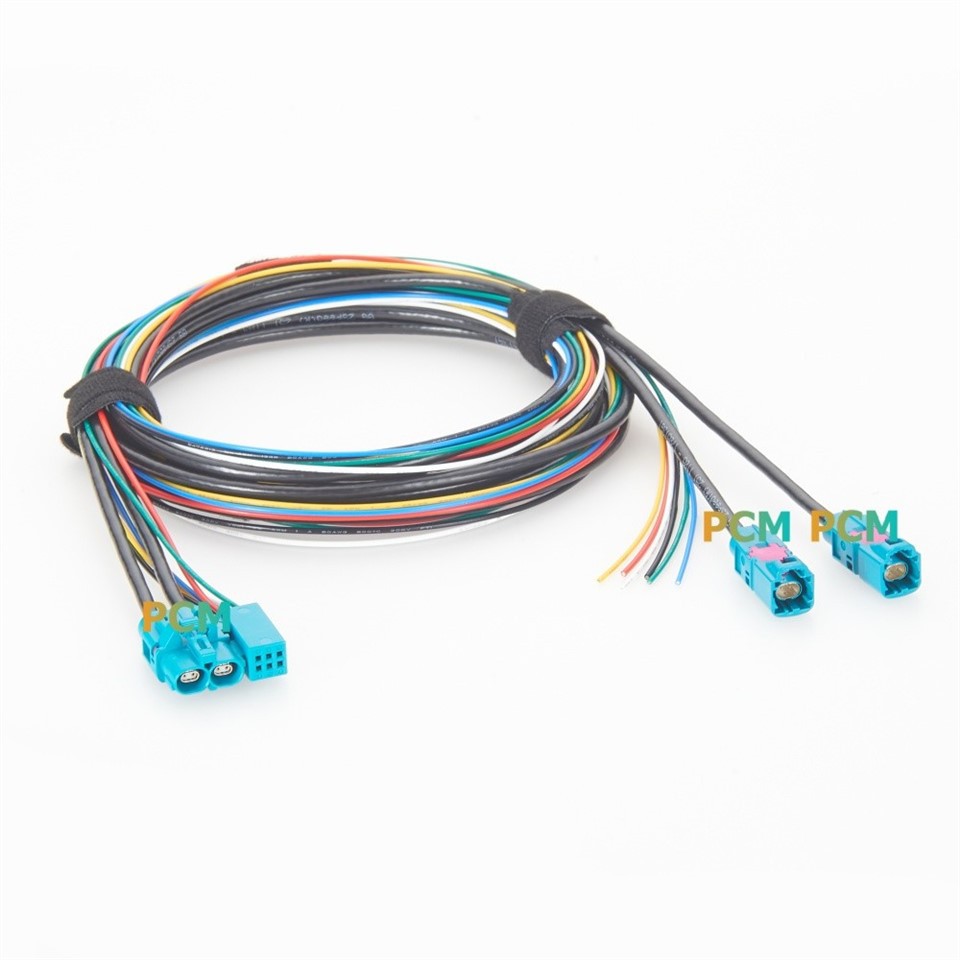

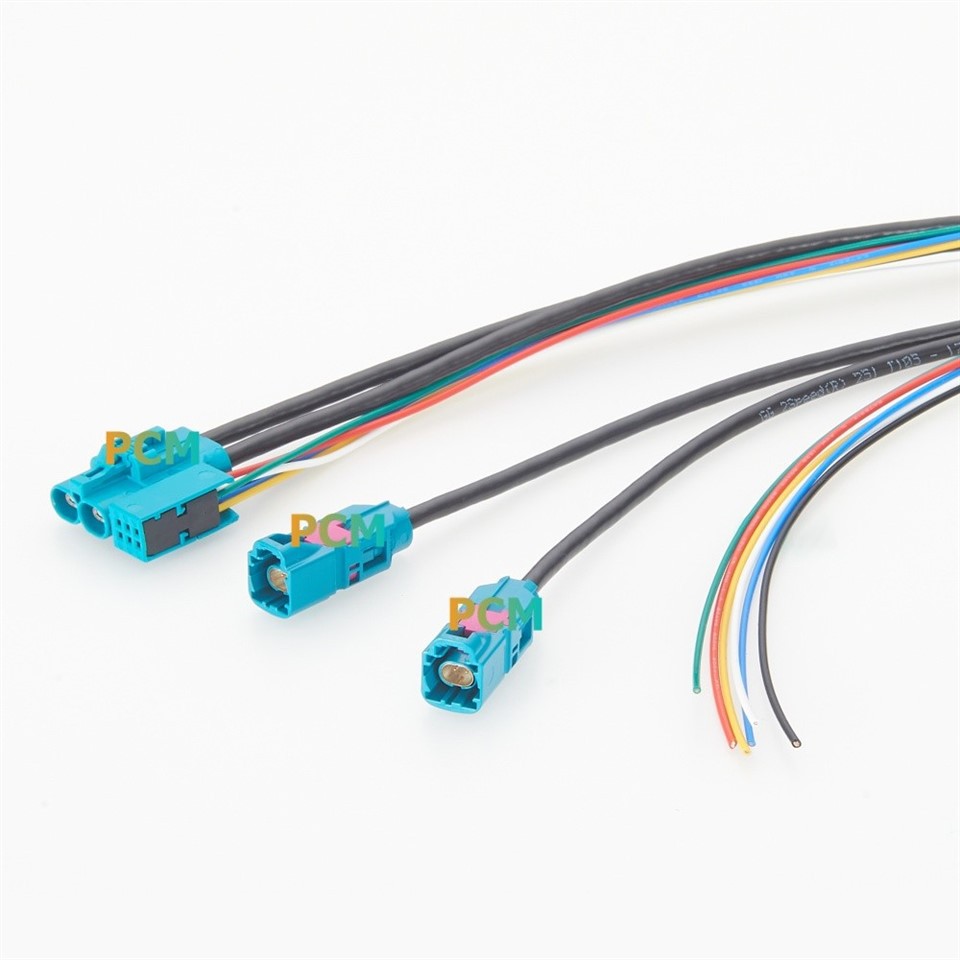

This high-performance automotive cable harness, based on the Rosenberger H-MTD+ Powerpin architecture, features a Dual Port H-MTD+ Z Code female connector (99K1HG-1CAZ5-Z)-which integrates 6-pin MQS contacts for low-voltage power supply-and an H-MTD Z Code male connector (E6S10A-1CAZ5-Z). Incorporating built-in 20 AWG 2-core power cables and 22 AWG 4-core high-speed data cables, and utilizing GG 2Speed 251 automotive-grade Ethernet cabling, it enables the integrated transmission of both power and data. The PCM-ZC-0141 delivers exceptional signal integrity and EMC immunity, thereby reducing harness complexity, optimizing spatial layout, and making it ideally suited for high-speed in-vehicle communication systems such as ADAS and LiDAR.

Specification
| Product Name | Rosenberger H-MTD Powerpin Automotive Cable |
| Part No. | PCM-ZC-0141 |
| Connector A | Dual Port H-MTD, 6 Pin MQS contacts, 99K1HG-1CAZ5-Z |
| Connector B | 2 Pin, Z Code, Male Plug E6S10A-1CAZ5-Z |
| Wire | GG 2Speed 251 |
| Cable Length |
2m |
Drawing
