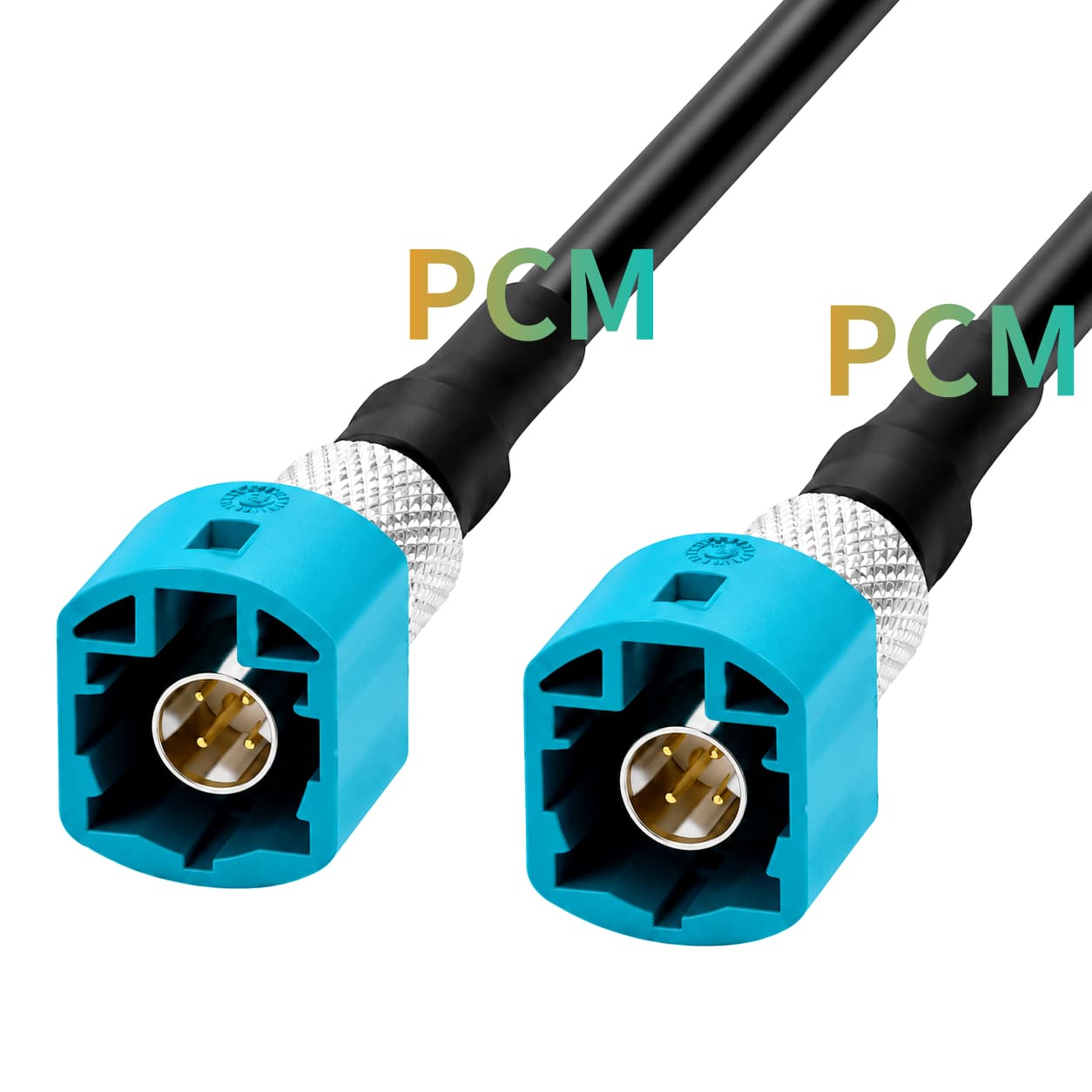

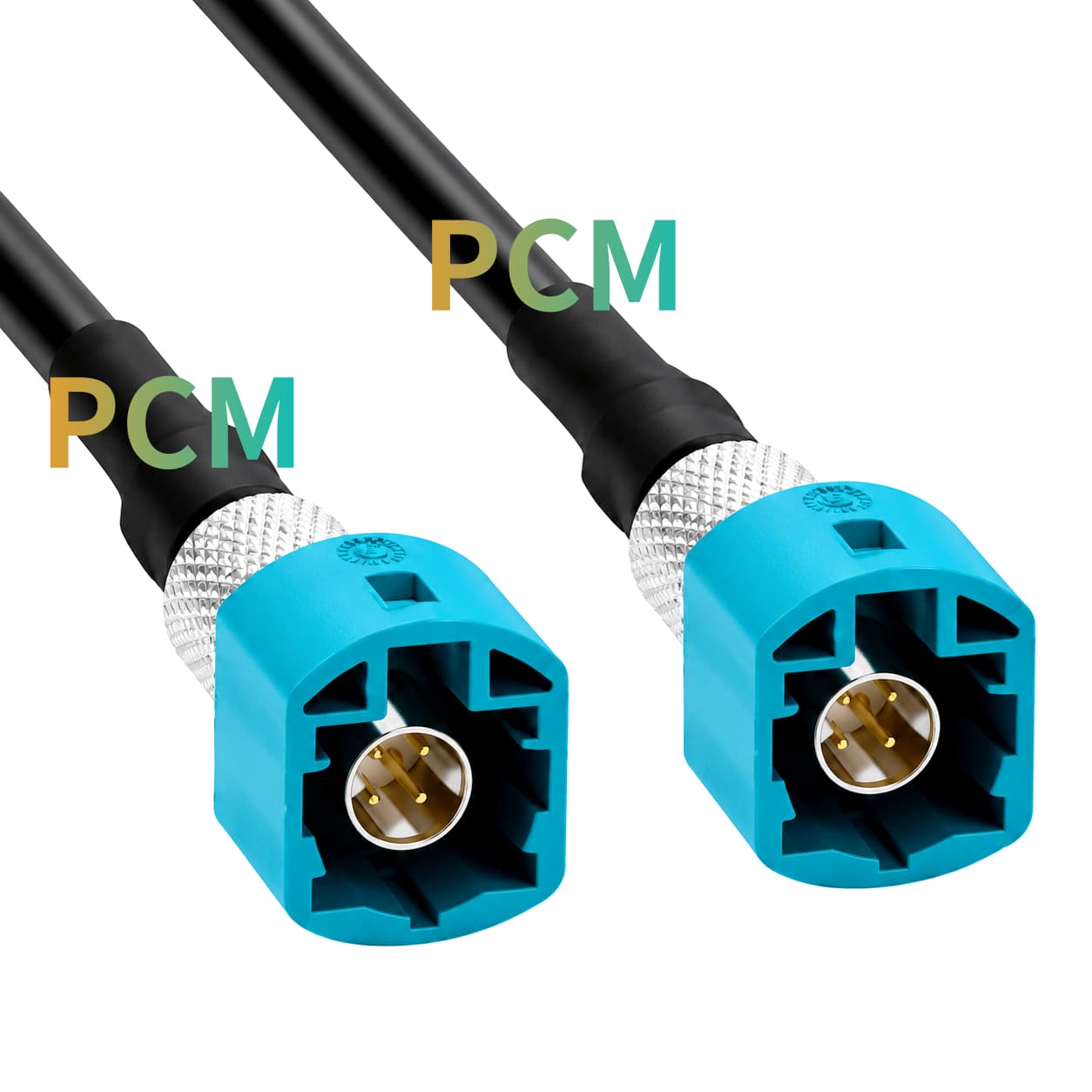

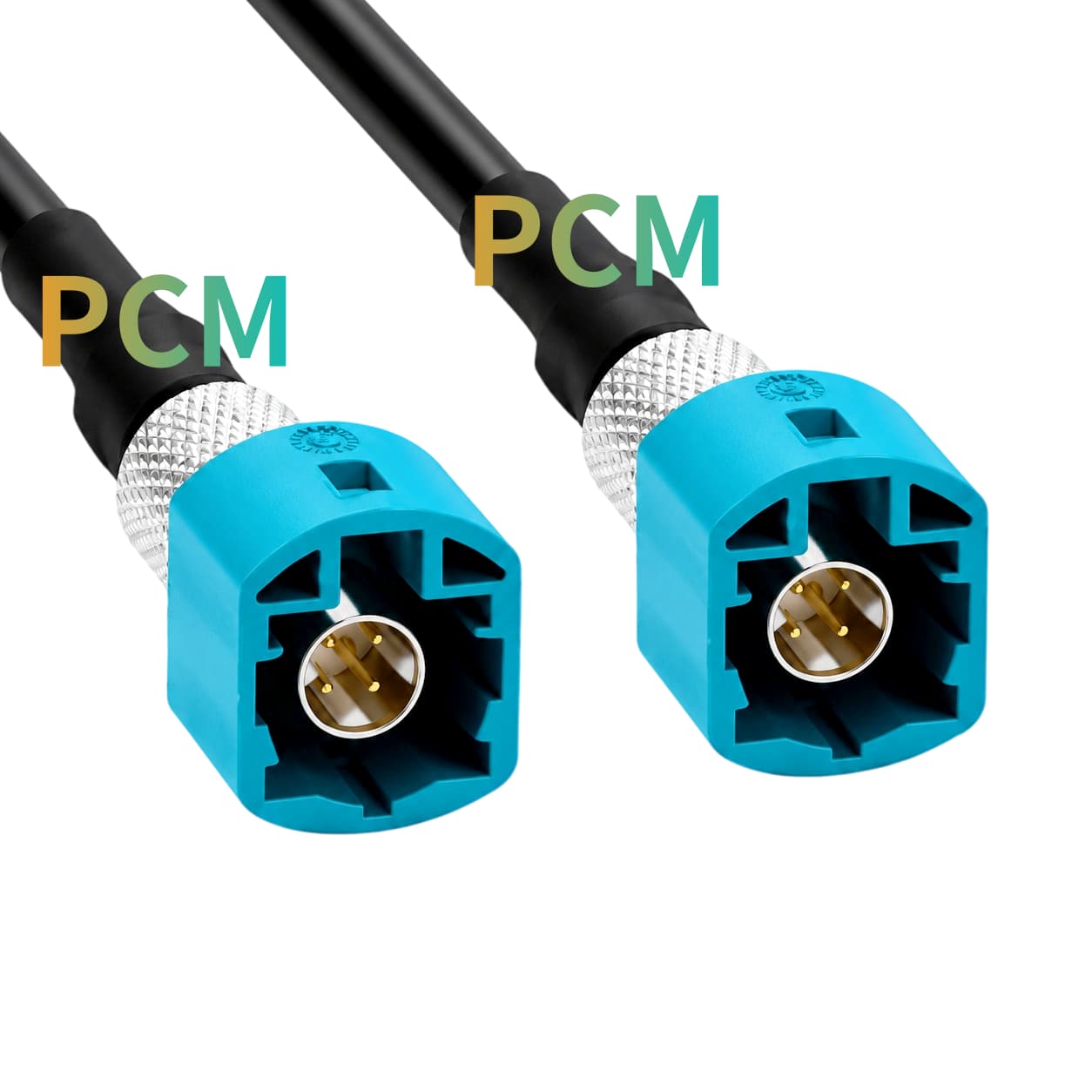

This HSD reverse male-to-male cable assembly features a black cable with blue HSD male connectors at both ends. It is compatible with D4S10A-400L5-Z. The dual male connector structure is suitable for specific connection scenarios where both ends require corresponding male configurations; actual applicability depends on the interface design of the accompanying equipment.

HSD is a series of connectors designed for high-speed data connections in automotive electronics. Its impedance control, shielding design, and mechanical coding features help meet the requirements of corresponding systems regarding signal integrity and connection reliability.

For automotive wire harness manufacturers, electronic equipment manufacturers, and system integrators, pre-fabricated cable assemblies help standardize interface configurations at both ends and reduce on-site termination work.

This product establishes a cable connection between an HSD 4-pin female interface and an H-MTD female interface. Depending on the validated system design, it can carry the specified high-speed data signals. The supported signal types and transmission performance must be confirmed against the cable assembly specifications and host-device requirements.

A pre-assembled cable combines both connectors and the interconnecting cable into one manageable component. This simplifies harness assembly, interface identification, spare-parts procurement, and replacement. For automotive electronics manufacturers and harness integrators, it also helps standardize cable length, connector configuration, and inspection requirements.

c1559368-d6a2-4808-bb94-fee5729e96d8 1 1

Product Features

Dual-Male Configuration.

Both cable ends use male connectors, addressing specific interface-gender requirements. This configuration is suited to projects with clearly defined equipment interfaces and helps reduce ambiguity when selecting the cable assembly.

Pre-Assembled Cable Assembly

The cable and both connectors are managed as an integrated assembly, simplifying standardized part numbering, cable-length records, and inspection requirements.

Designed for Automotive High-Speed Data Interconnection

The HSD family is designed primarily for high-speed data interconnection and incorporates features such as impedance control, shielding, and mechanical coding.

How Do You Verify HSD Male-to-Male Compatibility ?

First, identify the connector types required by the equipment, then check the complete part numbers, mechanical coding, contact arrangement, and available installation space at both ends. Next, verify the signal assignments, target protocol, and cable construction against system requirements.

PCB plugs and cable-end connectors must be distinguished. Even when they belong to the same HSD family, they are not necessarily assembled or mated in the same way. Refer to official interface drawings and manufacturer mating documentation.

Product FAQ

Does Matching Connector Coding Guarantee Interchangeability ?

Not necessarily. Mechanical coding is an important factor in connector mating, but interface type, connector version, contact arrangement, mounting method, and electrical requirements must also be considered.

Can Two Z-Coded HSD Male Connectors Connect Directly ?

Coding alone cannot establish compatibility. Whether two male connectors can be connected depends on their actual interface structures and the system connection scheme. Drawings should establish whether matching female interfaces, an adapter, or another connection component is required.

Is This Cable Suitable for Automotive Camera Systems ?

It can be evaluated as a candidate interconnect, provided that the camera interface, cable specifications, video protocol, and complete-link performance are verified. Final suitability depends on meeting the equipment requirements.

Does Premier Cable Offer Wholesale and OEM Services ?

Premier Cable can evaluate connector integration, custom cable assemblies, OEM manufacturing, and volume procurement according to project requirements.
