Product Specifications
| Parameter | Details |
|---|---|
| Main Housing Color | Blue |
| Connector Orientation | Straight |
| Custom Options | Cable Length |
| Branch Gender | Female or Male |
| Common Contact Layout | Two Rows of Two |
| Branch Construction | Standard or Sealed |
| Cable Length | 0.5 m, 1 m, 1.5 m, 2 m, 3 m |
| Common Connector | Mini FAKRA Four Cavity Female |
| Branch Connector | Four FAKRA Single Cavity Connectors |
| Product Type | Four Channel RF Coaxial Cable Assembly |

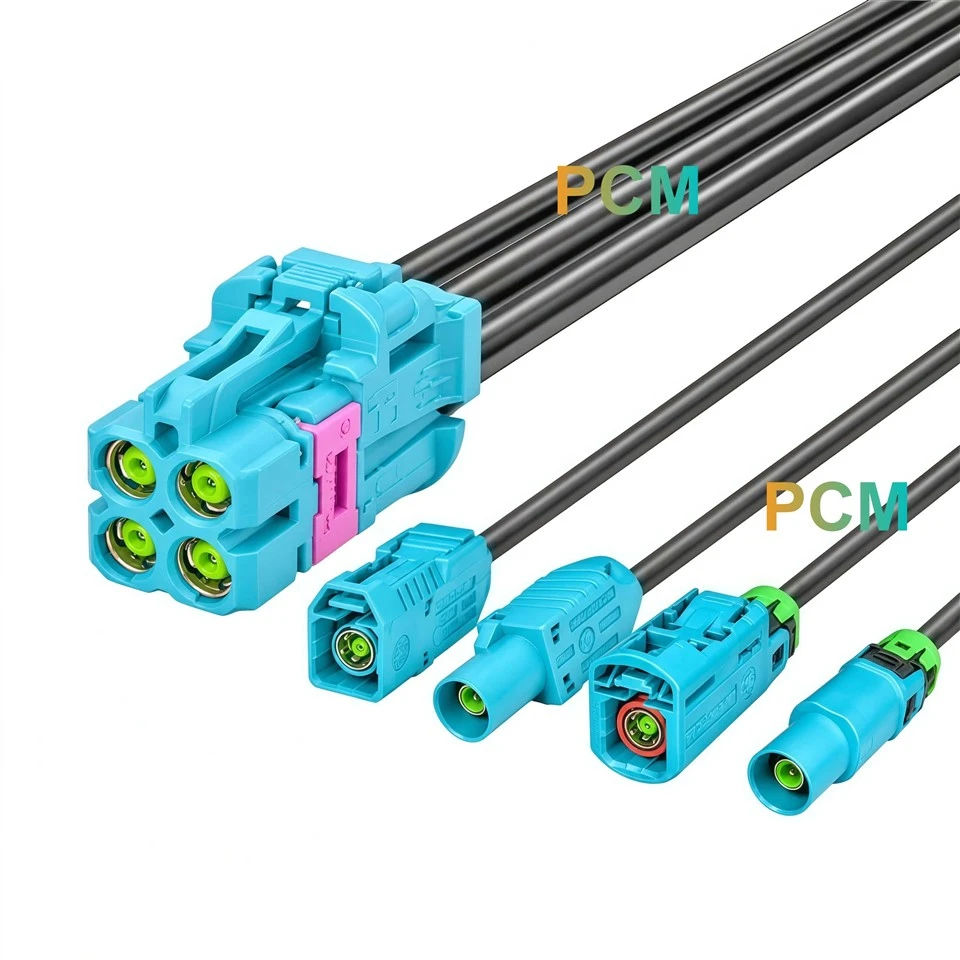

Available Configurations

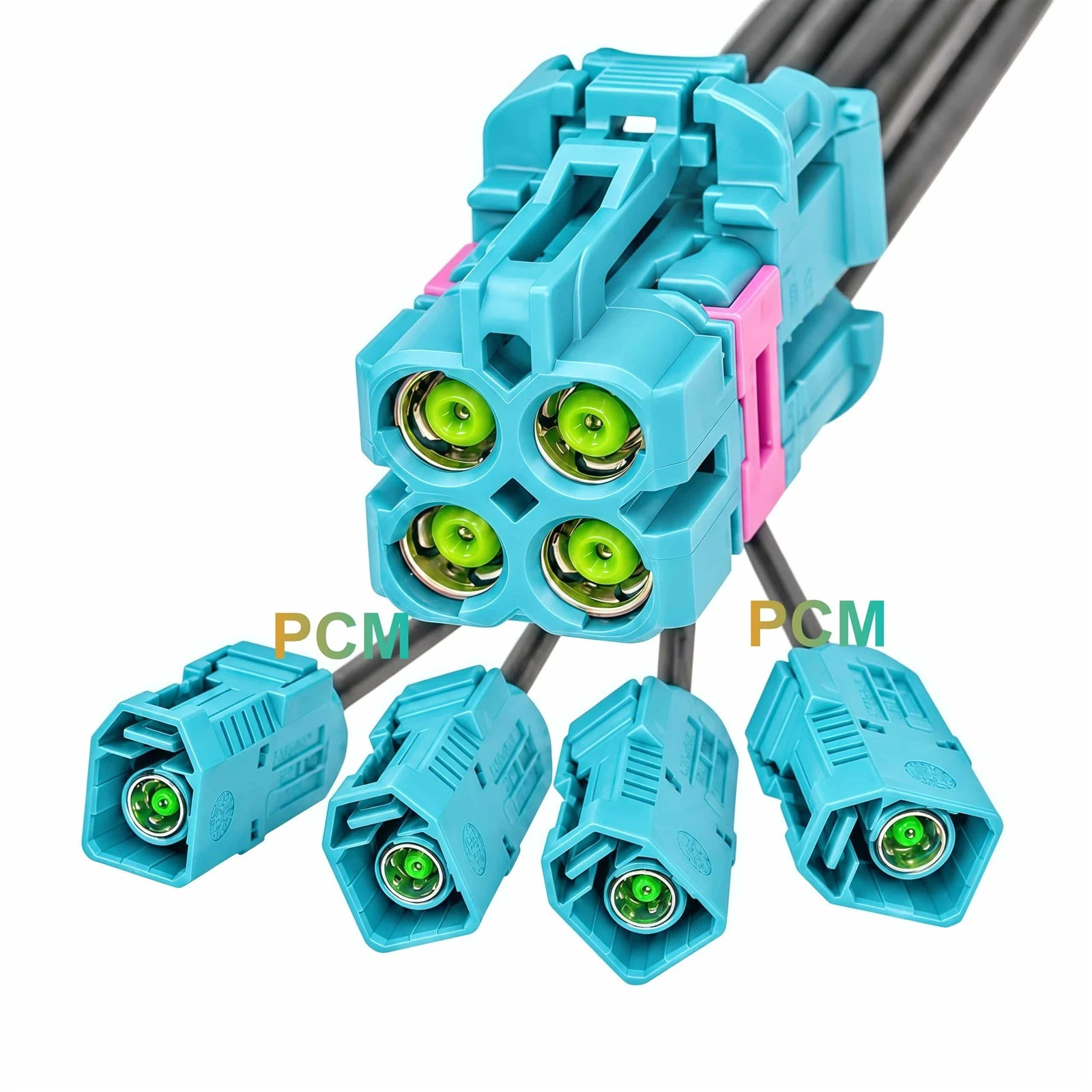

Mini FAKRA to Four FAKRA Straight Female Cable
Connection Structure
One Mini FAKRA four cavity female connector connects to four standard FAKRA straight female connectors.
Unique Difference
Uses female branch ends with standard housings, without the additional sealing components shown in Version 3.
Suitable Installation
Protected equipment connections requiring four matching FAKRA male interfaces and axial cable exits.

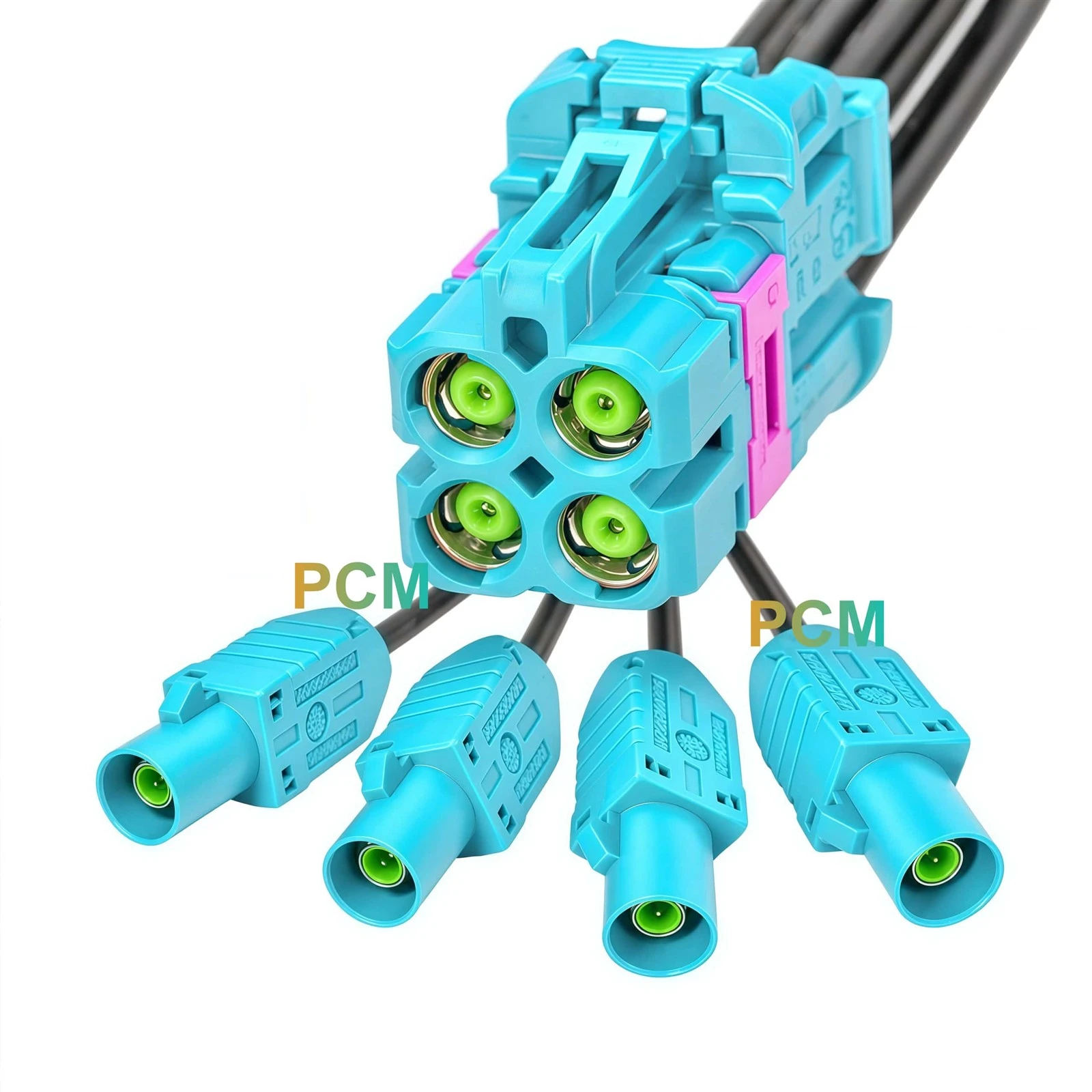

Mini FAKRA to Four FAKRA Straight Male Cable
Connection Structure
One Mini FAKRA four cavity female connector connects to four standard FAKRA straight male connectors.
Unique Difference
Provides male terminations on all branches for connection to female ended leads.
Suitable Installation
Enclosed harness junctions where four existing female connections must be brought to a grouped equipment interface.

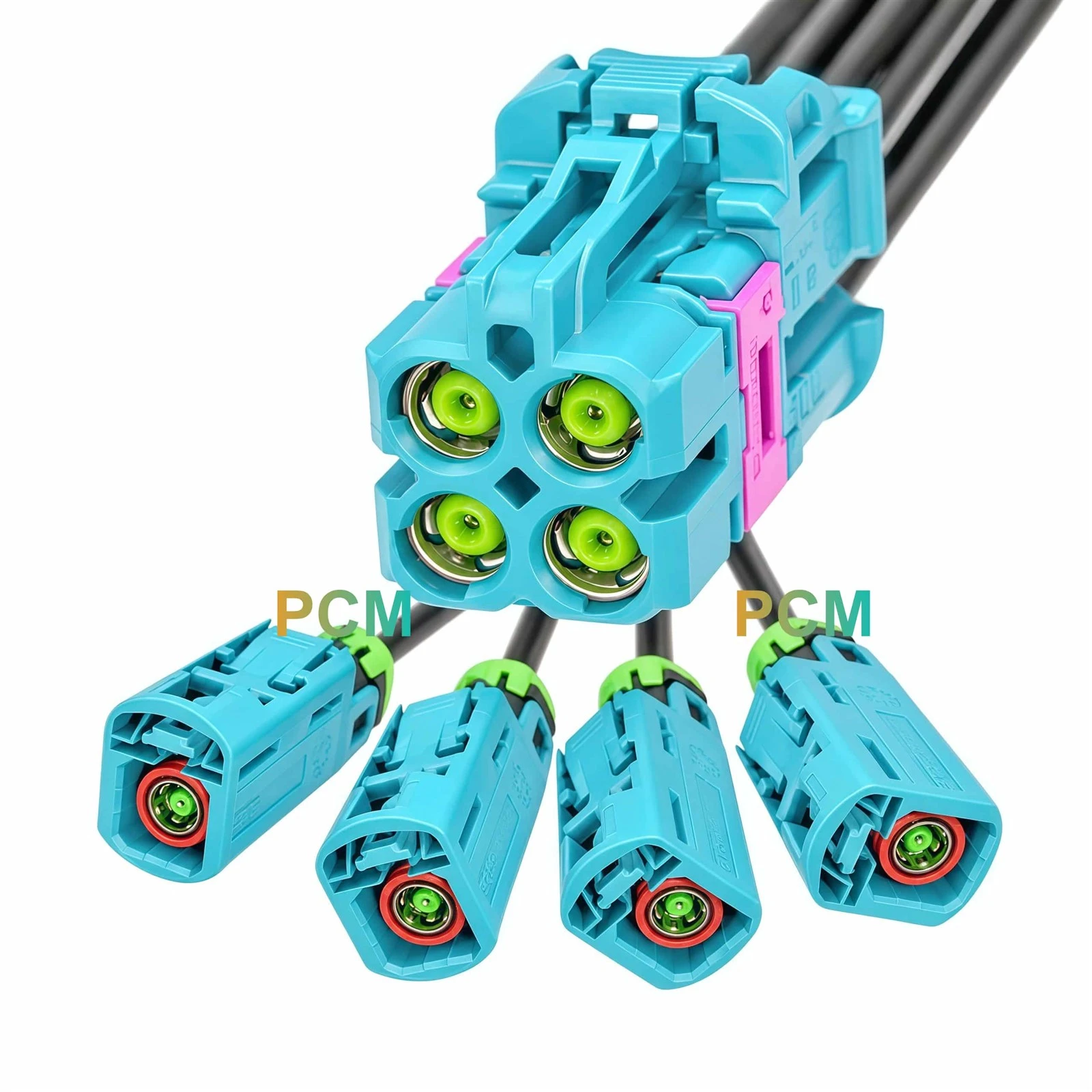

Mini FAKRA to Four Sealed FAKRA Straight Female Cable
Connection Structure
One Mini FAKRA four cavity female connector connects to four sealed FAKRA straight female connectors.
Unique Difference
The branch ends include visible front sealing rings and additional rear components.
Suitable Installation
Connection points requiring sealed female branch terminations, with environmental protection for the common end assessed separately.
Mini FAKRA to Four Sealed FAKRA Straight Male Cable
Connection Structure
One Mini FAKRA four cavity female connector connects to four sealed FAKRA straight male connectors.
Unique Difference
Combines male branch interfaces with the sealed termination structure shown in the supplied images.
Suitable Installation
Connections to matching sealed female leads where each branch continues along a separate routing path.
Applications & Customer Value
Camera Harness Integration
A camera installation may place individual connection points around the vehicle while grouping them at the receiving equipment. A harness specified around those locations reduces unnecessary cable accumulation and makes each route easier to manage.
Equipment Connection Access
Closely positioned ports can be difficult to reach during assembly. Bringing the individual connection points away from the equipment allows installers to mate and inspect them in a more accessible location.
Branch Level Servicing
A fault on one line requires the correct connection to be identified. Branch labels and a documented channel map allow technicians to trace the affected path without relying on connector color alone.
Installation Length Planning
Cable reach must account for bends, mounting points and service access. The available lengths provide a starting point for selecting an assembly around the actual routing path rather than the direct distance between devices.
Product Features
Two by Two Contact Arrangement
The common housing holds four coaxial contact positions in a square arrangement. This groups the interfaces mechanically while maintaining a separate cable connection for each position.
Visible Housing Retention Components
The grouped connector includes a top locking latch and contrasting pink side components. These details remain accessible for visual inspection during assembly.
Sealing Rings on Female Branch Option
Version 3 shows a sealing ring around the coaxial mating area at each branch end. The seal is part of the connector arrangement and requires correct mating components.
Straight Cable Exit Geometry
The cable exits follow the connector axes. Routing should allow a gradual bend behind each termination rather than forcing the cable to turn immediately at the housing.
Customization Capabilities
Premier Cable supports:
Connector Customization
Premier Cable reviews connector type, gender, coding and housing design against the receiving interfaces. Alternative branch combinations can be assessed when individual connection points require different terminations.
Cable Customization
Overall length and individual branch reach can be defined from the routing drawing. Jacket, shielding and cable structure requirements are reviewed together with connector termination and sealing suitability.
Electrical Customization
Pin assignment, channel mapping and wiring definitions can be documented for the intended equipment. Requests involving circuit configuration, resistance values or power ratings require engineering assessment.
OEM Manufacturing
Premier Cable supports drawing review, prototype preparation and mass production following specification approval. Branch labels, product identification and packaging can be arranged for installation control and repeat purchasing.
Product FAQ
Q1. Does four in one mean one signal is divided into four?
No. It describes four coaxial connections grouped in one housing. The harness does not duplicate or distribute a single RF signal.
Q2. Can a sealed branch connector replace a standard branch connector directly?
Replacement suitability depends on the complete mating interface, housing dimensions and sealing arrangement. Matching gender alone is insufficient.
Q3. Does this cable confirm compatibility with a particular camera system?
No specific camera model or protocol has been established. The mating connectors, channel assignment and electrical requirements must be checked.
Q4. Can Versions 3 and 4 be described as IP67 Waterproof cable assemblies?
The supplied material identifies sealed branch ends but does not establish a complete assembly rating. An IP67 Waterproof claim requires confirmation of the complete construction and applicable mating conditions.
Q5. What information is needed to confirm an OEM specification?
Provide the selected version, quantity, required lengths and mating connector references. Include the channel map, cable requirements and any inspection or testing criteria.
