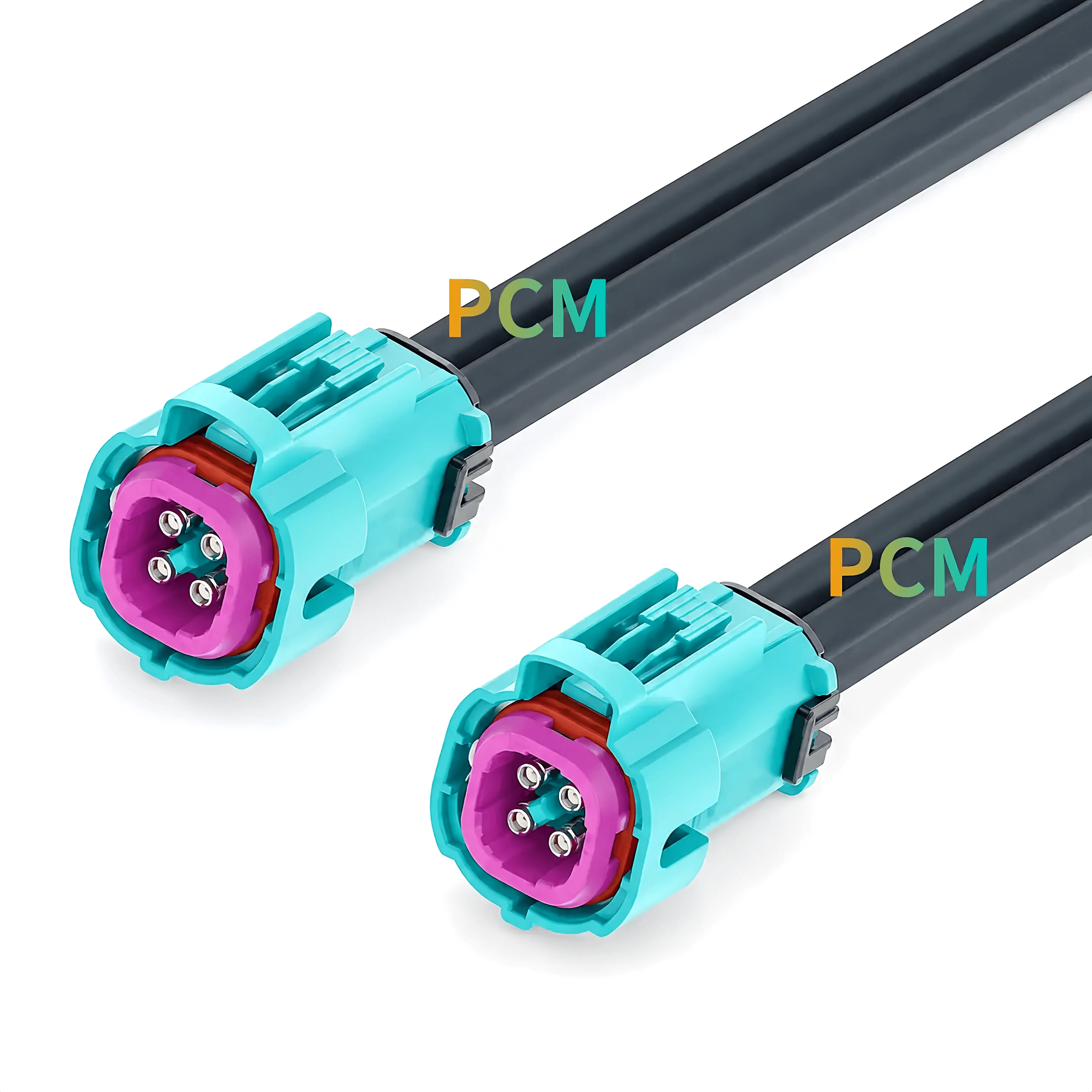

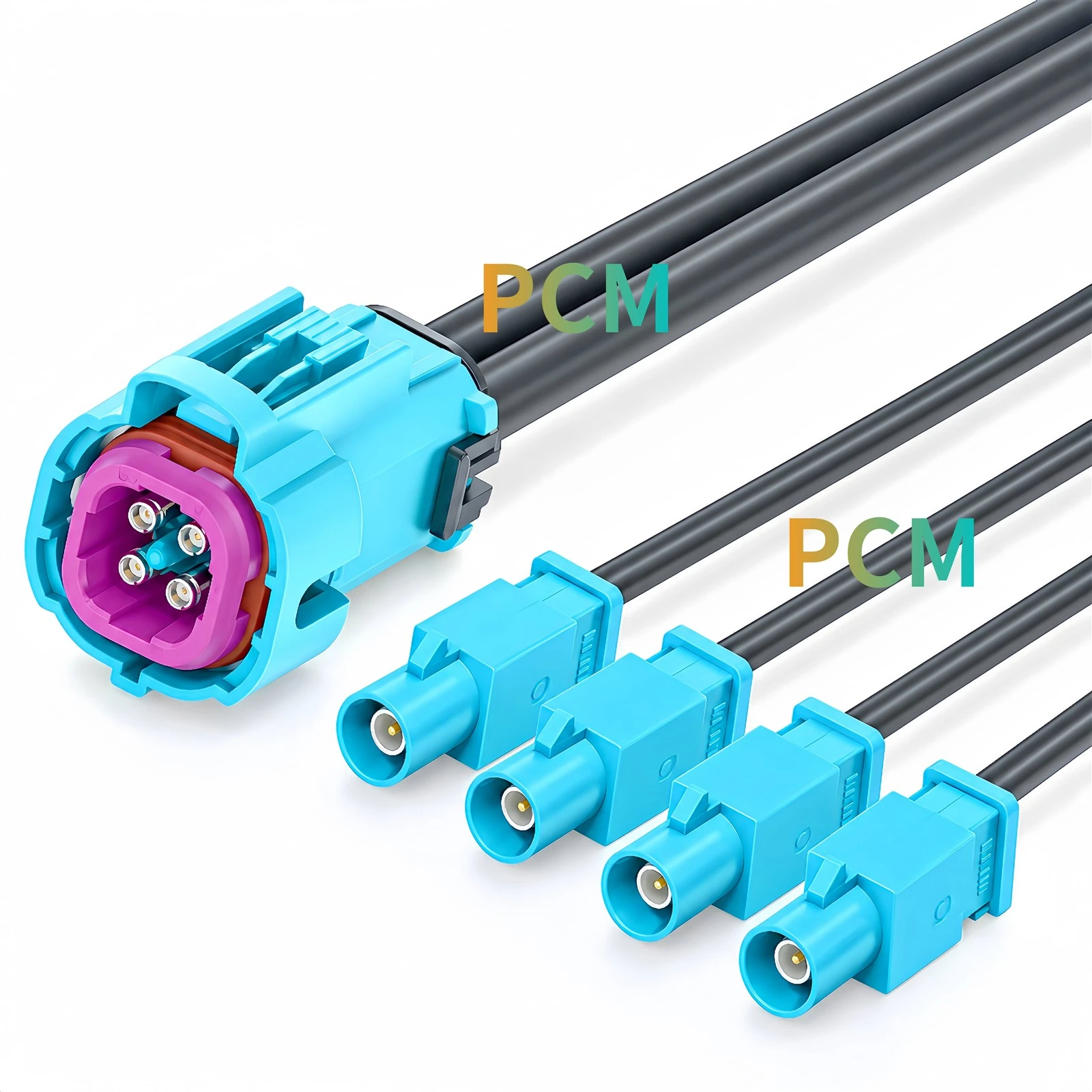

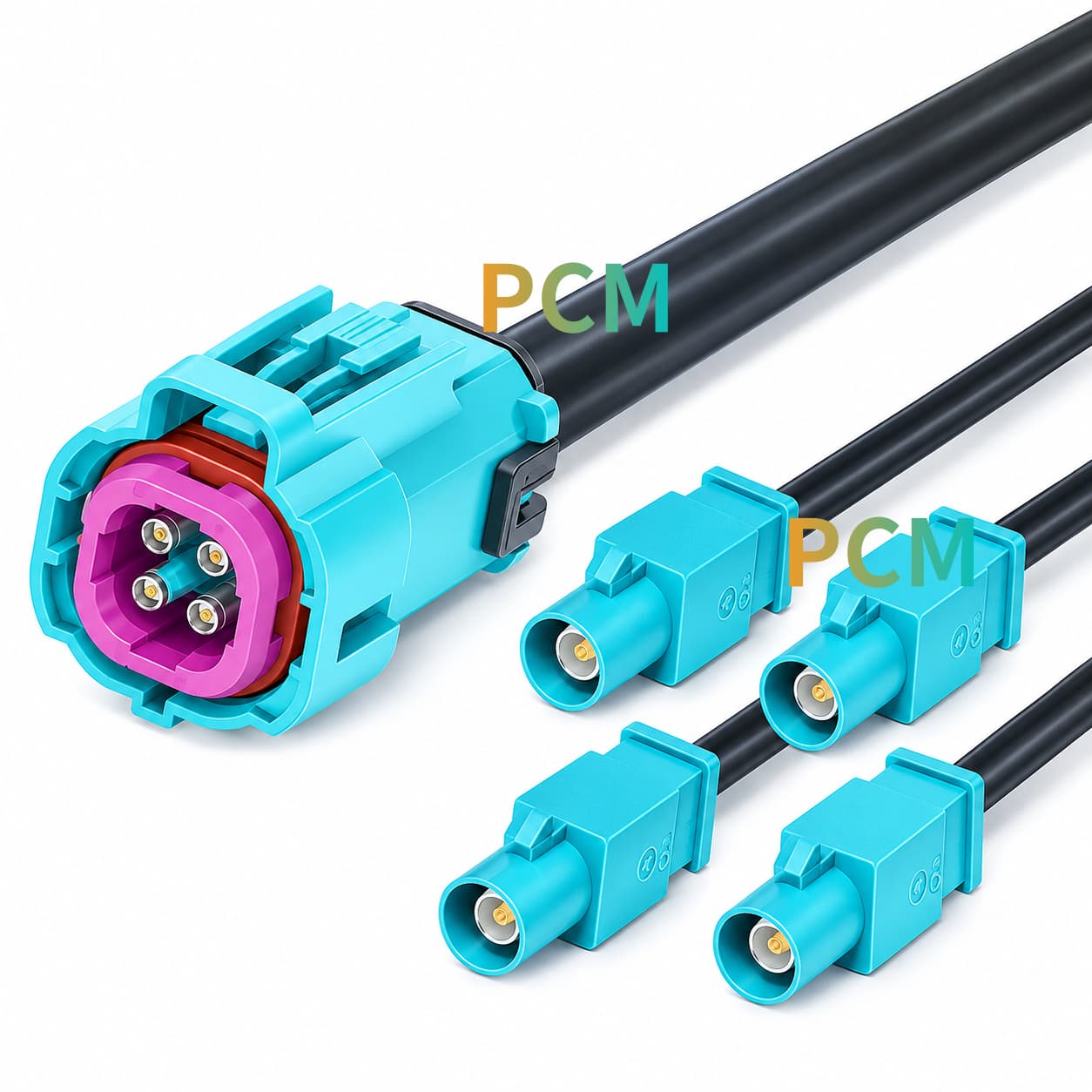

The Waterproof Quad HFM Mini FAKRA Female to 4 FAKRA Male Coaxial Breakout Cable is designed for multi-channel signal connections between different automotive coaxial connector systems. One end features an AMK148-1M4Z5-Z waterproof-type HFM quad-port female connector, while the other end terminates in four Rosenberger 59Z114-000Z straight FAKRA Z-code male connectors.

Built with Dacar 302-4 automotive coaxial cables, the assembly routes four independent 50-ohm coaxial channels from the compact HFM interface to four individual FAKRA male connectors. Each branch provides a separate point-to-point transmission path without active signal splitting or protocol conversion, supporting compatible automotive cameras, RF modules, and high-speed coaxial data systems.

Compared with multiple separate FAKRA connections on centralized equipment, the integrated quad HFM interface helps reduce connector space requirements while retaining the flexibility of conventional FAKRA connections. This mixed-interface architecture is suitable for integrating newer HFM-equipped controllers with existing FAKRA-based automotive modules.

Product Specifications

Parameter	Specification
Product Name	Quad HFM to 4 FAKRA Male Cable
Connector P1	AMK148-1M4Z5-Z
Connector P2-P5	4 × 59Z114-000Z
Characteristic Impedance	50 Ω
Coding	Z Code
Color	Water Blue
Applications	ADAS / Camera / Infotainment / ECU
Cable Type	Dacar 302-4 Automotive Coaxial
OEM Service	Custom Cable Assembly / Wholesale

Core Performance Advantages

Optimized Connector Space for High-Density Controllers

Integrating four coaxial channels into a single quad HFM interface reduces the connector footprint on centralized equipment. This provides greater layout flexibility for compact ADAS domain controllers and high-density automotive electronic modules.

Flexible OEM Customization and Standardized Manufacturing

Connector types, cable specifications, branch lengths, and channel mapping can be standardized for individual OEM projects. Following sample validation, repeatable manufacturing helps improve assembly consistency and reduce wiring variations across different equipment versions.

How Does a Quad HFM to Four FAKRA Male Breakout Cable Work ?

A Quad HFM to Four FAKRA Male Breakout Cable is a multi-channel coaxial interconnection solution. The quad HFM interface contains four independent coaxial channels, each connected to a separate FAKRA male connector.

Four Dacar 302-4 coaxial cables provide independent transmission paths. The assembly does not perform active signal splitting, amplification, or protocol conversion.

This configuration supports centralized connections on HFM-equipped controllers and individual FAKRA connections on compatible automotive devices.

Product FAQ

What is the Quad HFM Female to 4 FAKRA Male Cable ?

This is a four-channel automotive coaxial breakout cable featuring an AMK148-1M4Z5-Z waterproof HFM quad-port female connector and four 59Z114-000Z straight FAKRA Z-code male connectors. Four independent coaxial cables provide physical interconnection between HFM and FAKRA interfaces.

Is Z-Code compatible with every FAKRA connector ?

Z-code is a neutral coding configuration that offers flexible mating options. However, it does not guarantee compatibility with every FAKRA or HFM connector. Connector family, mechanical geometry, gender, and equipment interfaces must be checked.

Does a waterproof HFM connector make the entire cable waterproof ?

No. The quad HFM end uses a waterproof-type connector, while the four straight FAKRA male connectors are non-waterproof. The environmental protection of the complete assembly depends on every connection point, mating interface, and installation condition.

Are custom cable lengths and wholesale orders available ?

Yes. Premier Cable provides customized overall cable lengths, individual branch lengths, connector configurations, channel mapping, and finished assembly testing options for automotive prototypes, OEM integration, and wholesale manufacturing.
