Products Description

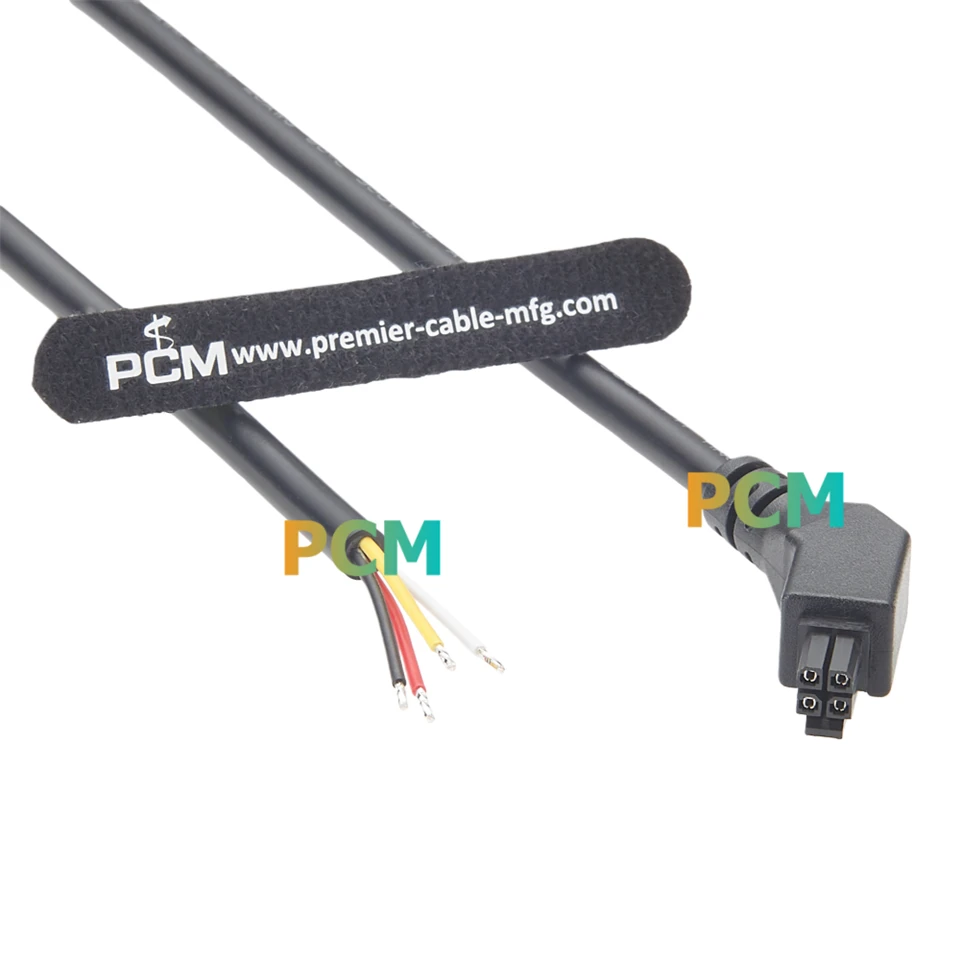

The Molex Micro-Fit 4-Pin 45° Left Exit Cable Assembly features a 45-degree left-angle design, providing a smooth cable exit to reduce cable stress and better suit compact spaces. Its 4-pin configuration supports low-power power and signal transmission, meeting complex connectivity requirements.
This design is particularly suitable for applications where the cable needs to exit from the right or bottom of the device, preventing interference with other internal components and optimizing wiring space. The compact design and durable materials ensure long-term stable power and signal transmission in space-constrained devices, while also offering excellent temperature resistance for reliable operation in various demanding environments.
Specification
| Product name | Molex Micro-Fit 4-Pin 45° Left Exit Cable Assembly |
| DWG No. | PCM-HD-0221 |
| OD | 5.5±0.15mm |
| Cable Length | 1.5m |
| Outer Mold | Black 50P PVC |
| Pre Mold | PE LOW DENSITY |
| Cable Type | UL2464 20AWG*4C |
| Rated Voltage | 300V |
| Rated Current | 5.0A |
Application areas
1.Industrial Automation
■ PLC Control Systems : Providing stable power and signal connections between PLCs (Programmable Logic Controllers) and peripheral devices in industrial automation equipment.
■ Sensors and Actuators : Widely used in sensors, actuators, and other equipment in automated production lines, meeting the demand for highly reliable cable connections.
2.Automotive Electronics
■ On-board Battery Management System (BMS) : Used in electric and hybrid vehicles for power and signal transmission within the battery monitoring and management system.
■ In-car Entertainment and Information Systems : Provides power and data connections for in-car entertainment systems, navigation systems, etc., supporting efficient and stable signal transmission.
3.Aerospace and Military Applications
■ Aerospace Equipment : Power and signal transmission systems for spacecraft such as satellites and drones, ensuring stable operation under extreme conditions.
■ Military Electronic Equipment : Widely used in military communication, radar, electronic warfare systems, and other equipment, providing reliable power and signal connections.
Drawing
