Description

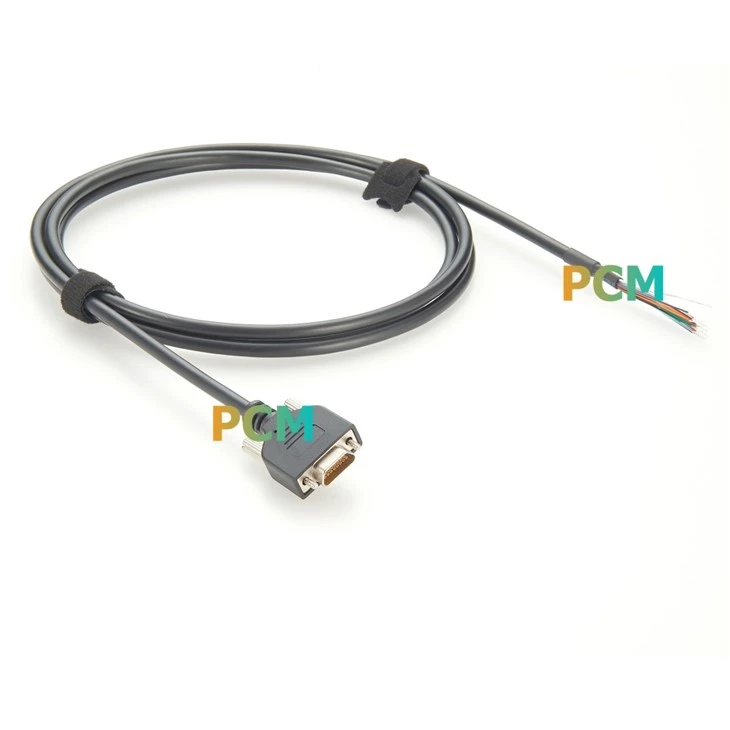

The Micro-D15 I/O Power Cable is equipped with a Micro DB15 connector on one end, designed to connect I/Os of Basler CXP-12 interface cards, imaWorx systems, and other industrial devices with Micro DB15 interface. The other end features a bare-wire design, allowing for flexible on-site wiring and customizable cable length to meet diverse installation and system integration requirements.
And our Micro-D15 I/O Cable is compatible not only with Molex Micro-D15 power and signal cable assemblies (Part No.: 834229007, 834229013, and 834229018) but also with the Basler Micro-D15 I/O Power Cable (Part No.: 2200000467), providing a reliable and flexible connection solution for industrial I/O signal and power transmission, suitable for industrial cameras, machine vision, industrial automation, embedded vision systems, data acquisition, trigger connection, etc.
Specification
|
Product Name |
Micro-D 15 Pin GPIO Cable for Basler CXP-12 Interface Cards & Frame Grabbers |
|
Drawing No. |
PCM-S-0591 |
|
Connector Type |
Micro DB15 Connector |
|
Gender |
Female-Pigtail |
|
Single Ended |
Yes |
|
Cable Length |
1.8m, Or OEM |
|
Cable Diameter |
5.1 mm |
|
Stripping Length |
5±1mm |
|
Wire Gauge |
28AWG |
|
Screw |
#2-56 UNC, OD: 5.0 * 33.0 mm |
|
Compatible with |
Molex 834229007, 834229013, 834229018 Basler 2200000467 |
Drawing
