Products Description

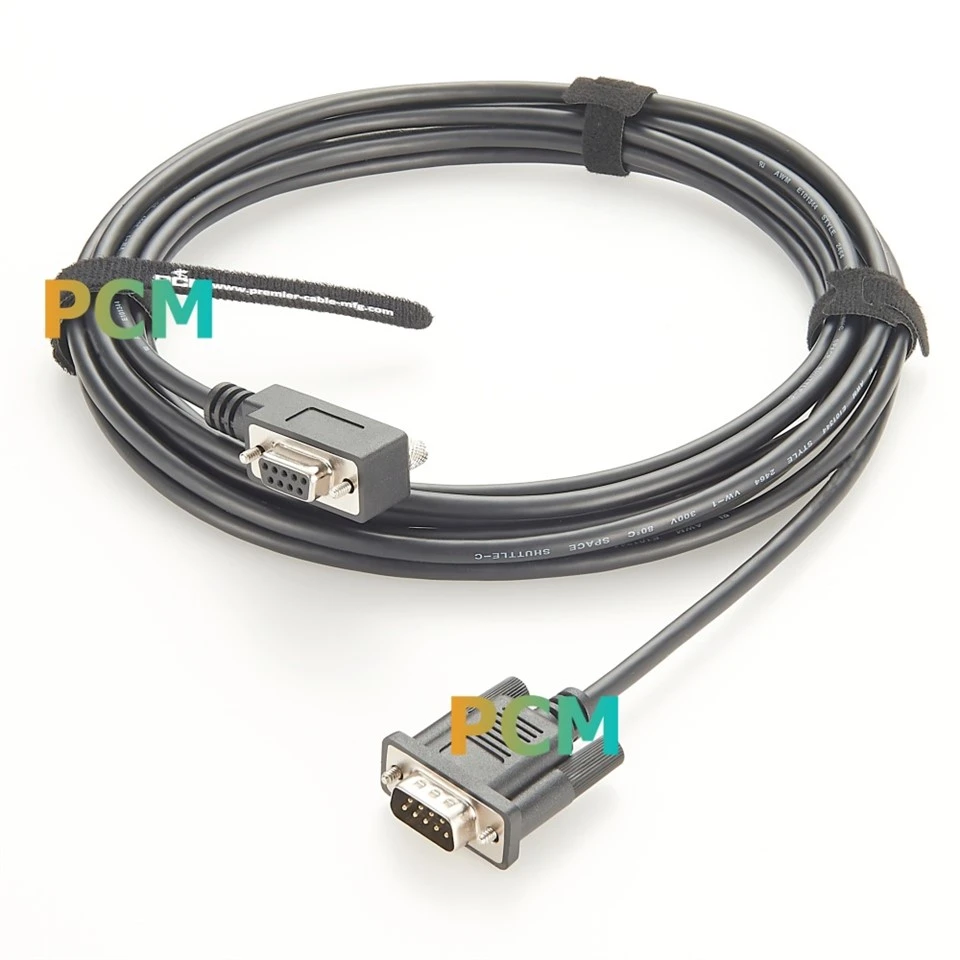

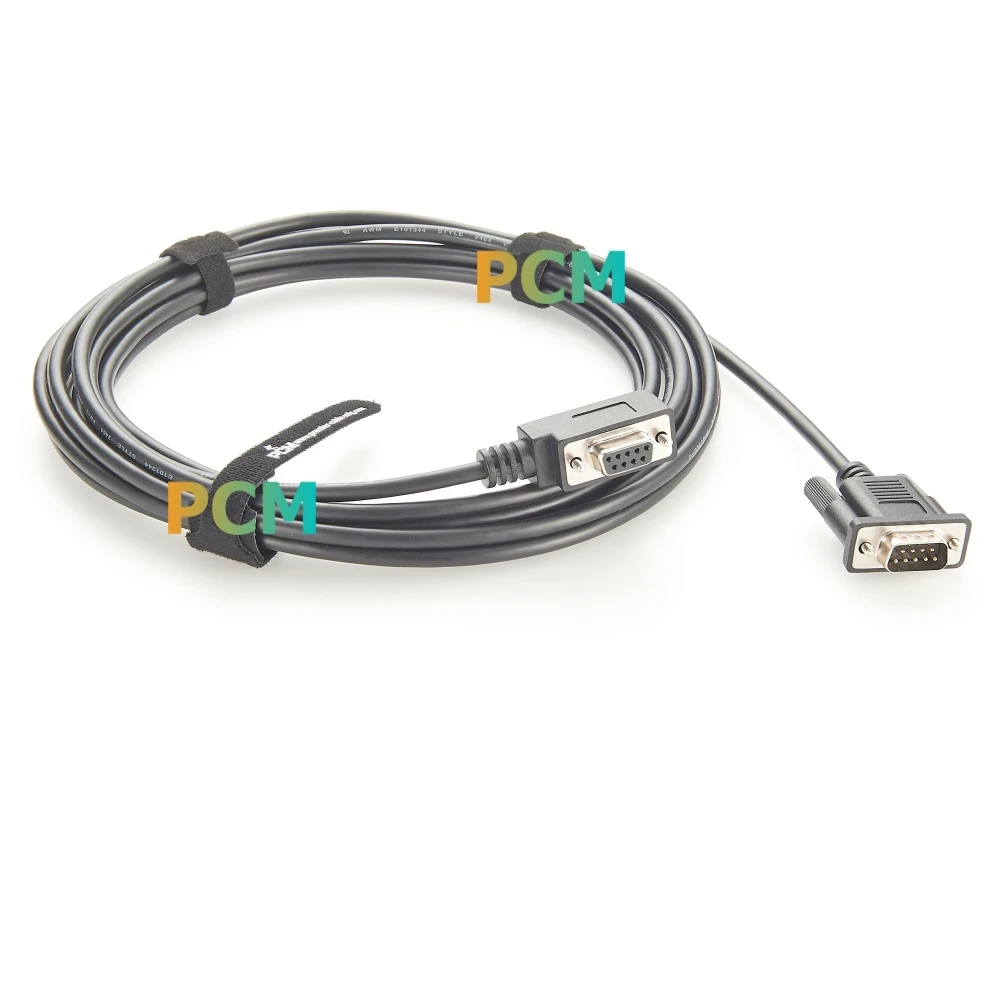

The Right Angle DB9 RS232 Serial Cable is a professional connection cable for serial communication devices. It uses a DB9 Male/Female interface configuration, with only one end featuring a 90° right-angle structure, while the other end is a standard straight connector. This design, with one right-angle end and the other straight end, allows for flexible cabling based on different installation conditions on both sides of the device, making it particularly suitable for applications with limited interface direction or limited space at the rear of the device.
The right-angle end allows the cable to extend directly to the side or in a designated direction from the device interface, avoiding large bending radii near the connector; the standard straight structure on the other end facilitates connection to standard DB9 serial ports. Therefore, it is suitable not only as a general RS232 communication cable but also for device integration, control cabinet cabling, and upgrading interfaces of existing equipment.
Specification
|
Product Name |
Right Angle DB9 RS232 Serial Cable |
|
Drawing No. |
PCM-0495 |
|
Connector A |
DB9 Male |
|
Connector B |
DB9 Female Right Angle |
|
Cable Length |
5m, 6m, Or OEM |
|
Cable Diameter |
5 mm |
|
Screw (DB9) |
#4-40UNC 6*27.3mm
|
|
Screw (DB9 Right Angle) |
#4-40UNC 6*23mm
|
|
Wire Gauge |
28AWG |

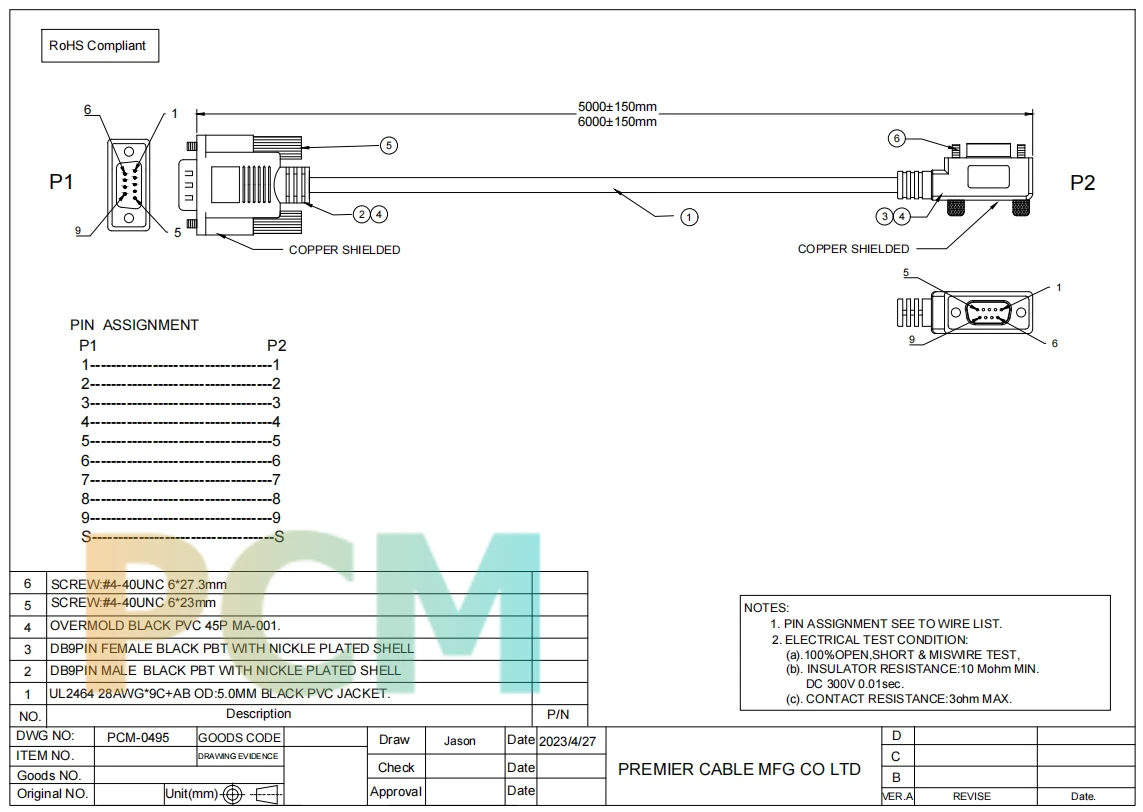

Drawing
