This is not simply a single USB adapter. It is a modular family of industrial panel-mount data interfaces.

The four configurations address different interface requirements:

Product 1: USB 3.1 Type-C Female → USB-A Female
Product 2: USB 2.0 Type-B Female → Type-B Female
Product 3: HDMI Female → HDMI Female
Product 4: USB 3.0 Type-B Female → USB-A Female

The key concept is mechanical standardization. Different USB and HDMI interfaces can be integrated into similar circular panel openings, helping OEM manufacturers build cleaner and more consistent equipment-panel layouts.

Quick Product Comparison

Type	Interface	Front	Rear	Spec Family	Panel Cutout
Product 1	USB-C → USB-A	Type-C Female	USB-A Female	USB 3.1	Ø22/25 mm
Product 2	USB-B → USB-B	USB-B Female	USB-B Female	USB 2.0	Ø22 mm
Product 3	HDMI → HDMI	HDMI Female	HDMI Female	HDMI	Ø22 mm
Product 4	USB-B → USB-A	USB-B Female	USB-A Female	USB 3.0	Ø22 mm

Product 1:

USB 3.1 Type-C Female to USB-A Female Adapter

Product 1 bridges USB Type-C and traditional USB Type-A interface formats.

Front: USB Type-C Female
Rear: USB Type-A Female
Specified Family: USB 3.1
Mounting Thread: M22×1
Panel Cutout: Ø22/25 mm
Panel Thickness: 1–10 mm
Reference Length: 27.2 mm
Front Diameter: approx. Ø28 mm
Colors: Silver / Black

The configuration is useful where USB-C equipment must coexist with an established USB-A cabling environment.

Product 2:

USB 2.0 Type-B Female to Female Panel Adapter

Product 2 uses a USB Type-B Female to Type-B Female configuration commonly associated with printers and professional peripheral equipment.

Rather than changing the connector type, it converts a USB-B connection into a fixed panel-mount feedthrough point.

Interface: USB-B Female → USB-B Female
USB Version: USB 2.0
Mounting Thread: M22×1
Panel Cutout: Ø22 mm
Panel Thickness: 1–8 mm
Reference Length: 33 mm
Front Diameter: approx. Ø28 mm

It is suitable for printers, test instruments, industrial controllers and professional equipment that continues to use USB-B.

Product 3:

HDMI Female to Female Panel Mount Coupler

Product 3 is the digital audio/video member of the series, using an:

HDMI Female → HDMI Female feedthrough configuration.

It can relocate an internal HDMI connection to an equipment panel for industrial displays, HMI systems, video test equipment, broadcast systems and digital-signage enclosures.

Interface: HDMI Female → HDMI Female
Mounting Thread: M22×1
Panel Cutout: Ø22 mm
Panel Thickness: 1–8 mm
Reference Length: approx. 25.7–27.5 mm
Front Diameter: approx. Ø28 mm
Colors: Silver / Black

Product 4:

USB 3.0 Type-B Female to A Female Adapter

Product 4 combines a USB 3.0 Type-B Female front interface with a USB 3.0 Type-A Female rear interface.

Unlike the USB-B Female-to-Female version, this model bridges USB-B equipment architecture with commonly used USB-A cabling.

Front: USB 3.0 Type-B Female
Rear: USB 3.0 Type-A Female
USB Version: USB 3.0
Mounting Thread: M22×1
Panel Cutout: Ø22 mm
Panel Thickness: 1–8 mm
Reference Length: 37.2 mm
Front Diameter: approx. Ø28 mm
Colors: Silver / Black

Typical applications include high-speed peripherals, machine-vision systems, test equipment and data-acquisition systems.

Product Features

Multi-Interface Platform

One product family covers Type-C, USB-A, USB-B and HDMI, helping OEM manufacturers reduce the number of completely different mechanical interface structures.

Compact Circular Panel Architecture

M22×1 threaded mounting and approximately 22 mm panel cutouts provide a compact solution for space-constrained industrial enclosures.

Female Interface Architecture

Female interfaces on both sides allow detachable internal and external cabling, simplifying installation and replacement.

Silver and Black Housings

Silver and black versions provide visual integration options for different industrial enclosures and OEM equipment designs.

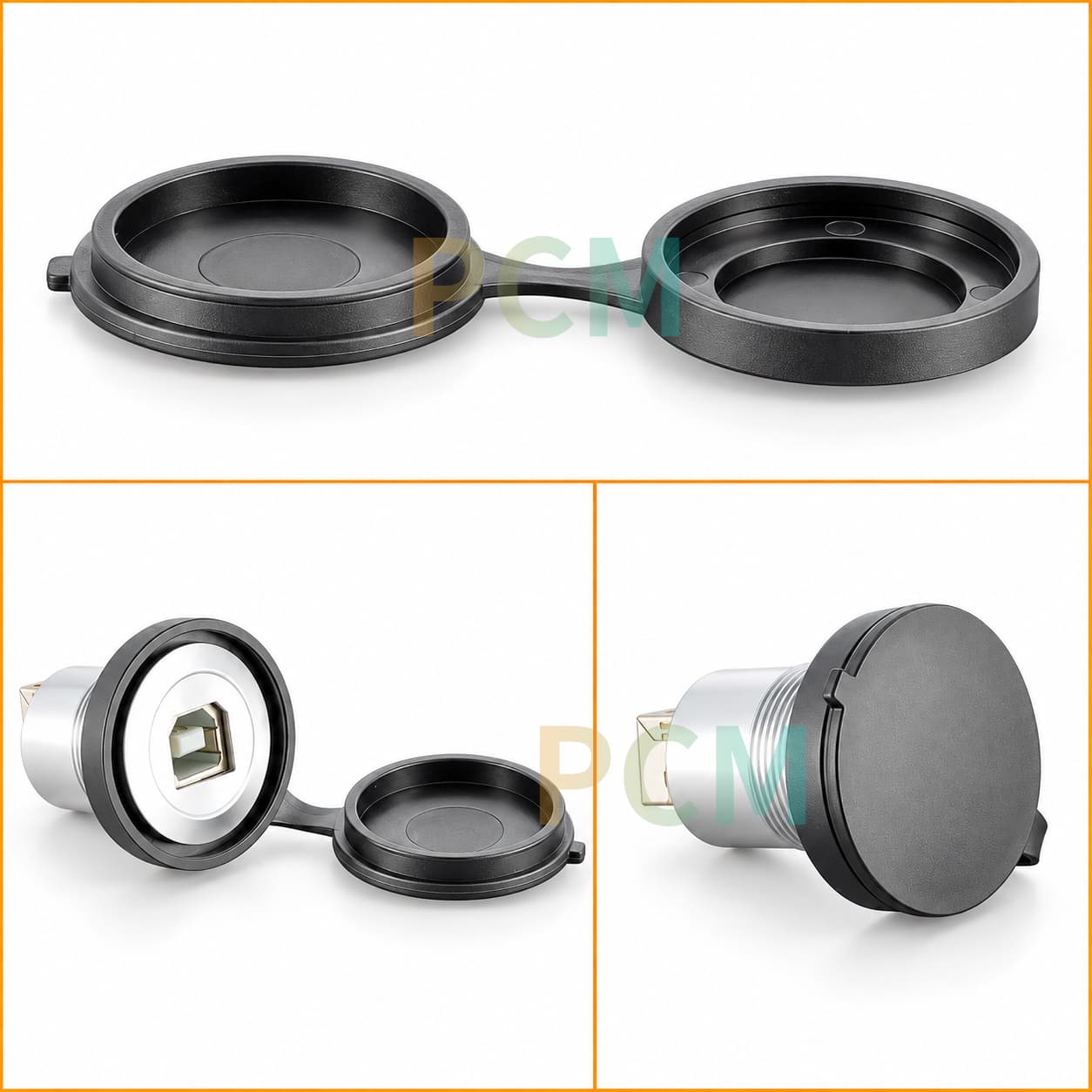

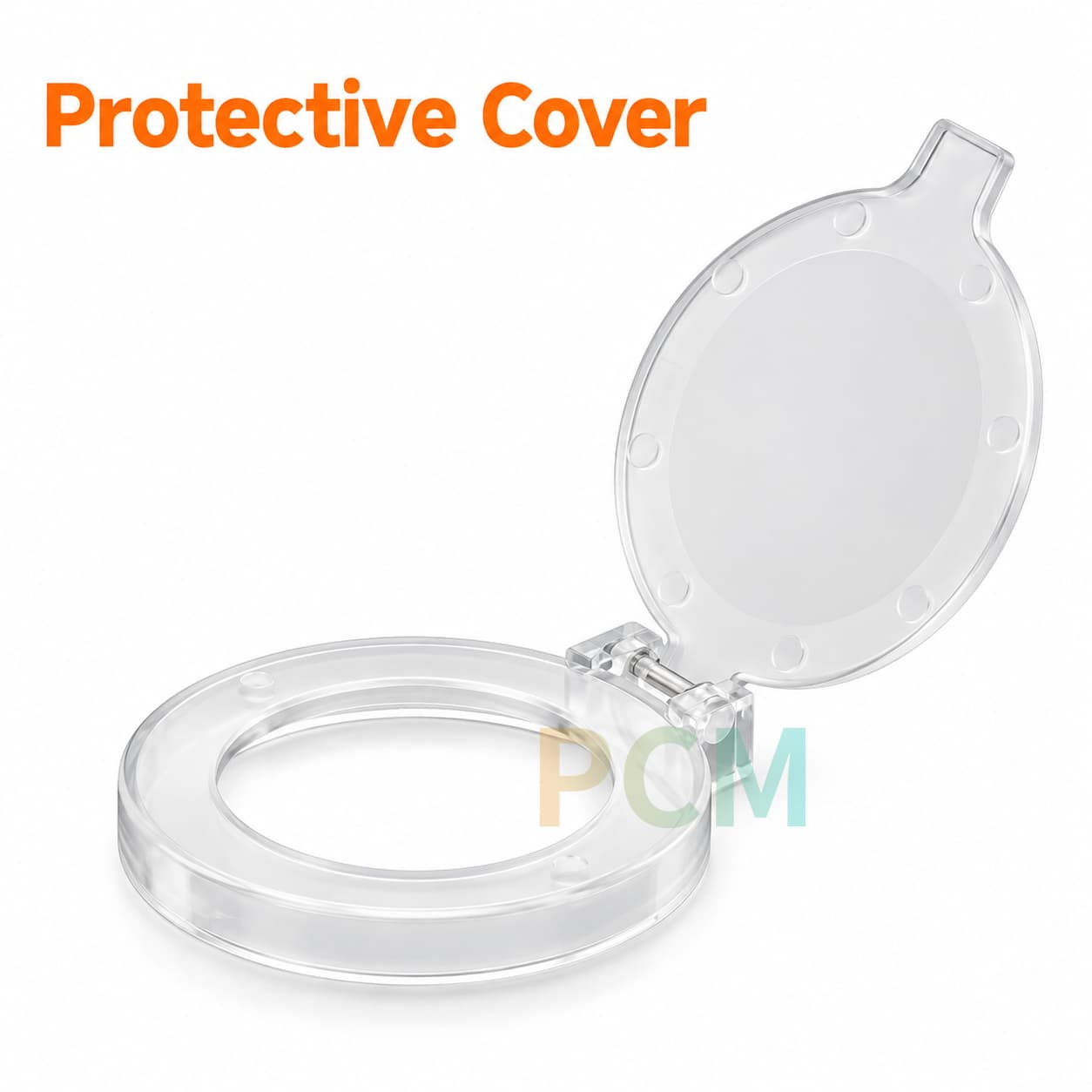

Optional Protective Cover

Why Does This Product Exist ?

Industrial equipment design involves two different forms of standardization: electrical interface standardization and mechanical panel standardization.

A single machine may contain USB-C, USB-A, USB-B and HDMI connections. Mounting each interface differently can complicate enclosure machining, internal wiring, servicing and component management.

The Industrial Panel Mount Data Adapter family provides a modular approach:

Internal Interface → Selected Panel Adapter → Standardized External Connection Point

Equipment designers can select the required data interface while maintaining a more consistent mechanical panel architecture.

Typical Applications

Test, Measurement and Instrumentation

USB-B, USB 3.0 and HDMI configurations can support instrument data, peripheral and video-interface requirements.

Industrial PCs and Embedded Systems

Suitable for industrial PCs, edge-computing equipment, embedded controllers and OEM computing platforms.

Machine Vision and Inspection Systems

USB 3.0 can serve compatible high-speed peripherals while HDMI can provide display connectivity, subject to complete-link validation.

Customization Capabilities

Interface Configuration

USB-A, USB-B, USB-C, HDMI and alternative front/rear interface combinations can be evaluated for OEM platforms.

Housing & Color

Silver and black are available, while additional colors and finishes can be evaluated for volume orders.

Wholesale & Project Supply

Interface, color, quantity and packaging configurations can be evaluated for automation manufacturers, industrial computer manufacturers, test-equipment companies, system integrators and wholesale buyers.

Product Drawing

Product 1

111 1

Product 2

222 1

Product 3

333 1

Product 4

444 1

Frequently Asked Questions

Product FAQ

What are the main differences?

The main differences are the specified USB version and connector configuration: USB 3.0 A-Female to B-Female, USB 3.1 A-Female to Type-C Male, USB 2.0 A-Female to A-Female, and USB 2.0 A-Female to B-Female.

What is the mounting thread?

M22×1

Can it be used in control cabinets?

Yes. The threaded bulkhead structure is well suited to industrial control cabinets, equipment enclosures, industrial PCs and test systems.

Can the housing color be customized?

Yes. Black and silver are shown in the current documentation, while other colors can be evaluated according to MOQ and finishing requirements.

Are USB 2.0 and USB 3.x versions interchangeable?

Similar connector geometry does not guarantee identical electrical or data performance. Contact configuration, internal wiring, USB specification and system compatibility should be verified.
