The USB Type-B Waterproof Panel Connector is a family of panel-mounted USB Type-B connectors designed for printers, industrial control systems, test instruments, automation equipment, and industrial enclosures.

Unlike a conventional USB cable, these connectors are installed directly on an equipment enclosure or control panel to provide a fixed USB Type-B interface.

Six mechanical configurations are available:

USB Type-B Threaded Panel Connector – Capless
USB Type-B Threaded Panel Connector with Hinged Cover
USB Type-B Round Panel Connector with Scalloped Screw Cap
USB Type-B Threaded Panel Connector with Knurled Screw Cap
USB Type-B Threaded Panel Connector with Straight-Ribbed Screw Cap
USB Type-B Four-Hole Square Flange Connector with Scalloped Screw Cap

Each configuration is available in:Feedthrough Type and Solder Pin Type.

Quick Product Comparison

Item	Product 1	Product 2	Product 3	Product 4	Product 5	Product 6
Panel Interface	USB Type-B Female	USB Type-B Female	USB Type-B Female	USB Type-B Female	USB Type-B Female	USB Type-B Female
Installation structure	Fourpronged square flanges	A circular rear screw	Screwed panels	Screwed panels	Screwed panels	Screwed panels
Protective structures	Wavetooth hood	Wavetooth hood	The hinged flap cover	Slanted flap cover	Rectangular screw covers	There isno cover
Main characteristics	The four points arefixed	Single-porousinstallation	Quickly flip the cover	The gripwas obvious.	PCB Integration	Direct access

Type 1:

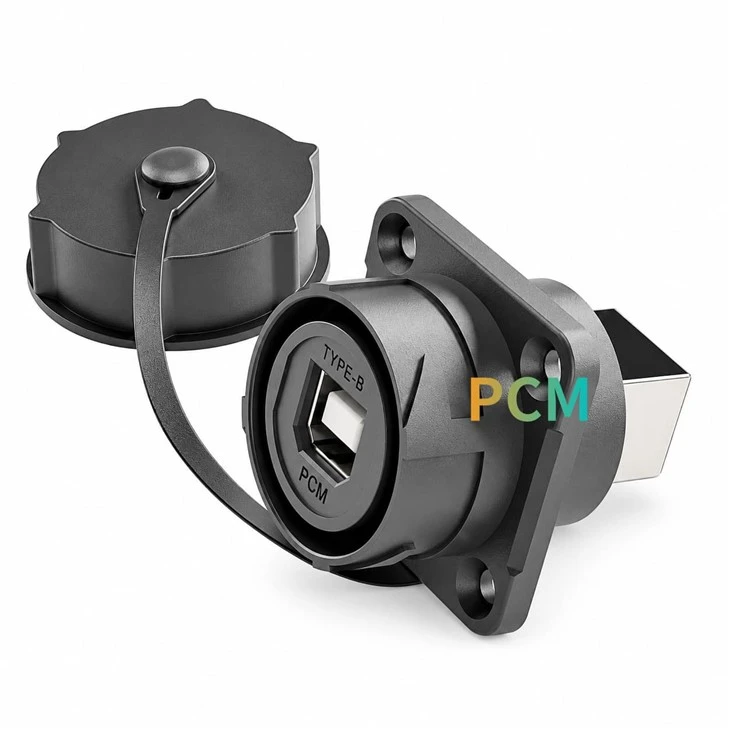

USB Type-B Four-Hole Square Flange Connector with Scalloped Cap

Product 1 features a four-hole square-flange panel-mount structure that secures the USB Type-B female receptacle to the equipment enclosure through four independent mounting points.

A scalloped tethered screw cap provides defined gripping points for convenient manual opening and tightening, while the tether keeps the cap attached when removed.

Compared with round nut-mounted designs, the four-point flange structure is well suited for industrial enclosures, control cabinets, printers, and test instruments with dedicated flange mounting areas. Feedthrough and solder-pin versions are available in black, white, blue, and yellow.

111111111 1

2222 1

Type 2

USB Type-B Round Panel Connector with Scalloped Cap

Product 2 uses a round panel-mount structure secured by a rear retaining nut. The connector passes through a circular panel cutout and requires no four separate mounting holes, helping simplify the panel layout for suitable equipment.

The USB Type-B female receptacle features a scalloped tethered screw cap with pronounced gripping edges for convenient manual operation. The tether keeps the cap attached when opened.

Its compact round structure is suitable for industrial equipment, printing systems, test instruments, and control devices. Feedthrough and solder-pin versions are available in black, white, blue, and yellow.

Type 3:

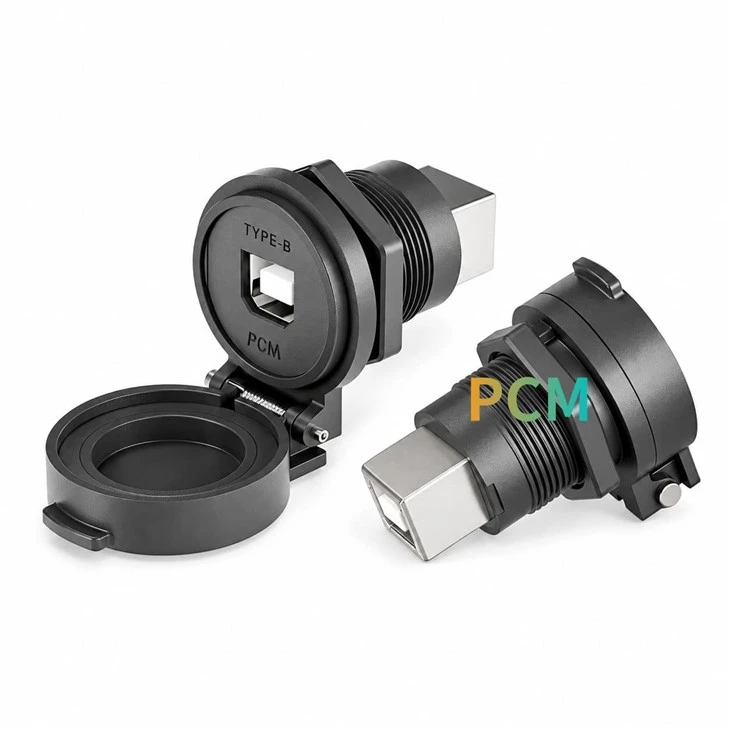

USB Type-B Threaded Panel Connector with Hinged Cover

Product 3 combines a threaded panel-mount structure with an integrated hinged protective cover. The cover opens directly for USB access and closes over the USB Type-B female receptacle when the interface is not in use.

Unlike a removable screw cap, the hinged cover remains attached to the connector body, eliminating separate cap storage and simplifying frequent access. This configuration is particularly suitable for industrial equipment requiring regular connection, configuration, testing, debugging, or maintenance.

Feedthrough and solder-pin versions are available in black, white, blue, and yellow.

33333 1

44 1

Type 4:

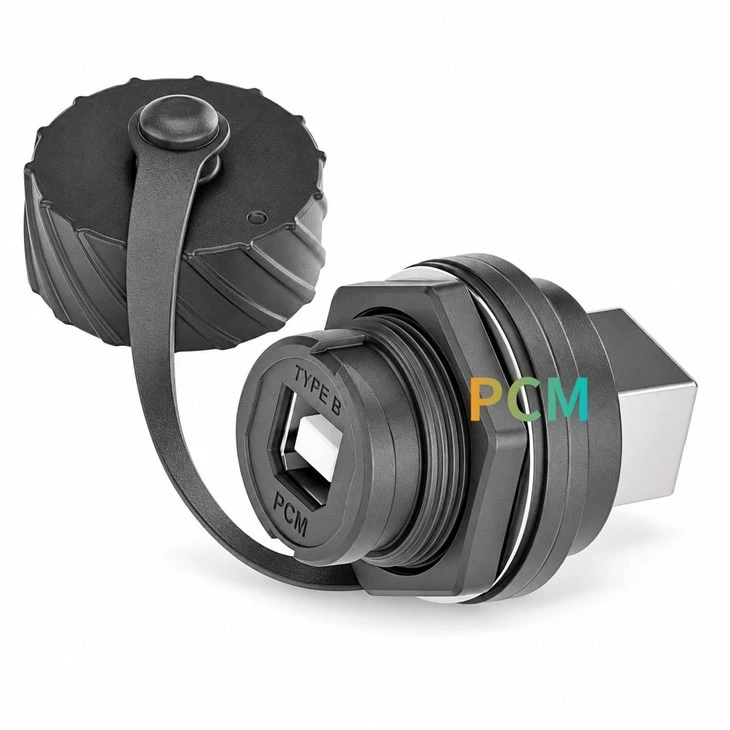

USB Type-B Threaded Panel Connector with Diagonal-Ribbed Screw Cap

Product 4 features a threaded panel-mount structure with a diagonal-ribbed tethered screw cap. The pronounced diagonal texture increases the gripping surface between the fingers and cap, making manual opening and tightening easier.

A flexible tether keeps the cap close to the connector after opening, eliminating the need for separate storage. This configuration combines secure panel mounting, interface coverage, and convenient manual operation for industrial control equipment, instrumentation, test systems, and equipment enclosures.

Feedthrough and solder-pin versions are available for interface extension or PCB termination requirements.

Type 5：

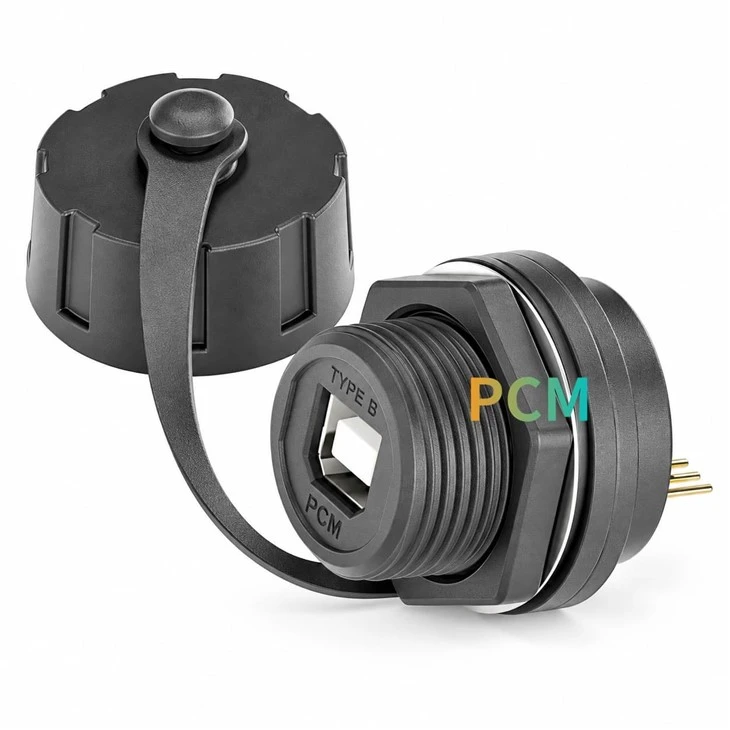

USB Type-B Threaded Panel Connector with Straight-Ribbed Screw Cap

Product 5 uses a threaded panel-mount structure with a straight-ribbed tethered screw cap. Regular longitudinal ribs create a defined gripping surface and provide a clean, uniform mechanical appearance while allowing convenient manual opening and tightening.

Feedthrough and solder-pin configurations are available: feedthrough versions support interface extension, while solder-pin versions are suitable for PCB integration.

For PCB applications, the PCB footprint, pin assignment, pin spacing, mounting height, and panel-to-PCB distance should be verified for the selected model to ensure proper mechanical and electrical compatibility.

55 1

6 1

Type 6:

USB Type-B Threaded Panel Connector – Capless

Product 6 retains the USB Type-B threaded panel-mount structure while eliminating the external screw cap or hinged cover. The USB interface remains directly accessible without additional opening or closing steps, while fewer front-side mechanical components help reduce the space required around the connector.

This configuration is suitable for continuously connected USB cables, indoor equipment, protected control cabinets, frequently accessed interfaces, and space-limited systems.

Feedthrough and solder-pin versions are available to support either interface extension or PCB integration requirements.

Core Performance Advantages

Improved Serviceability

External panel mounting makes routine USB connection, configuration, and maintenance more accessible.

Reduced Load on Internal PCB Interfaces

The panel-mount structure can absorb part of the mechanical load generated by cable insertion, removal, and movement rather than transferring it directly to an internal PCB connector.

Flexible Equipment Integration

Square-flange, rear-nut, threaded, and multiple cover configurations allow the product family to adapt to different equipment platforms.

Two Integration Approaches

Feedthrough versions simplify internal interface connection, while solder-pin versions support direct PCB integration.

Product Breakdown

444 1

555 1

66 1

Why Is This Product Needed ?

Conventional USB Type-B connectors are commonly used on electronic devices, but industrial equipment often requires a more integrated mechanical interface.

Internal PCB ports may be difficult to access, standard USB connectors may not provide dedicated panel mounting, and repeated cable insertion can transfer mechanical forces to internal electronics.

Industrial equipment may also require interface coverage and different panel-mounting structures.

This product family therefore combines:

USB Type-B interface + panel mounting + optional protective cover + feedthrough/solder-pin termination into an equipment-oriented interface solution.

Typical Applications

e19055dc-9d29-46c2-9632-958afa396cd5 1

Printers and Industrial Printing Equipment

USB Type-B is commonly used in printing equipment. The series can be integrated into industrial printers, labeling systems, print-control terminals, and specialized printing equipment.

Industrial Automation and Control Cabinets

Suitable for PLC cabinets, automation systems, and industrial control terminals requiring an accessible USB interface.

Industrial PCs and Embedded Systems

Solder-pin versions are particularly useful for OEM systems requiring direct PCB integration together with a fixed external USB interface.

Product Customization Capabilities

Interface Configuration Customization

USB-B female to USB-B female, USB-B female to USB-A female, other compatible internal USB interfaces, and PCB solder-pin configurations can be evaluated according to project requirements.

Panel Mount Customization

Four-hole square-flange, round rear-nut, and threaded panel-mount configurations are available for different enclosure designs.

Protective Cover Customization

Scalloped screw caps, knurled screw caps, straight-ribbed caps, hinged covers, and capless configurations support different equipment requirements.

Frequently Asked Questions

Product FAQ

How Many Configurations Are Available ?

Six mechanical configurations are available, including square-flange, round rear-nut, hinged-cover, knurled-cap, straight-ribbed-cap, and capless designs.

Each is available in feedthrough and solder-pin versions.

What Is the Difference Between Feedthrough and Solder-Pin Versions ?

Feedthrough versions connect the external USB-B interface to an internal USB interface, while solder-pin versions connect directly to a PCB.

Does Every Feedthrough Version Use USB-B Female on the Rear ?

Not necessarily.

Depending on the model, rear interfaces may include USB-B female, USB-A female, or another specified USB configuration. Both front and rear interfaces should be confirmed before ordering.

Can It Be Used with Printers ?

It can be used with compatible printers, industrial printing equipment, and related systems using USB Type-B interfaces.

Is OEM Customization Available ?

OEM customization can be evaluated for interface combinations, housing colors, covers, mounting structures, pinouts, PCB termination, and packaging.

Contact Premier Cable for Your Custom Harness Project

Send us your connector part number, pinout, cable specification, length, application and quantity. Our team can support prototype samples and volume production.
