Micro USB waterproof panel connector with Ø20.8 mm D-shaped cutout, 0.3M/0.5M/1M extension cables, feedthrough and solder-pin options for industrial equipment.
The Micro USB Industrial Waterproof Panel Connector series is designed to extend or integrate an internal Micro USB connection into the external panel of industrial equipment, enclosures, control systems, instruments, and embedded devices.
The family includes two main configurations.
Product 1 is a Micro USB panel female-to-male extension cable available in:
0.3M / 0.5M / 1M

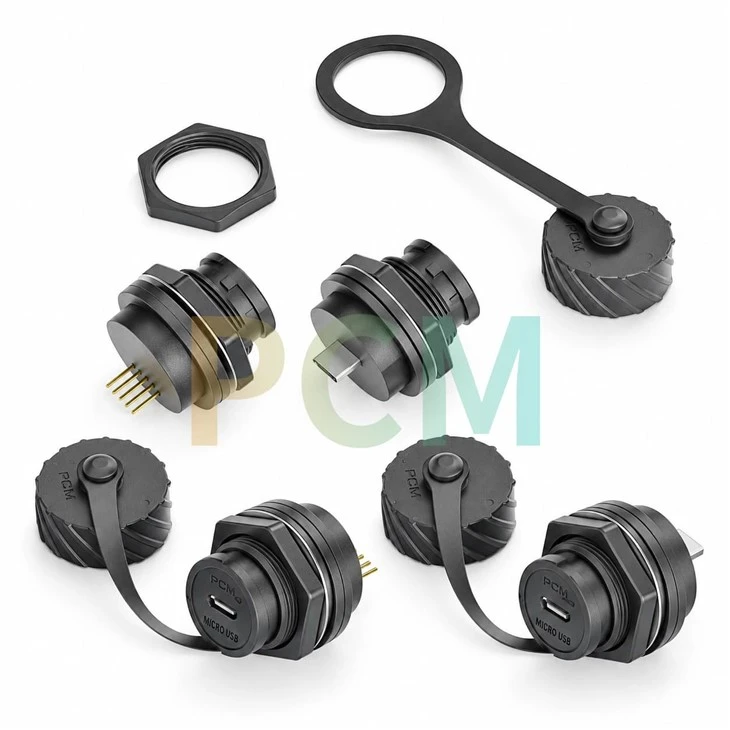

Product 2 is an independent Micro USB industrial panel connector available in:
Feedthrough / Solder Pin
versions.
According to the supplied engineering drawings, both products use an Ø20.8 mm arc diameter with a 19.40 mm D-shaped anti-rotation width.
Type 1:
Micro USB Waterproof Female-to-Male Panel Extension Cable

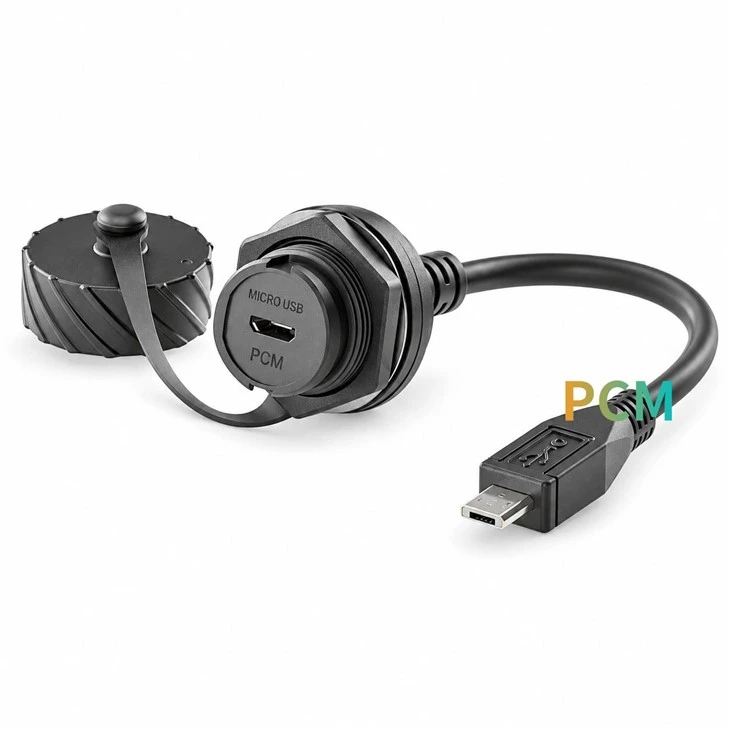

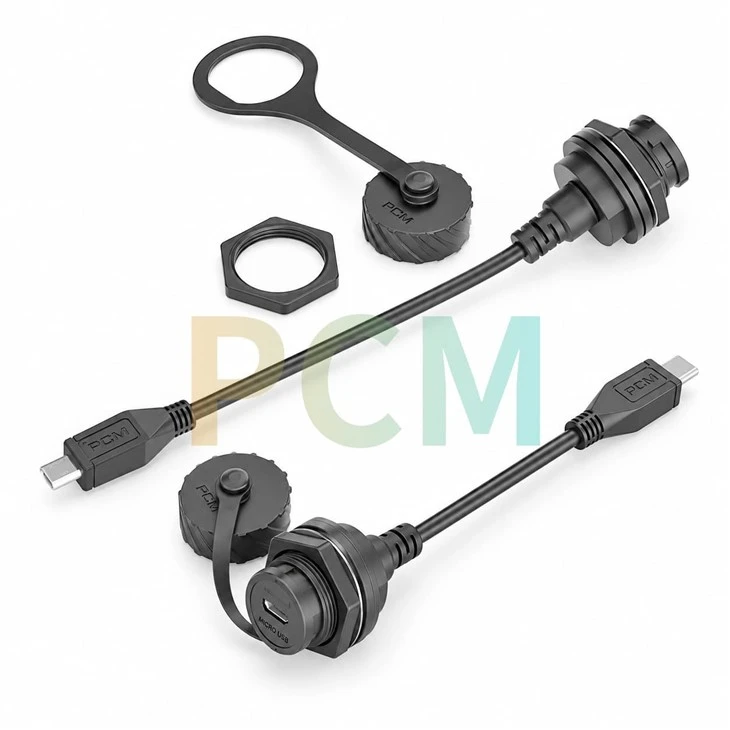

Product 1 is a Micro USB waterproof female-to-male panel extension cable.
Its architecture is:
P1: Panel-mount Micro USB female P2: Micro USB male
Three standard cable lengths are available:0.3M / 0.5M / 1M
According to the supplied drawing:
Arc diameter: Ø20.8 mm D-shaped anti-rotation width: 19.40 mm
The complete D-shaped cutout should be used for panel machining.
Type 2
Micro USB Industrial Waterproof Panel Adapter

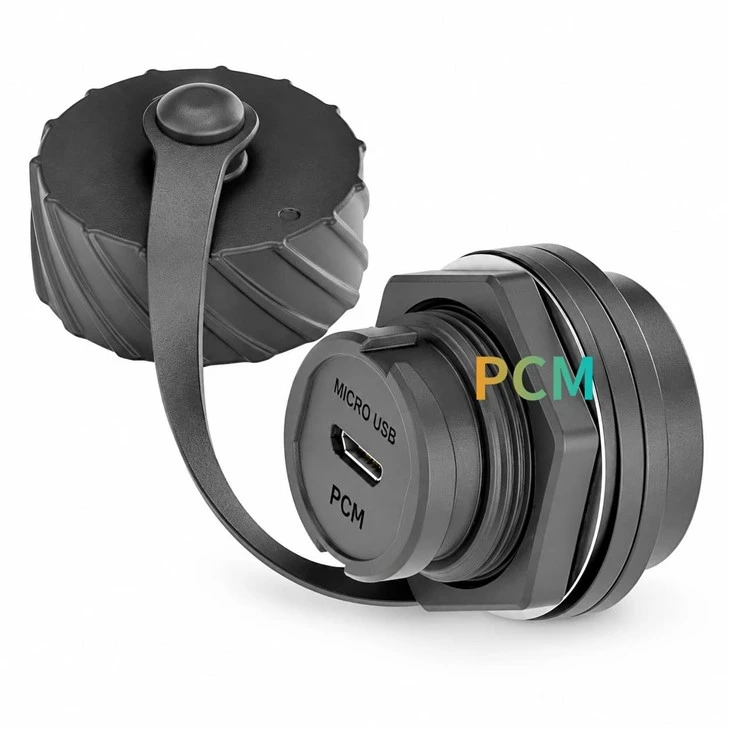

Product 2 is a Micro USB industrial waterproof panel adapter without a permanently attached extension cable.
Two versions are available:
Feedthrough - for detachable internal cable connections.
Solder Pin - for PCB or fixed internal wiring integration.
According to the supplied drawing:
Arc diameter: Ø20.8 mm D-shaped anti-rotation width: 19.40 mm
Product Features
01
D-Shaped Anti-Rotation Panel Structure
Both products use an Ø20.8 mm arc combined with a 19.40 mm D-shaped anti-rotation width to help maintain connector orientation.
02
Three Internal Connection Architectures
The series supports captive female-to-male cable, feedthrough, and solder-pin connection architectures.
03
Designed for Industrial Panel Integration
The products are designed around enclosure cutout, mechanical retention, anti-rotation, and internal connection requirements for OEM equipment.
Product Breakdown
Why Is This Product Needed ?
Many industrial controllers, instruments, data acquisition systems, and embedded devices still use Micro USB interfaces, but their original ports may be located inside the enclosure or directly on a PCB.
A panel connector relocates this connection to an accessible external position, helping improve mechanical integration, cable routing, service accessibility, and OEM interface standardization.
Typical Applications
Embedded Systems
Legacy Equipment Maintenance and Interface Upgrade
Core Performance Advantages
01
Reduced Direct Mating at the Internal Port
Routine connection takes place at the equipment panel rather than directly at the internal controller or PCB port.
02
Improved Maintenance Efficiency
Technicians can access the Mini USB connection externally without repeatedly opening the equipment enclosure.
03
Improved Internal Cable Routing
Multiple cable lengths and internal connection options support more organized equipment wiring.
Frequently Asked Questions
Product FAQ
What Is the Difference Between the Two Products ?
Product 1 is a captive Micro USB female-to-male extension cable available in 0.3M, 0.5M, and 1M.
Product 2 is an independent panel connector available in feedthrough and solder-pin versions.
Do Both Products Use the Same Panel Cutout ?
Yes, according to the supplied drawings. Both use an Ø20.8 mm arc with a 19.40 mm D-shaped anti-rotation width.
How Do I Choose Feedthrough or Solder Pin ?
Choose Feedthrough for detachable internal cabling and Solder Pin for PCB or fixed wiring integration.
Can Cable Length Be Customized ?
Yes. Standard lengths are 0.3M, 0.5M, and 1M, while alternative lengths can be evaluated for OEM projects.
