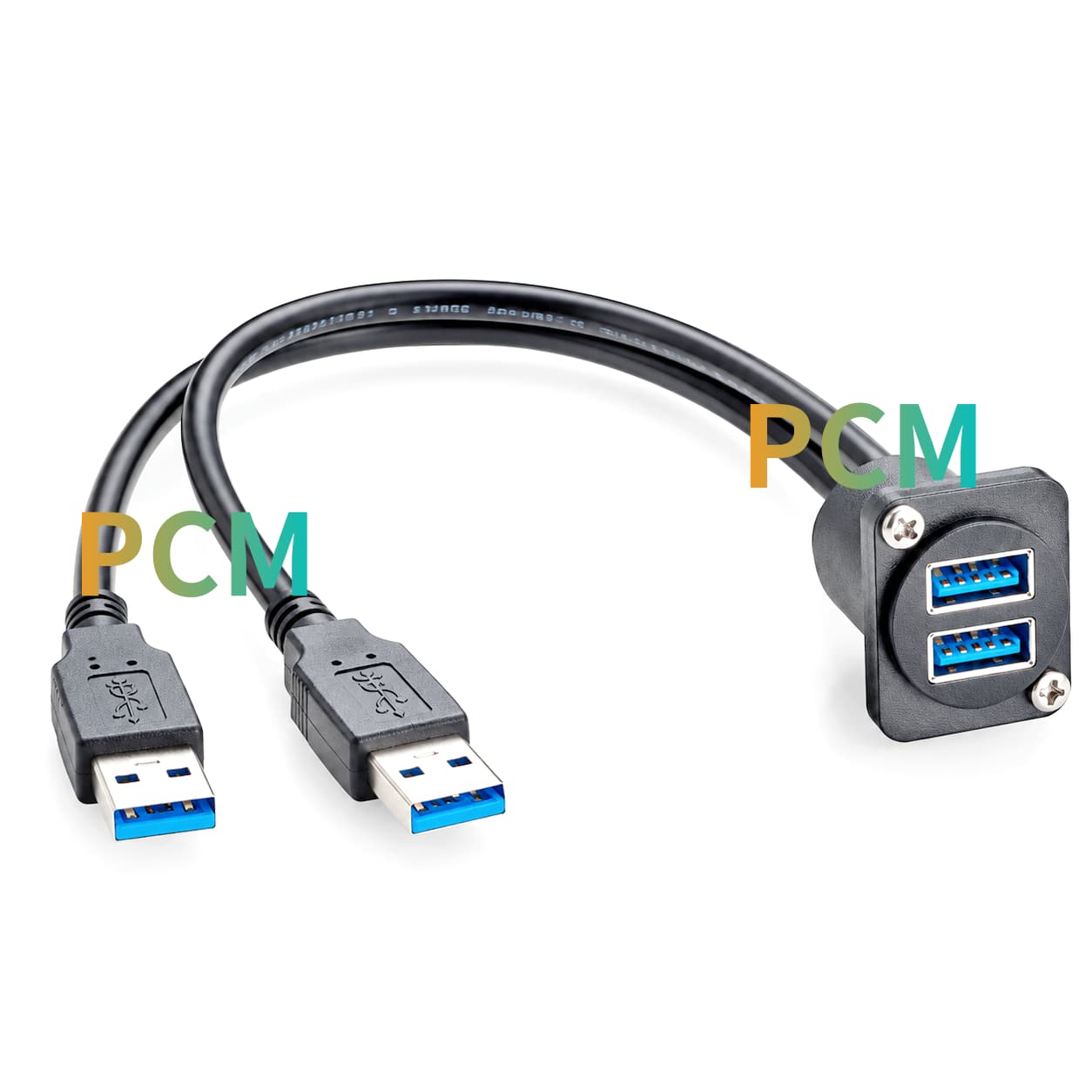

Premier Cable PCM-1016 is a dual USB 3.0 Type-A male-to-dual Type-A female panel-mount extension cable designed for applications that require internal USB connections to be brought to an external equipment panel.

One end features two USB 3.0 Type-A male plugs for connection to compatible host USB ports. The opposite end integrates two USB 3.0 Type-A female receptacles into a square panel-mount assembly secured with screws and nuts. This arrangement consolidates two USB access points within one mounting area, making it suitable for enclosures, control cabinets, equipment panels, and embedded systems.

For projects requiring two externally accessible USB ports, internal host connections, and secure panel installation, PCM-1016 provides a compact pre-assembled harness solution. It is not a USB hub and does not convert one USB port into two independent data channels. Each panel receptacle connects to its corresponding male plug, and actual functionality depends on the host ports and peripheral configuration.

PCM-1016 is a dual-channel USB 3.0 Type-A panel-mount extension cable assembly comprising two host-side USB-A male plugs, two independent cable paths, and a dual USB-A female panel assembly. It extends two USB ports from internal or inconveniently located positions to an accessible external panel, allowing connection of USB storage devices, keyboards, mice, scanners, and other compatible peripherals.

Suitable for industrial control cabinets, equipment enclosures, and embedded host systems, its pre-assembled cable design simplifies external port access and reduces the need to reach internal device connections. PCM-1016 is a passive dual-channel extension assembly, not a USB hub or signal splitter; its two male plugs must connect to appropriate USB ports.

What Are the Benefits of Using This Product ?

Improves USB Port Accessibility

Mounting two USB female receptacles on an external equipment panel reduces the need to access internal host ports, making the assembly suitable for systems that frequently connect peripheral devices.

Consolidates Two USB Access Points

Integrating two female receptacles into one panel assembly helps designers coordinate mounting openings, port spacing, and external connection locations, reducing the mechanical coordination required for separately mounted ports.

Separates Internal Routing from External Access

The pre-assembled harness separates host-side connections from panel-side access points, allowing internal cable routing and external user-access areas to be planned independently in space-constrained equipment.

Key Performance Advantages

◆ Supports Front- and Rear-Panel Interface Planning

By extending internal USB connections to an external panel, equipment designers can choose port locations according to access frequency, space constraints, and maintenance workflows rather than relying solely on native motherboard port locations.

◆ Reduces Repeated Dual-Port Integration Work

The pre-assembled dual-port unit integrates the mounting relationship between both receptacles, supporting equipment projects that reuse the same interface layout and reducing repeated design work for separate port brackets.

◆ Facilitates Peripheral Connection and Replacement

External panel receptacles provide more accessible connection points for peripherals, making device connection, disconnection, and replacement more convenient. Actual maintenance benefits depend on panel placement and enclosure layout.

Product FAQ

Why Is a Dual USB Panel Extension Cable Not a USB Hub ?

A USB hub expands one upstream USB connection into multiple downstream ports and manages device connections through its internal hub functionality. A dual USB panel extension cable simply extends two independent USB connections to an external panel and does not provide port expansion or data distribution. The two male plugs of PCM-1016 correspond to two female receptacles and therefore require two suitable host-side USB ports. If a device has only one USB port but needs to support multiple peripherals simultaneously, an appropriate USB hub should be selected instead of a dual-port extension cable.

Why Verify Mounting-Hole Spacing and Panel Thickness for USB Interfaces ?

Proper installation of a panel-mount USB interface depends not only on the connector shape but also on the panel cutout dimensions, mounting-hole positions, panel thickness, screw length, and rear clearance. Even if two panel assemblies feature dual USB female receptacles, they may have different mounting dimensions. The PCM-1016 engineering drawing provides the relevant panel dimensions and M3 mounting hardware information. Verify these specifications before machining the enclosure and ensure that the installed assembly does not interfere with internal wiring, circuit boards, or other components.

Can the Panel-Mount Structure Be Customized ?

Custom panel dimensions, mounting-hole locations, and mounting arrangements can be evaluated after confirming the target enclosure interface. Any structural changes require drawing review and verification of mounting security and clearance.

Does Premier Cable Offer Wholesale and OEM Services ?

Premier Cable can evaluate connector integration, custom cable assemblies, OEM manufacturing, and volume procurement according to project requirements.
