Shielded M12 Feed-Through Connector for Industrial Equipment

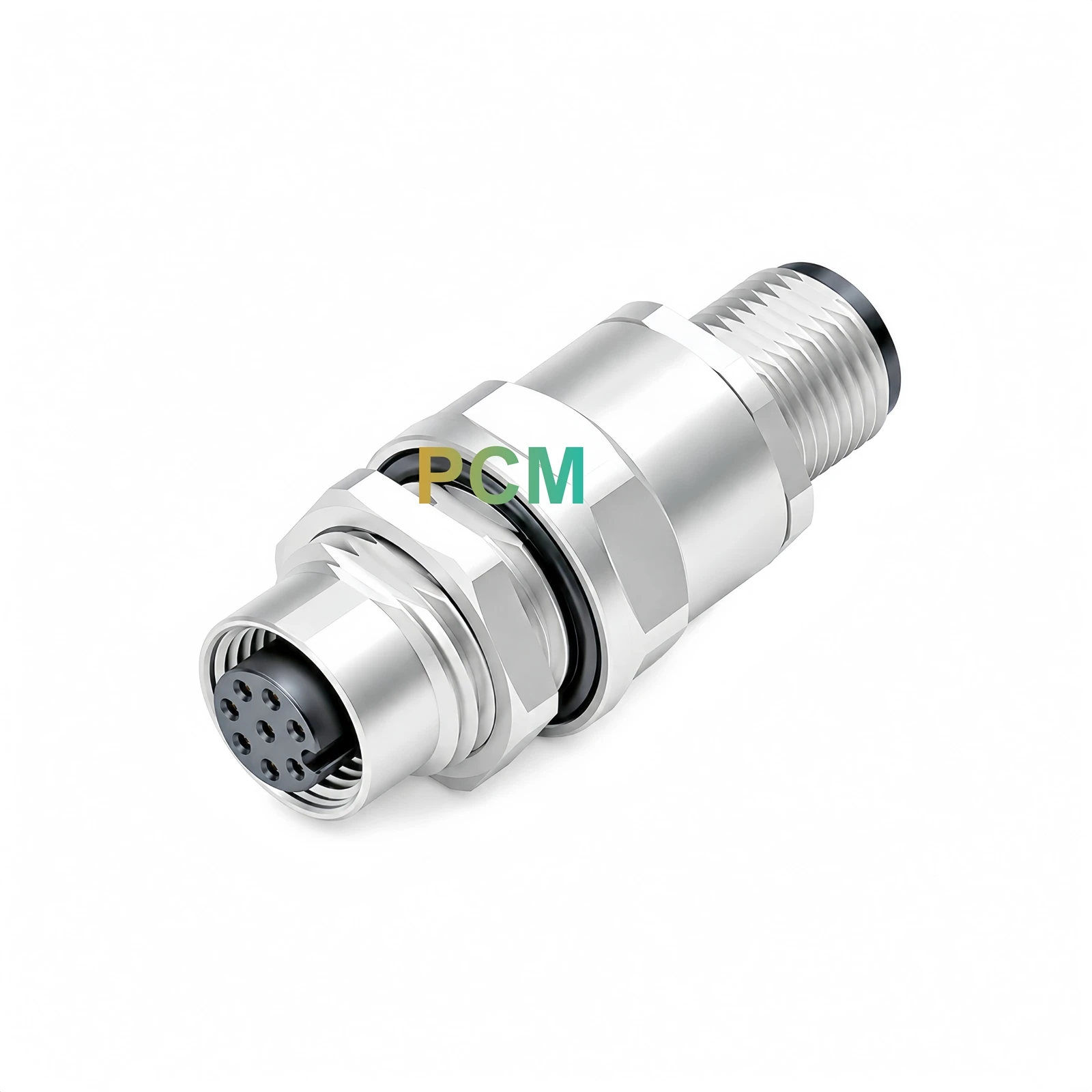

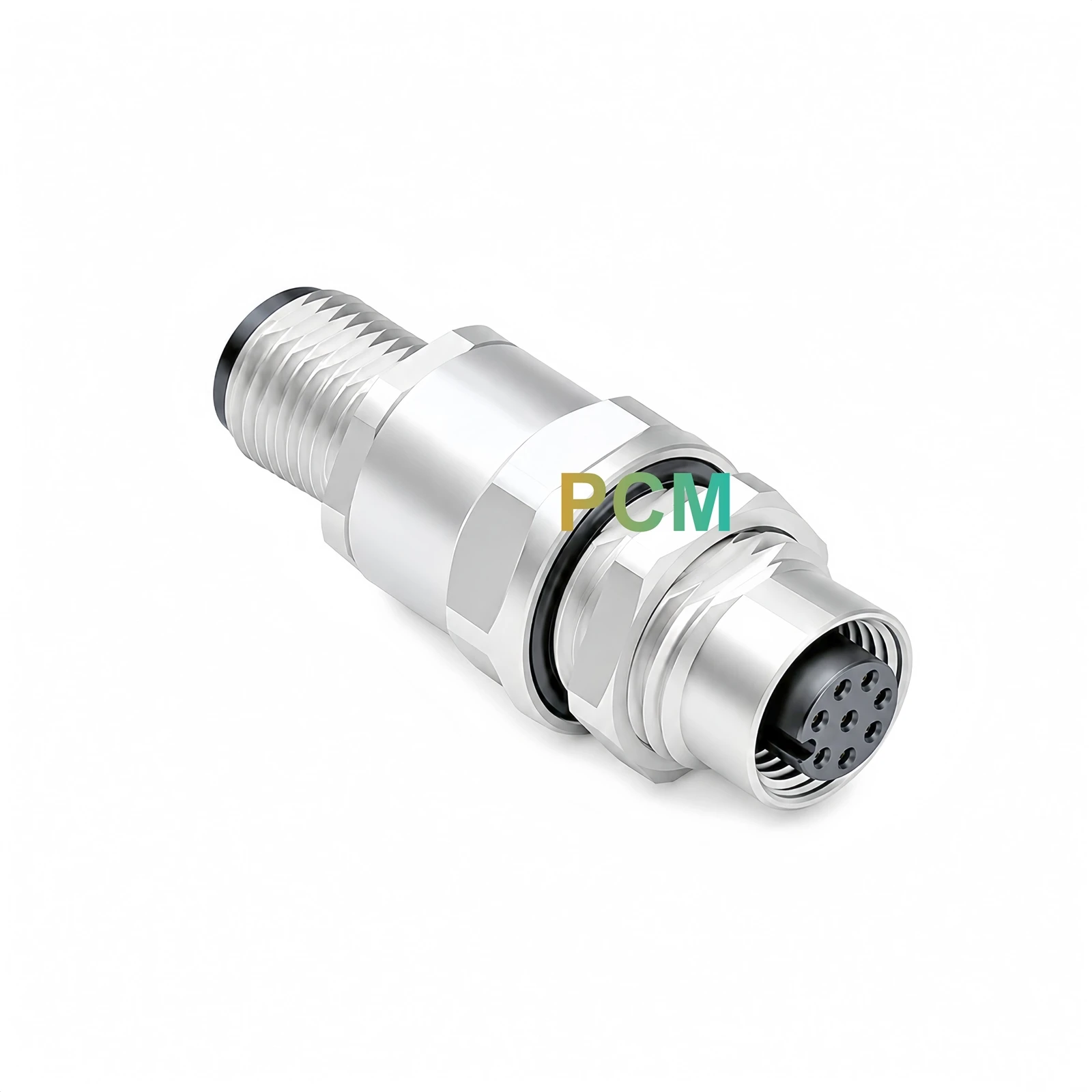

An M12 panel feed-through connector provides a fixed connection point through an equipment enclosure. It enables compatible external connectors to interface with internal wiring without requiring the complete mating connector to pass through the enclosure wall.
The 8-pin M12 interface supports compatible multi-contact connections. Its shielded construction is intended to support electromagnetic compatibility when the connector housing, shielding path and equipment grounding are correctly integrated into the overall system.
For replacement projects and new equipment designs, verify the mating connector, coding, contact layout, panel cut-out, mounting orientation and electrical requirements. An M12 connector designation alone does not guarantee compatibility with every M12 cable or device.
Product Design and Mounting
This M12 8-pin panel feed-through connector is intended for installation through a compatible equipment panel or enclosure wall. The mounting arrangement creates a fixed connection point for linking external M12 equipment to internal wiring.
The shielded connector design supports a defined shielding path when properly integrated into the equipment's electromagnetic compatibility design. Actual shielding performance depends on connector construction, panel bonding, grounding and the complete installation.
Refer to the approved product drawing for mounting thread, panel opening, panel thickness, overall dimensions, connector orientation and sealing requirements. Do not determine the panel cut-out or installation compatibility from the M12 designation alone.
Product Specifications
| Parameter | Reference Specification |
|---|---|
| Product Type | M12 Control Cabinet Feed-Through Connector |
| Connector Interface | M12 Circular Connector |
| Number of Contacts | 8 Pin |
| Connector Coding | A-Coded |
| Connection Type | Pluggable |
| Shielding | Shielded Housing |
| Operating Temperature | - 40°C to +85°C |
| Housing Material | Nickel-Plated Brass, |
| Applicable Standards | DIN EN 61076-2-101 and DIN EN 61076-2-106, subject to product verification |
Product Features
01. Eight-Position M12 Interface
The M12 8-pin connector interface is intended for compatible multi-contact industrial connections. Verify contact arrangement, coding, keying and wiring assignment against the mating equipment.
02. Shielded Housing Construction
The shielded connector construction supports a defined shielding path in a properly designed installation. Overall EMC performance depends on the complete connection system, including panel bonding and grounding.
03. Panel Feed-Through Installation
The panel feed-through design creates a fixed connection point through a compatible enclosure wall, helping organize equipment wiring and provide access for maintenance.
04. Environmental Protection for Industrial Use
The referenced configuration specifies IP67 protection. Confirm sealing, panel installation, mating conditions and test results before selecting the connector for demanding environments.
Typical Applications
01. Industrial Automation Cabinets
An M12 8-pin control cabinet feed-through connector can provide an accessible interface between external field connections and internal cabinet wiring. Verify pin assignment, electrical ratings, panel dimensions and required protection level.
02. Sensor and Actuator Systems
An M12 8-pin shielded panel connector can be evaluated for compatible sensor and actuator installations requiring a multi-contact interface through an equipment panel. Confirm the mating interface and electrical requirements before use.
03. Industrial Machinery
An M12 bulkhead connector for industrial machine panels can provide a fixed connection point for compatible control and signal circuits. Mounting dimensions, mechanical clearance and environmental requirements must match the machine design.
Compatibility and Installation Requirements
Mating Connector Compatibility
Confirm the connector gender, M12 coding, keyway, eight-contact arrangement, pin assignment and electrical ratings. Not every M12 connector with the same contact count is interchangeable.
Panel Mounting Dimensions
Check the mounting thread, panel cut-out, panel thickness, fastening method, available clearance and sealing arrangement against the approved mechanical drawing.
Shielding and Grounding
Ensure the connector shield is correctly integrated into the equipment grounding and EMC design. Connector shielding alone does not guarantee system-level electromagnetic compatibility.
Environmental Protection
Confirm the actual IP rating under the intended mounting and mating conditions. Protection at the connector interface does not automatically establish the protection rating of the complete enclosure.
Frequently Asked Questions
What is an M12 8-pin panel feed-through connector?
It is a panel-mounted circular connector designed to provide an electrical interface through a compatible enclosure. The referenced configuration features an eight-contact M12 interface and shielded construction for compatible industrial equipment.
What is an M12 8-pin shielded connector used for?
It can be evaluated for compatible industrial automation cabinets, sensor and actuator systems, machinery and monitoring equipment requiring a multi-contact panel connection with shielding.
Is this M12 feed-through connector compatible with every M12 cable?
No. Compatibility depends on connector coding, gender, contact arrangement, keyway, pin assignment, mounting dimensions and electrical ratings. Verify these details against the intended mating connector before ordering.
Does the referenced M12 connector support IP67 protection?
The referenced Binder configuration specifies IP67. Confirm the actual Premier Cable product rating, panel seal, mating conditions and applicable test results before using this claim for a Premier Cable product.
Can this connector be installed in an industrial control cabinet?
It can be evaluated for compatible control cabinet designs when its mounting dimensions, contact configuration, electrical ratings and environmental protection meet the application requirements.
Can Premier Cable support custom M12 cable assemblies?
Custom cable assembly requirements can be reviewed subject to technical assessment and manufacturing capability. Provide the required cable length, connector references, pin assignment, quantity and operating environment.
What information is required for a quotation?
Provide the product drawing or reference number, target quantity, mating connector specification, panel dimensions and electrical requirements. For cable assemblies, also specify cable length, wiring details and application conditions.
