M12 A-Code 12 Pin Bulkhead Feedthrough Adapter

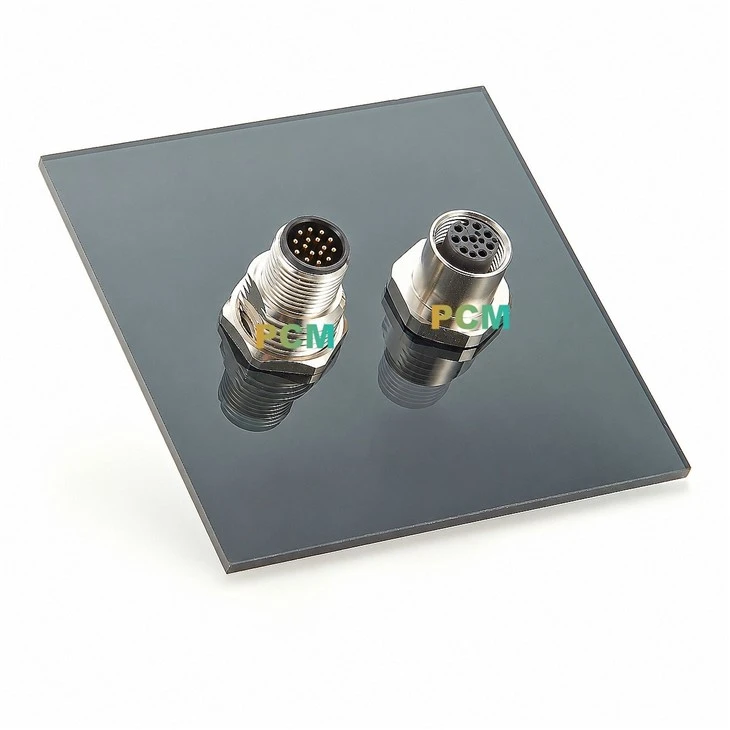

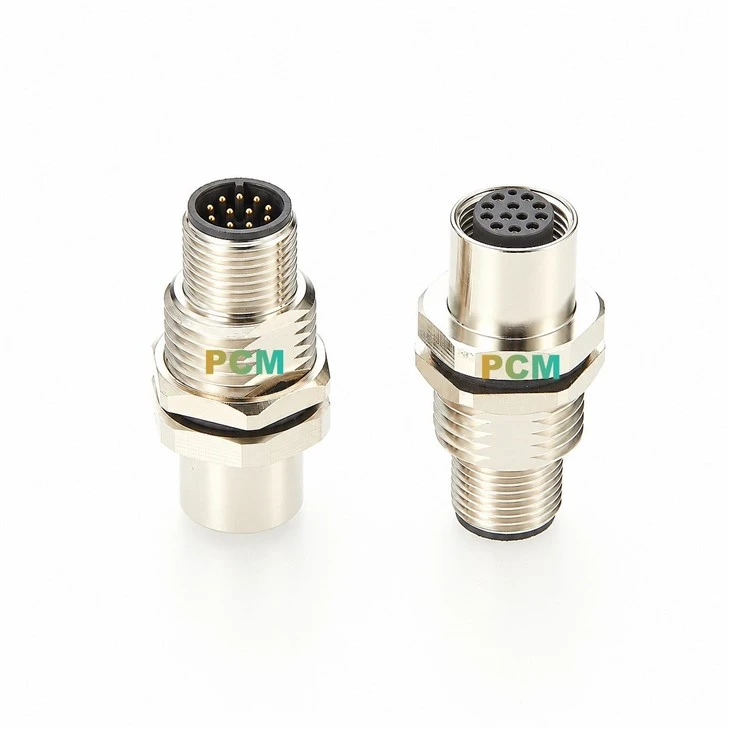

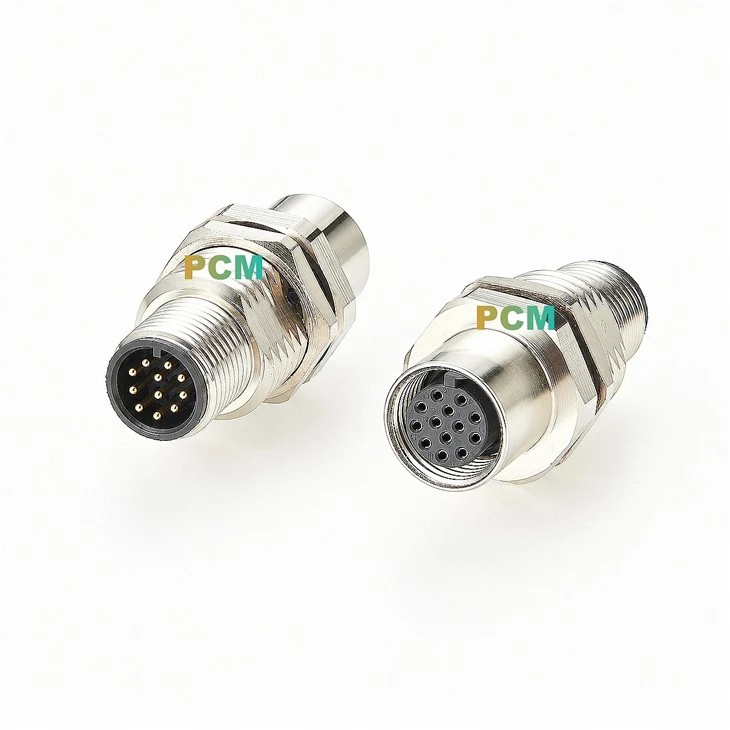

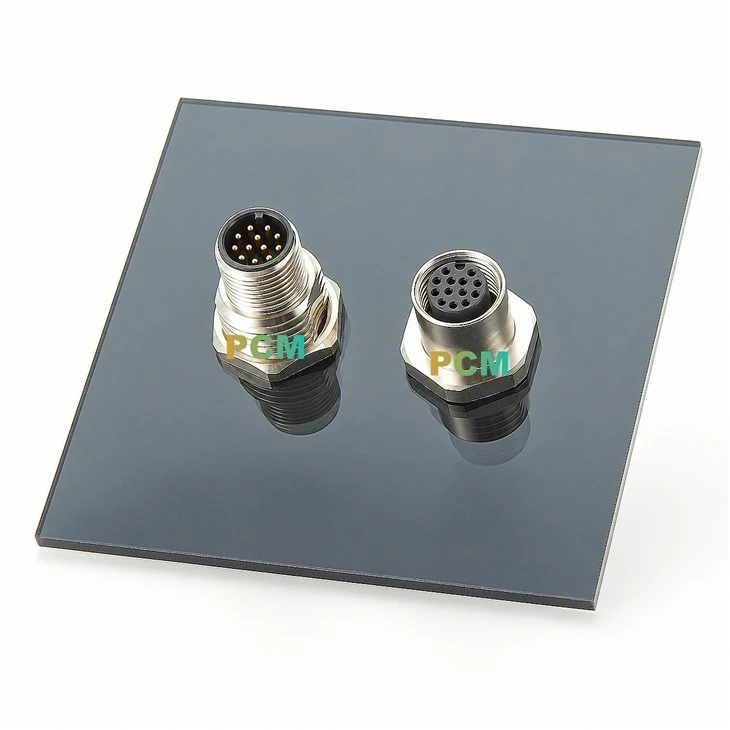

M12 A-Coded 12-Pin Male to Female | Panel Mount Feedthrough | Approx. 16 mm Panel Cutout | Premier Cable FT-A12-MF
The Premier Cable FT-A12-MF M12 A-Code 12 Pin Bulkhead Feedthrough Adapter is a straight male-to-female panel mount connector designed to provide a compact and detachable connection through industrial equipment panels, control cabinets, junction boxes and machine enclosures.
Featuring a high-density 12-pin M12 A-coded interface and an approximately 16 mm panel cutout, this M12 bulkhead adapter provides a practical way to route multiple signal, I/O and compatible low-current power circuits through a single panel connection.
The male-to-female feedthrough configuration allows detachable M12 cable assemblies to connect on both sides of the equipment panel. This modular design is well suited to industrial automation, sensors, distributed I/O, robotics, control cabinets, machine vision equipment and customized industrial systems.
Product Specifications
Item |
Specification |
|---|---|
| Product Name | M12 A-Code 12 Pin Bulkhead Feedthrough Adapter |
| Premier Cable # | FT-A12-MF |
| Connector Type | M12 Bulkhead Feedthrough Adapter |
| Coding | A-Code |
| Number of Positions | 12 Pin |
| Connector Side A | M12 A-Coded 12-Pin Male |
| Connector Side B | M12 A-Coded 12-Pin Female |
| Configuration | Straight Male-to-Female Feedthrough |
| Mounting Type | Bulkhead / Panel Mount |
| Panel Cutout | Approx. 16 mm |
| Connection Method | M12 Threaded Locking |
| Typical Signal Use | Sensor Signals, I/O, Control Signals & Compatible Low-Current Power |
| Typical Power Application | 24V Industrial Control Circuits, Subject to System Electrical Requirements |
| Environmental Protection | Protection level depends on the final connector configuration, panel sealing, mating connector and installation conditions |
| Typical Applications | Sensors, I/O Modules, Robotics, Control Cabinets, Industrial Machinery, Machine Vision & Automation Equipment |
Key Product Advantages
High-Density 12-Pin Interface
The 12-pin M12 A-coded interface provides multiple contact positions in a compact circular connector, making it suitable for consolidated sensor, I/O, control and compatible power circuits.
Male-to-Female Feedthrough
The straight male-to-female configuration creates a detachable connection between internal equipment wiring and external M12 cable assemblies without permanently hard-wiring the field cable.
Compact Panel Integration
An approximately 16 mm panel cutout allows the M12 12-pin bulkhead connector to be integrated into compact control cabinets, junction boxes, machines and industrial equipment panels.
16 mm Panel Mounting Design
Compact Feedthrough for Equipment Panels
The FT-A12-MF is designed around an approximately 16 mm panel opening, providing a compact connection point for machine enclosures, control cabinets, junction boxes and other industrial panels.
Depending on the final mechanical configuration, a keyed or anti-rotation panel opening can help prevent unwanted connector rotation during repeated mating and unmating.
The final panel thickness, cutout geometry, sealing arrangement and installation torque should be confirmed against the approved production drawing before machining the equipment panel.
Connection Configuration
M12 A-Code 12-Pin Male to Female
The FT-A12-MF provides a straight male-to-female M12 A-coded feedthrough connection for routing compatible circuits through an equipment panel.
| Interface | Configuration |
| Side A | M12 A-Coded 12-Pin Male |
| Side B | M12 A-Coded 12-Pin Female |
| Mounting | Bulkhead / Panel Feedthrough |
| Positions | 12 |
| Final Pin Assignment | Confirm according to approved FT-A12-MF production drawing |
Important: Connector coding and pin count do not by themselves define the electrical function of each contact. Confirm the approved pin assignment, voltage, current and connected equipment requirements before installation.
Mating & Compatibility
M12 A-Coded 12-Pin Industrial Interfaces
This M12 A-Code 12 pin male to female panel mount adapter is intended for compatible M12 A-coded 12-position mating connectors. Connector gender, A-coding, pin assignment and electrical requirements must match the connected cable assemblies and equipment.
The 12 available contact positions make the connector useful as a consolidated interface for multiple sensor signals, analog or digital I/O, control lines and compatible low-current power circuits.
For systems involving IO-Link, CAN/CANopen, DeviceNet, PROFIBUS or proprietary industrial communication, compatibility must be determined from the actual equipment pinout and electrical requirements rather than from the M12 connector format alone.
Applications
Additional Application Areas
Sensor & Actuator Junction Boxes • Servo & Motion Control Systems • CNC Machines • Industrial Machinery • Automation & Sensor Networks • Test & Measurement Equipment • Customized Industrial Equipment
Modular Male-to-Female Feedthrough Design
Detachable Panel Interface for Modular Wiring
Instead of hard-wiring an external cable directly into the equipment enclosure, the FT-A12-MF M12 bulkhead feedthrough adapter can be installed as a permanent panel interface.
Detachable M12 cable assemblies can then be connected on the required side of the adapter. This can make machine assembly and field cable replacement more convenient while helping protect internal wiring from unnecessary handling.
For OEM equipment manufacturers, this modular architecture also allows external cable assemblies and internal wiring to be produced, installed and serviced as separate components.
FAQ
What is the FT-A12-MF?
FT-A12-MF is Premier Cable's M12 A-Code 12-pin male-to-female bulkhead feedthrough adapter designed to provide a detachable connection through industrial equipment panels and enclosures.
What panel opening does the FT-A12-MF use?
The supplied product information specifies an approximately 16 mm panel cutout. Final panel machining dimensions should be confirmed against the approved mechanical drawing.
Is this an M12 A-coded connector?
Yes. The FT-A12-MF uses a 12-position M12 A-coded interface with male and female connection sides.
What is an M12 12-pin bulkhead adapter used for?
Typical uses include sensor and actuator systems, PLC and distributed I/O modules, robotics, control cabinets, industrial machinery, machine vision equipment and customized automation systems.
Can the adapter carry 24V power?
It may be used in compatible low-voltage industrial circuits such as 24V control systems when the selected contact assignment, current, voltage and complete equipment design meet the required electrical specifications.
Can FT-A12-MF be used with IO-Link?
The connector may be integrated into compatible industrial systems when the equipment pin assignment and electrical requirements match. Connector format alone does not establish IO-Link protocol compatibility.
Can it be used for CAN, CANopen, DeviceNet or PROFIBUS?
A 12-pin M12 interface may be used as a customized multi-signal connection in some systems, but protocol compatibility depends on the actual wiring, electrical characteristics and equipment requirements. Confirm the application before specifying the adapter for a particular network.
Is the FT-A12-MF waterproof?
Environmental protection depends on the final adapter construction, panel sealing, O-ring or gasket arrangement, mating connectors and installation conditions. Do not specify a final IP rating until the selected configuration has been confirmed.
Why use a male-to-female M12 feedthrough instead of hard wiring?
A feedthrough adapter creates a detachable panel interface, which can simplify equipment assembly, cable replacement, maintenance and field servicing while keeping internal and external wiring modular.
Can Premier Cable customize this M12 bulkhead connector?
Premier Cable can evaluate customized M12 connector and cable assembly requirements according to customer drawings, pin assignments, equipment interfaces and project specifications.
