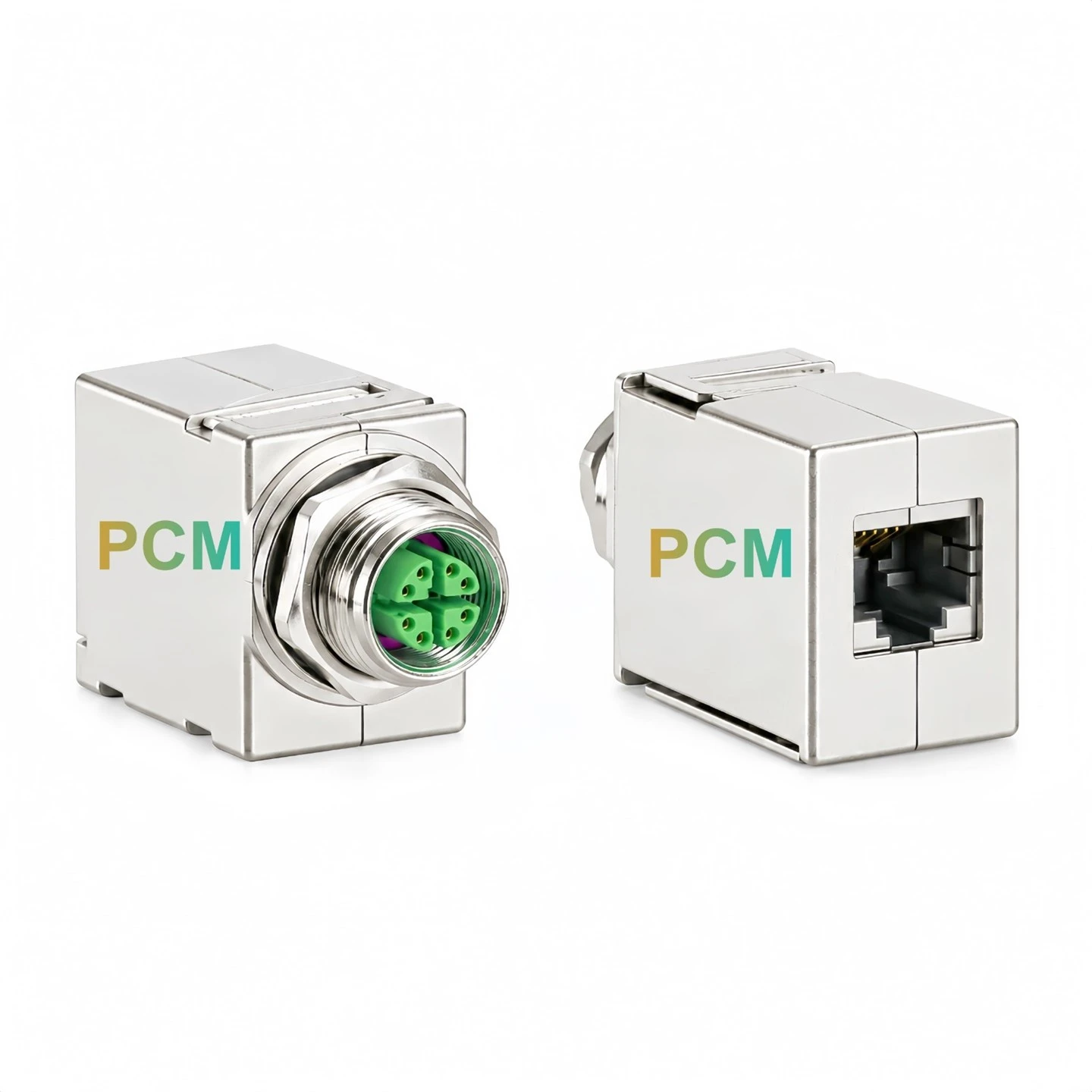

M12 X-Coded to RJ45 Panel Adapter
The M12 X-Coded to RJ45 Panel Adapter from Premier Cable is a passive industrial Ethernet feed-through solution designed to route a network connection across an electrical cabinet or equipment enclosure wall. An external 8-pin M12 X-coded male cable connector mates with the M12 female interface, while an internal RJ45 patch cord connects to the RJ45 female jack.
This industrial Ethernet panel feed-through adapter uses a straight, shielded interface arrangement for Cat6A-class network designs and potential 10 Gigabit Ethernet operation. End-to-end transmission performance depends on the finished product, cabling, equipment and installation conditions.
The product is intended for OEM machinery builders, system integrators and industrial network installations requiring a fixed, serviceable cabinet boundary connection. Final Premier Cable electrical, environmental and mechanical ratings are subject to approved drawings and validation.

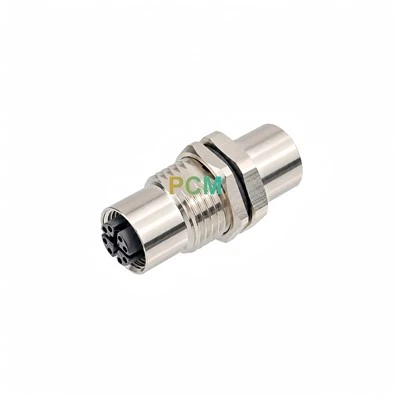

M12 X-Coded RJ45 Feedthrough Connector

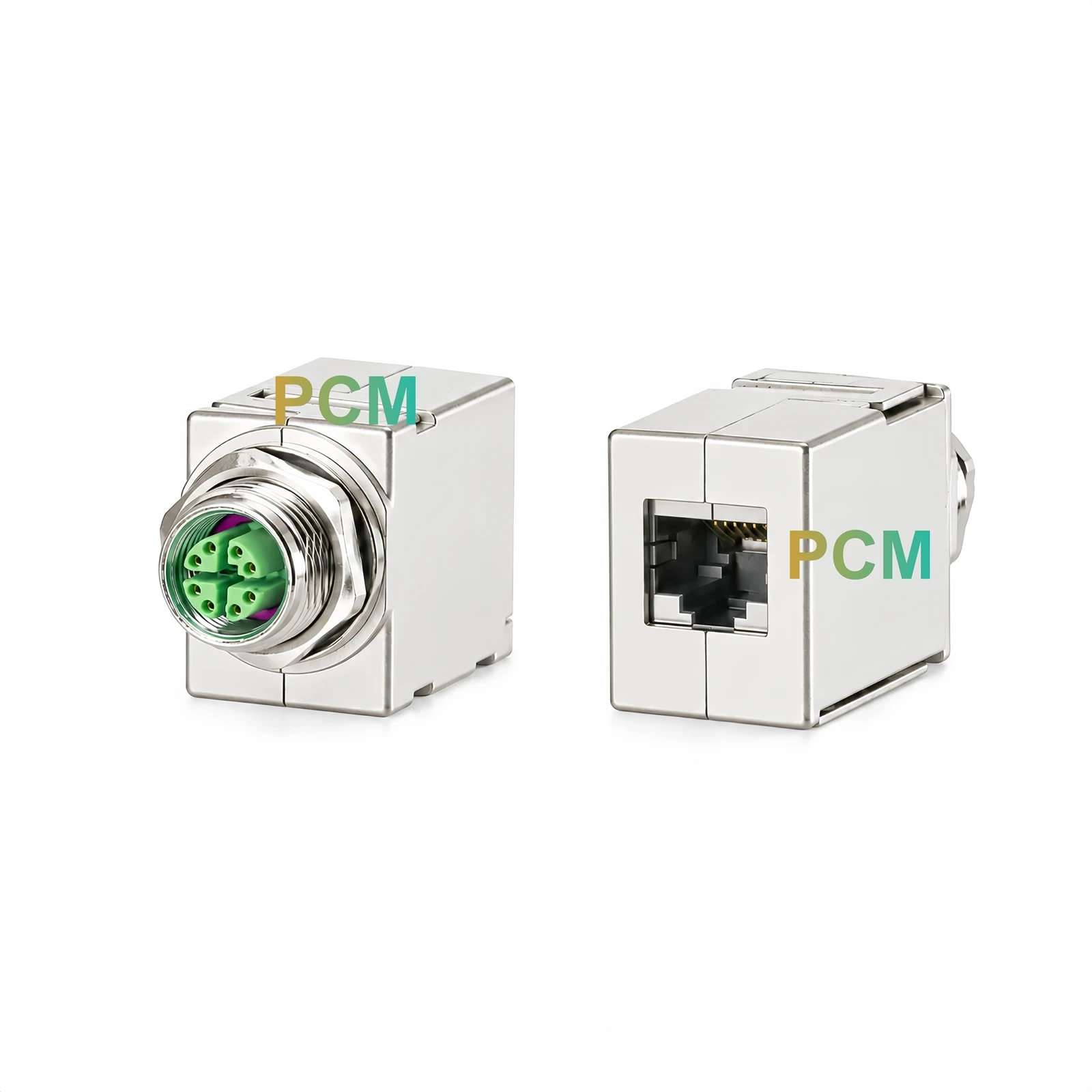

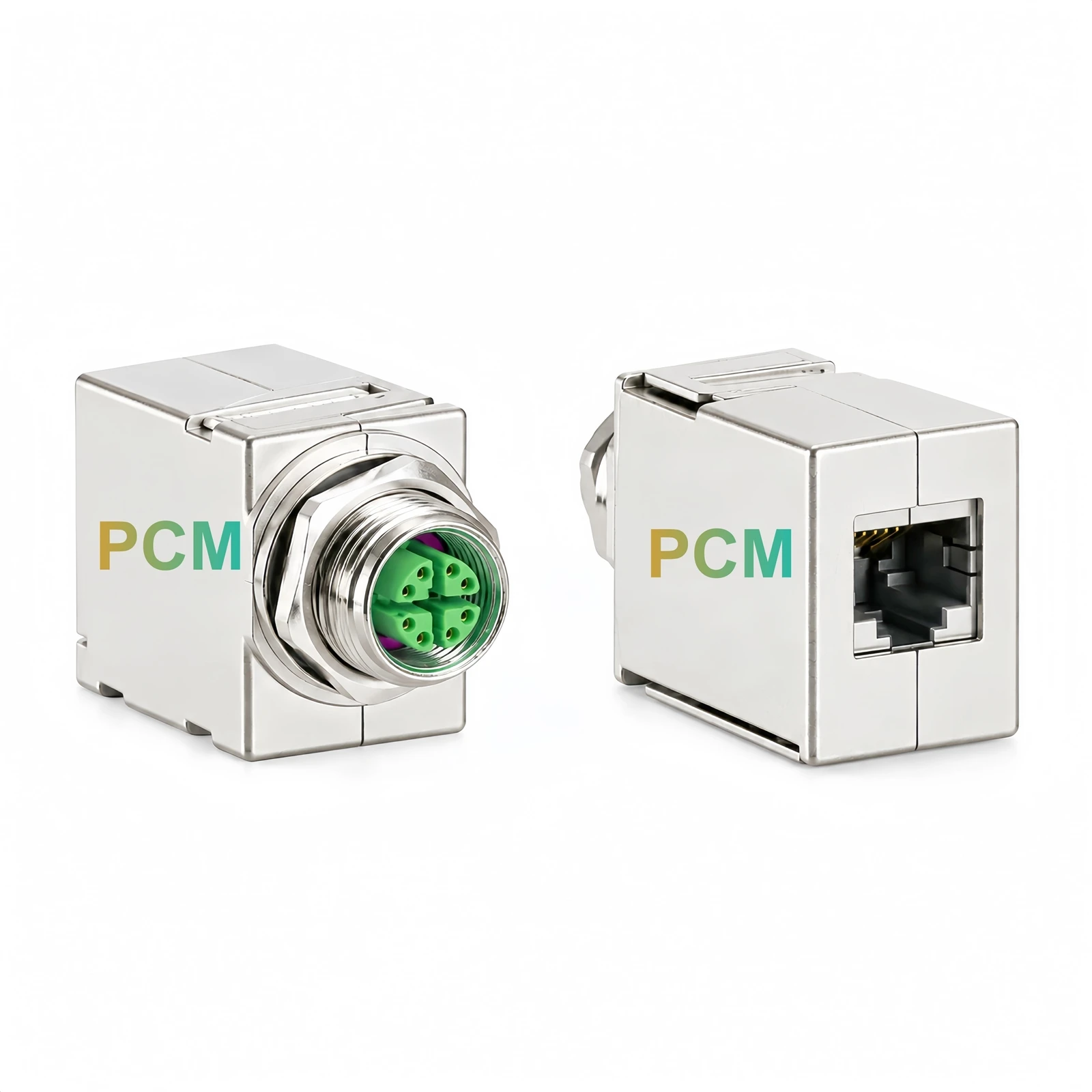

The M12 X-coded female to RJ45 female bulkhead adapter creates a protected transition between industrial Ethernet cabling outside a cabinet and standard RJ45 connections inside. Its eight-contact X-coded interface is mechanically keyed for compatible M12 X-coded male connectors.
The passive adapter does not convert Ethernet protocols or increase network speed. Its shielded metal construction is designed to support screening continuity when the complete cable and grounding arrangement is correctly implemented.
Confirm panel cutout, rear-mount geometry, connector pin assignment and sealing components before installation.
Product Specifications
| Parameter | Specification / Reference |
|---|---|
| Product Type | Passive Industrial Ethernet Panel Feed-Through Adapter |
| Connector A | M12 X-Coded Female, 8 Contacts |
| Connector B | RJ45 Female, 8P8C |
| Connector Orientation | Straight / 180° |
| Mounting Method | Rear Panel Mount |
| Ethernet Category | Cat6A reference design |
| Network Interface | IEEE 802.3an / 10GBASE-T application reference |
| Housing | Shielded zinc die-cast metal, nickel-plated reference construction |
Product Features
01. 8-Pin M12 X-Coded Ethernet Interface
The 8-pin M12 X-coded female interface mates with compatible industrial Ethernet male connectors and helps prevent mating with differently coded M12 interfaces.
02. M12 to RJ45 Cabinet Transition
This Cat6A M12 to RJ45 bulkhead adapter enables a detachable network transition through a control cabinet wall without a permanently attached cable tail.
03. Shielded Metal Construction
A shielded metal housing is intended to support electromagnetic compatibility in industrial networking environments. Actual shielding depends on installation and the full link.
04. Straight Rear-Panel Installation
The straight feed-through geometry helps organize cabinet connections and allows the RJ45 interface to remain inside the protected enclosure.
Typical Applications
Industrial Control Cabinets
The M12 RJ45 adapter for control cabinets provides a fixed interface between rugged external Ethernet cables and internal RJ45-connected PLCs, network switches and controllers.
Industrial Machine Vision
An M12 X-coded to RJ45 adapter for machine vision systems can link compatible high-bandwidth camera network cables to an RJ45 switch or image-processing computer inside an equipment cabinet.
Factory Automation Networks
The 10Gbps M12 RJ45 Ethernet adapter reference configuration suits industrial Ethernet cabinet interfaces where a validated Cat6A channel and suitable network devices are specified.
Compatibility and Installation Requirements
M12 X-Coded Connector Compatibility
Designed for compatible M12 X-coded 8-pin male mating connectors. A-coded and D-coded M12 connectors cannot be directly mated to the X-coded female interface.
RJ45 Equipment Compatibility
The RJ45 female side accepts compatible RJ45 male patch-cord plugs. Connected switches, controllers and computers must support the required Ethernet standard and speed.
Ethernet Channel Performance
A Cat6A industrial Ethernet panel mount adapter must be assessed as part of the complete cabling channel. Cable category, contact assignment, return loss, shielding and termination all influence 10GBASE-T performance.
Panel Mounting and Sealing
Check the actual panel cutout, wall thickness, rear installation clearance, mounting hardware, seals and tightening instructions against the approved mechanical drawing.
Environmental Protection
IP67 refers to the correctly mated M12-side interface under specified installation conditions, not automatically to the RJ45 side or the entire assembled enclosure. Verify the required enclosure ingress protection.
Pinout and Electrical Safety
Use the approved M12-to-RJ45 pin assignment; do not assume a wiring sequence from connector appearance. Confirm voltage, current, grounding and any PoE requirements separately.
Frequently Asked Questions
What is an M12 X-coded to RJ45 panel adapter?
It is a passive feed-through connector that provides an M12 X-coded female Ethernet interface on one side of a panel and an RJ45 female interface on the other.
Can this adapter support 10 Gigabit Ethernet?
A Cat6A-class reference design can support 10GBASE-T, but the finished adapter and complete network channel must be verified before claiming 10 Gbps performance.
Is this adapter compatible with M12 D-coded cables?
No. M12 D-coded and X-coded connectors have different mechanical coding and are not directly interchangeable.
Can it connect to an industrial Ethernet switch?
Yes, when an appropriate RJ45 patch cable and compatible switch are used. The adapter itself does not perform protocol conversion.
Is the adapter waterproof on both sides?
No. The reference protection is IP67 on the correctly mated M12 side and IP20 on the RJ45 side. Final protection depends on the manufactured product and installation.
Can Premier Cable review custom panel mounting requirements?
Premier Cable can evaluate customer drawings, panel thickness, cutout dimensions, connector configuration and network performance targets for an OEM project.
What information should be included in a quotation request?
Please share the connector interface, mounting drawing, pin assignment, required Ethernet performance, operating environment, quantity and any compliance requirements.
