Shielded M8 Feed-Through Connector for Industrial Equipment

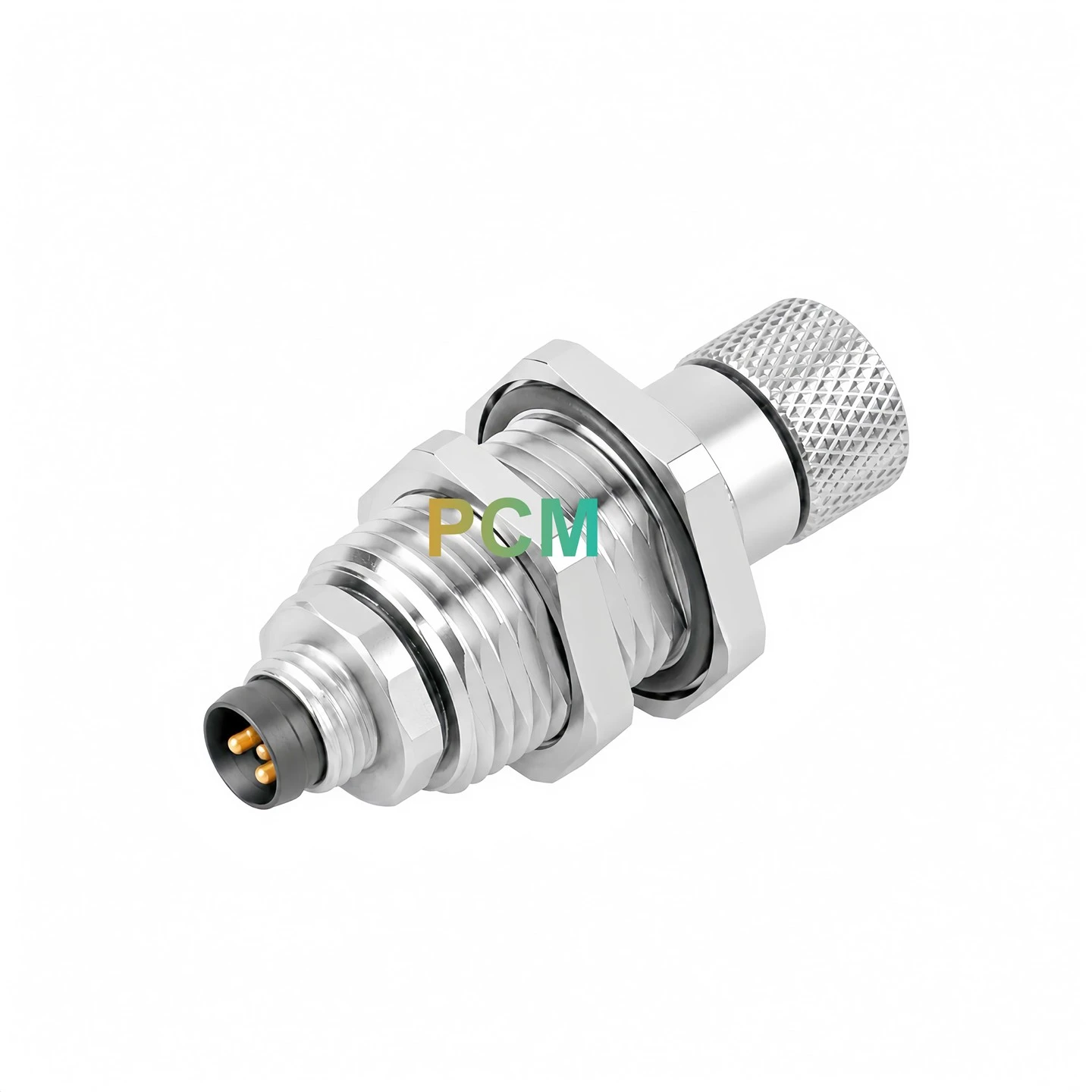

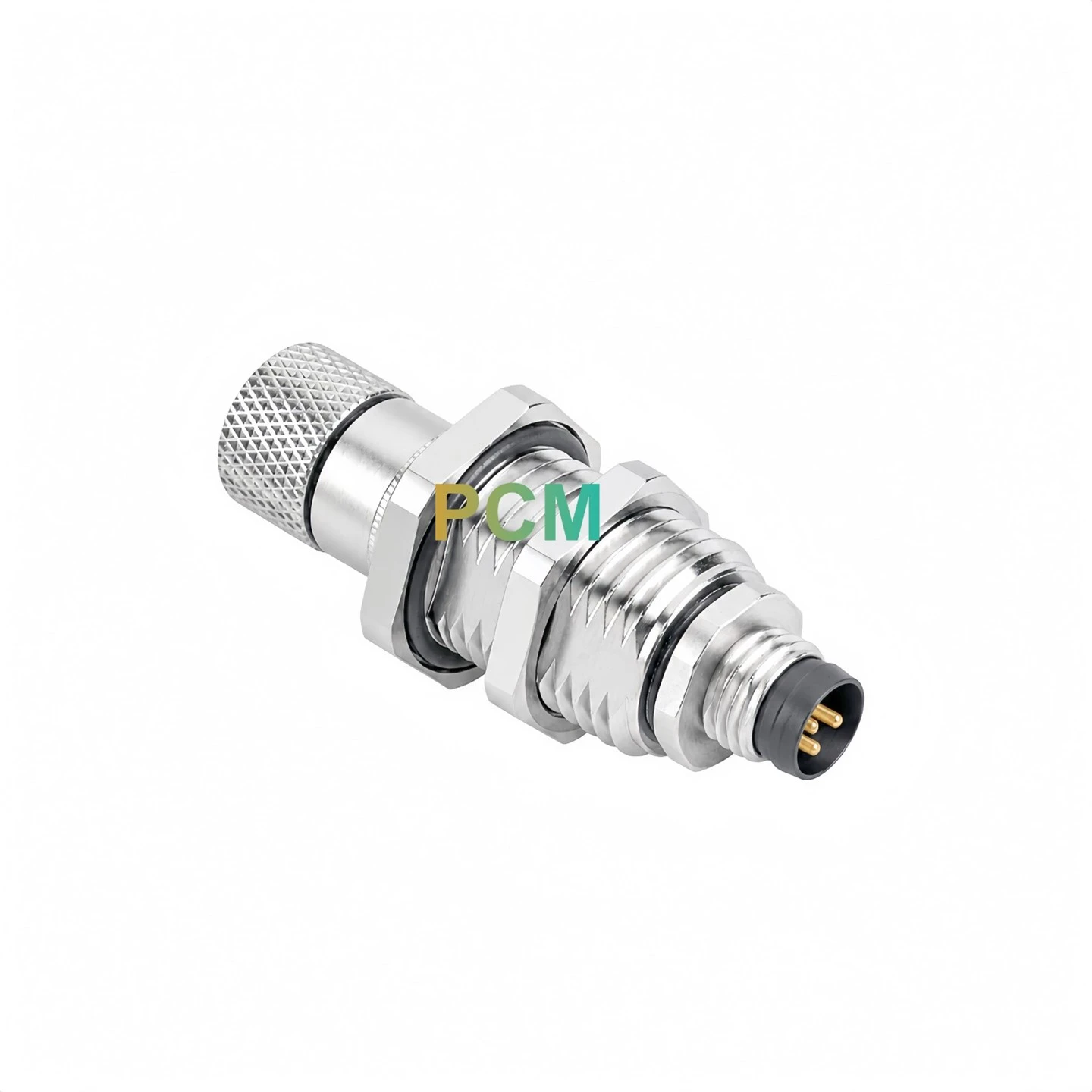

An M8 panel feed-through connector provides a fixed connection point through an equipment enclosure. It enables compatible external connectors to interface with internal wiring without requiring the complete mating connector to pass through the enclosure wall.
The 4-pin M8 A-coded interface supports compatible multi-contact connections. Its shielded construction is intended to support electromagnetic compatibility when the connector housing, shielding path and equipment grounding are correctly integrated into the overall system.
For replacement projects and new equipment designs, verify the mating connector, coding, contact layout, panel cut-out, mounting orientation and electrical requirements. An M8 connector designation alone does not guarantee compatibility with every M8 cable or device.
Product Specifications
| Parameter | Reference Specification |
|---|---|
| Connector Interface | M8 |
| Number of Contacts | 4 Pins |
| Protection Rating | IP67 |
| Connector Coding | A-Coded |
| Connection Type | Pluggable |
| Mounting Type | Rear Mounting |
| Locking Mechanism | Screw Locking |
| Operating Temperature | -25°C to +85°C |
| Contact Material / Plating | Brass / Bronze contacts; gold-plated |
| Housing / Locking Material | Nickel-plated zinc die-cast locking components |
| Product Type | M8 Control Cabinet Feed-Through Connector |
Product Features
01. Four-Contact M8 A-Coded Interface
The M8 4-pin A-coded connector interface is intended for compatible multi-contact industrial connections. Verify contact arrangement, coding, keying and wiring assignment against the mating equipment.
02. Shielded Housing Construction
The shielded M8 panel connector construction supports a defined shielding path in a properly designed installation. Overall EMC performance depends on the complete connection system, including panel bonding and grounding.
03. Panel Feed-Through Installation
The M8 panel feed-through design creates a fixed connection point through a compatible enclosure wall, helping organize equipment wiring and provide access for maintenance.
04. Environmental Protection for Industrial Use
The referenced configuration specifies IP67 protection. Confirm sealing, panel installation, mating conditions and test results before selecting the connector for demanding environments.
Typical Applications
01. Industrial Control Cabinets
An M8 4-pin control cabinet feed-through connector can provide an accessible interface between external field connections and internal cabinet wiring. Verify pin assignment, electrical ratings, panel dimensions and required protection level.
02. Sensor and Actuator Systems
An M8 4-pin shielded panel connector can be evaluated for compatible sensor and actuator installations requiring a compact multi-contact interface through an equipment panel. Confirm the mating interface and electrical requirements before use.
03. Industrial Machinery Enclosures
An M8 bulkhead connector for industrial machine panels can provide a fixed connection point for compatible control and signal circuits. Mounting dimensions, mechanical clearance and environmental requirements must match the machine design.
Compatibility and Installation Requirements
Mating Connector Compatibility
Confirm connector gender, M8 coding, keyway, four-contact arrangement, pin assignment and electrical ratings. Not every M8 connector with the same contact count is interchangeable.
Panel Mounting Dimensions
Check the mounting thread, panel cut-out, panel thickness, fastening method, available clearance and sealing arrangement against the approved mechanical drawing.
Shielding and Grounding
Ensure the connector shield is correctly integrated into the equipment grounding and EMC design. Connector shielding alone does not guarantee system-level electromagnetic compatibility.
Environmental Protection
Confirm the actual IP rating under the intended mounting and mating conditions. Protection at the connector interface does not automatically establish the protection rating of the complete enclosure.
OEM and Custom Connectivity Solutions
Premier Cable can review industrial connectivity projects based on customer drawings, samples and technical requirements, subject to engineering assessment and manufacturing capability. For an M8 4-pin panel feed-through connector project, provide the mating connector details, panel dimensions, electrical requirements, target quantity and intended operating environment.
Frequently Asked Questions
What is an M8 4-pin panel feed-through connector?
It is a panel-mounted circular connector designed to provide an electrical interface through a compatible enclosure. The referenced configuration features a four-contact M8 A-coded interface and shielded construction for compatible industrial equipment.
What is an M8 4-pin shielded connector used for?
It can be evaluated for compatible industrial automation cabinets, sensor and actuator systems, machinery enclosures and inspection equipment requiring a compact panel connection with shielding.
Is this M8 feed-through connector compatible with every M8 cable?
No. Compatibility depends on connector coding, gender, contact arrangement, keyway, pin assignment, mounting dimensions and electrical ratings. Verify these details against the intended mating connector before ordering.
Does the referenced M8 connector support IP67 protection?
The referenced Binder configuration specifies IP67. Confirm the actual Premier Cable product rating, panel seal, mating conditions and applicable test results before using this claim for a Premier Cable product.
Can this connector be installed in an industrial control cabinet?
It can be evaluated for compatible control cabinet designs when its mounting dimensions, contact configuration, electrical ratings and environmental protection meet the application requirements.
Can Premier Cable support custom M8 cable assemblies?
Custom cable assembly requirements can be reviewed subject to technical assessment and manufacturing capability. Provide the required cable length, connector references, pin assignment, quantity and operating environment.
What information is required for a quotation?
Provide the product drawing or reference number, target quantity, mating connector specification, panel dimensions and electrical requirements. For cable assemblies, also specify cable length, wiring details and application conditions.
