Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | M12 X-Coded 8-Pin Female Panel Mount Connectors |
| Number of Contacts | 8 Pins |
| Connector Gender | Female |
| Connector Interface | M12 X-Coded |
| Mounting Type | Front Panel Mount |
| Connector Configurations | Straight PCB / Right Angle PCB / Solder Wire |
| Operating Temperature | -40°C to +80°C, according to supplied reference data |
| Ingress Protection | IP67, subject to selected configuration, correct installation and mating |
| Customization | Connector Selection, PCB Integration, Cable Assemblies and OEM/ODM Support |
Available Connector Configurations
The Premier Cable M12 X-coded female panel connector series includes three configurations for equipment-side Ethernet connections. Customers can select straight PCB, right-angle PCB or solder-wire termination according to enclosure design, circuit board layout and internal connection requirements.

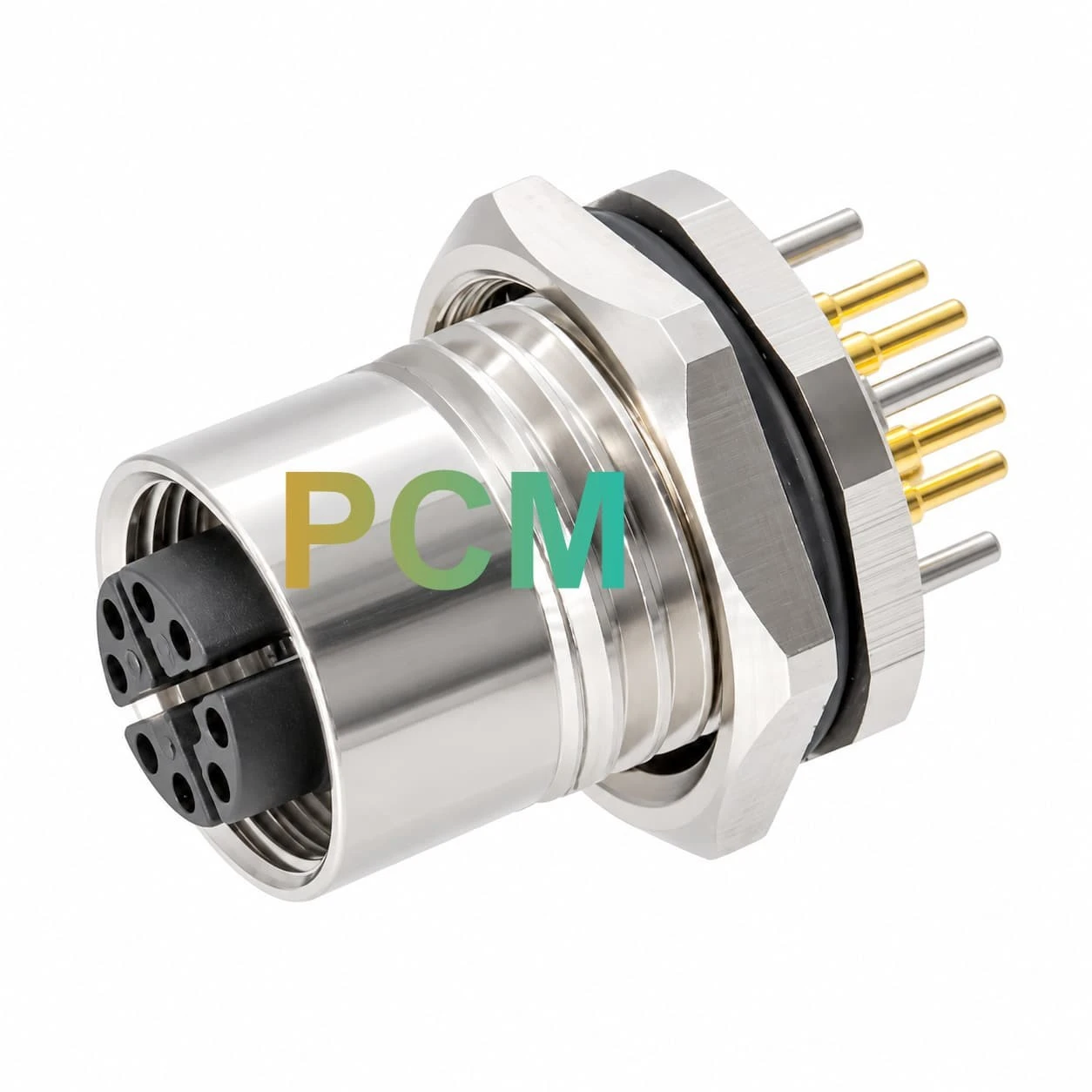

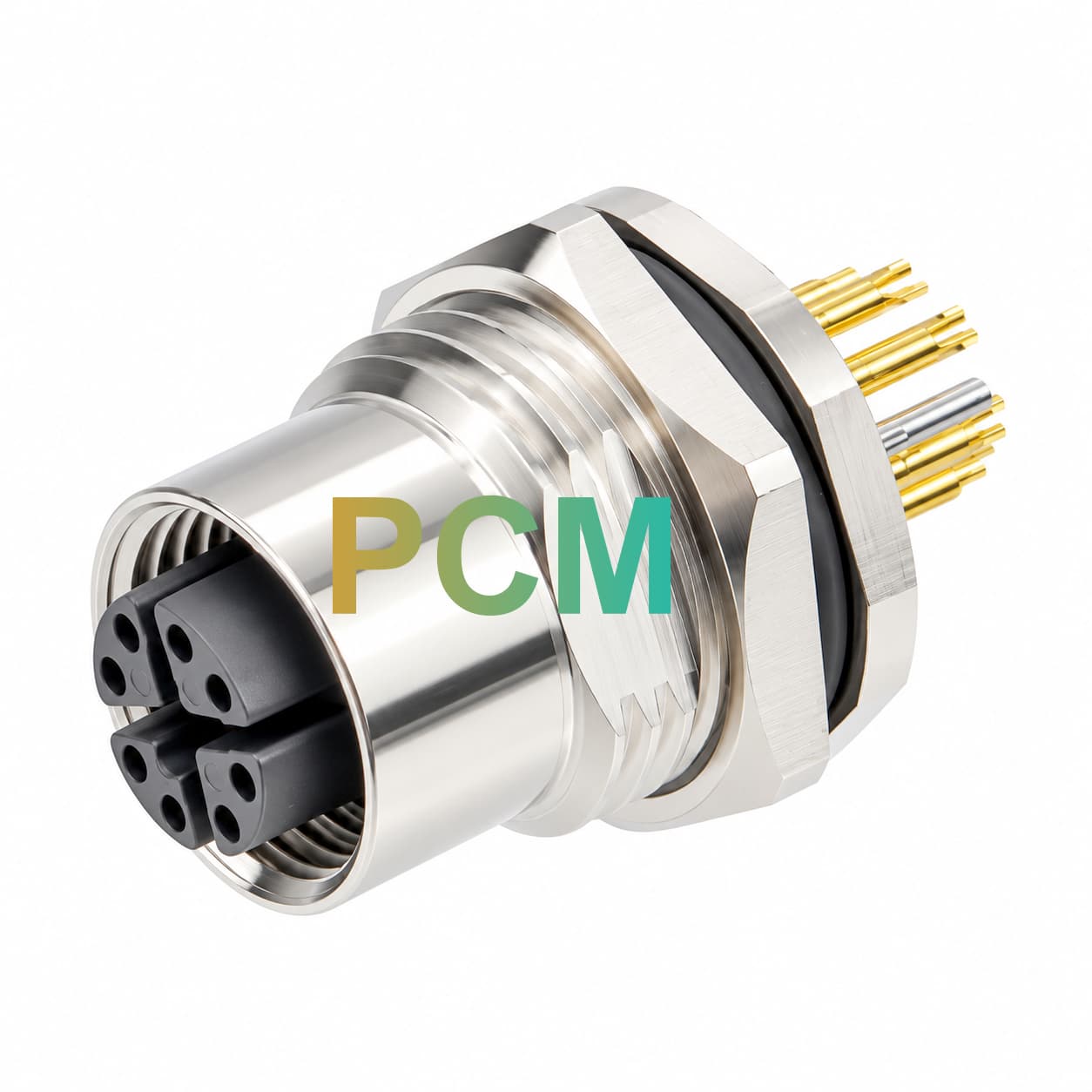

M12 X-Coded Straight Female PCB Panel Connector
The M12 X-coded straight female PCB panel connector provides an eight-contact female Ethernet interface with straight PCB solder terminals for direct integration into compatible industrial electronic equipment.
Connector 1: M12 X-Coded 8-Pin Female
Connector 2: Straight PCB Solder Terminals
Orientation: Straight
Mounting: Front Panel Mount
Termination: PCB Solder
Application: Industrial Ethernet Switches and PLC Modules
The straight PCB design is suitable for industrial devices requiring a panel-mounted Ethernet receptacle connected directly to the internal circuit board.

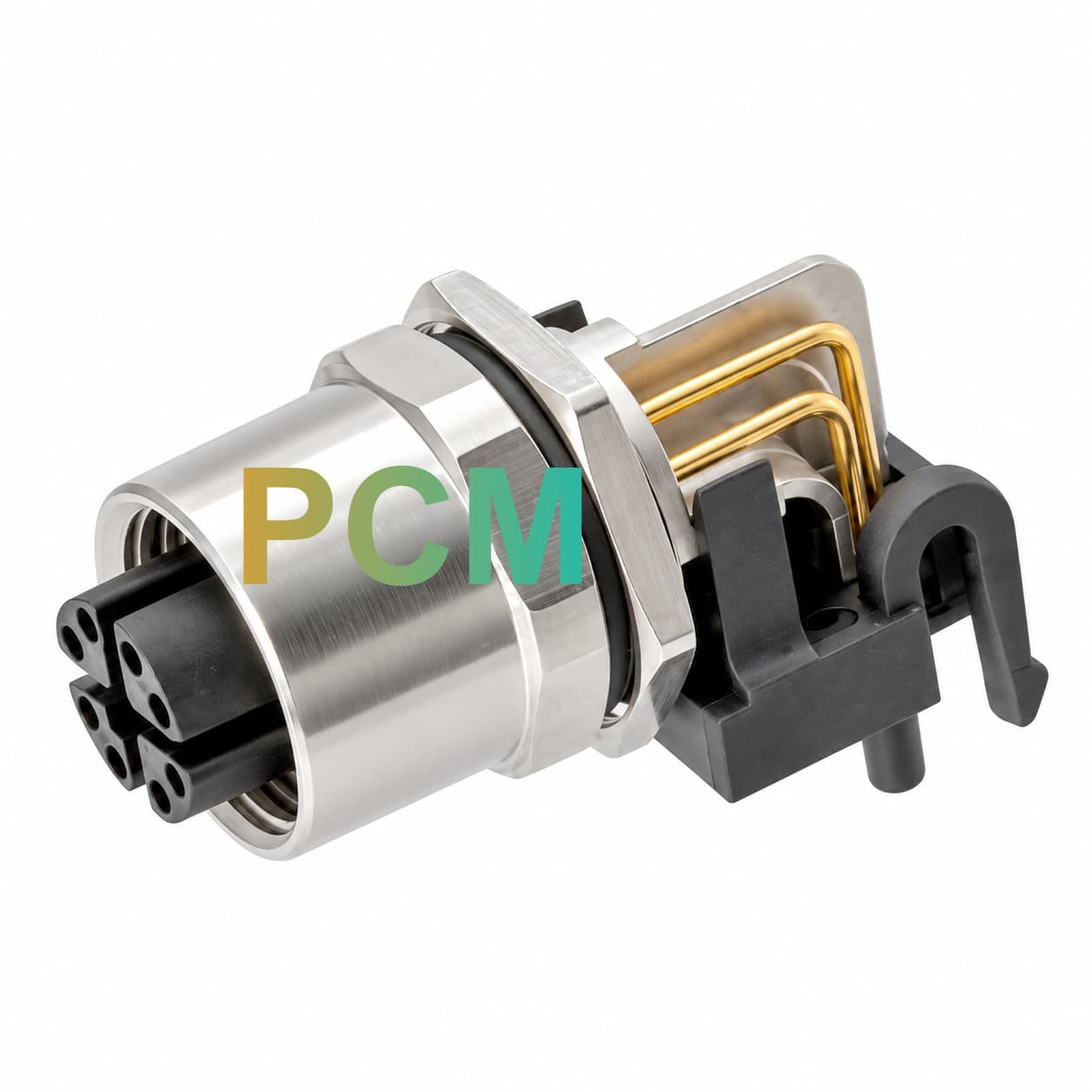

M12 X-Coded Right Angle Female PCB Panel Connector
The M12 X-coded right angle female PCB connector features an eight-contact female interface and angled PCB solder terminals for equipment requiring an alternative circuit board connection orientation.
Connector 1: M12 X-Coded 8-Pin Female
Connector 2: Right Angle PCB Solder Terminals
Orientation: Right Angle
Mounting: Front Panel Mount
Termination: PCB Solder
Application: GigE Cameras and Industrial Gateways
The right-angle PCB configuration supports compact industrial equipment layouts where the PCB position requires a 90-degree terminal arrangement.
M12 X-Coded Female Solder-Wire Panel Connector
The M12 X-coded female solder-wire panel connector provides a panel-mounted eight-contact female Ethernet interface with internal solder-wire termination for industrial communication equipment.
Connector 1: M12 X-Coded 8-Pin Female
Connector 2: Internal Solder-Wire Contacts
Orientation: Straight Interface
Mounting: Front Panel Mount
Termination: Solder Wire
Application: Control Cabinets and Custom Communication Enclosures
The solder-wire configuration is suitable for equipment requiring internal wiring between the external M12 Ethernet interface and the electronic system.
Mounting and Termination Options
The M12 X-coded 8-pin female panel mount connector series provides three termination options for equipment manufacturers requiring an external industrial Ethernet interface. The correct configuration depends on PCB position, panel construction, wiring method and mating connector requirements.
| Option | Description |
|---|---|
| Front Panel Mounting | Provides an externally accessible female M12 Ethernet interface secured to an equipment panel using the specified mounting hardware. |
| Straight PCB Termination | Uses straight solder terminals for direct connection to a compatible printed circuit board. |
| Right Angle PCB Termination | Uses angled solder terminals for equipment layouts requiring an alternative PCB orientation. |
| Solder-Wire Termination | Provides internal solder contacts for connecting prepared conductors without direct PCB mounting. |
| M12 X-Coded Interface | Uses an eight-contact female mating interface for compatible four-pair industrial Ethernet connections. |
| Threaded Coupling | Provides a mechanically secured connection to a compatible M12 X-coded male mating connector. |
| Shielding and Grounding | Shield continuity and equipment grounding depend on the selected connector structure and approved installation design. |
| Ethernet Transmission | Transmission performance depends on connector construction, PCB layout, cable quality, termination and the complete Ethernet channel. |
Engineering Note: Straight PCB, right-angle PCB and solder-wire versions are different termination structures. PCB footprints, panel cutouts, contact numbering and shielding connections must follow the approved technical drawing for the selected connector.

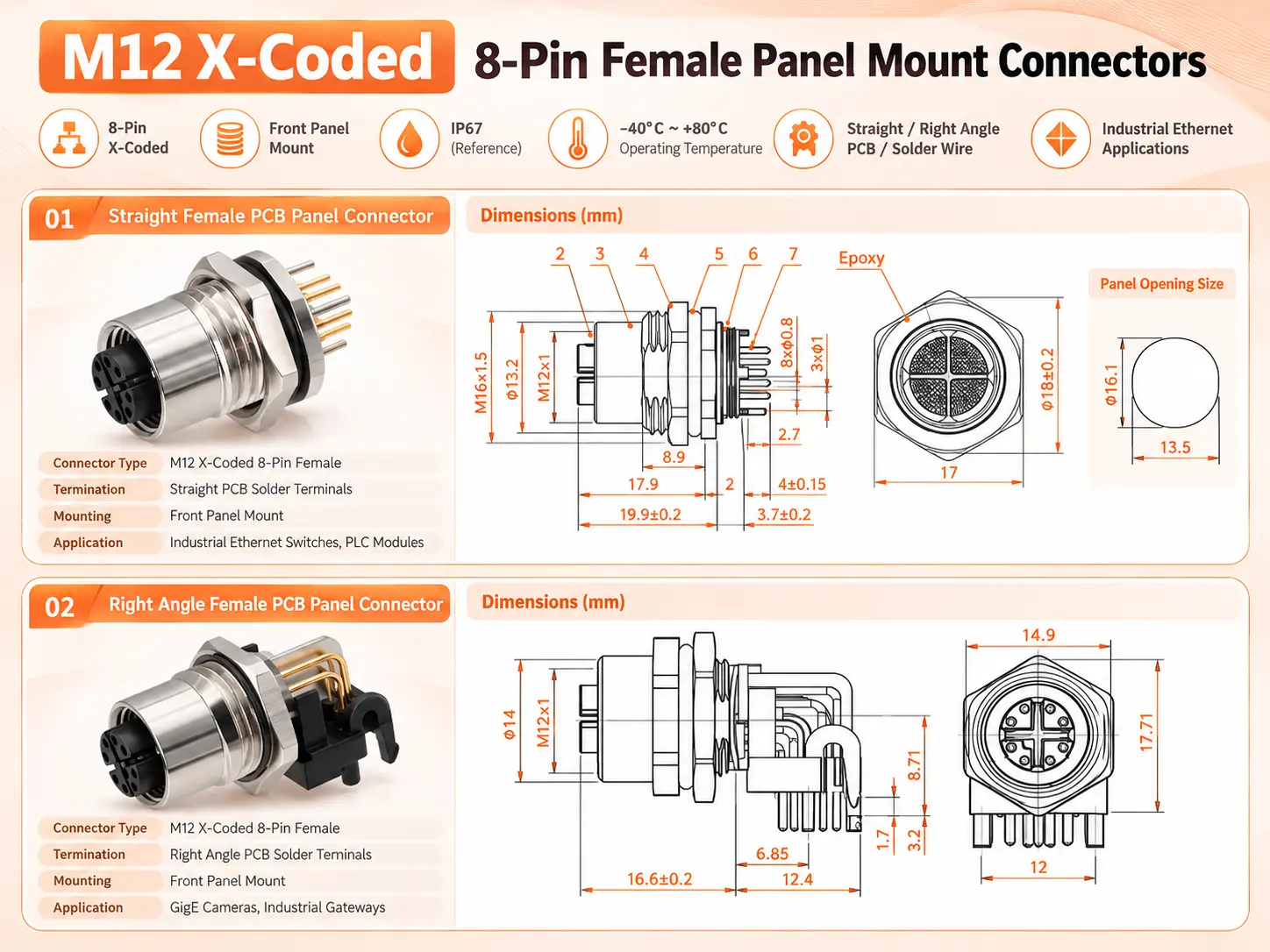

Mechanical Drawings
Applications and Customer Value
Industrial Ethernet Switches
Industrial Ethernet switches require compact and mechanically secured network interfaces for communication between controllers, machines and industrial network infrastructure.
The M12 X-coded female PCB panel connector for industrial Ethernet switches provides an equipment-side connection option for compatible four-pair Ethernet networks. Straight and right-angle PCB configurations allow selection according to circuit board orientation and enclosure design.
Machine Vision and GigE Cameras
Machine vision cameras and image-processing equipment use Ethernet communication interfaces for transferring image data to industrial computers and vision controllers.
The M12 X-coded right angle female connector for GigE cameras is suitable for compatible camera designs requiring a panel-mounted Ethernet interface with angled PCB terminals. The configuration can help accommodate compact internal equipment layouts.
PLC Controllers and Automation Modules
PLC communication modules and industrial automation controllers require reliable external network interfaces for data exchange with industrial Ethernet devices.
The M12 X-coded 8-pin female receptacle for PLC communication modules offers straight PCB, right-angle PCB and solder-wire termination options for different equipment integration requirements.
Industrial Gateways and Smart Manufacturing
Industrial gateways and distributed communication devices connect equipment, control systems and factory networks through Ethernet communication.
The M12 X-coded solder-wire panel connector for industrial gateways provides an alternative internal wiring solution for equipment that does not require direct PCB termination. Its threaded female interface supports connection to compatible M12 X-coded Ethernet cable assemblies.
Product Features
Three Connector Configurations
Straight PCB, right-angle PCB and solder-wire options provide flexible equipment-side Ethernet connection solutions for industrial electronic device manufacturers.
8-Pin X-Coded Interface
The eight-contact X-coded female interface is suitable for compatible four-pair industrial Ethernet systems, including industrial networking and machine vision applications.
Durable Metal Construction
Nickel-plated brass housing and gold-plated phosphor bronze contacts provide a durable connector structure for industrial equipment integration.
Front Panel Mounting
Threaded panel mounting provides an accessible external Ethernet interface while supporting straight, angled and internal wiring arrangements.
OEM and ODM Customization
Premier Cable provides OEM and ODM support for M12 X-coded female panel mount connectors and compatible industrial Ethernet cable assemblies. Customers can select connector configurations according to PCB design, equipment enclosure requirements and internal wiring arrangements.
Straight PCB, right-angle PCB and solder-wire female panel mount connector selection.
M12 X-coded industrial Ethernet cable assemblies, connector matching and cable length evaluation.
Mechanical drawings, panel dimensions, PCB footprints, pin assignments and shielding compatibility review.
Sample evaluation, product labeling, packaging options and bulk production quotation.
For customized projects, please provide the required connector configuration, mating interface, equipment drawings, PCB layout, transmission requirements and estimated order quantity.
Custom configurations are subject to engineering feasibility, component availability, drawing approval and production requirements.
Product FAQ
Q1: What is an M12 X-coded female panel mount connector?
An M12 X-coded female panel mount connector is an equipment-side circular connector with an eight-contact X-coded mating interface. It is used in compatible four-pair industrial Ethernet communication systems.
Q2: What connector configurations are available?
The Premier Cable series includes straight female PCB, right-angle female PCB and female solder-wire panel mount configurations.
Q3: What is the difference between straight and right-angle PCB connectors?
Straight PCB connectors use straight solder terminals, while right-angle PCB connectors use angled terminals. The appropriate configuration depends on the circuit board position, enclosure design and installation clearance.
Q4: Can these connectors be used for Gigabit Ethernet?
M12 X-coded eight-contact connectors are commonly used in industrial Gigabit Ethernet applications. The selected connector, PCB layout and complete Ethernet channel must be verified for the required transmission performance.
Q5: Are these connectors suitable for industrial cameras?
Yes. They can be used in machine vision cameras and industrial imaging equipment designed with compatible M12 X-coded Ethernet interfaces. Connector orientation and PCB compatibility should be confirmed.
Q6: Are the M12 X-coded panel connectors waterproof?
The supplied reference specifies IP67 protection. Actual ingress protection depends on the selected configuration, correct panel installation, sealing and proper mating. Unmated connectors should not automatically be considered IP67 protected.
Q7: What mounting thread is used?
The supplied drawings indicate M16 x 1.5 mounting threads for the illustrated panel connector structures. Exact panel opening dimensions and mounting requirements must be confirmed for the selected version.
Q8: Can Premier Cable provide customized M12 Ethernet solutions?
Yes. Premier Cable supports OEM and ODM evaluation for compatible M12 X-coded cable assemblies, connector selection, mechanical drawings, PCB integration requirements and project-specific applications.
