Product Specifications
| Parameter | Specification |
|---|---|

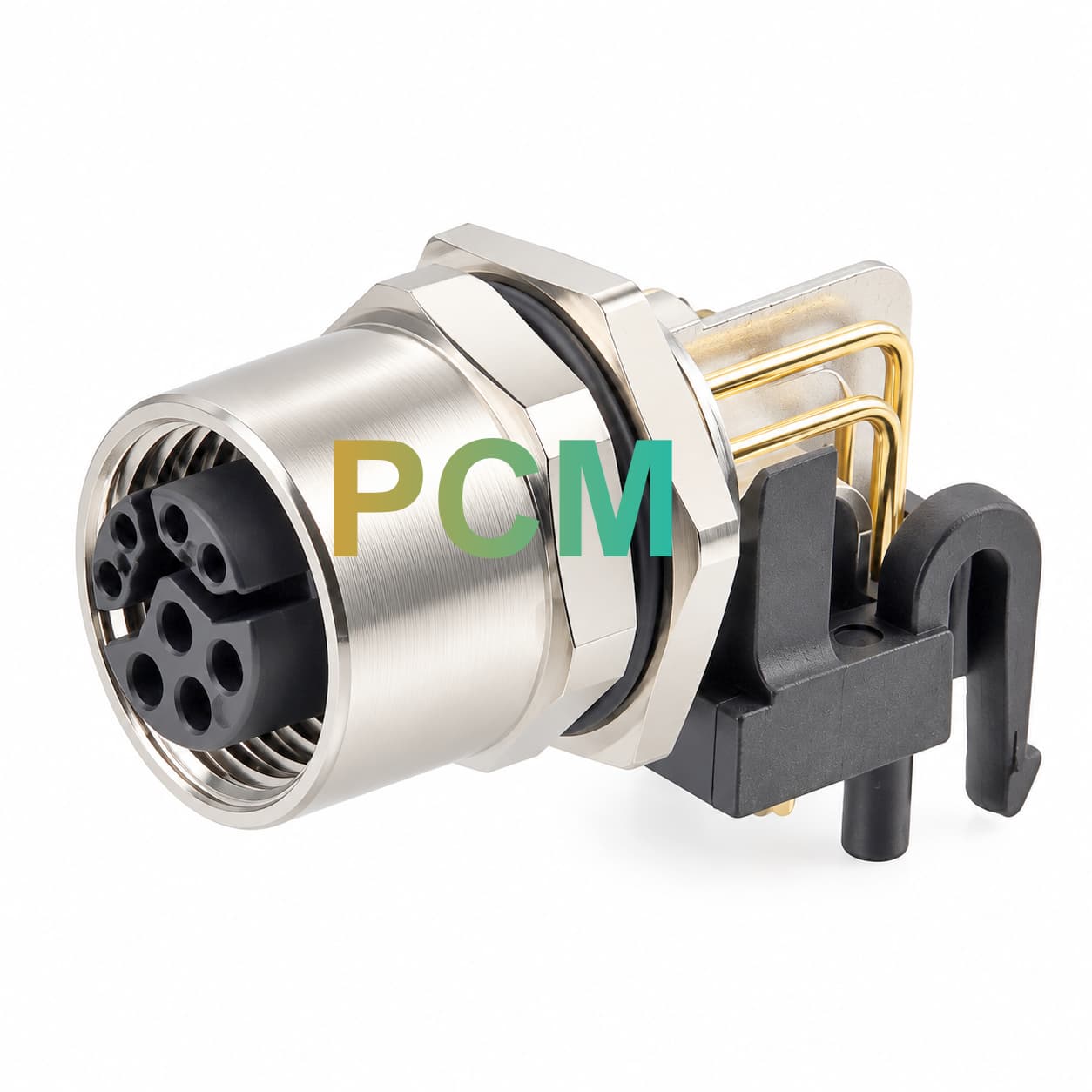

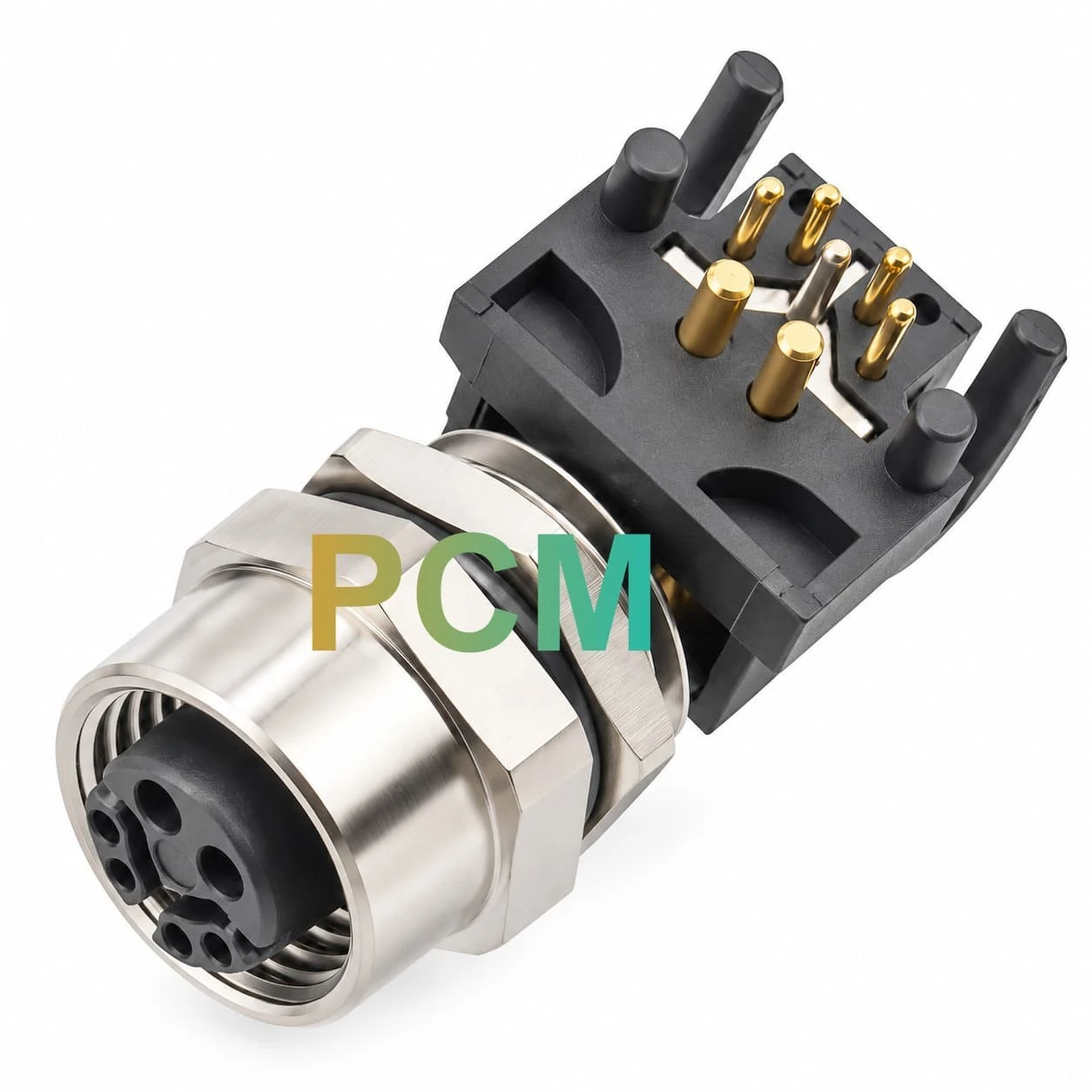

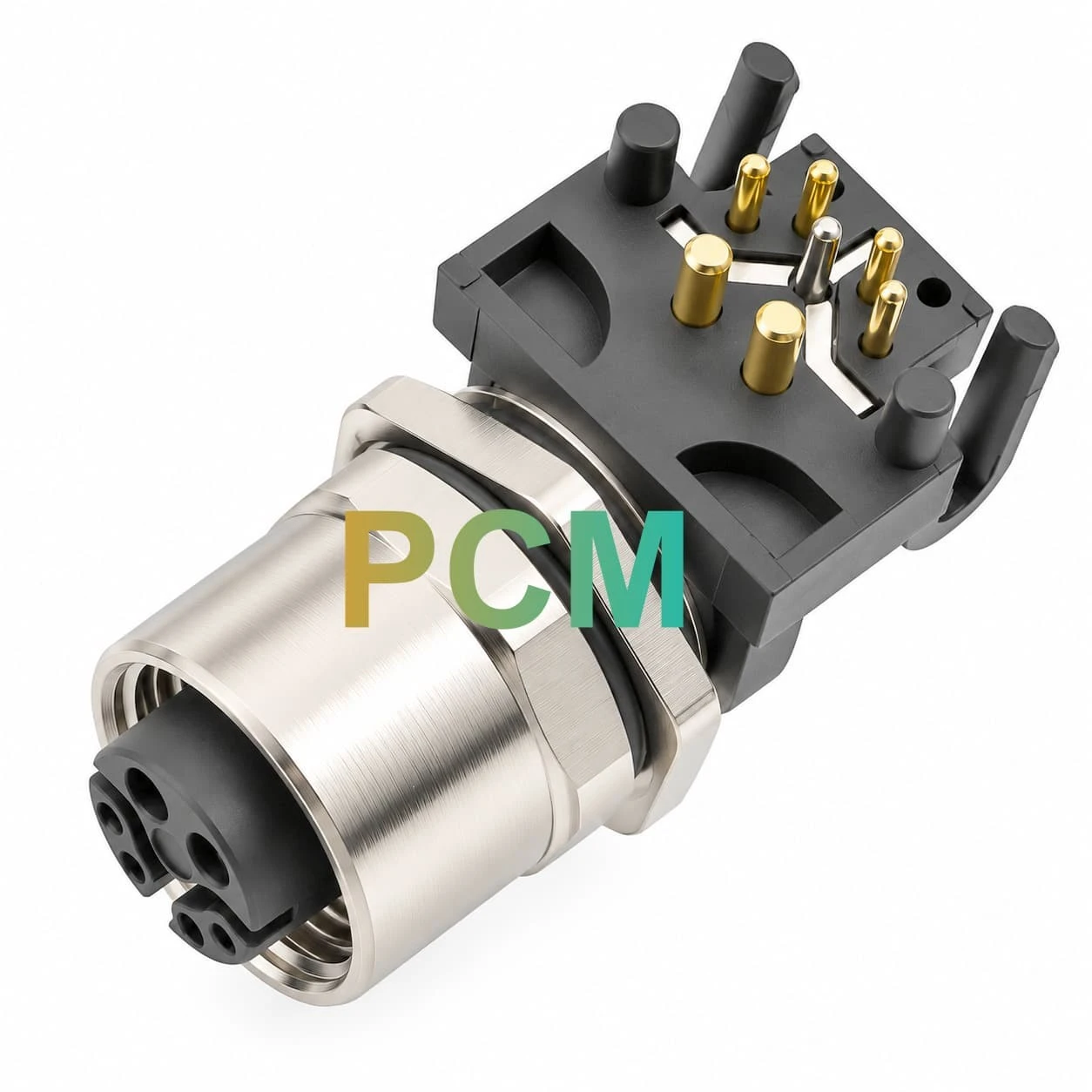

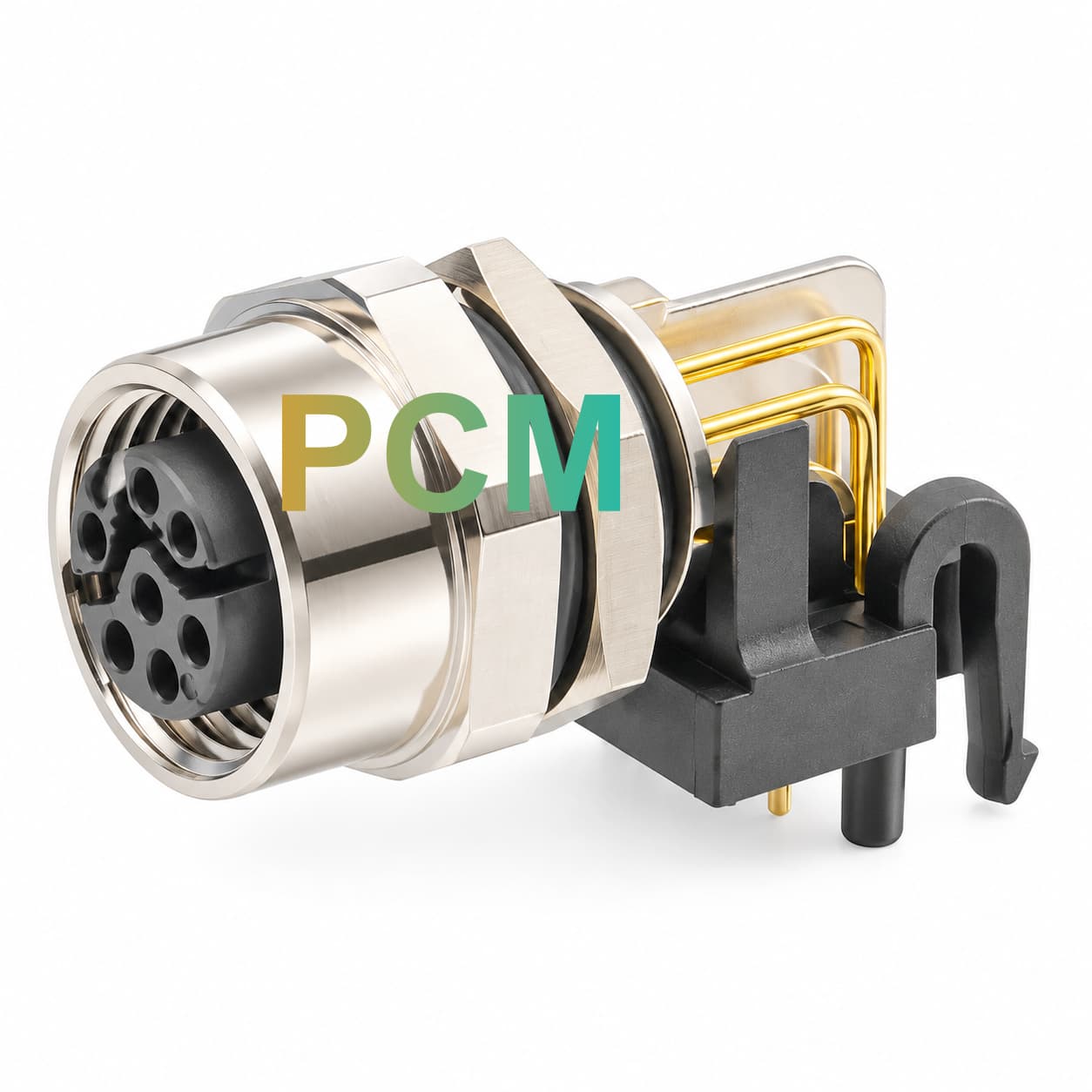

| Product Name | M12 Y-Coded Right Angle PCB Female Connector |
| Coding | Y-Coded |
| Contact Configurations | 6-Pin / 8-Pin |
| Connector Gender | Female Socket |
| PCB Terminal Orientation | 90-Degree Right Angle |
| Connector Series | M12 Circular Connector |
| Mounting Options | Front Mount / Rear Mount |
| Customization | Subject to technical review and production feasibility |
Available Product Configurations
Choose the appropriate M12 female PCB panel mount connector according to contact count and panel installation method. The following four options organize the configurations shown in the supplied product listing. Confirm availability and exact dimensions for each variant before purchase.
M12 Female PCB Connector - Front Mount
This configuration combines a 6-pin female M12 interface with a front-mount panel installation structure and 90-degree PCB terminals, subject to the selected model drawing.
- Contact Count: 8-Pin
- Connector Gender: Female
- Mounting: Front Mount
- Terminal Style: 90-Degree PCB
Recommended selection: Equipment designs requiring a 6-contact interface and front-side panel installation.
M12 Female PCB Connector - Rear Mount
This rear-mount M12 6-pin female PCB connector is intended for compatible enclosure designs that require the connector to be installed from the rear of the panel.
- Contact Count: 8-Pin
- Connector Gender: Female
- Mounting: Rear Mount
- Terminal Style: 90-Degree PCB
Recommended selection: Enclosures where rear-side installation suits the mechanical layout and PCB arrangement.
Configuration Comparison
| Configuration | Contact Count | Gender | Mounting | PCB Terminal |
|---|---|---|---|---|
| Option 1 | 6-Pin | Female | Front Mount | 90° PCB |
| Option 2 | 6-Pin | Female | Rear Mount | 90° PCB |
| Option 3 | 8-Pin | Female | Front Mount | 90° PCB |
| Option 4 | 8-Pin | Female | Rear Mount | 90° PCB |
Applications and Customer Value
1. Industrial Automation and Control Panels
An M12 female PCB panel mount connector can provide an external connection point for compatible automation controllers, machine control panels and industrial equipment. The selected coding and contact layout must match the equipment design.
2. Sensor and Measurement Equipment
A compatible M12 6-pin or 8-pin female PCB connector can be considered for sensor interfaces, measurement modules and electronic instruments requiring a detachable circular connection.
3. Embedded Control Electronics
The right-angle PCB terminal arrangement can support compact electronic assemblies where the connector orientation and board layout must be coordinated within an equipment enclosure.
4. Industrial Communication Equipment
Selected M12 coded connectors can be used in compatible industrial communication equipment. Verify the exact coding, pin assignment, mating connector and transmission specification before approving the connector for a data communication application.
Product Features
6-Pin and 8-Pin Options
Two contact configurations are listed to accommodate different equipment interface requirements.
90-Degree PCB Terminals
The right-angle terminal arrangement supports PCB integration when the selected board footprint is compatible.
Front and Rear Mounting
Two mounting options help designers choose a connector configuration that suits their enclosure structure.
OEM and ODM Support
Technical review can be arranged for drawings, mounting dimensions, PCB layouts and project-specific requirements.
Frequently Asked Questions
Q1: What is an M12 Y-coded PCB female connector?
An M12 Y-coded PCB female connector is a circular connector with a female mating interface and a PCB termination structure. The exact coding and electrical function should be verified against the selected model's technical drawing.
Q2: Which contact configurations are available?
The supplied product listing shows 6-pin and 8-pin options. Confirm the contact layout and availability of the selected variant before placing an order.
Q3: What is the difference between front mount and rear mount?
Front mount and rear mount refer to the direction from which the connector is installed into the equipment panel. The appropriate version depends on the connector design, panel thickness, fastening arrangement and enclosure layout.
Q4: What does a 90-degree PCB terminal mean?
A 90-degree PCB terminal uses a right-angle arrangement relative to the connector body. The terminal dimensions and orientation must match the intended PCB footprint and assembly process.
Q5: Is this connector suitable for industrial Ethernet?
Suitability depends on the verified connector coding, contact assignment, mating interface and required transmission performance. Do not assume Ethernet compatibility or a specific data rate without the applicable technical documentation.
Q6: Is the connector IP67 rated?
The protection rating for this exact product has not been confirmed from the supplied information. Check the product drawing or manufacturer's specification, including the required installation and mating conditions.
Q7: How do I check PCB compatibility?
Compare the connector drawing with the PCB layout. Verify terminal spacing, pin diameter, pin orientation, panel cutout, mounting thread, clearance and soldering requirements.
Q8: Can Premier Cable review custom requirements?
Yes. Premier Cable can review project requirements based on drawings, PCB layouts, mounting dimensions and electrical specifications. Availability, feasibility, MOQ and lead time must be confirmed for the specific project.
Q9: What information is needed for a quotation?
Please provide the contact count, mounting method, coding, panel dimensions, PCB footprint, required electrical specifications and estimated order quantity. A technical drawing is helpful for accurate evaluation.
Q10: Can I select the pin count and mounting method on one product page?
Yes. The product page can offer four variants: 6-pin front mount, 6-pin rear mount, 8-pin front mount and 8-pin rear mount, provided each configuration is available. Use separate variant images and verified specifications for each option.
