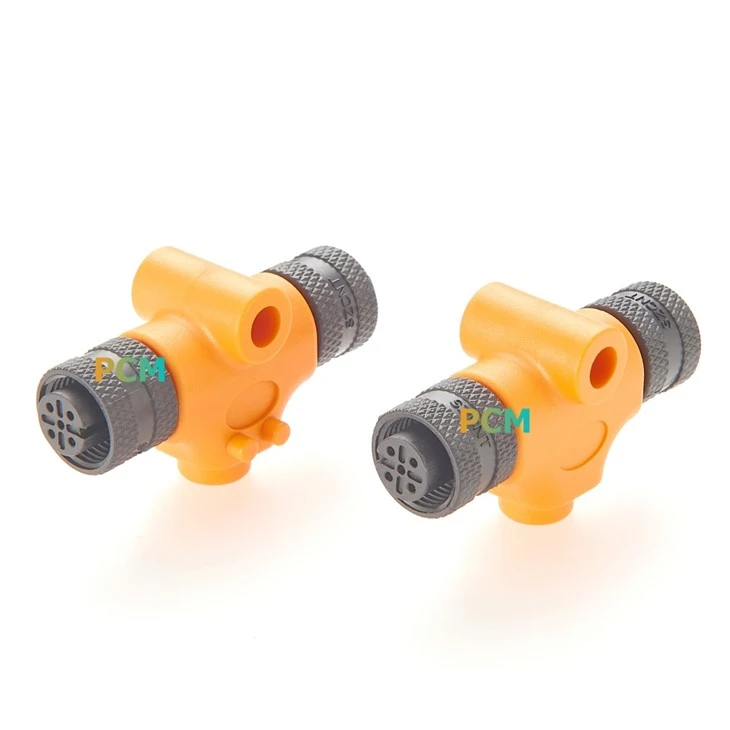

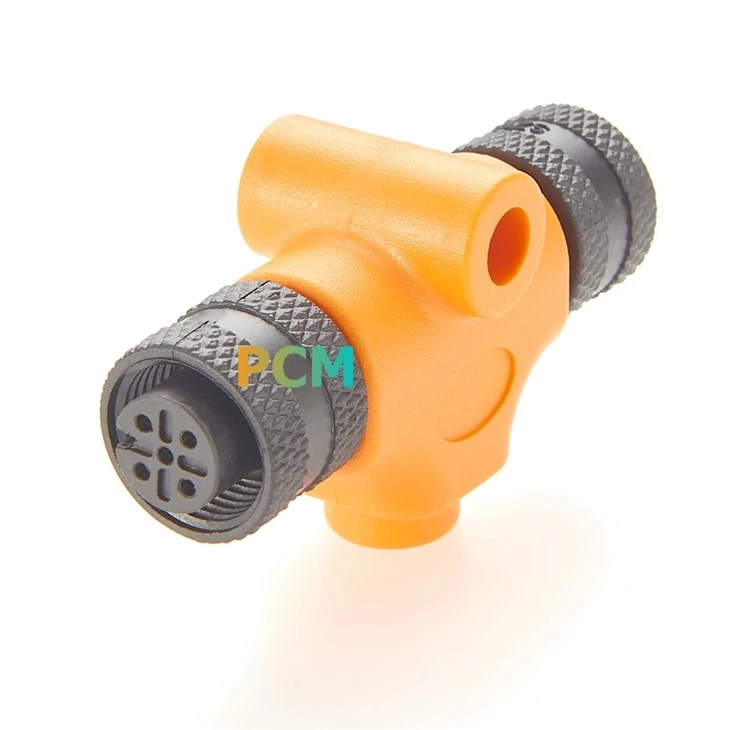

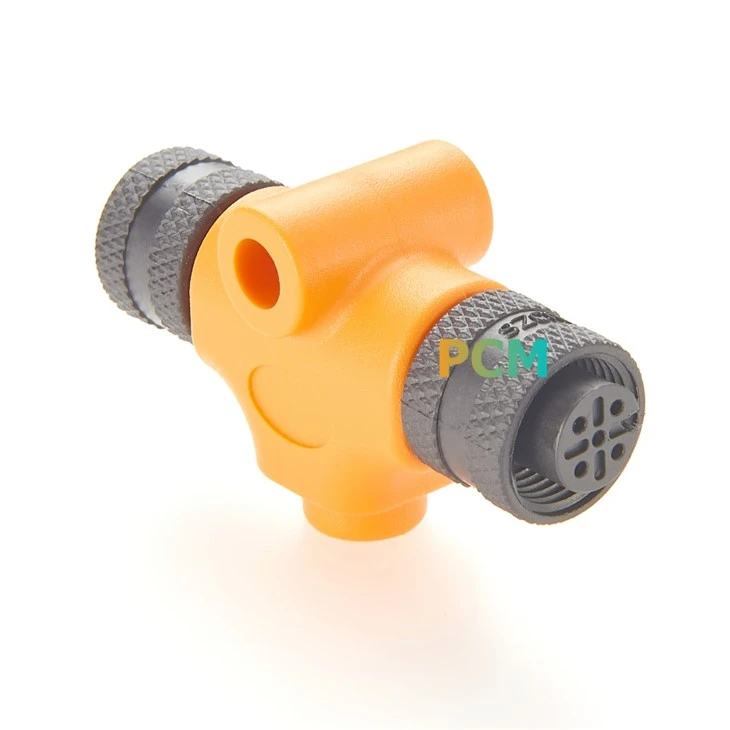

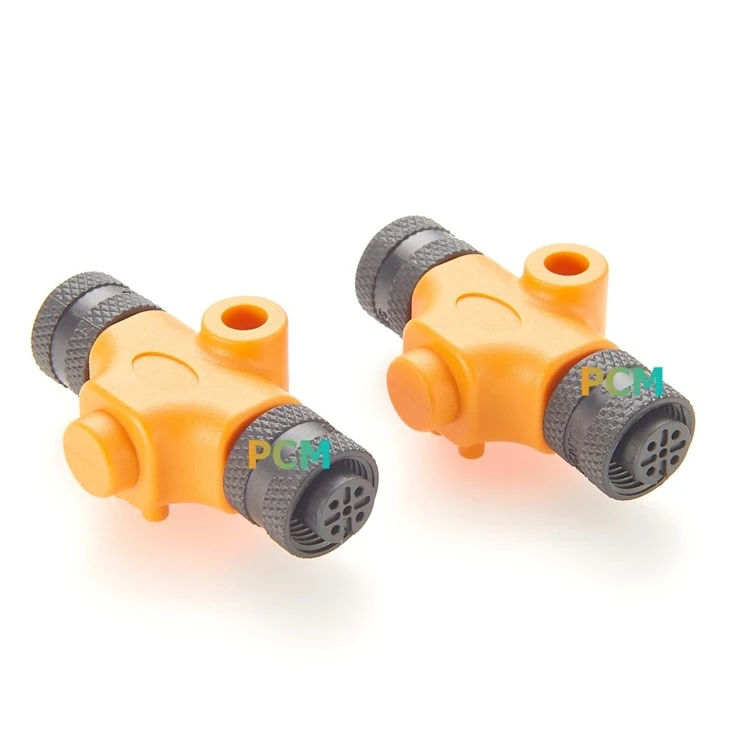

NMEA2000 Tee 3-way Sensor Distributor

The NMEA2000 Tee 3-way Sensor Distributor is a multi-port distribution connector designed for marine electronic networks, primarily used to simultaneously connect multiple sensors or devices within an NMEA2000 backbone network. Featuring a 3-way structural design, the PCM-0728 typically includes three branch ports and a backbone connection port, allowing devices-such as GPS units, depth sensors, anemometers, and displays-to be centrally integrated into a single network for data sharing and communication. Its standard 5-pin M12 interface ensures broad compatibility with a wide range of NMEA2000-compliant devices. With its compact form factor and ease of installation, this distributor effectively reduces wiring complexity while enhancing system stability and reliability, making it an essential component for building efficient onboard networks.

The application of N2K M12 T-junction connector Tee type design 3-way connector on shipboard equipment and instruments is as follows:

1. NMEA 2000 Network: NMEA 2000 is a standard communication protocol used for data exchange in marine electronic equipment. The M12 TEE style design 3-way connector can be used to create branches in an NMEA 2000 network, allowing communication between multiple devices.

2. Instruments: Electronic instruments on ships such as GPS receivers, depth finders, fish finders and weather stations often use NMEA 2000 connectivity. M12 TEE-type connectors can be used to connect these instruments to the NMEA 2000 backbone to facilitate data exchange and integration with other equipment on board.

3. Sensor network: In marine applications, various sensors may be distributed throughout the hull to monitor parameters such as temperature, pressure, and liquid levels. M12 TEE-type connectors can be used to create branches of a sensor network, allowing multiple sensors to be connected to a central data acquisition system or control unit.

4. Control Systems: Vessels may incorporate control systems for navigation, propulsion, and other functions. M12 TEE-type connectors facilitate communication between the different components in these control systems, enabling seamless operation and integration of each subsystem.

5. Expansion and customization: The modular nature of the M12 TEE-type connector makes it possible to easily expand and customize shipboard electronic systems. This is accomplished without extensive rewiring or modifications by simply using TEE-type connectors to connect additional instruments or equipment to the existing backbone.
