What Is the Relationship Between PulseRoller, Senergy-Ai, and the Extension Cable ?

PulseRoller, Senergy-Ai Motor, and the M8 extension cable are not three parallel brands or independent products. Instead, they form a clear upstream-to-downstream product relationship.

PulseRoller represents the automation product ecosystem, while the Senergy-Ai Motor and motor drive operate within this system using a standardized 4-pin M8 motor connection. When additional connection distance is required, the IN-SN-MTR-M8-M8-xxx extension cable is used to extend the connection between the Senergy-Ai motor and compatible drive or control equipment.

PCM-S-0817 is Premier Cable's compatible solution for this connection architecture. Therefore, its market positioning should not be limited to a generic M8 cable. A more accurate description is "Senergy-Ai Compatible M8 Motor Extension Cable," clearly highlighting its intended compatibility with the PulseRoller Senergy-Ai motor ecosystem while retaining the standardized M8 male-to-female extension design.

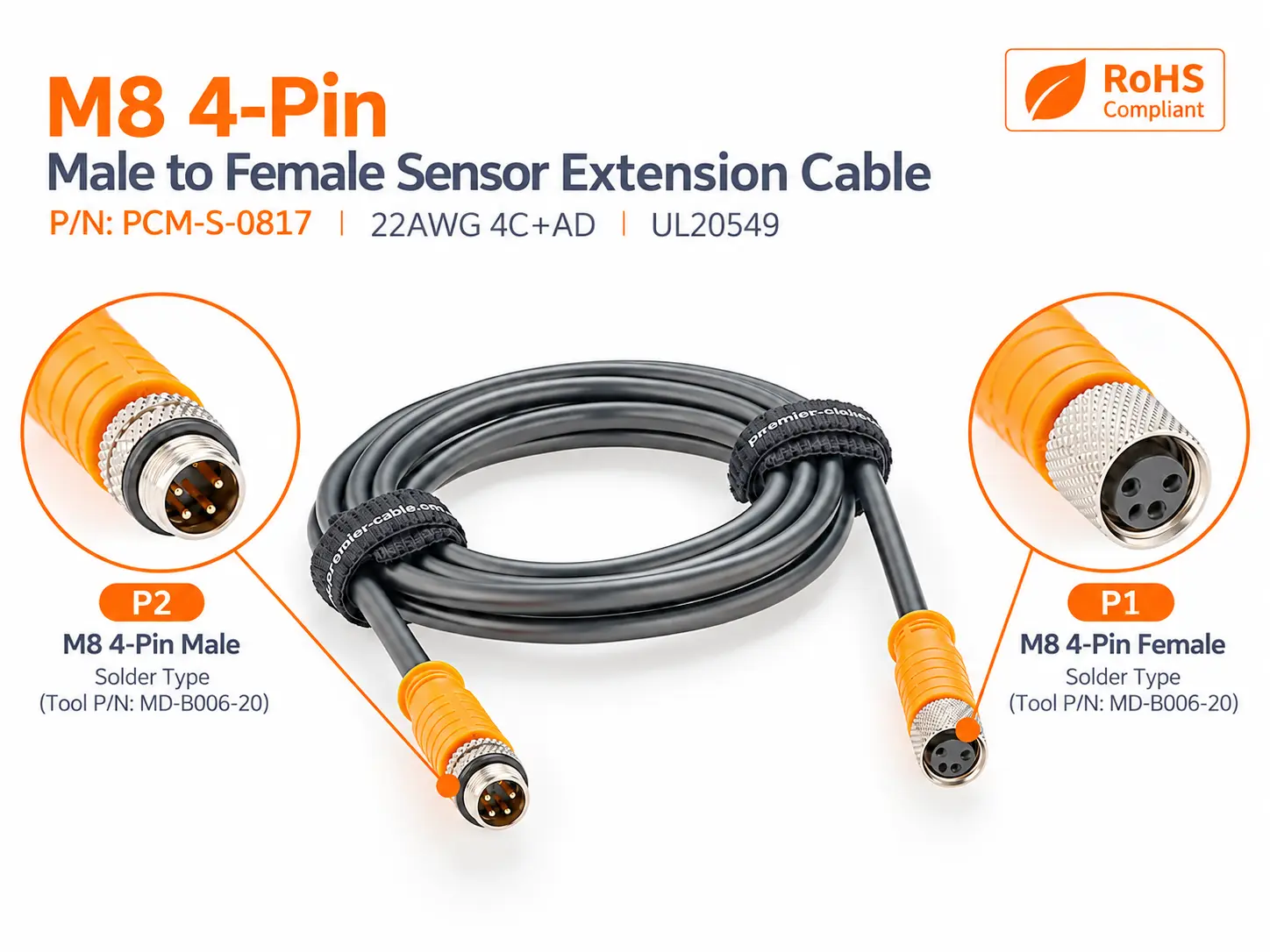

PCM-S-0817 is a newly developed Premier Cable Senergy-Ai motor extension cable for intelligent conveyor systems, motor-driven rollers, and industrial automation equipment.

It uses a standardized M8 4-pin A-coded male-to-female connection with a 22 AWG unshielded conductor configuration to extend connections between Senergy-Ai motors, drive equipment, and corresponding M8 interfaces.

According to PulseRoller documentation, conventional Senergy products use a 9-pin JST connection, while Senergy-Ai uses a 4-pin M8 connector. The Ai architecture integrates a microprocessor inside the motor to process motor-related information and support a simplified four-wire M8 connection.

Therefore, PCM-S-0817 is positioned beyond a generic "M8 sensor cable," targeting PulseRoller Senergy-Ai replacement extension cable applications while retaining the flexibility of the standardized M8 interface for suitable industrial sensor connections.

Function of the M8 4 Pin A Coded Interface

PCM-S-0817 uses an M8 4-pin A-coded interface.

M8 identifies the connector size and threaded interface family; 4-pin indicates four electrical contact positions; and A-coding defines the corresponding mechanical keying arrangement.

Coding is important because industrial M8 connectors are not automatically compatible simply because they have the same number of contacts.

Even when two connectors are both described as M8 4-pin, the following should still be verified:

Coding;
Pin assignment;
Working voltage;
Working current;
Pin arrangement;
Male female gender;
Equipment side mating interface.

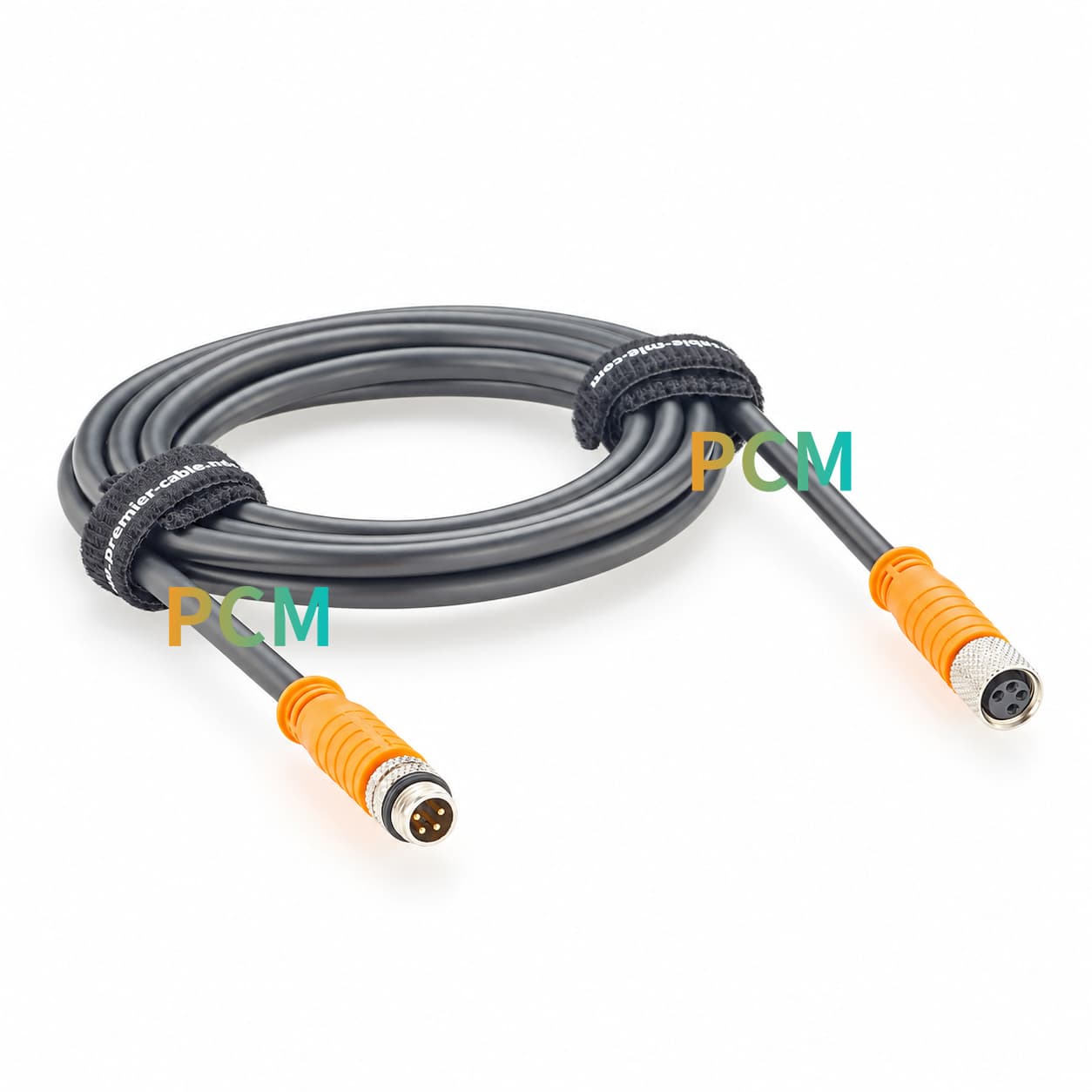

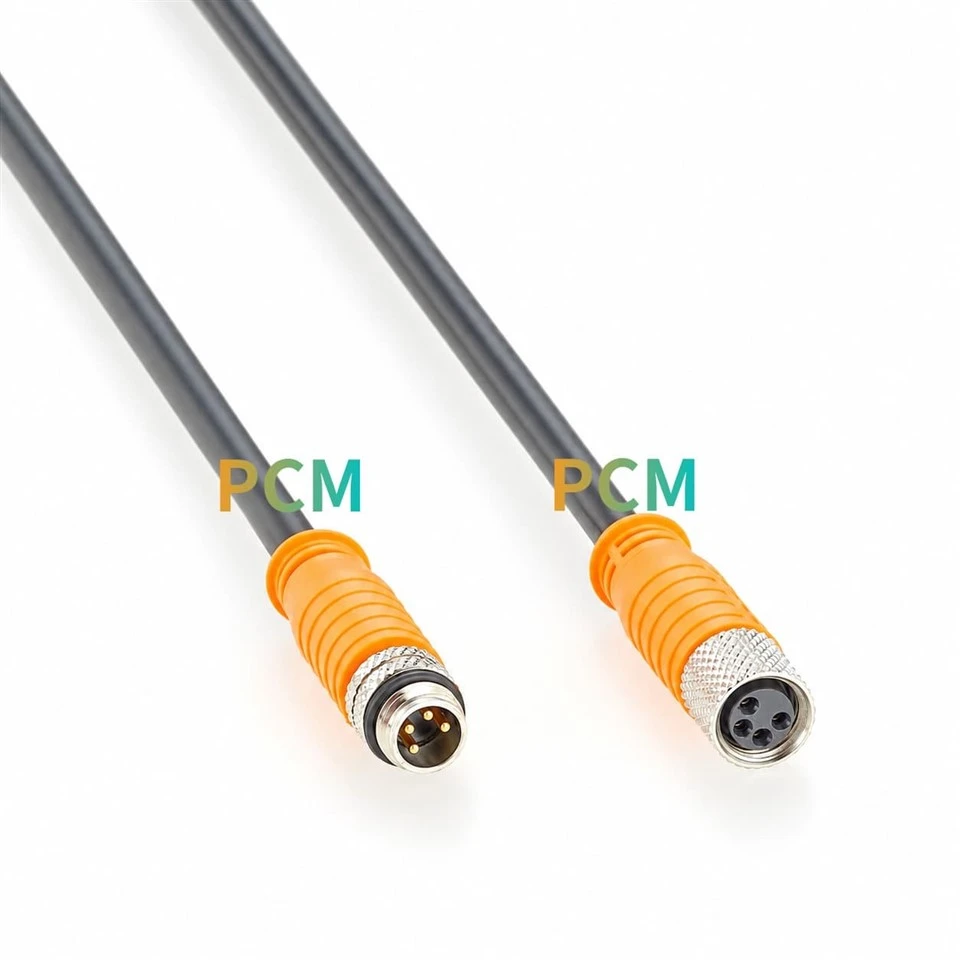

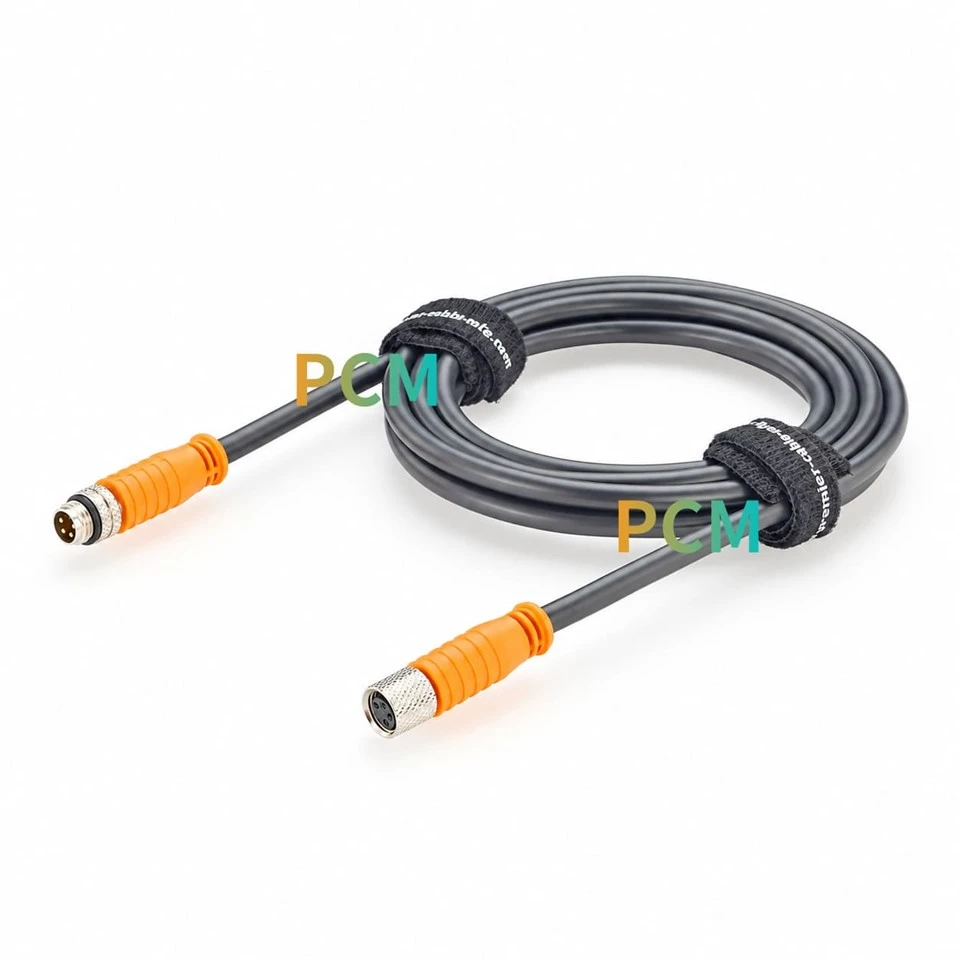

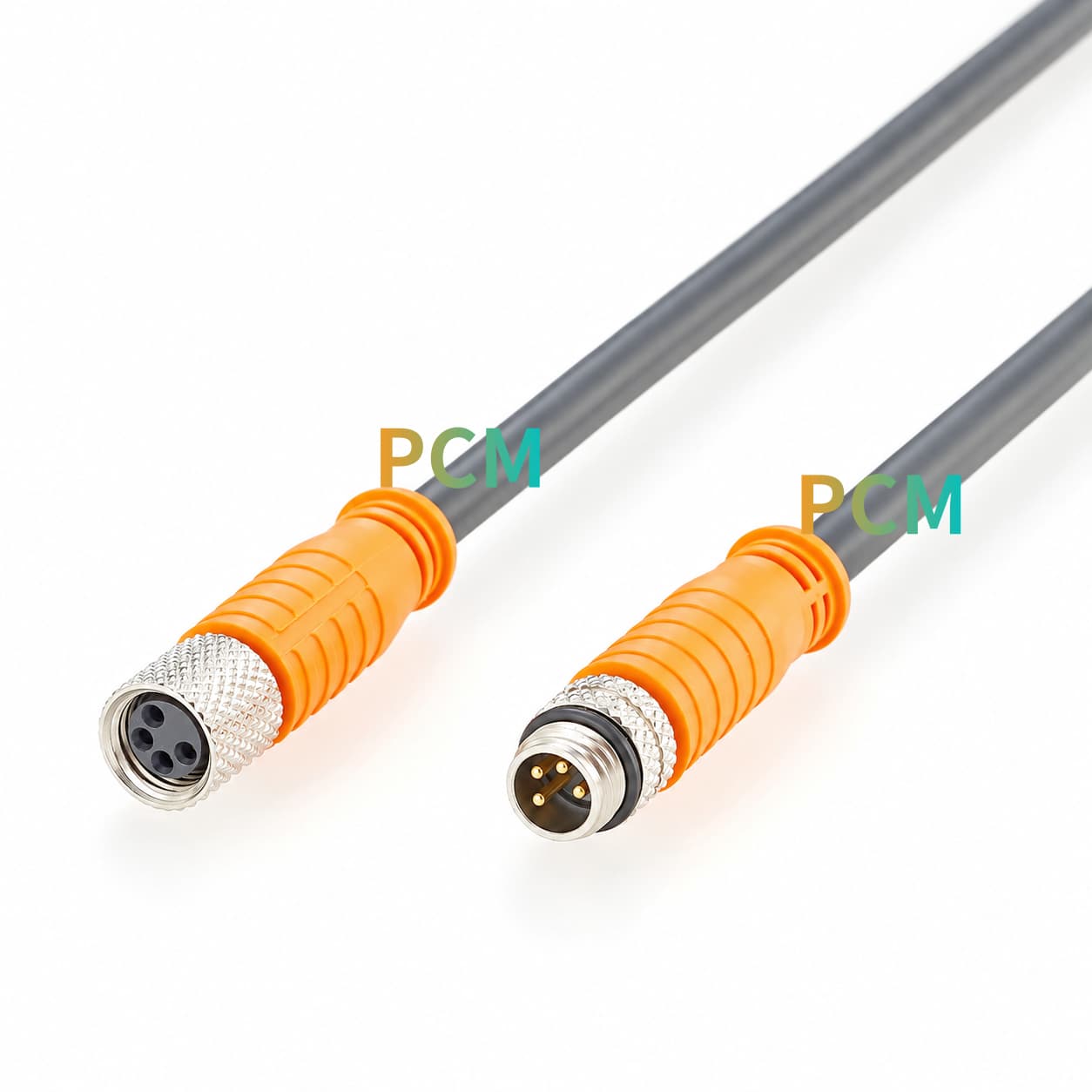

Products Display

111 1

Typical Applications

Senergy-Ai Motor Roller

Extends M8 connections for Senergy-Ai motor rollers in conveyor zones and internal equipment wiring.

Pulse Geared Drive Ai

Can be applied, subject to interface verification, to Pulse Geared Drive Ai systems using the Senergy-Ai Technology 4-pin M8 motor connector. PulseRoller identifies PGD-Ai as part of its 4-pin M8 architecture.

Conveyor Automation

Suitable for motor interconnection in logistics sorting lines, packaging conveyors, warehouse automation, and zero pressure accumulation conveyor systems.

Product Features

M8 A Coded Standard Interface Design

Uses an M8 4-pin A-coded male-to-female connection designed around Senergy-Ai 4-pin M8 applications, while also supporting other industrial M8 equipment with matching pinout and electrical requirements.

22 AWG Conductor Configuration

The 22 AWG conductor configuration better matches Senergy-Ai motor extension requirements than thin-gauge M8 cables for low-power signals. PulseRoller also specifies 22 AWG conductors for Senergy-Ai M8 extension cables.

Male Female Extension Design

The male to female extension design increases the routing distance between the motor and control equipment without changing the original equipment interface configuration, making it suitable for modular wiring within conveyor frames.

Multiple Length Options

Standard length options can be developed around 0.5 m, 1 m, 1.5 m, 2 m, and 2.5 m, while additional custom lengths can be evaluated according to project-specific requirements.

Product Advantages

Application Specific Equipment Compatibility

PCM-S-0817 is defined around Senergy-Ai motor/sensor extension requirements rather than being positioned only as a generic M8 4-pin cable, making sourcing more application-specific.

Fewer Additional Connection Points

The direct male to female extension design avoids unnecessary interface adapters, helping reduce connection points and wiring complexity within conveyor systems.

Standardized Lengths for Easier Maintenance and Spare-Parts Management

A standardized 0.5–2.5 m range allows system integrators to assign suitable cable lengths to individual conveyor zones while simplifying spare-parts management, maintenance, and replacement.

OEM-Compatible Cable Development

Premier Cable can develop compatible cable assemblies based on the target equipment P/N, M8 coding, pinout, length, cable specification, and installation environment rather than determining compatibility by connector appearance alone.

Compatible Part Numbers

PulseRoller P/N	Description	Length	PCM-S-0470 Positioning
IN-SN-MTR-M8-M8-050	Senergy-Ai Motor Sensor Extension	0.5m	Compatible Configuration
IN-SN-MTR-M8-M8-100	Senergy-Ai Motor Sensor Extension	1.0m	Compatible Configuration
IN-SN-MTR-M8-M8-150	Senergy-Ai Motor Sensor Extension	1.5m	Compatible Configuration
IN-SN-MTR-M8-M8-200	Senergy-Ai Motor Sensor Extension	2.0m	Compatible Configuration
IN-SN-MTR-M8-M8-250	Senergy-Ai Motor Sensor Extension	2.5m	Compatible Configuration

For Senergy-Ai applications, confirm:A-Coding + 22 AWG + Pinout + Gender + Length + Electrical Requirements.

Why Does PCM-S-0817 Use a 4-Pin M8 Interface ?

PCM-S-0817 uses a 4-pin M8 interface based on the Senergy-Ai connection architecture. Conventional Senergy primarily uses a 9 pin JST connection, while Senergy-Ai uses a standardized 4-pin M8 interface, so compatibility cannot be determined by the Senergy name alone.

The "Ai" in Senergy-Ai stands for Advanced Intelligence. Its motor integrates a microprocessor to process operating information and simplify external connectivity, enabling a four-wire M8 architecture between the motor drive and controller.

For PCM-S-0817, verify:

Senergy-Ai + 4-Pin M8 + A-Coded + Correct Pinout

Gender, electrical requirements, and cable length should also be confirmed before using it as a motor extension cable.

Products Drawing

PCM-S-0817301

Product FAQ

What Equipment Is PCM-S-0817 Mainly Used For ?

PCM-S-0817 is primarily developed for PulseRoller Senergy-Ai motor and drive applications using 4-pin M8 connections. It may also be used for M8 sensor extension applications when the interface and electrical specifications match.

Which PulseRoller Part Numbers Can PCM-S-0817 Replace ?

Compatible configurations can be developed around IN-SN-MTR-M8-M8-050, 100, 150, 200, and 250, covering lengths from 0.5 m to 2.5 m. Equipment compatibility and pinout should still be verified before ordering.

Why Does PCM-S-0817 Use 22 AWG Conductors ?

PulseRoller specifies 22 AWG conductors for its Senergy-Ai extension cables and states that this conductor size is used to meet Senergy-Ai motor current requirements. Therefore, 22 AWG is an appropriate reference specification for compatible cable development.

Why Does Senergy-Ai Require Only Four Wires ?

PulseRoller explains that the microprocessor inside the Ai motor processes motor information and transmits pulse data related to Hall-effect sensor inputs over a single wire. This enables standard 4-wire M8 extensions to be used between the motor drive and controller.

Can Other Cable Lengths Be Customized ?

Yes. The 0.5–2.5 m range can serve as the primary cross-reference series, while other lengths can be evaluated and customized according to equipment layout, voltage drop, load requirements, and available installation space.
