In conventional battery-powered equipment, XT60 power cables are often routed directly out of the enclosure, leaving the connector hanging outside the device.
Although this configuration provides a basic power connection, equipment requiring frequent battery or external power connections may experience unfixed connector positions, mechanical stress on internal wiring, and disorganized external cable routing.

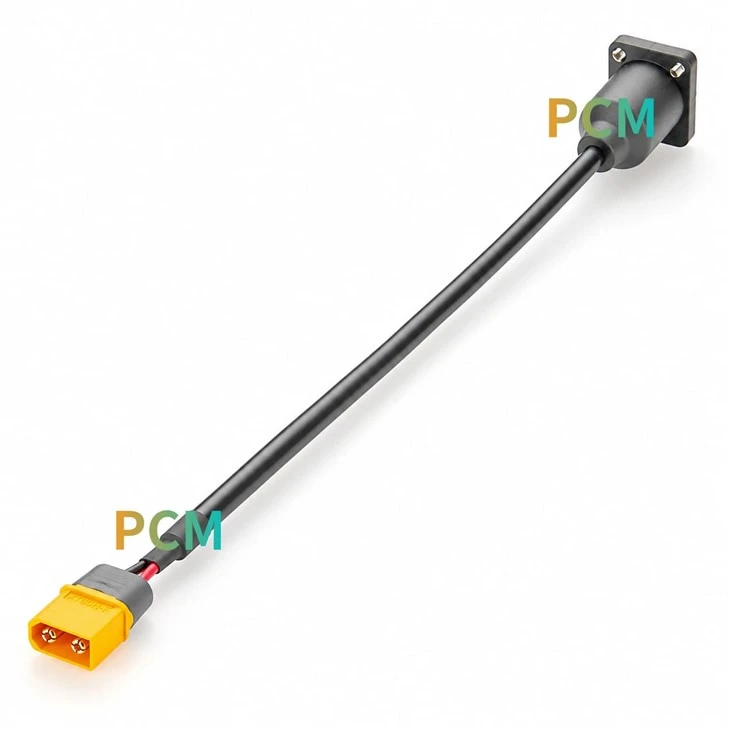

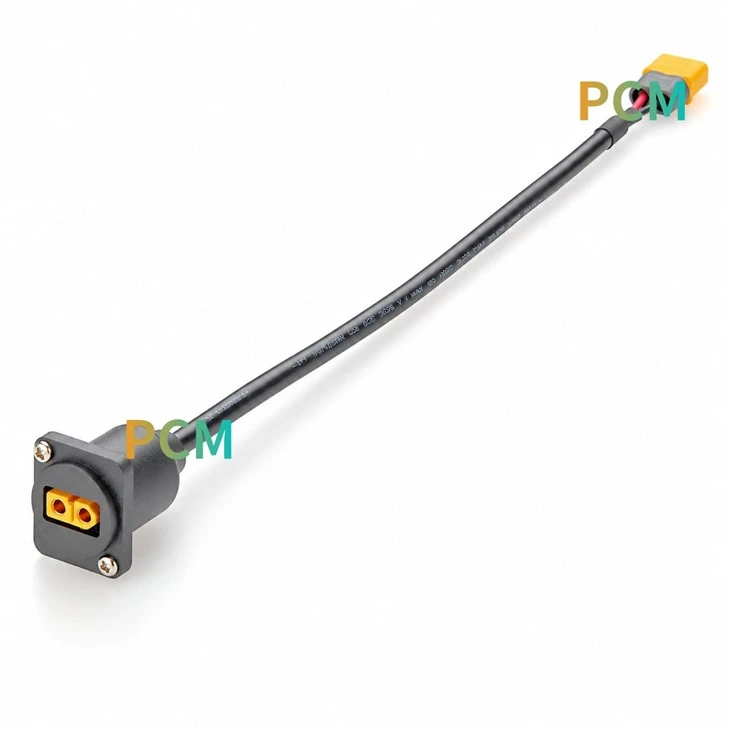

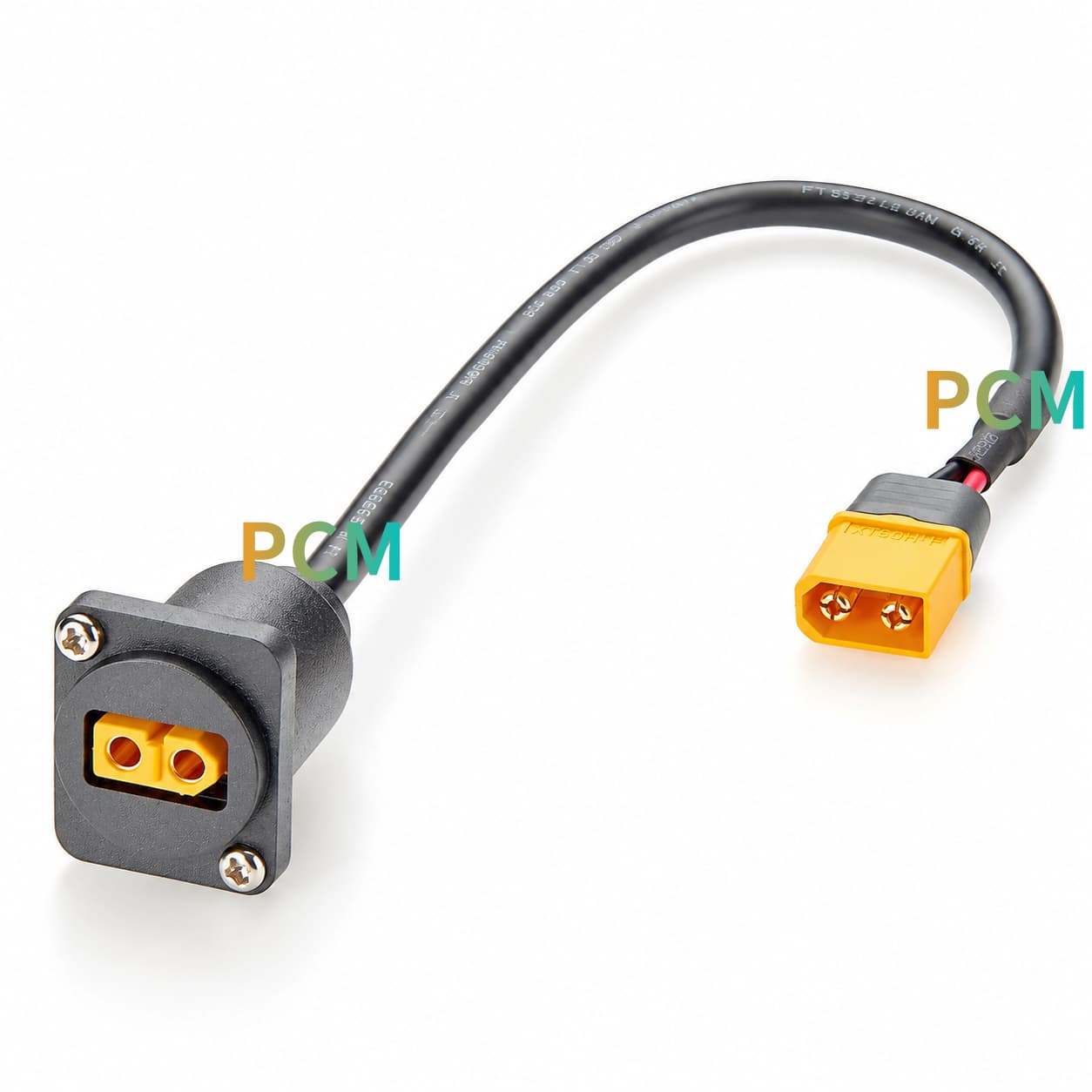

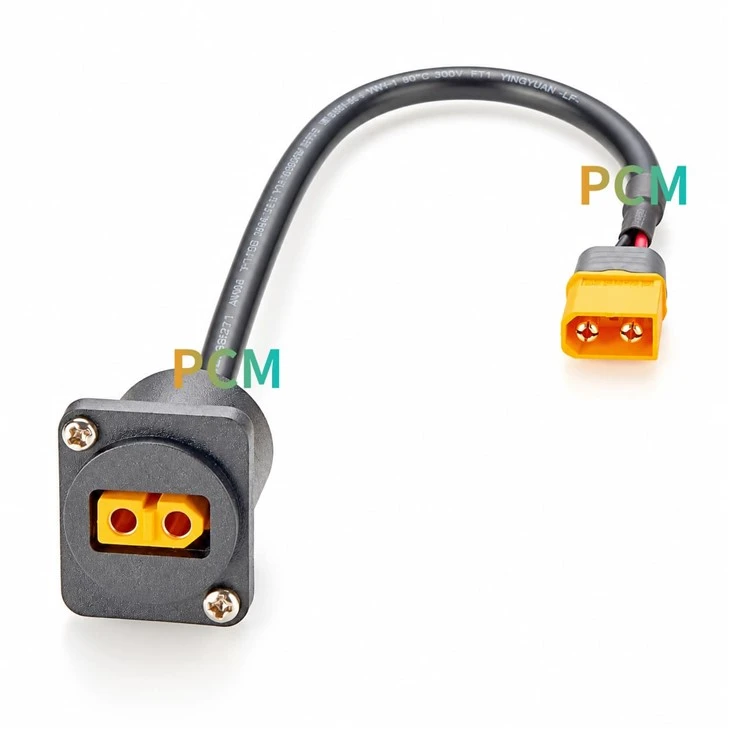

PCM-0533 uses a flange-style panel-mount structure to secure the XT60 male connector to the equipment enclosure, concentrating power connection and disconnection at the equipment panel and reducing the direct impact of external operations on internal wiring.
For OEM equipment manufacturers, this design also allows the XT60 interface to become a standardized part of the equipment enclosure, simplifying the definition of mounting positions, cable lengths, and internal wiring layouts.
Core Performance Advantages
Reduced Mechanical Stress
The fixed panel-mount structure absorbs external mating forces, reducing mechanical stress on internal wiring and terminations during repeated connection and disconnection.
Improved Cable Routing and Maintenance
The 300mm cable reduces excess wiring, while the fixed panel interface and removable XT60 female connector simplify internal routing, power module maintenance, and replacement.
Convenient Motor Replacement and Testing
The prefabricated harness standardizes 16AWG conductors, 300mm cable length, and M3 mounting, reducing on-site termination work while improving OEM assembly efficiency and consistency.
Products Specification

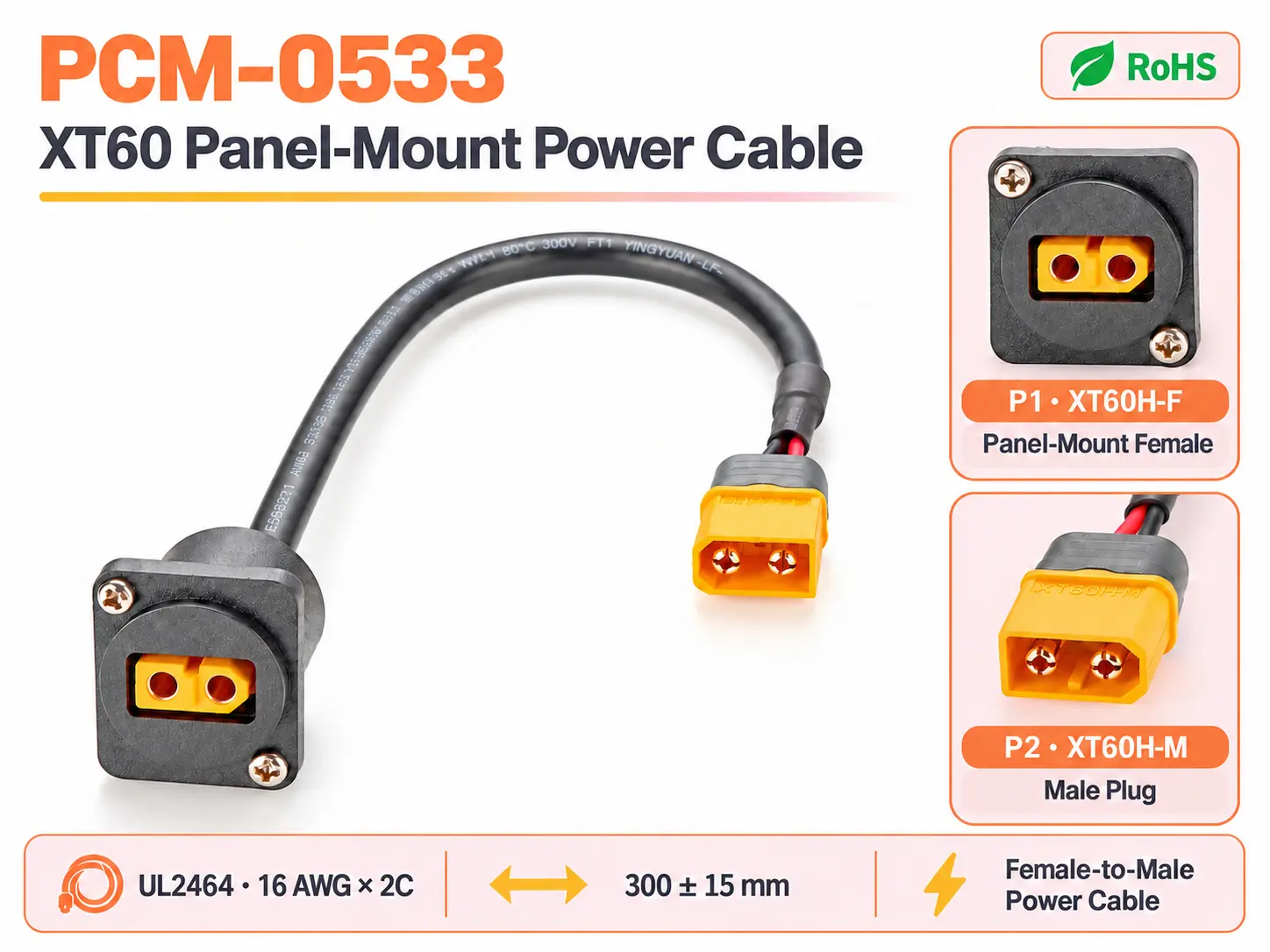

Products Display
Typical Applications
◆ 300mm Standard Length
The PCM-0533 drawing specifies an overall length of 300±15mm, making it suitable for installations where the equipment panel is relatively close to the internal power module.
For compact battery boxes, DC power equipment, and test devices, the 300mm cable provides the required internal connection distance while minimizing excess cable space.
◆ Panel Mounting Dimensions

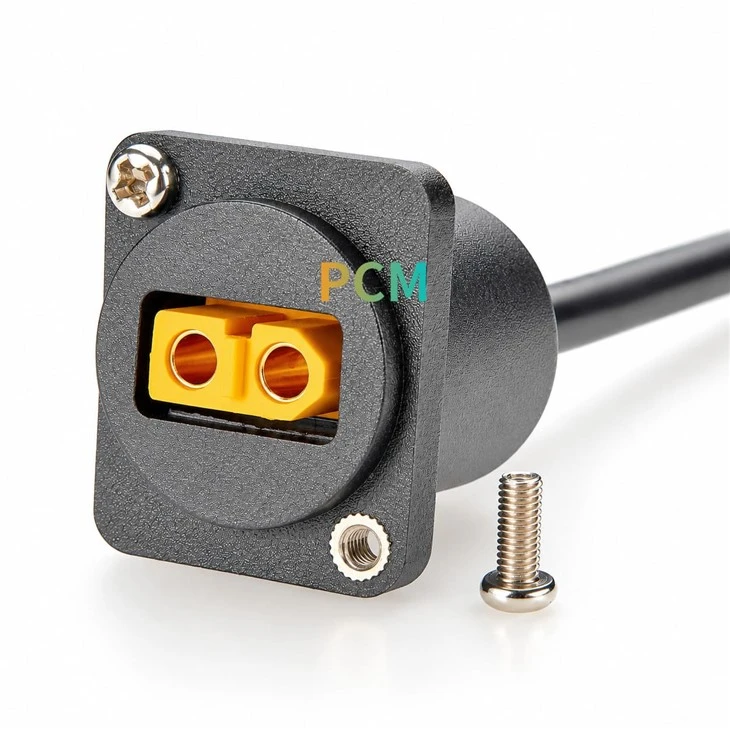

The product uses a flange-style panel-mount structure with two mounting holes and is secured using M3 × 10mm screws and matching nuts.
The current drawing does not fully specify the panel cutout dimensions, mounting hole center distance, or compatible panel thickness. These dimensions should be verified using a physical sample or complete mechanical drawing before volume panel machining.
◆ Cable and Termination Dimensions
The cable has an approximate outer diameter of 6.0mm, with a local 30±10mm dimension specified near the P2 connector. The heat-shrink tubing measures Ø6.0 × 20mm.
For OEM projects requiring alternative cable lengths or internal routing directions, connector rear clearance, cable bending radius, and potential installation interference should also be considered.
Electrical Capability
● DC Power Transmission Capability
PCM-0533 uses XT60 male-to-female connectors and 16AWG two-core cable for DC power connections within the assembly's verified electrical specifications.
The nominal current capability of an XT60 connector should not automatically be treated as the continuous current rating of the complete 16AWG cable assembly. Actual operating current must be determined according to connector specifications, cable length, termination quality, ambient temperature, and allowable temperature rise.
For solar charging, battery-powered equipment, and other continuous-current applications, complete assembly temperature-rise and electrical performance validation is recommended according to the target system operating current.
● Polarity and Electrical Connection
The product uses positive-to-positive and negative-to-negative straight-through wiring, with the red conductor assigned to positive polarity and the black conductor assigned to negative polarity.
Before connecting an external power source, XT60 mating configuration, connector polarity, and equipment operating voltage must be verified to prevent equipment damage caused by interface or polarity mismatches.
Product Customization Capabilities

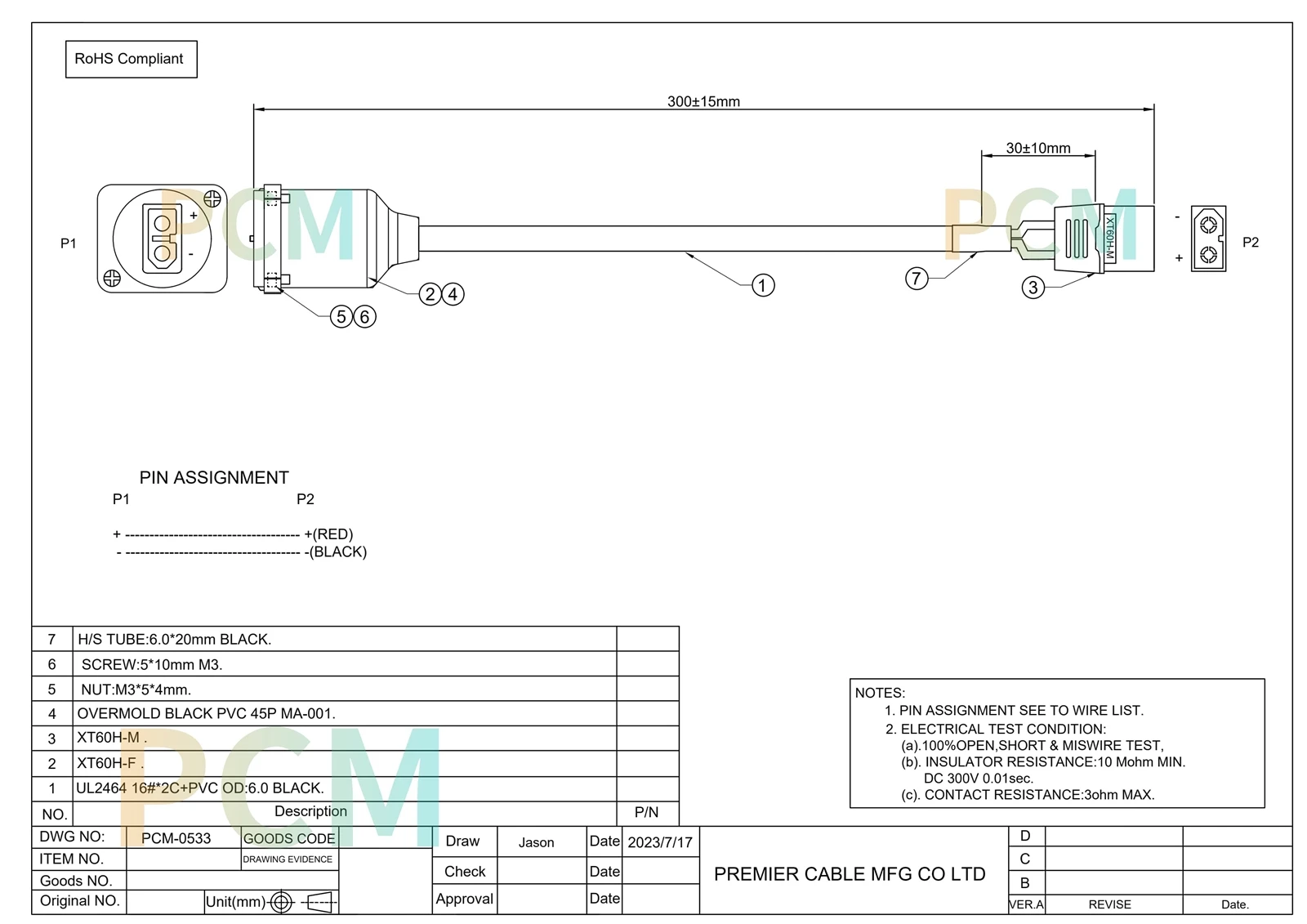

Products Drawing
Product FAQ
Can PCM-0533 Be Used for Solar Charging ?
Yes. PCM-0533 can be used as an equipment-side DC power connection cable in solar charging equipment and energy storage systems with compatible XT60 interfaces.
Solar input voltage, current, polarity, and charge-controller requirements must be verified before use. The product itself does not provide MPPT or battery charging control.
What Is the Difference Between PCM-0533 and a Standard XT60 Extension Cable ?
A standard XT60 extension cable primarily extends the connection between two power interfaces, while PCM-0533 adds a flange-style panel-mount structure that secures the XT60 male connector to the equipment enclosure.
This design is suitable for equipment requiring a fixed power interface, organized internal wiring, and frequent external power connections.
Can PCM-0533 Continuously Carry 60A ?
The continuous current capability of the complete 16AWG cable assembly cannot be determined solely from the XT60 connector specification.
Actual operating current should be established according to conductor size, cable length, connector performance, termination quality, and temperature-rise testing. A 60A continuous-current rating should not be claimed without complete assembly validation.
What Mounting Method Does PCM-0533 Use ?
The product uses a flange-style panel-mount structure with two mounting holes and is secured using M3 × 10mm screws and matching nuts.
Panel cutout dimensions and mounting hole spacing should be verified against the complete mechanical drawing or a physical sample.
Is OEM Customization and Wholesale Available ?
Premier Cable offers customization of cable length, wire gauge, connector configuration, labeling, and packaging for XT60 panel-mount power cables, supporting equipment manufacturers, wholesalers, and OEM cable assembly procurement projects.
