Product Overview

Dual H-MTD x2+6P for Flexible Automotive Ethernet Connections

The 99K1HG-1CAZ5-Z H-MTD x2+6P Automotive Ethernet Cable integrates two high-speed data channels and six auxiliary contacts in one compact hybrid interface.

Multiple configurations are available, including H-MTD x2+6P extension, 2× H-MTD breakout, and 2× MATEnet breakout, with male or female connector options. This flexible design supports vehicle network integration, ECU connection, prototype wiring and Automotive Ethernet testing.

Configuration Options：

Configuration	Main Interface	Breakout Interface	Typical Purpose
H-MTD x2+6P to H-MTD x2+6P Cable	99K1HG-1CAZ5-Z	H-MTD x2+6P	Dual-channel extension
H-MTD x2+6P to 2× H-MTD Female Cable	99K1HG-1CAZ5-Z	2× H-MTD Female	Dual-channel breakout
H-MTD x2+6P to 2× H-MTD Male Cable	99K1HG-1CAZ5-Z	2× H-MTD Male	ECU and test connection
H-MTD x2+6P to 2× MATEnet Female Cable	99K1HG-1CAZ5-Z	2× MATEnet Female	MATEnet interface adaptation
H-MTD x2+6P to 2× MATEnet Male Cable	99K1HG-1CAZ5-Z	2× MATEnet Male	Vehicle network integration

Product Specifications

Item	Specification
Product Type	H-MTD x2+6P Automotive Ethernet Breakout Cable
Main Connector	Rosenberger 99K1HG-1CAZ5-Z
Connector Series	H-MTD
Housing Design	Double
Coding	Z Code
Connector Color	Water Blue
High-Speed Channels	2 Independent Differential Channels
Contact Layout	2×2 Signal + 6 Auxiliary Contacts
Breakout Interfaces	H-MTD or MATEnet
Cable Type	Automotive Ethernet Twisted Pair
Characteristic Impedance	100 Ω Nominal
Cable Length	Customizable
Auxiliary Wiring	Optional, Project Specific
Applications	ADAS, ECU, Domain Controller, Vehicle Ethernet Testing

Version 1

H-MTD x2+6P to H-MTD x2+6P Cable

This version connects H-MTD x2+6P interfaces at both ends, providing a direct extension for two independent high-speed data channels together with six auxiliary contacts. It is suitable for extending connections between compatible vehicle modules without changing the original interface architecture.

Cable length and auxiliary wiring can be customized according to the system layout, making it suitable for ECU relocation, prototype vehicle wiring, HIL test benches and dual-channel Automotive Ethernet extension.

Version 2

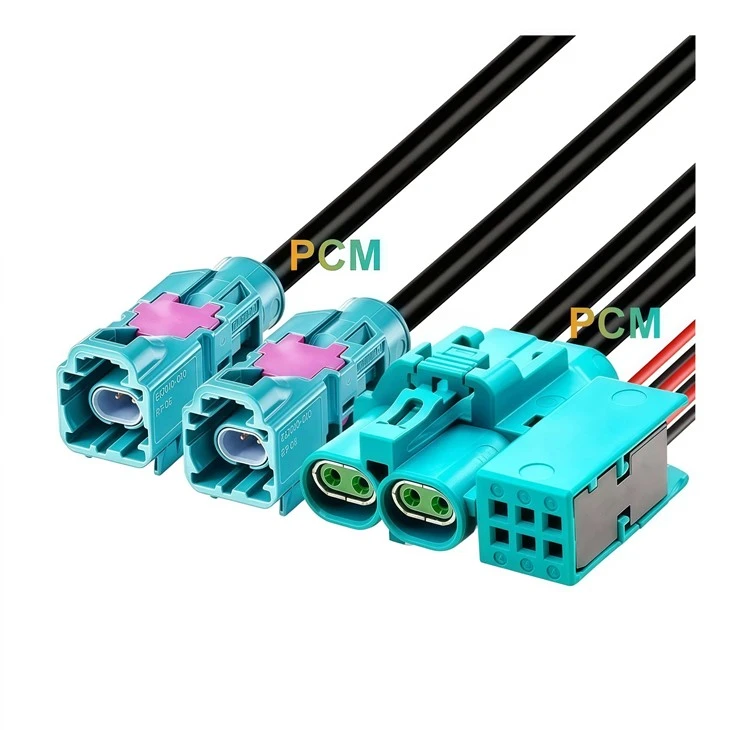

H-MTD x2+6P to 2× H-MTD Female Cable

This breakout cable converts one H-MTD x2+6P interface into two individual H-MTD female connectors, allowing the two high-speed channels to be routed separately to different vehicle devices.

The two-branch design provides flexible installation when cameras, sensors or ECUs are located in different positions. Branch lengths can be customized for ADAS integration, ECU development, prototype harnesses and distributed vehicle network connections.

2 1

3 1

Version 3

H-MTD x2+6P to 2× H-MTD Male Cable

This configuration breaks out the H-MTD x2+6P interface into two H-MTD male connectors, providing separate access to each high-speed data channel for vehicle-side equipment and engineering test systems.

The male interfaces are well suited for connection with compatible ECU ports, test fixtures and validation equipment. Typical uses include HIL testing, ECU debugging, Automotive Ethernet measurement and laboratory network validation.

Version 4

H-MTD x2+6P to 2× MATEnet Female Cable

This version routes the two high-speed channels from an H-MTD x2+6P interface to two separate MATEnet female connectors, providing an efficient transition between H-MTD and MATEnet based vehicle networks.

Each MATEnet branch operates as an independent connection, making the cable suitable for systems using different Automotive Ethernet connector families. It is ideal for domain controller integration, ADAS development, mixed-interface prototypes and network adaptation.

4 1

5 1

Version 5

H-MTD x2+6P to 2× MATEnet Male Cable

This configuration combines one H-MTD x2+6P interface with two MATEnet male connectors, providing two independent data paths for connecting MATEnet-equipped modules within mixed-interface vehicle networks.

The male breakout design offers an alternative mating configuration for specific ECU and equipment interfaces. Cable length, branch length and auxiliary wiring can be customized for vehicle gateway integration, ECU interconnection, prototype network routing and Automotive Ethernet interface conversion.

Application Scenarios

Typical Applications

ADAS Sensor Network Integration

Routes two independent high-speed data channels to cameras, radar, LiDAR or other ADAS modules through H-MTD or MATEnet breakout connections.

HIL & ECU Validation

Provides separate access to both high-speed channels for ECU debugging, signal measurement and hardware-in-the-loop testing with flexible breakout interfaces.

Mixed-Interface Vehicle Networks

Supports vehicle systems using both H-MTD and MATEnet interfaces, enabling flexible dual-channel connections between domain controllers, ECUs and development modules.

Product Features

Dual High-Speed Channels in One Connector

The H-MTD x2+6P architecture integrates two independent differential data channels into one compact connector, supporting space-efficient high-speed connectivity for modern vehicle electronics.

Five Flexible Interface Configurations

Available with H-MTD x2+6P, dual H-MTD or dual MATEnet outputs, with male and female breakout options to match different ECU, controller and test-system interfaces.

Six Auxiliary Contacts

Alongside the two high-speed channels, six auxiliary contacts provide additional connection capacity. Pin assignment and wiring can be configured according to specific vehicle or test-system requirements.

H-MTD & MATEnet Interface Adaptation

Dual-channel breakout options support direct integration between H-MTD and MATEnet connector systems, simplifying mixed-interface Automotive Ethernet wiring without changing the equipment-side connection.

Core Benefits

Product Advantages

Reduced Harness Complexity

Combines multiple connection paths into a more organized harness architecture, helping reduce separate cable runs and simplify wiring around ECUs, domain controllers and test platforms.

Easier System Upgrades

Allows existing vehicle network equipment to connect with different interface layouts without requiring major changes to the surrounding harness, making prototype revisions and system upgrades easier to manage.

Faster Installation & Maintenance

Clearly separated branches make individual device connections easier to identify, install and replace, reducing handling time during vehicle assembly, troubleshooting and laboratory work.

Project Ready Customization

Multiple standard lengths from 0.5 m to 5 m are available, with custom cable length, branch dimensions and wiring arrangements supported for different installation layouts and project requirements.

Connection & Ordering Notes

For 99K1HG-1CAZ5-Z H-MTD x2+6P cable assemblies, the mating interface, coding and pin assignment should be confirmed before production to ensure correct system integration.

Confirm H-MTD or MATEnet breakout interface and connector gender.
Verify mating connector, coding and cable requirements.
Define the 6 auxiliary contact pin assignments according to the project.
Confirm cable length and branch length before ordering.

For frequent connection or disconnection, operate the connector through its locking mechanism rather than pulling the cable to help protect the termination and maintain reliable mating.

WHY H-MTD x2+6P FOR MODERN VEHICLE NETWORKS?

↕ Supports Centralized Vehicle Architecture

The compact dual-channel interface helps connect high data rate modules around domain and zonal controllers, supporting more centralized vehicle network layouts.

□ Enables Cleaner Harness Routing

Two data channels and auxiliary contacts share one connector platform, helping organize connections in space constrained ECU and controller installations.

◉ Ready for Multi-Module Connectivity

The dual-channel architecture supports separate connections to two downstream devices, making it practical for multi-camera, sensor and controller network layouts.

Frequently Asked Questions

Product FAQ

Q1: Which configuration should I choose?

Choose the breakout interface according to your equipment. Options include H-MTD x2+6P, 2× H-MTD, and 2× MATEnet, with male or female versions available.

Q2: Are the two high-speed channels independent?

Yes. The H-MTD x2+6P interface provides two independent differential data channels, allowing each channel to connect to a separate device or network interface.

Q3: Can H-MTD and MATEnet interfaces be used in the same cable?

Yes. H-MTD x2+6P to 2× MATEnet configurations are available for mixed-interface Automotive Ethernet systems. Connector gender and mating requirements should be confirmed before ordering.

Q4: How are the six auxiliary contacts configured?

The six auxiliary contacts can be wired or reserved according to the project. Pin assignment should be confirmed before production to match the target equipment.

Q5: What cable lengths are available?

Standard options include 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 4 m and 5 m. Custom cable and branch lengths are also available for specific installation requirements.

CUSTOM H-MTD x2+6P CABLE ASSEMBLIES

Send us your connector type, pin assignment, cable length and quantity. We can customize H-MTD x2+6P cables with H-MTD or MATEnet interfaces to match your vehicle or test system.
