Reliable HSD4P Connection for Automotive Video Systems
The HSD4P Female to Female LVDS Cable is designed for automotive electronic systems that require stable video signal connections in compact installation spaces. With a straight HSD4P female connector on one end and a right angle HSD4P female connector on the other end, this cable provides a practical solution for vehicle wiring layouts where connector direction and space limitations need to be considered.
The angled connector design helps simplify cable routing behind displays, control modules, and embedded vehicle electronics, reducing unnecessary bending near the connection points.
This HSD4P LVDS cable is commonly used in automotive display systems, camera modules, infotainment equipment, and OEM replacement projects. Different cable lengths and connector colors are available to support various vehicle platforms and customized wiring requirements.
Flexible HSD4P LVDS Cable for Vehicle Display Connections
The HSD4P Female to Female LVDS Cable provides a convenient connection between automotive video modules using the same HSD4P interface.
One straight connector and one right angle connector allow engineers to select a more suitable cable direction according to the installation environment. It is especially useful in dashboards, vehicle displays, camera systems, and electronic control areas where cable space is limited.
With multiple length options from 0.5m to 5m, this cable can be adapted for prototype testing, replacement applications, and OEM customized harness projects.

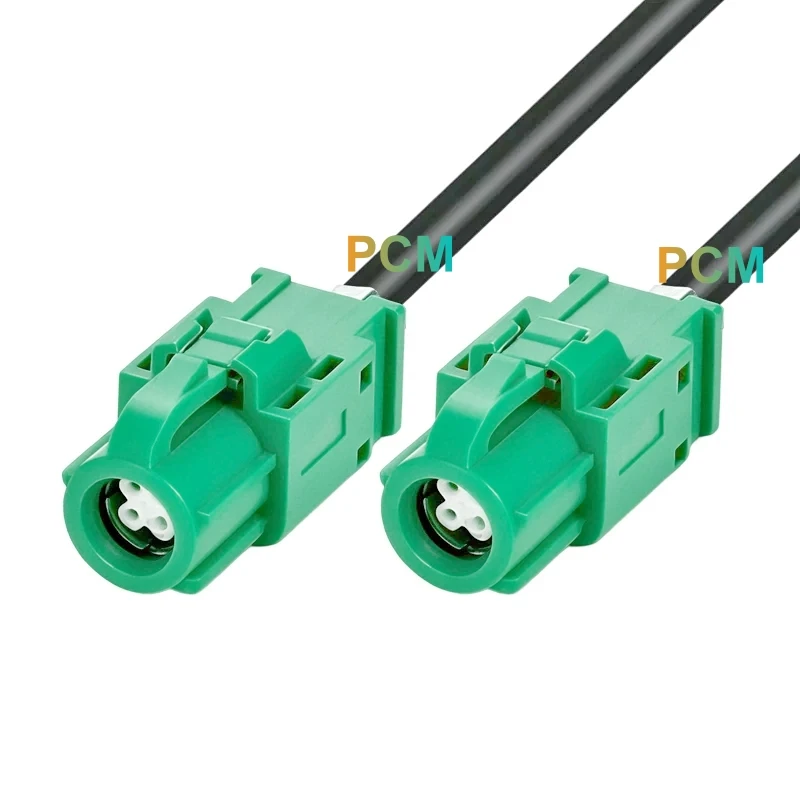

Green HSD4P Straight Female to Straight Female Cable
The Green HSD4P Straight Female to Straight Female Cable is designed for automotive video signal connections using the HSD4P interface. The straight connector design provides a direct and reliable connection between compatible vehicle display modules, camera systems, and electronic control units.
The green connector housing helps identify cable routing during installation and maintenance, making it suitable for automotive wiring projects, prototype development, and customized vehicle electronic applications where clear cable management is required.
Black HSD4P Straight Female to Straight Female Cable
The Black HSD4P Straight Female to Straight Female Cable provides a standard connection solution for automotive LVDS and RGB video transmission applications. Both ends use straight HSD4P female connectors for easy integration with matching automotive electronic interfaces.
The black color design offers a clean appearance for vehicle harness systems and is commonly used in dashboard displays, multimedia systems, and OEM replacement cable projects requiring stable signal connections.
Purple HSD4P Straight Female to Straight Female Cable
The Purple HSD4P Straight Female to Straight Female Cable is developed for automotive electronic applications requiring reliable HSD4P video connections. Its straight female connector structure allows simple installation between compatible video modules.
The purple connector option provides additional identification flexibility for complex wiring systems, helping engineers distinguish different signal paths in automotive prototypes, testing platforms, and customized harness assemblies.
White HSD4P Straight Female to Straight Female Cable
The White HSD4P Straight Female to Straight Female Cable offers a direct connection solution for automotive display and video systems. The straight HSD4P female connectors on both ends provide convenient installation for standard cable routing environments.
The white connector version is suitable for applications where cable identification and visual management are important, including vehicle multimedia systems, electronic modules, and OEM cable replacement requirements.
Ice Blue HSD4P Straight Female to Straight Female Cable
The Ice Blue HSD4P Straight Female to Straight Female Cable is designed for automotive high speed video connection applications using HSD4P interfaces. The straight connector structure supports simple connection between vehicle electronic components.
The ice blue housing provides an easy identification option for customized wiring layouts and is suitable for automotive displays, camera systems, infotainment equipment, and engineering test projects.
HSD4P Straight Male to Straight Male Cable
The HSD4P Straight Male to Straight Male Cable is configured with male connectors on both ends for specific automotive video system connection requirements. The straight design allows direct installation where standard connector alignment is available.
This cable configuration is suitable for vehicle electronic development, display connection systems, and customized automotive harness solutions requiring HSD4P male interfaces.
HSD4P Right Angle Female to Right Angle Female Cable
The HSD4P Right Angle Female to Right Angle Female Cable features angled HSD4P female connectors on both ends, providing a flexible solution for limited installation spaces. The right angle design helps improve cable routing behind displays and electronic modules.
It is suitable for automotive applications where connector direction and installation clearance are important, including vehicle displays, camera systems, and compact electronic assemblies.

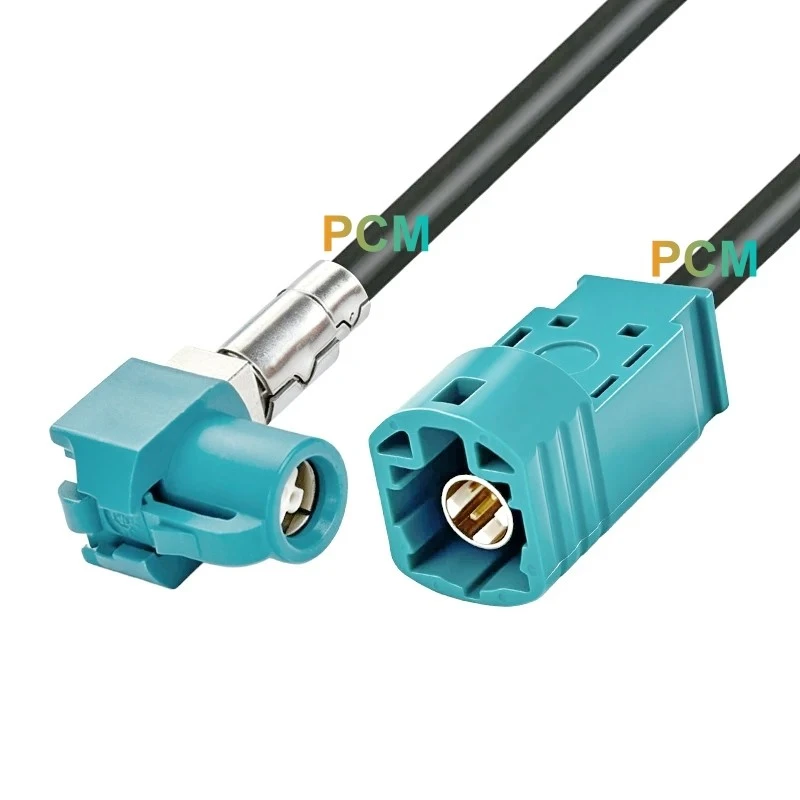

HSD4P Straight Female to Right Angle Female Cable
The HSD4P Straight Female to Right Angle Female Cable combines one straight female connector and one right angle female connector to provide flexible installation options. This design helps engineers adapt cable routing according to different vehicle layouts.
It is widely used in automotive LVDS video systems, display connections, camera modules, and multimedia applications where one side requires vertical installation and the other side requires space-saving routing.
HSD4P Straight Female to Straight Male Cable
The HSD4P Straight Female to Straight Male Cable provides a mixed gender HSD4P connection solution for automotive electronic systems. The straight connector design supports convenient installation between different interface requirements.
This cable is suitable for vehicle display systems, electronic control modules, and customized wiring applications where HSD4P female and male interfaces need to be connected within the same harness design.
HSD4P Straight Male to Right Angle Female Cable
The HSD4P Straight Male to Right Angle Female Cable combines different connector orientations to improve installation flexibility in automotive electronic systems. One straight male connector and one right angle female connector support various wiring arrangements.
This configuration is suitable for compact vehicle electronic assemblies, prototype testing, and OEM replacement projects where connector direction and installation space need to be considered.
Typical Applications
Product Features
HSD4P Video Connection Interface
Designed with HSD4P connectors for automotive LVDS and RGB video signal connections, providing a reliable link between displays, cameras, and electronic control modules.
Straight And Right Angle Options
Available with different HSD4P connector orientations, including straight and right angle designs, helping optimize cable routing in limited installation spaces.
Multiple Length Configurations
Standard cable lengths from 0.5m to 5m are available, offering flexible installation options for vehicle wiring, prototype testing, and replacement projects.
Flexible Automotive Applications
Suitable for automotive displays, camera systems, multimedia equipment, and electronic modules, supporting OEM projects and customized cable assembly requirements.
Product Advantages
• Flexible Installation For Limited Spaces
The HSD4P cable supports straight and right angle connector designs, helping engineers optimize cable routing in compact vehicle spaces such as dashboards, displays, and electronic control areas.
• Reliable HSD4P Video Connection
The HSD4P interface provides a stable connection solution for automotive LVDS and RGB video applications, supporting reliable communication between displays, cameras, and control modules.
• Simplified Vehicle Wiring Integration
Different connector combinations and cable lengths help reduce unnecessary wiring adjustments, making integration easier for automotive electronic systems and replacement projects.
• Custom Cable Assembly Support
Cable length, connector orientation, and connector color options can be customized according to OEM requirements, prototype development needs, and specific vehicle installation conditions.
↕ Space Optimized HSD4P Connection Design
The HSD4P cable family provides different connector directions to better match vehicle installation spaces. Straight and right angle options help simplify cable routing behind displays, cameras, and electronic modules where space is limited.
□ Designed For Automotive Video Integration
Built for HSD4P based LVDS and RGB video connections, this cable family supports reliable links between automotive displays, camera systems, and control units while maintaining a clean and organized wiring layout.
◉ Flexible Configurations For OEM Projects
Different connector combinations, cable lengths, and color options are available to meet various vehicle platforms, prototype testing requirements, and customized automotive harness applications.
Product FAQ
Q1: What devices can use the HSD4P LVDS Cable?
This cable is commonly used for automotive display systems, camera modules, infotainment units, and electronic control modules that use HSD4P interfaces for video signal connections.
Q2: What is the difference between straight and right angle HSD4P connectors?
The straight connector is suitable for standard installation environments, while the right angle connector helps improve cable routing in limited spaces behind displays, dashboards, or compact electronic modules.
Q3: Can I choose different HSD4P connector configurations?
Yes. Different configurations are available, including straight female to straight female, straight female to right angle female, male to male, and other combinations to match different system requirements.
Q4: What cable lengths are available for this HSD4P cable?
Standard lengths include 0.5m, 1m, 2m, 3m, 4m, and 5m. Custom cable lengths can also be provided for specific vehicle installation requirements.
Q5: Is this HSD4P cable suitable for OEM replacement projects?
Yes. The cable is suitable for OEM replacement, vehicle electronic upgrades, prototype testing, and customized automotive wiring applications.
Q6: Can the connector color be customized?
Yes. Multiple connector color options are available, including green, black, purple, white, and ice blue, helping support cable identification and project requirements.
Q7: Can you provide customized HSD4P cable assemblies?
Yes. Connector type, cable length, color, and assembly requirements can be customized according to OEM projects, testing applications, and vehicle platform needs.
