4-Port Waterproof H-MTD to 4 MATEnet Automotive Ethernet Cable
Rosenberger E6K14D-1CAZ5-Z Waterproof Quad H-MTD Interface to Four TE 2302454-9 MATEnet Z-Code Branches
Waterproof H-MTD Interface for Multi-Channel Ethernet Connections
This cable assembly is designed for applications that require a sealed multi-port H-MTD connection on one side while retaining four individual MATEnet interfaces on the other.

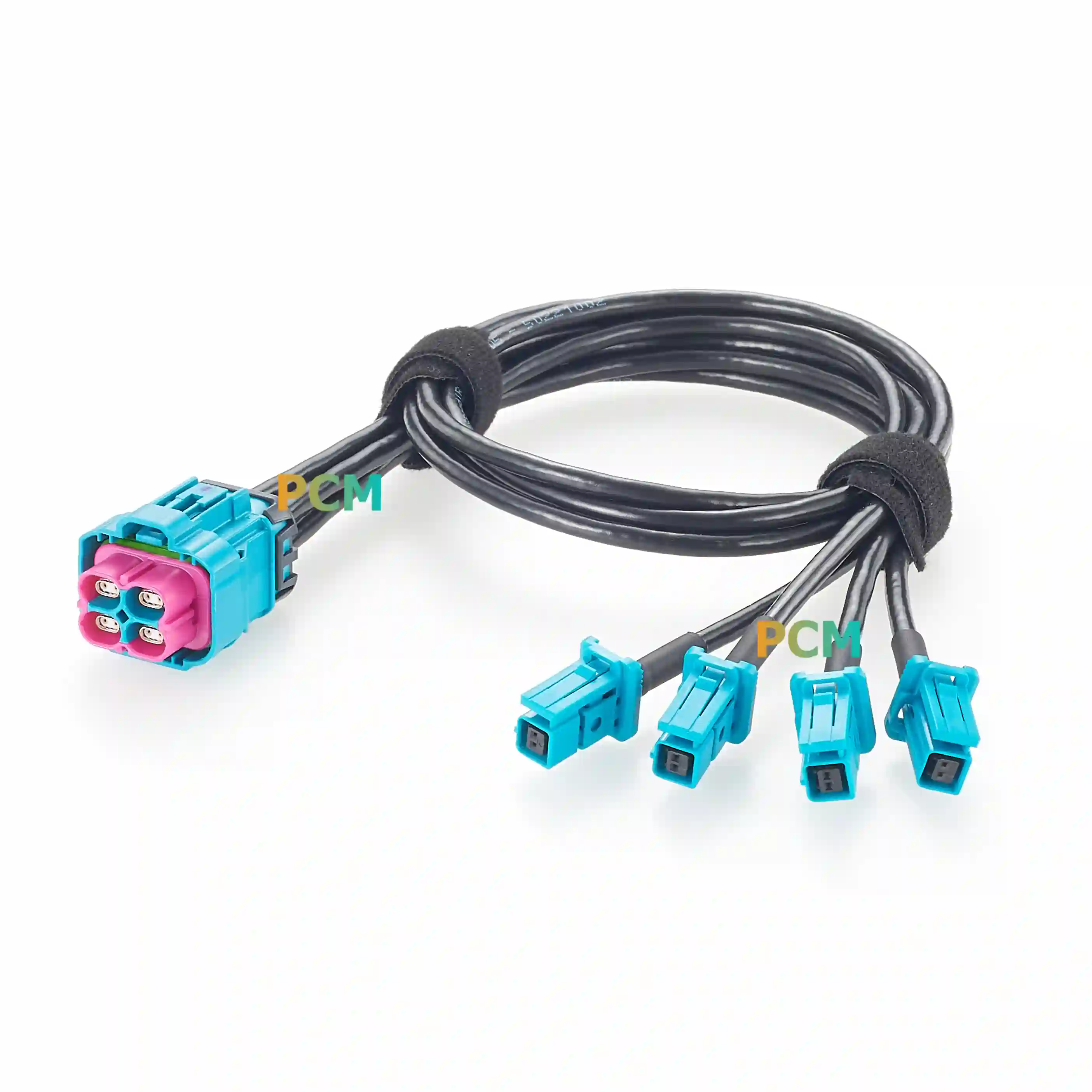

The P1 side uses the Rosenberger E6K14D-1CAZ5-Z, a four-port H-MTD Z-code jack with a waterproof interface. Four GG 2Speed 251 differential cables then fan out to individual TE Connectivity 2302454-9 MATEnet Z-code connectors.
This configuration is particularly useful when a vehicle module or bulkhead-side connection requires environmental protection while the individual MATEnet branches are routed inside the vehicle or test system.
Waterproof H-MTD Connector on the P1 Side

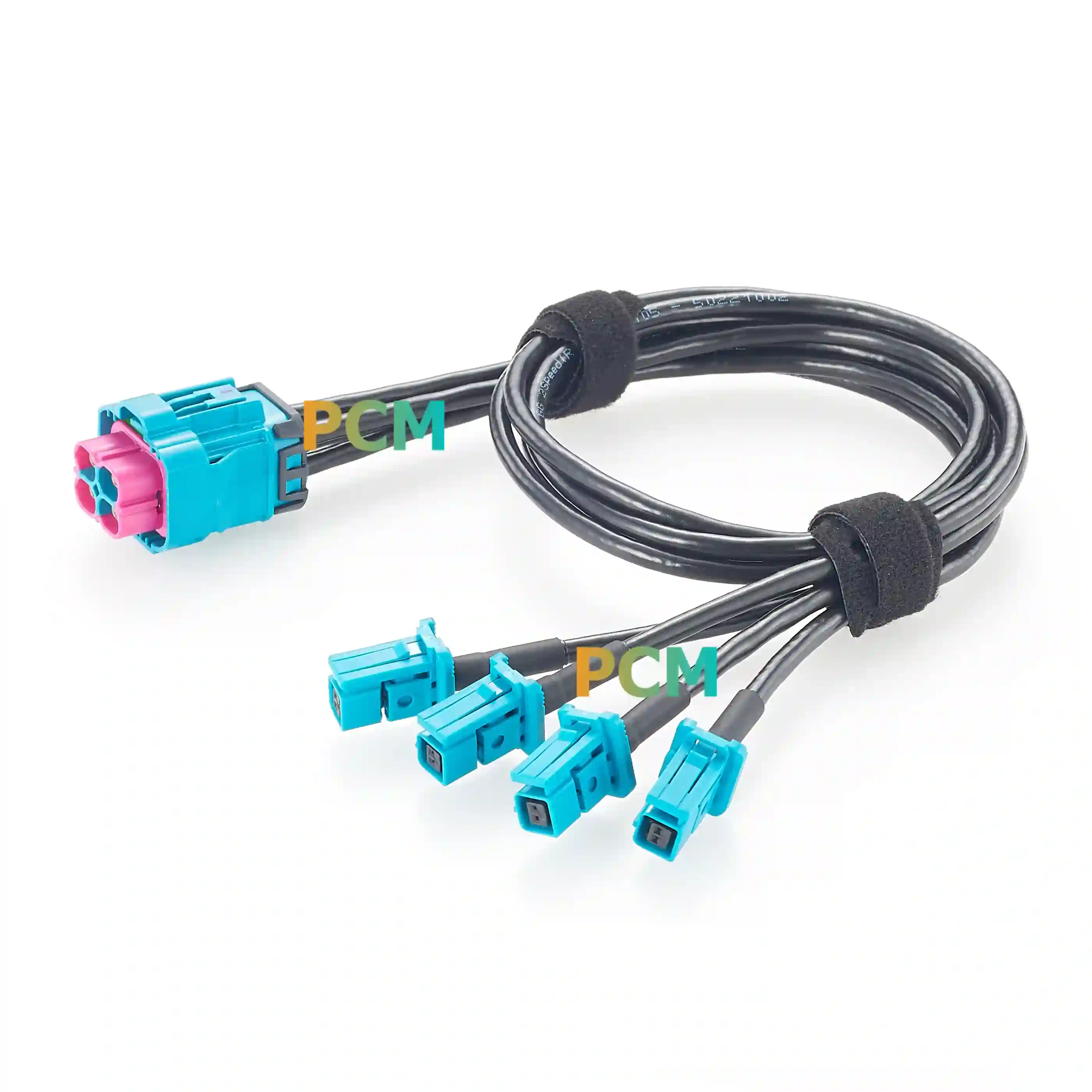

The key feature of this harness is the waterproof quadruple H-MTD interface. Rosenberger E6K14D-1CAZ5-Z combines four differential signal pairs in one compact housing and provides an IP67-capable H-MTD connection when used under the specified mating conditions.
The four MATEnet breakout connectors are separate non-sealed interfaces, allowing the harness to combine a protected H-MTD connection with conventional MATEnet routing inside the system.
Cable Assembly Specifications
| Product Type | Waterproof H-MTD to MATEnet Automotive Ethernet Cable |
| Premier Cable Part No. | PCM-ZC-0177 |
| P1 Interface | 4-Port H-MTD Jack, Z Code, Waterproof |
| H-MTD Connector | Rosenberger E6K14D-1CAZ5-Z |
| H-MTD Protection | IP67 waterproof interface on P1 side |
| P2–P5 Interfaces | 4 × MATEnet Jack, Z Code |
| MATEnet Part Number | TE Connectivity 2302454-9 |
| Ethernet Cable | G&G GG 2Speed 251 10G Ethernet Cable |
| Impedance | 100 Ω Nominal |
| Frequency Range | DC – 10 GHz |
| Hi-Pot | 500 VRMS Minimum |
| Continuity | 100% Tested |
| Cable Retention | 110 N Minimum |
| Temperature Range | -40°C to +105°C |
| Standard Lengths | 0.5 m / 1 m / 2 m |
E6K14D-1CAZ5-Z Quad H-MTD Connection
The quadruple connector architecture places four shielded differential channels in one compact H-MTD housing. Compared with routing several separate interfaces at the module side, this approach reduces connector count and simplifies multi-channel cable management.
The waterproof version is intended for locations where the H-MTD connection may be exposed to moisture, splash or other environmental conditions that require a sealed mating interface.
One Sealed Interface, Four MATEnet Branches
Each H-MTD channel is routed separately to one MATEnet Z-code connector. The harness therefore functions as a multi-channel adapter rather than electrically splitting a single Ethernet signal.
Standard Length Options
| Part Number | Nominal Length |
|---|---|
| PCM-ZC-0177-0.5M | 500 ± 15 mm |
| PCM-ZC-0177-1M | 1000 ± 20 mm |
| PCM-ZC-0177-2M | 2000 ± 30 mm |
Custom H-MTD to MATEnet Harness Options
Custom cable lengths, breakout dimensions, connector coding, branch identification and related H-MTD / MATEnet configurations can be developed according to vehicle architecture, test equipment or module interface requirements.
PCM-ZC-0177 Cable Drawing
