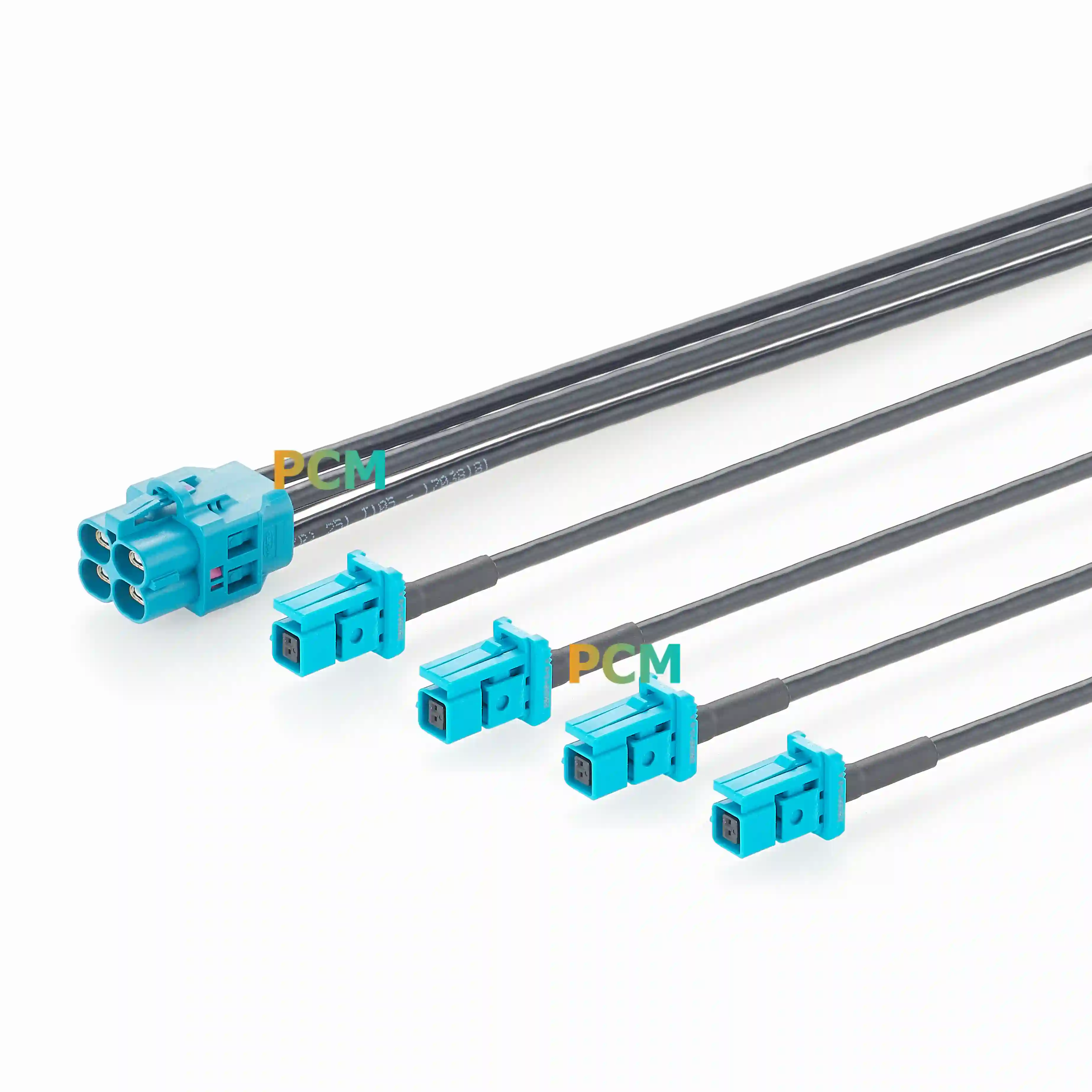

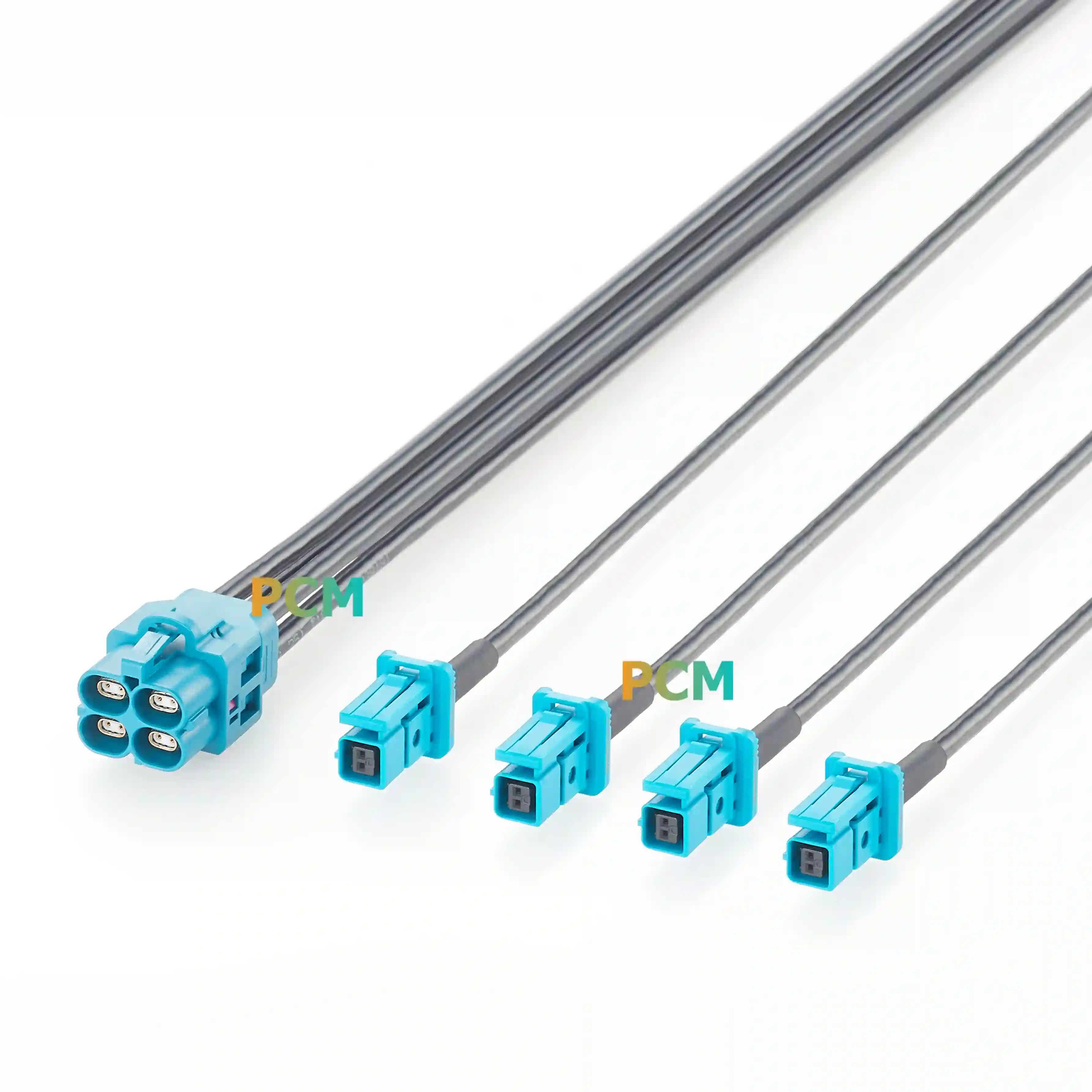

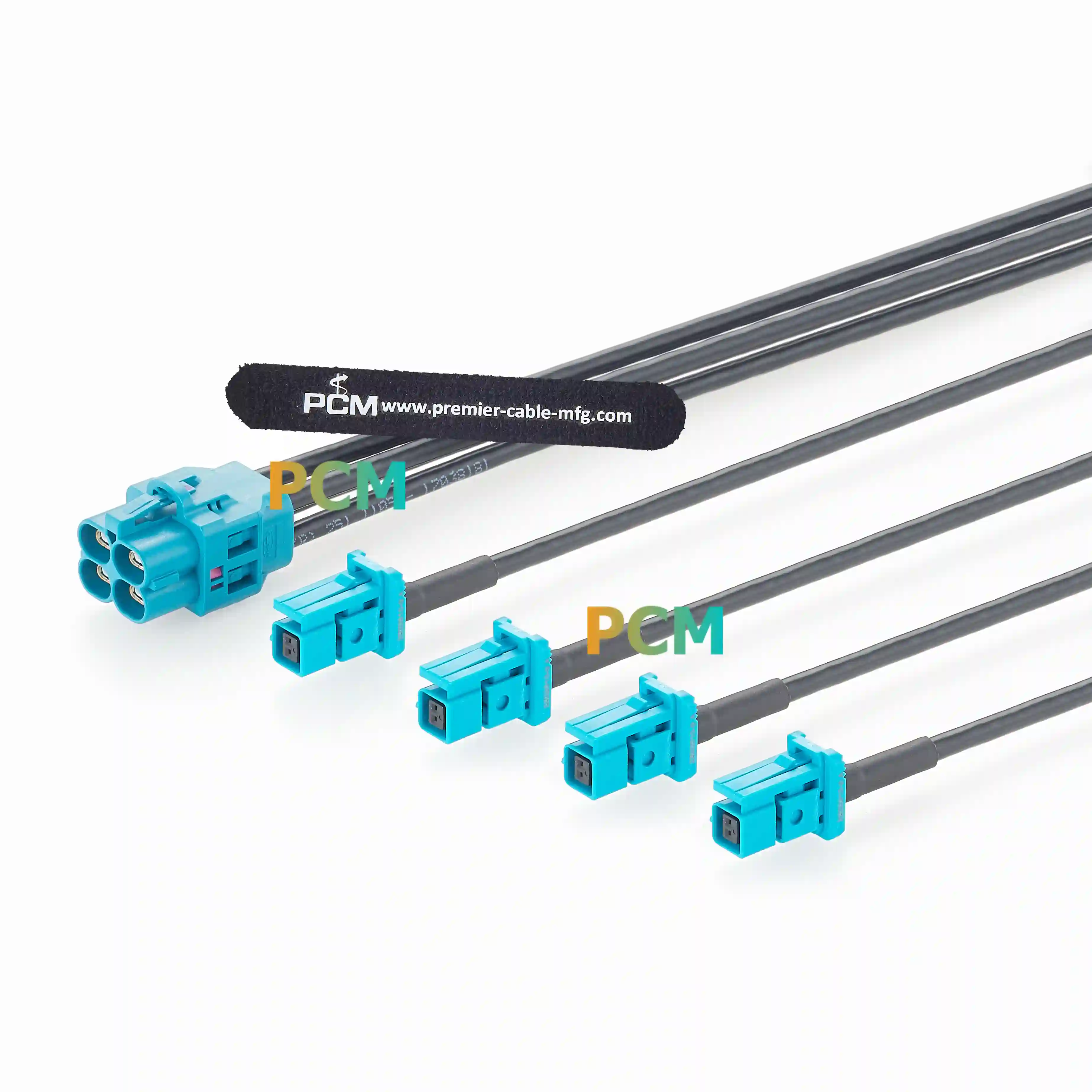

4-Port H-MTD to 4 MATEnet 10G Automotive Ethernet Breakout Cable
Rosenberger E6K10D-1CAZ5-Z Quad H-MTD to 4 × TE 2302454-9 MATEnet Z Code Cable Assembly
H-MTD to MATEnet Automotive Ethernet Cable
This 4-port H-MTD to 4 MATEnet automotive Ethernet breakout cable connects one Rosenberger quadruple H-MTD interface to four individual TE MATEnet interfaces for high-density in-vehicle data connections.
The assembly combines a Rosenberger E6K10D-1CAZ5-Z H-MTD Z-code connector, four TE Connectivity 2302454-9 MATEnet Z-code connectors and GG 2Speed 251 100 Ω 10G Ethernet cable.
4-Port H-MTD to Four MATEnet Configuration
Four differential data channels are integrated into the compact H-MTD connector and individually broken out to four single-port MATEnet connectors.
- P1: Rosenberger 4-Port H-MTD Jack, Z Code
- H-MTD Part Number: E6K10D-1CAZ5-Z
- P2–P5: 4 × TE MATEnet Jack, Z Code
- MATEnet Part Number: 2302454-9
- Cable: GG 2Speed 251 10G Ethernet Cable
Technical Specifications
| Product Type | H-MTD to MATEnet Automotive Ethernet Breakout Cable |
| Drawing No. | PCM-ZC-0174 |
| Connector 1 | Rosenberger H-MTD Quad Jack, Z Code |
| H-MTD Part Number | E6K10D-1CAZ5-Z |
| Connectors 2–5 | 4 × TE MATEnet Z Code |
| MATEnet Part Number | TE 2302454-9 |
| Cable Type | GG 2Speed 251 10G Ethernet Cable |
| Impedance | 100 Ω Nominal |
| Frequency Range | DC – 10 GHz |
| Hi-Pot | 500 VRMS Minimum |
| Continuity | 100% Tested |
| Cable Retention | 110 N Minimum |
| Temperature Range | -40°C to +105°C |
| Standard Lengths | 0.5 m / 1 m / 2 m |
Rosenberger Quad H-MTD Connector
The Rosenberger H-MTD system is a compact differential connector platform developed for high-speed automotive data transmission. The E6K10D-1CAZ5-Z used here features a quadruple housing, allowing four differential channels to be integrated into one connector.
This high-density architecture helps reduce connector space and simplifies multi-channel wiring in modern vehicle networks.
TE MATEnet Z Code Breakout Interfaces
The four breakout branches use TE Connectivity 2302454-9 single-port MATEnet Z-code housings, providing individual connections for each differential data channel.
The H-MTD-to-MATEnet configuration is useful when connecting equipment, modules or test systems based on different automotive high-speed connector platforms.
Typical Applications
Custom H-MTD and MATEnet Cable Assemblies
In addition to the standard 0.5 m, 1 m and 2 m versions, cable length, breakout dimensions, connector combinations, coding and labeling can be customized for automotive development and production requirements.

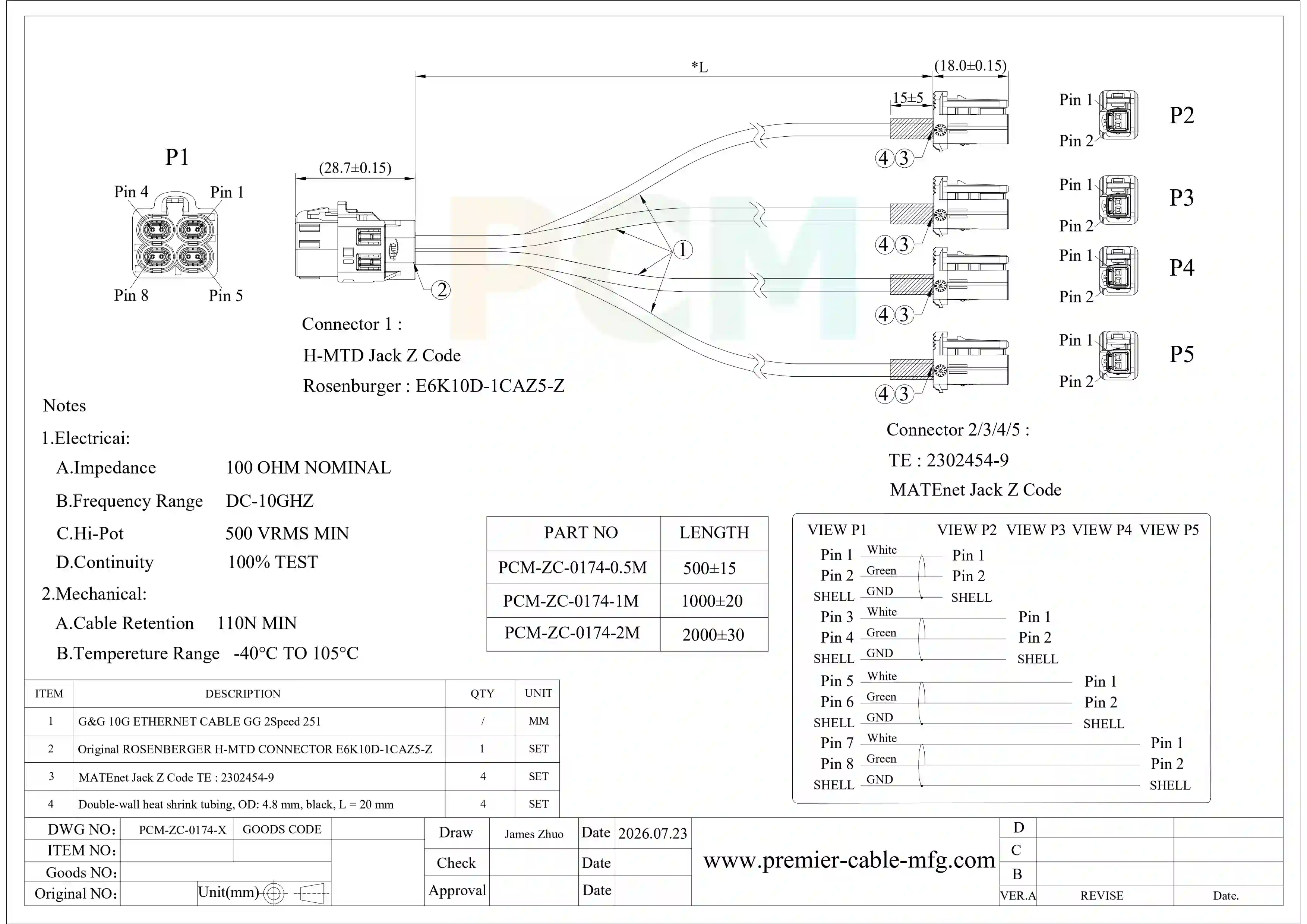

Product Drawing
