Products Description
The PCM-S-0800 12 pin to 6x 2 pin wire harness provides an organized solution for distributing multiple electrical connections from one centralized connector to six individual 2-pin branches.
The main P1 connector uses a 12-pin black housing with 2.2mm pitch, while P2 through P7 are configured with 2-pin black housings with 3.0mm pitch. This 1-to-6 architecture helps simplify internal equipment wiring and reduces the need for multiple independent cable assemblies.
The harness is constructed with 22AWG UL1452 black wire with a 1.76mm outer diameter. Selected sections are protected and organized using black PET braided sleeving, heat-shrink tubing, cable ties and identification sleeves.
Each branch is routed according to the specified pin assignment, allowing the twelve circuits from P1 to be distributed as six independent two-wire connections.
The finished harness undergoes 100% open, short and miswire testing, together with specified insulation resistance and contact resistance testing before shipment.
Custom connector configurations, branch lengths, wire specifications, labels and protective sleeving can be developed according to customer equipment and wiring requirements.
Key Features
12-Pin to Six 2-Pin Branch Architecture
One centralized 12-pin connector distributes twelve circuits into six individual 2-pin branches, simplifying multi-point wiring inside electrical and electronic equipment.
22AWG UL1452 Wire
The harness uses 22AWG UL1452 black wire with 1.76mm OD, providing a compact solution for signal and low-current internal equipment connections.
PET Braided Cable Protection
Black PET braided sleeving, heat-shrink tubing and cable ties help organize multiple conductors while providing additional mechanical protection in bundled wiring areas.
100% Electrical Testing
Every completed assembly is tested for open circuits, short circuits and miswiring, supporting consistent circuit routing and connection reliability.
PRODUCT SPECIFICATIONS
| Products Type | Multi-Branch Wire Harness | Product Model | PCM-S-0800 |
| P1 Connector |
|
P2-P7 Connector |
|
| Wire Type | UL1452 Wire | Test Condition | DC 300V / 0.01 sec |
| Wire Gauge | 22 AWG | Electrical Test | 100% Electrical Tested |
Application Scenarios
Indoor Modular ESS
PCM-S-0800 supports low-current signal and control connections inside indoor modular ESS equipment. Its 12-pin to six 2-pin branch design connects the main control PCB with battery monitoring, sensor, or control modules, helping simplify internal wiring and module maintenance.

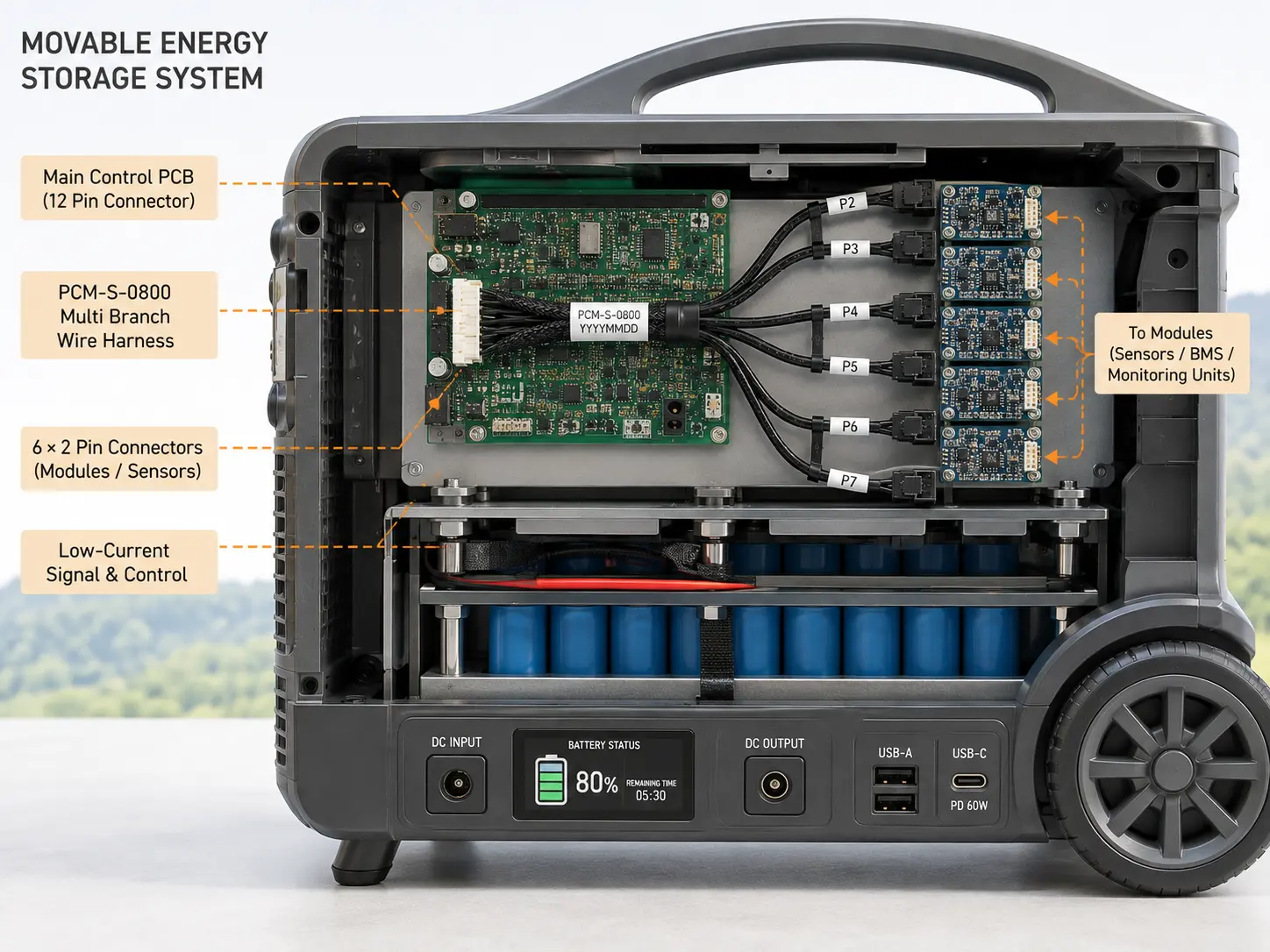

Movable Energy Storage System
PCM-S-0800 can connect BMS monitoring, sensors, and control modules inside movable energy storage systems. The 22AWG multi-branch harness distributes one main control interface to six low-current modules, while PET braided sleeving and branch identification support organized wiring in compact equipment.
Products Drawing
