HSD 4 Pin + 2 Pin Automotive LVDS Cable
This HSD 4 Pin + 2 Pin cable family combines high-speed differential data transmission with two additional electrical connections in one compact automotive cable assembly. Six connector configurations are available, covering straight, right-angle, male, and female mating options for different installation layouts.
Designed for automotive LVDS video, display, camera, infotainment, and multimedia connections, the series provides flexible routing between vehicle displays, head units, camera modules, control units, and other high-speed electronic devices.
Straight and right-angle connector combinations allow the cable routing direction to be selected according to available installation space, while male and female options provide greater flexibility when matching existing equipment interfaces.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Automotive HSD LVDS Cable Assembly |
| Connector Family | HSD+2 |
| Connector Layout | 4 Signal Pin + 2 Additional Pin |
| High-Speed Contacts | 4 Pin |
| Additional Contacts | 2 Pin |
| Connector Options | Male / Female |
| Connector Orientation | Straight / Right Angle |
| Available Configurations | 6 |
| Nominal Impedance | 100 Ohm |
| Frequency Range | DC to 2 GHz |
| Primary Application | Automotive LVDS / High-Speed Data |
| Cable | HSD / LVDS Cable |
| Cable Length | Customizable |
Available Configurations

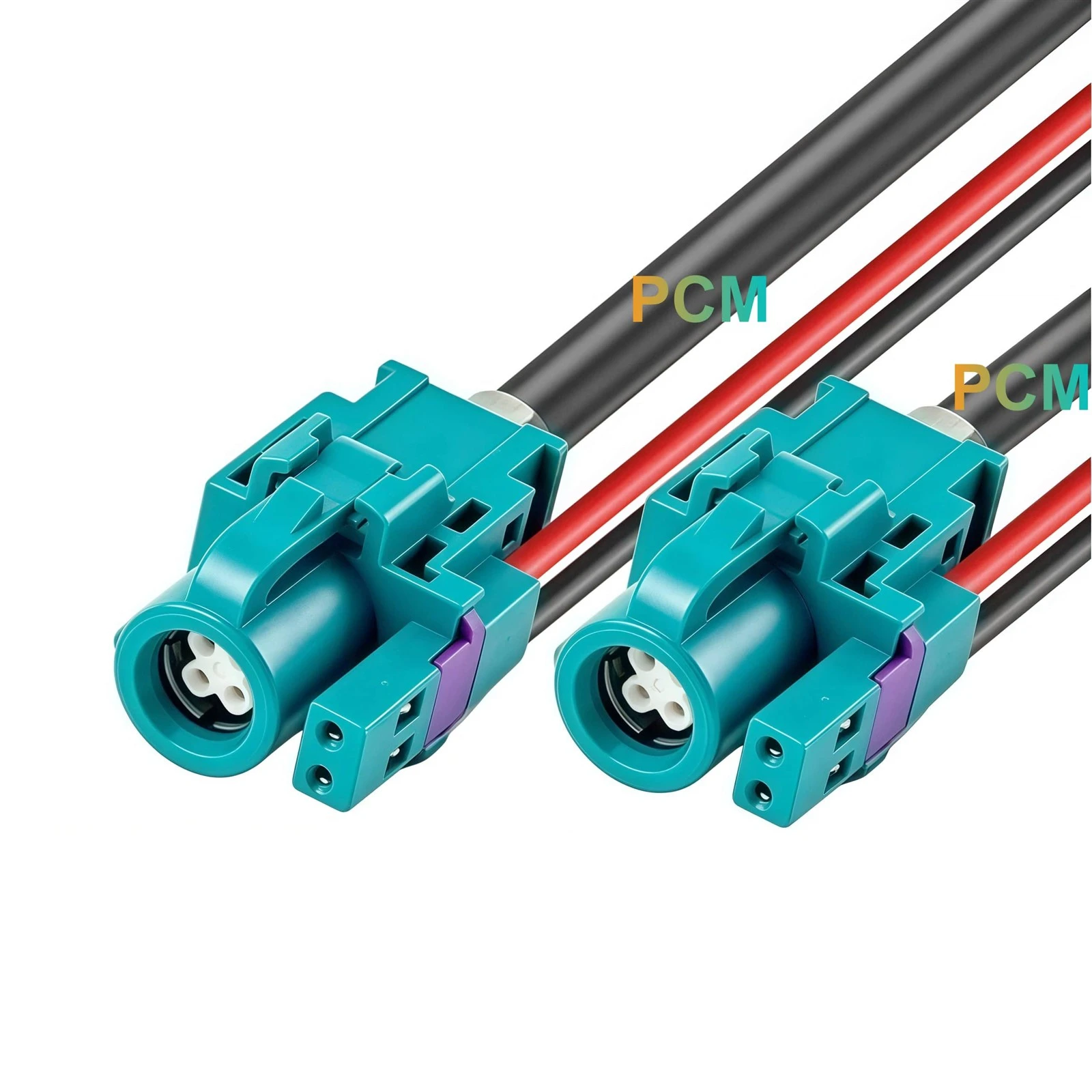

HSD 4 Pin + 2 Pin Straight Female to Straight Female Cable
Straight Same-Gender Connection
Uses straight female HSD+2 connectors at both ends for direct point-to-point connections where the mating equipment provides compatible male interfaces.
The straight connector layout is suitable for installations with sufficient rear clearance and a direct cable routing path.

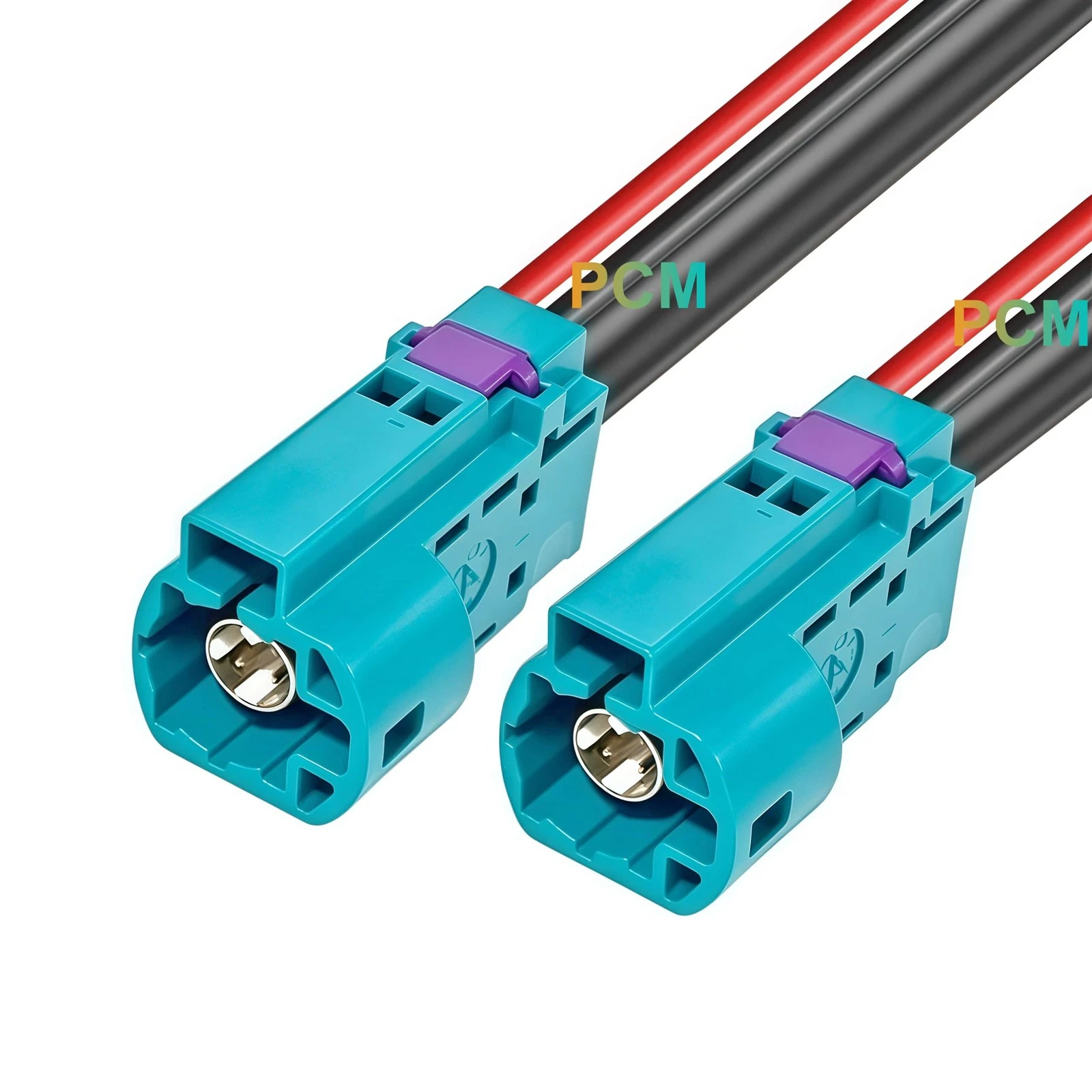

HSD 4 Pin + 2 Pin Straight Male to Straight Male Cable
Dual Male Interface
Provides straight male HSD+2 connectors at both ends for equipment or intermediate harnesses requiring corresponding female mating interfaces.
This configuration is useful when both connection points require the same male cable-side interface while maintaining straight cable exit geometry.

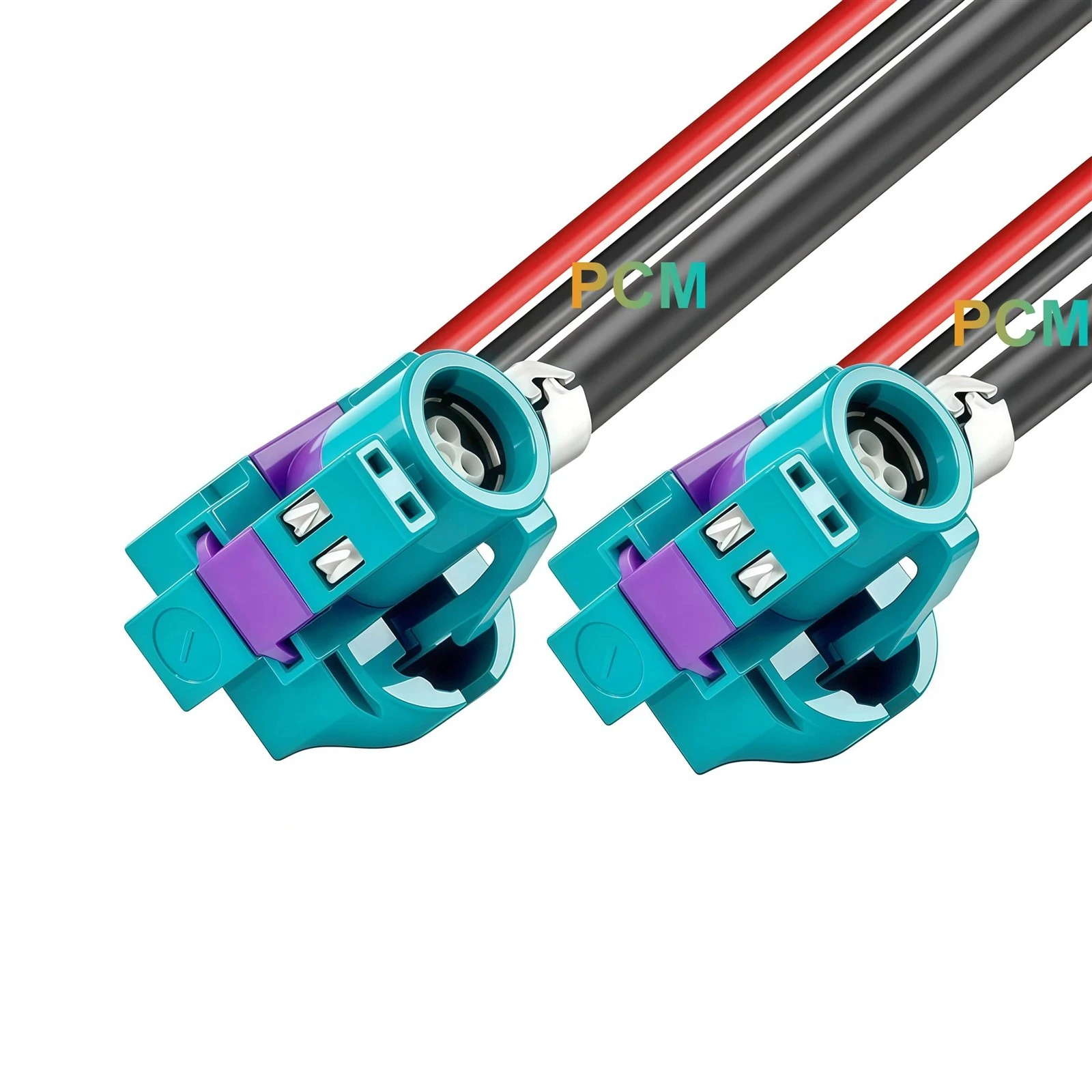

HSD 4 Pin + 2 Pin Right Angle Female to Right Angle Female Cable
Dual Right Angle Routing
Uses right angle female connectors at both ends to reduce the straight-line clearance required behind displays, multimedia modules, cameras, or other electronic equipment.
The dual angled structure is particularly useful where both connection points are located in confined installation spaces.

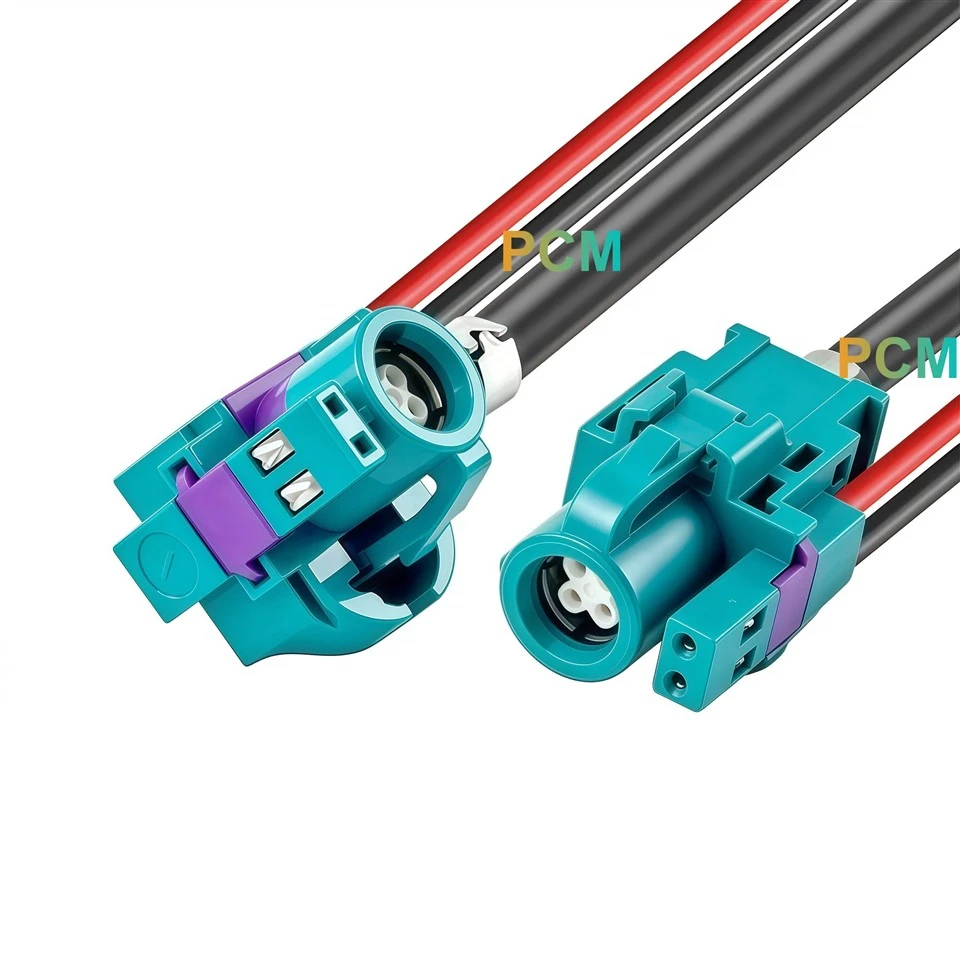

HSD 4 Pin + 2 Pin Straight Female to Right Angle Female Cable
Mixed Cable Exit Geometry
Combines one straight female connector with one right-angle female connector, allowing each end of the cable to follow a different installation direction.
This configuration is useful when one device provides sufficient rear clearance while the opposite connection requires a lower-profile cable exit.

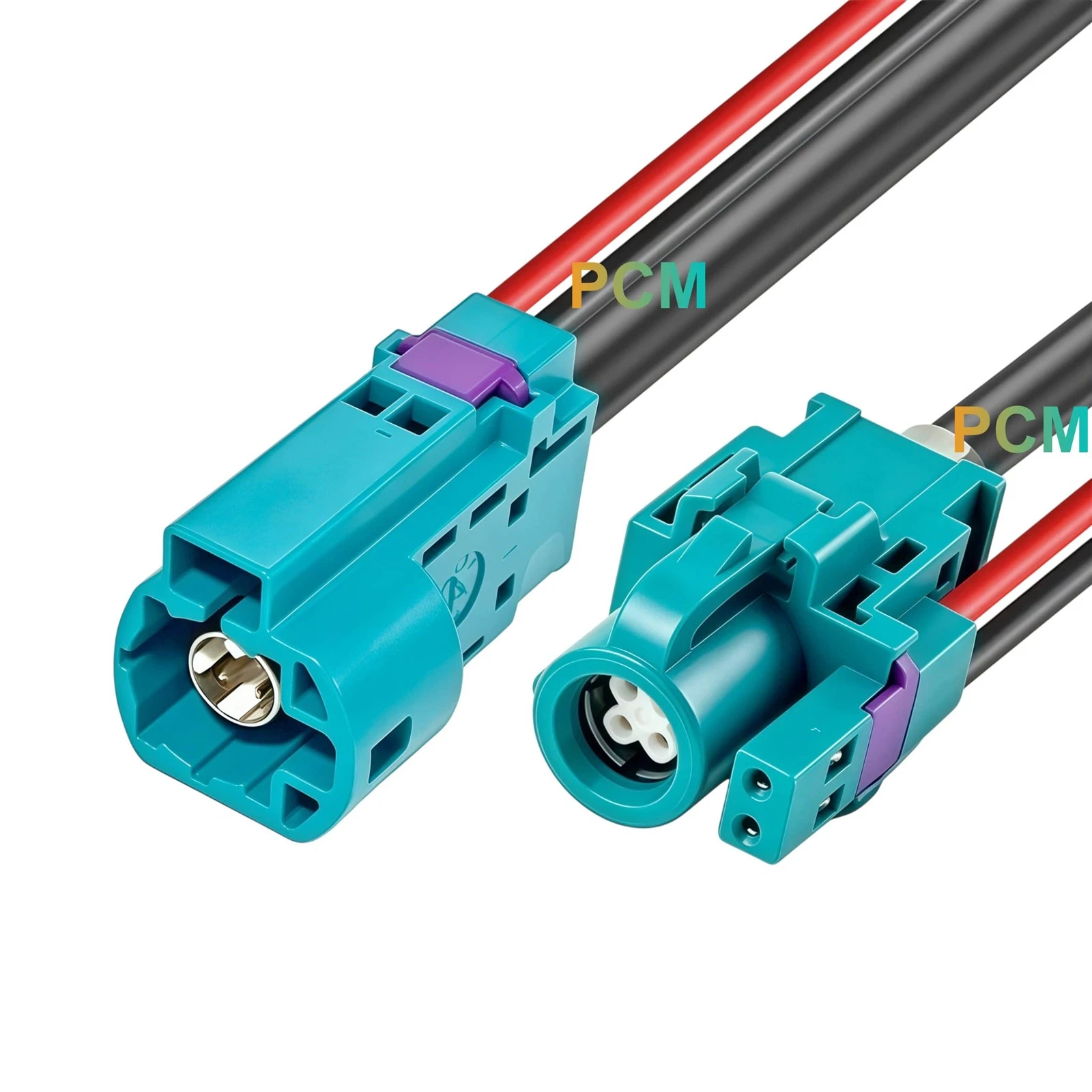

HSD 4 Pin + 2 Pin Straight Female to Straight Male Cable
Male to Female Interface Adaptation
Combines straight female and male HSD+2 interfaces in one cable assembly, providing a practical extension or interface connection when the mating direction differs between the two devices.
This configuration keeps straight cable routing at both ends while accommodating opposite connector genders.

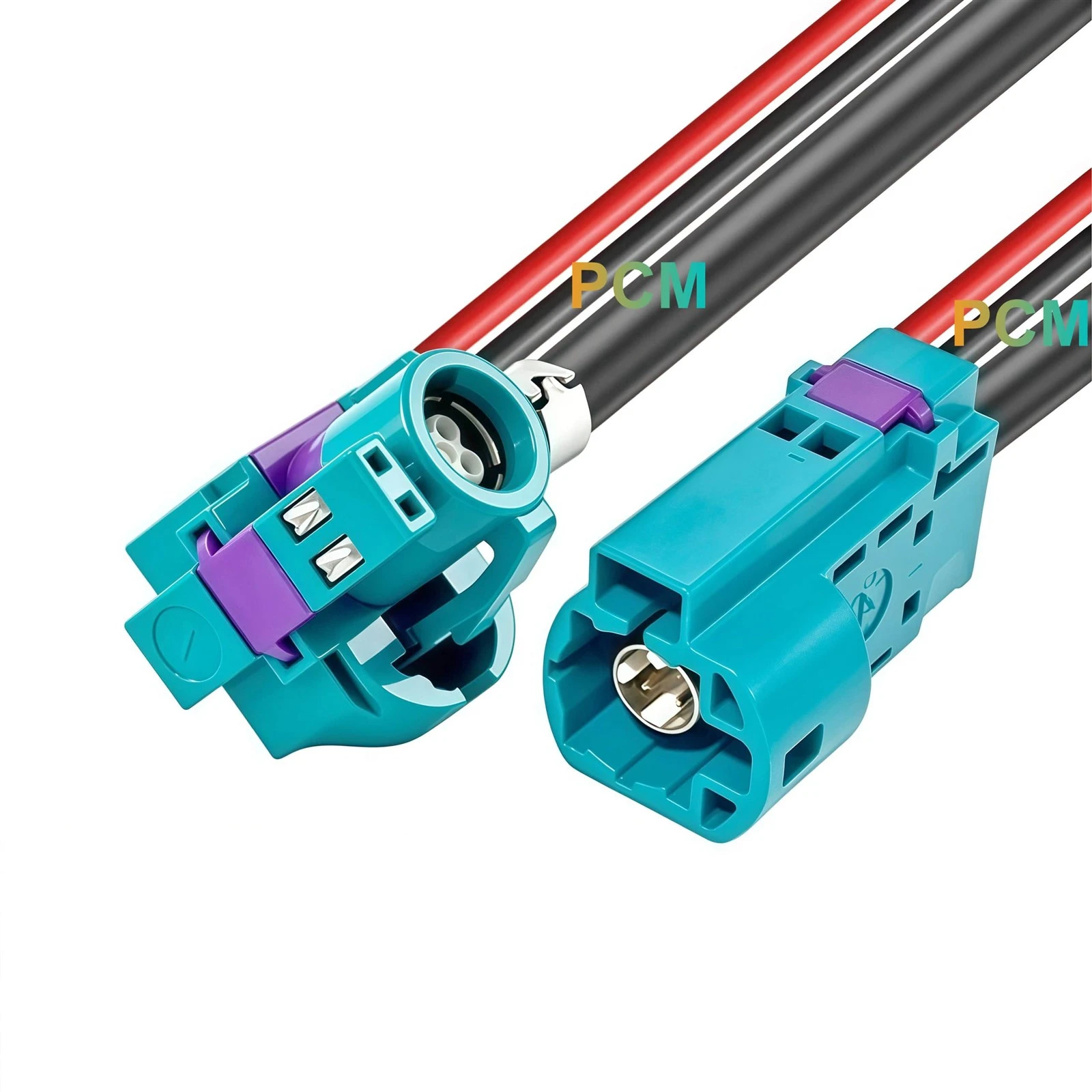

HSD 4 Pin + 2 Pin Straight Male to Right Angle Female Cable
Gender and Routing Adaptation
Combines a straight male interface with a right-angle female interface, addressing both mating-gender and installation-direction requirements within one cable assembly.
It is particularly suitable for installations where the equipment interfaces differ and one connection point has limited rear clearance.
Typical Applications
Product Features
Integrated 4 Pin + 2 Pin Architecture
Four HSD contacts provide the high-speed differential interface while two additional contacts can support separate electrical functions according to the project pin assignment, combining multiple connection requirements within one compact interface.
Straight and Right Angle Connector Options
Multiple cable-exit geometries allow the harness to accommodate both conventional straight routing and installations where reduced rear clearance is required.
Male and Female Mating Options
The six available configurations provide several mating combinations, making it easier to match different display, camera, multimedia module, and intermediate harness interfaces.
100 Ohm Differential Interface
The corresponding PCM HSD 4+2 cable assemblies use a 100 Ohm nominal differential architecture for high-speed automotive signal applications.
CORE BENEFITS
One Cable Family for Multiple Installation Layouts
Six connector configurations allow engineers and installers to select the required gender and cable-exit direction without creating a separate cable architecture for every installation.
Reduce Rear Clearance Requirements
Right-angle versions redirect the cable close to the connector body, making them more practical behind displays, head units, multimedia modules, and other equipment installed in shallow spaces.
Combine Data and Additional Electrical Connections
The HSD+2 architecture integrates the high-speed data interface and two additional contacts within one connector system, reducing the need for completely separate connection paths in suitable applications.
Easier Vehicle Specific Integration
Straight, angled, male, and female options provide greater flexibility when adapting the harness to different equipment interfaces and vehicle packaging constraints.
Connection & Ordering Notes
HSD+2 cable selection requires more than matching the connector appearance. Gender, orientation, coding, electrical assignment, and mating interface should all be confirmed before production.
Before ordering, please confirm:
- Required connector gender: Male / Female
- Connector orientation: Straight / Right Angle
- HSD coding and housing color
- 4 Pin high-speed signal assignment
- 2 Pin additional circuit assignment
- Required cable length
- Target display, camera, head unit, or multimedia module
- Required wiring diagram
- Labeling requirements
Important: The two additional contacts should not automatically be described as power and ground for every project. Their electrical functions should follow the customer's actual wiring definition.
Product FAQ
Q1. What does HSD 4 Pin + 2 Pin mean?
A1. The connector combines four HSD high-speed contacts with two additional electrical contacts. The additional contacts can be assigned according to the application, including power-related functions where required by the system design.
Q2. What is the difference between straight and right-angle HSD connectors?
A2. The primary difference is cable exit direction. Straight connectors route the cable directly behind the interface, while right-angle connectors redirect the cable near the connector body and can reduce the installation depth required behind the equipment.
Q3. Can I order male to male or male to female versions?
A3. Yes. This cable family includes female-to-female, male-to-male, and male-to-female configurations, together with straight and right-angle connector combinations.
Q4. Can this cable be used for automotive LVDS video?
A4. Yes. HSD is widely used for automotive LVDS applications, including camera, display, and infotainment connections. The exact protocol, pin assignment, cable construction, and equipment compatibility should be confirmed for the target system.
Q5. Are the two additional Pin always used for power?
A5. Not necessarily. HSD+2 provides two additional contacts that can support functions such as power supply, but their actual electrical assignment depends on the target equipment and wiring definition. The pinout should therefore be confirmed before production.
