Products Description
The HSD female to 4x SMA male cable is a high-performance signal distribution cable designed to distribute high-speed signals from a single HSD connector (ZCL.HSD024-P) to four SMA connectors. PCM-ZC-0057 utilizes high-quality materials and precision manufacturing processes to ensure low loss, low interference, and high stability during high-speed data and high-frequency signal transmission.
The HSD to 4x SMA RF Cable's four SMA outputs meet the needs of multi-channel RF equipment or wireless communication systems, and are widely used in test instruments, communication base stations, high-definition video transmission, and automotive systems. The cable's compact and durable design adapts to complex environments and long-term operation, ensuring reliable signal transmission and optimized overall system performance.
Specification
| Product Name | HSD Female to 4x SMA Male Cable |
| Part No. | PCM-ZC-0057 |
| Connector A | ZCL.HSD024-P 4Pin female |
| Connector B | 4x SMA straight male gold plating |
| Wire | RG316 |
| Impedance | 50 Ohm |
| Frequency | DC-6GHz |
| Cable Retention | 110N |
| Tempereture Range | -40℃ to 105℃ |
| Glued Heat Shrink Tube(SMA) | OD=3.5mm Black L=20mm |
| Glued Heat Shrink Tube(HSD) | OD=6.4mm Black L=20mm |
Features
♦ Multi-channel Parallel Operation: The core function of this harness is to split a 4-core HSD female connector into four independent SMA male connectors. This allows users to connect multiple devices simultaneously for parallel debugging or analysis of the four signal groups within the HSD interface.
♦ High-Frequency and Low-Loss Transmission: Constructed with RG316 coaxial cable with a 50-ohm characteristic impedance, the frequency range covers DC to 6GHz. This makes it compatible not only with traditional LVDS signals but also with the testing requirements of current high-speed SerDes signals (such as GMSL and FPD-Link).
♦ High Tensile Strength: The cable retaining strength is up to 110N, capable of withstanding repeated bending and pulling during testing.
♦ Wide Temperature Range: Supports an operating temperature range of -40℃ to 105℃, suitable for various testing environments from cold outdoor environments to high-temperature cabins.
♦ Protective Design: Both ends of the harness connectors are equipped with black adhesive heat shrink tubing at the base. This design not only provides effective stress relief and prevents cable breakage at bends, but also offers dust protection and a degree of sealing protection.

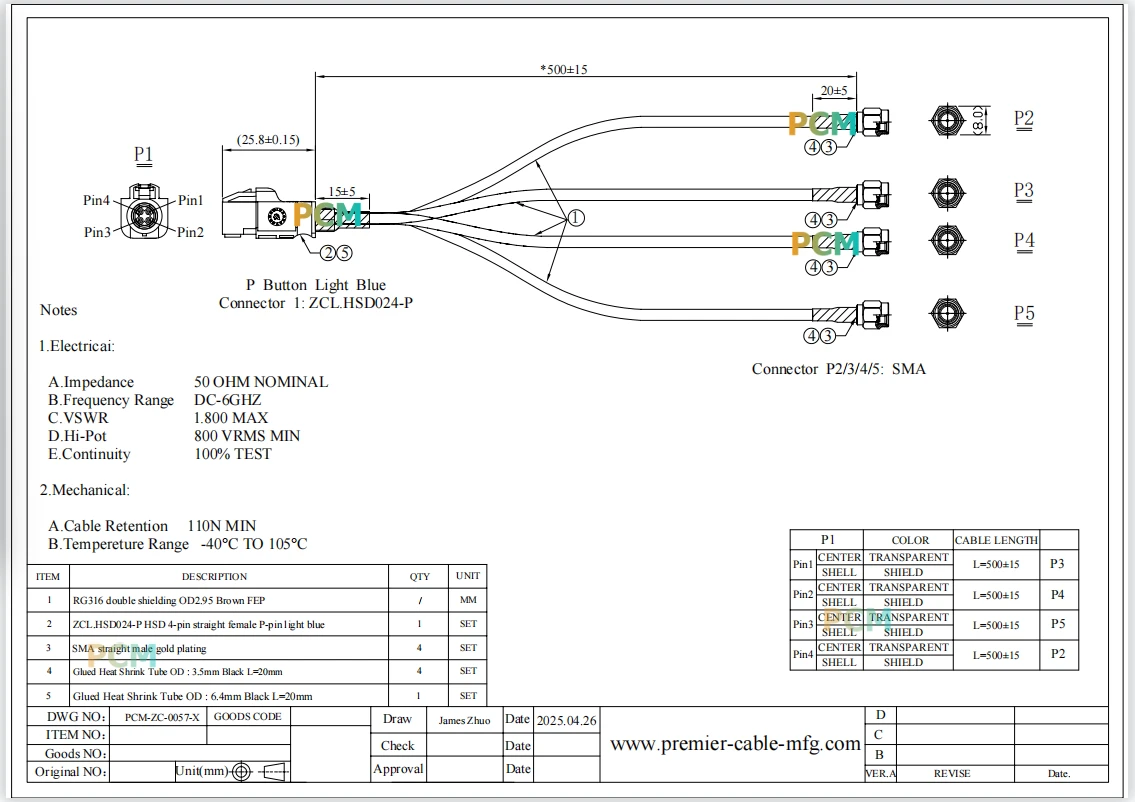

Drawing
