When both devices provide compatible HSD male interfaces and the cable's electrical characteristics meet system requirements, the assembly can establish the required data connection. Depending on the system design, potential applications include camera signals, in-vehicle display data, digital infotainment systems, or other automotive electronic communication links.
Similar connector appearances do not guarantee protocol compatibility. The cable does not independently process or convert data. Supported protocols, data rates, and transmission distances must be determined from the equipment interface definitions, cable specifications, and complete-link test results.
Core Performance Advantages

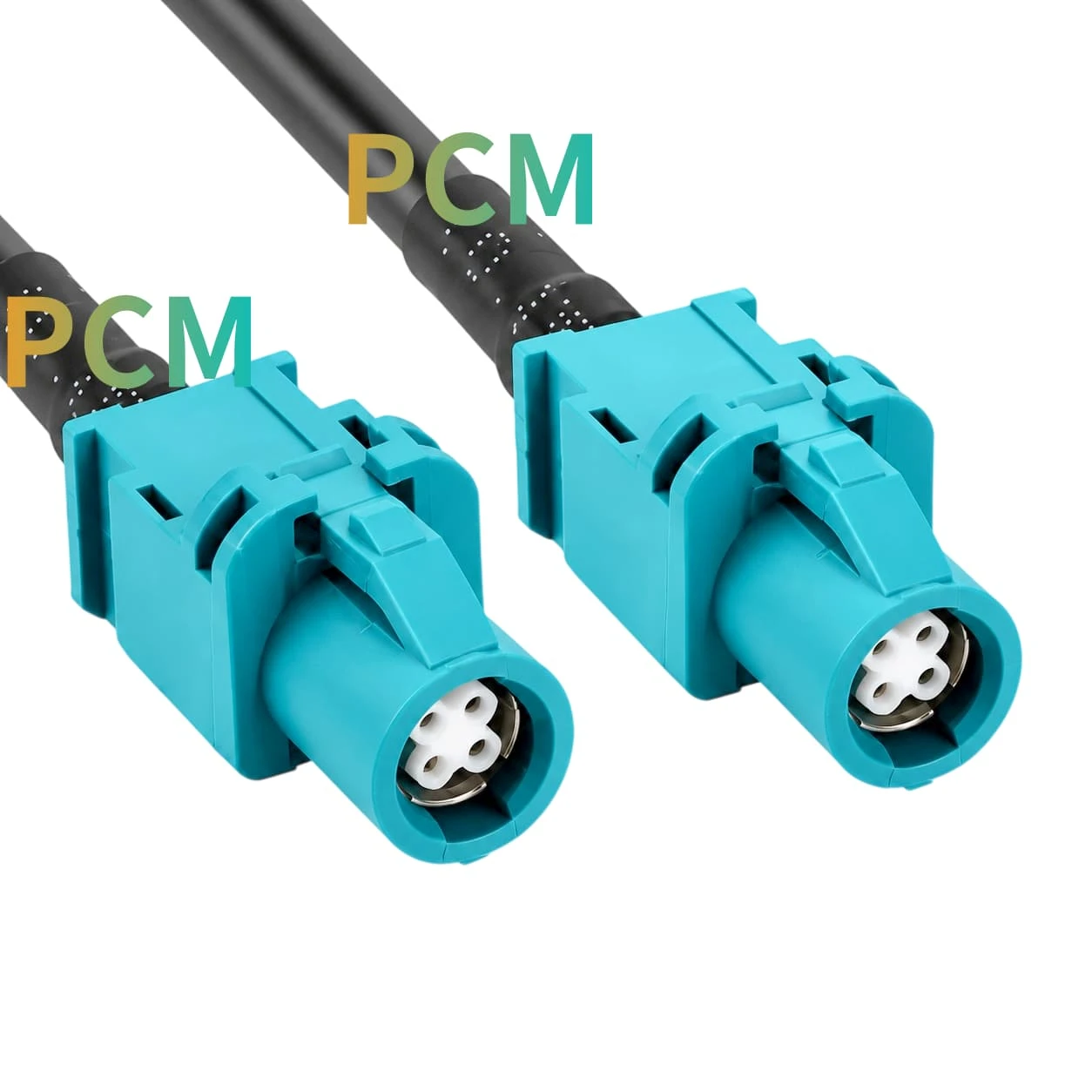

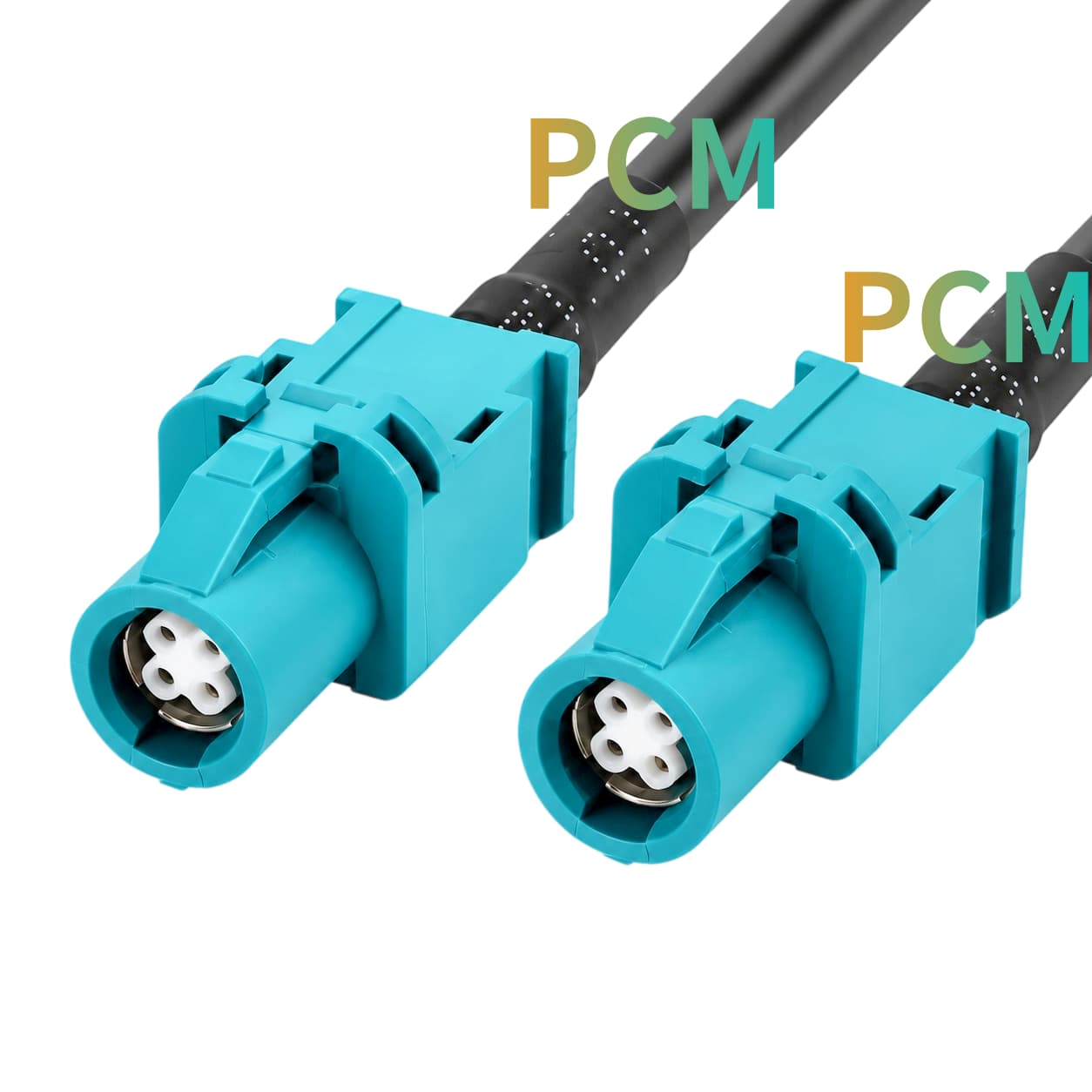

- A Dedicated Option for Dual-Female Interfaces
Compared with conventional male-to-female cables, a dual-female assembly can address designs that require this specific connector-gender combination. For equipment projects with established interface definitions, it helps preserve the intended connection scheme without arbitrarily changing the end configurations.
-
Supports Evidence-Based High-Speed Signal Validation
The impedance-controlled and shielded design of the HSD family provides a foundation for compatible high-speed data links. Signal testing on the actual cable assembly can evaluate whether insertion loss, return loss, crosstalk, and other relevant parameters meet the target system requirements.
What Is the Purpose of HSD Mechanical Coding ?
Mechanical coding distinguishes connector configurations and helps prevent unintended mating between incompatible interfaces. In automotive harnesses containing different signal applications or system configurations, coding management helps reduce the risk of incorrect connections.
However, matching coding does not automatically make all connectors interchangeable. Connector variants, contact arrangements, interface standards, and electrical performance must still be checked individually.
Product FAQ
How Should HSD Female and Male Connectors Be Matched ?
First, identify the connector gender required by the equipment, then verify the connector family, mechanical coding, and specific construction. Next, confirm the contact arrangement, latching design, and electrical requirements of the intended communication link.
A female-to-female cable generally requires two compatible male interfaces for direct mating. If both equipment ports are female, evaluate whether a different cable configuration or an adapter solution is required.
Why Does Cable Length Matter in High-Speed Data Links ?
Cable length affects signal attenuation, propagation delay, and the electrical behavior of the complete link. With the cable construction, connectors, and operating frequencies held constant, increasing cable length generally increases transmission loss. Therefore, the connector part number alone cannot establish the maximum supported distance.
When customizing HSD cables, determine the required length from equipment spacing, actual routing paths, cable type, and target protocol, then conduct the necessary signal validation using the final configuration.
Can This Cable Be Used for Automotive Cameras ?
It can be evaluated as a candidate assembly, provided that the camera and target equipment have compatible interfaces and the cable meets the relevant signal requirements.
Does Premier Cable Offer Wholesale and OEM Services ?
Premier Cable can evaluate connector integration, custom cable assemblies, OEM manufacturing, and volume procurement according to project requirements.
