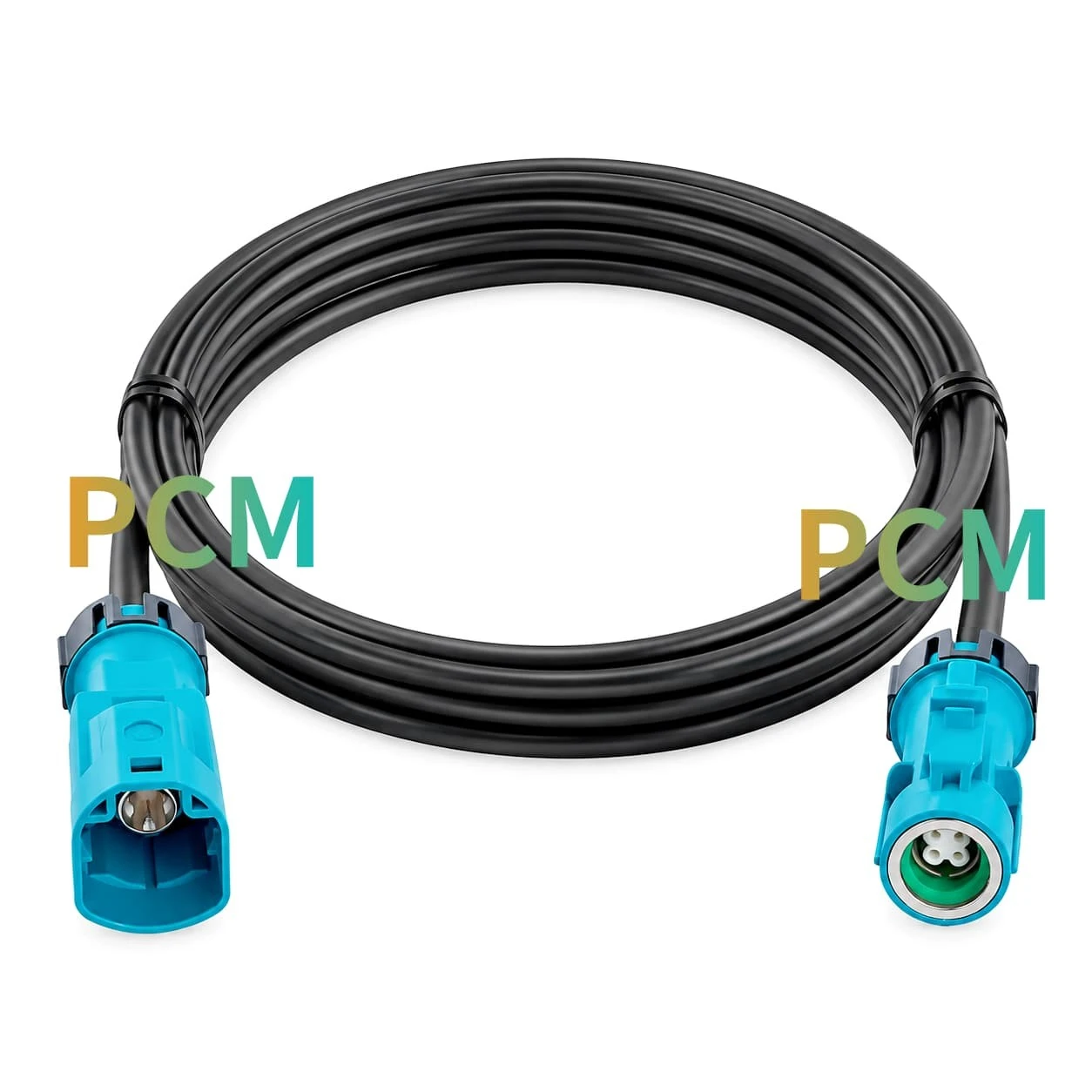

The cable establishes a wired connection between two compatible HSD interfaces and can carry the specified differential data signals in a validated system. Its male-to-female configuration accommodates different interface genders and may eliminate the need for an additional adapter where the interfaces are otherwise compatible.
In automotive harness production, a pre-assembled cable helps standardize connector configurations, cable lengths, and termination requirements, simplifying assembly, inspection, and maintenance.
Why Choose a Male-to-Female Configuration ?
Automotive cameras, display modules, control units, and other devices may use different connector genders. A male-to-female cable can establish a direct connection when both mating interfaces are compatible, reducing unnecessary conversion steps.
However, matching connector genders does not mean that all HSD connectors are interchangeable. Mechanical coding, keying, pin assignments, and electrical requirements must still be compatible or validated.
Product Features
◆ Male-to-Female Interface Combination

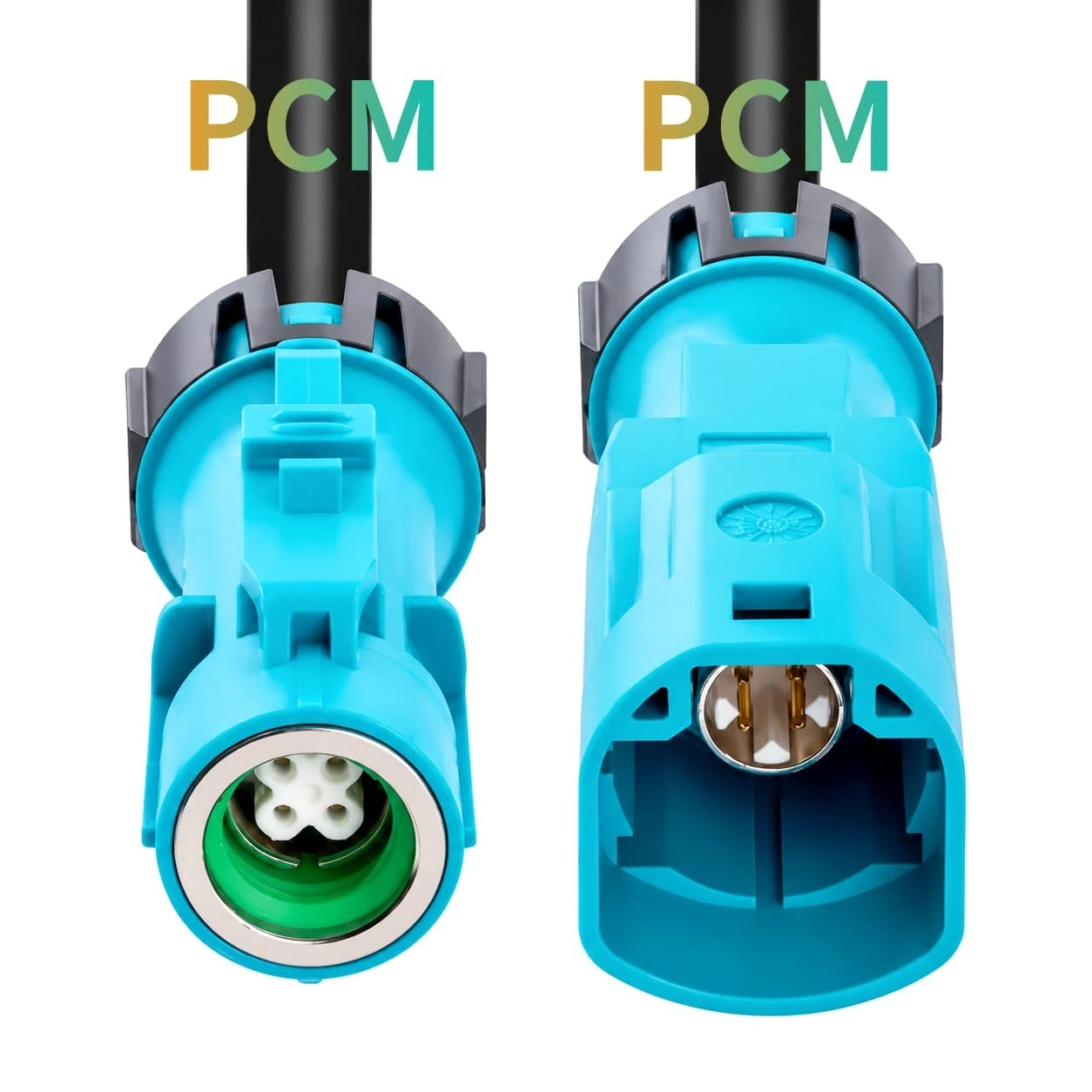

One end uses an HSD male connector and the other an HSD female connector, supporting applications where the two mating interfaces have different genders and are otherwise compatible. This configuration can simplify certain device interconnections, subject to verification of the complete part numbers.
◆ Straight Connectors at Both Ends

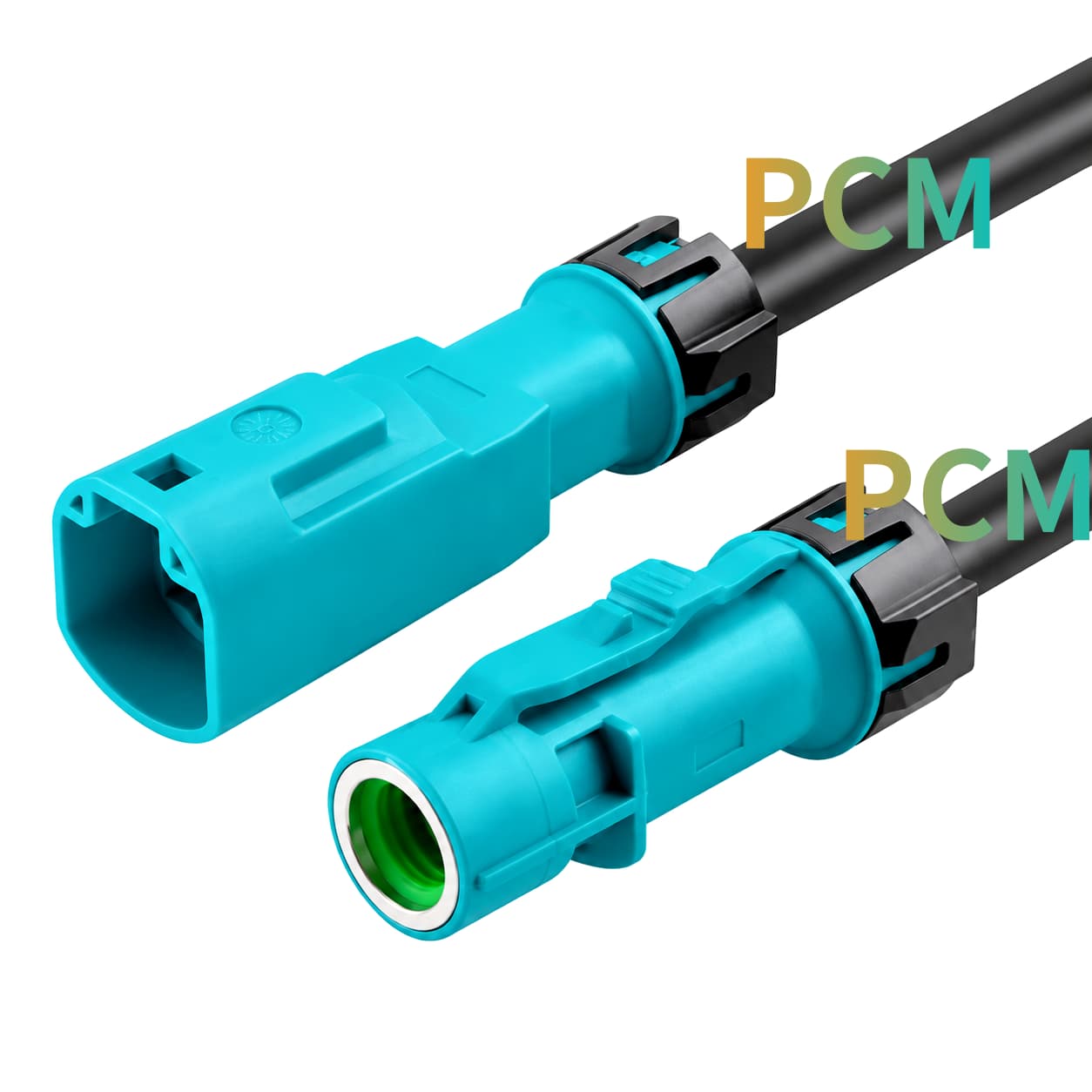

Both ends use straight connectors, making the assembly suitable for installations with sufficient axial clearance. Harness routing can be planned around interface orientation, cable exit positions, and equipment mounting points.

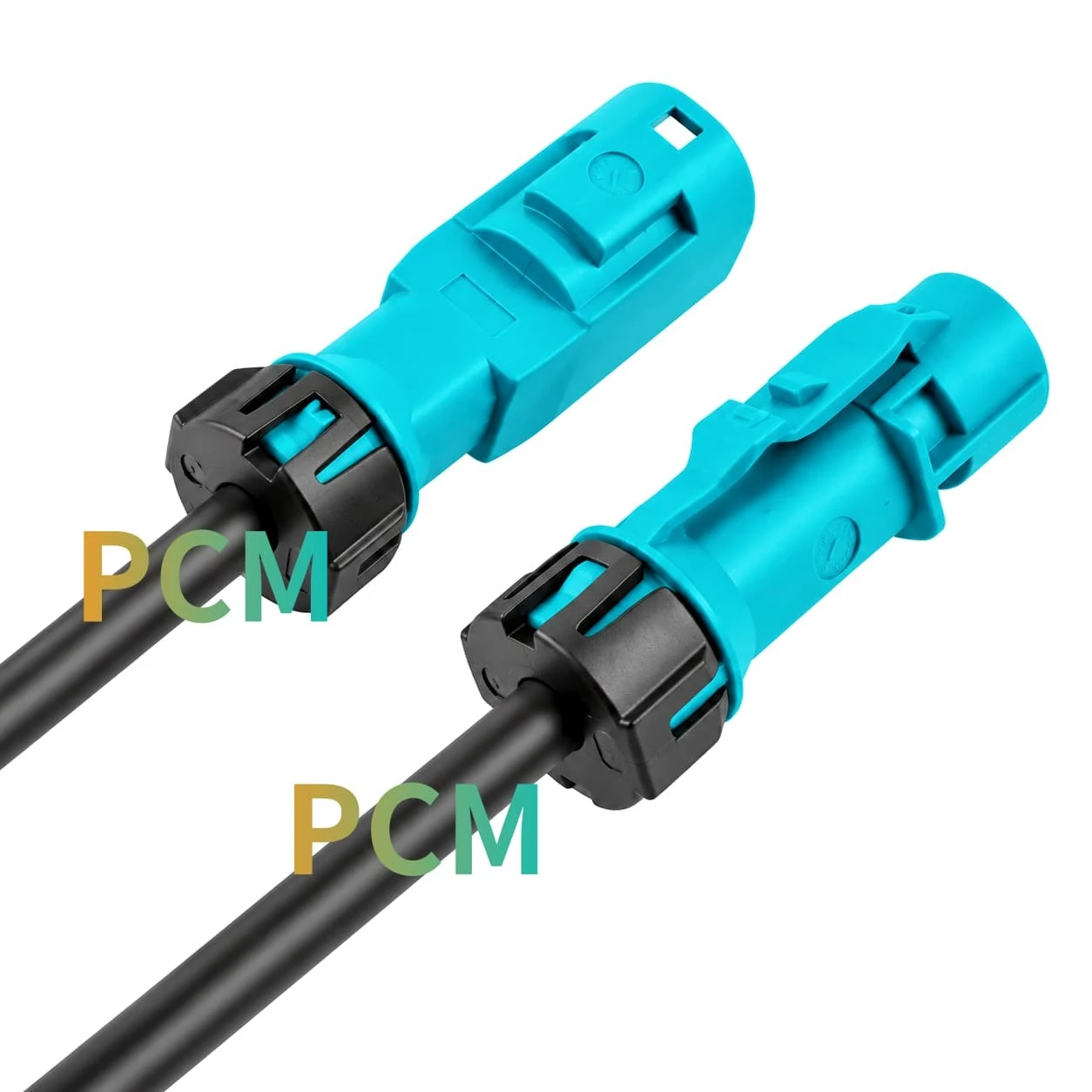

◆ Waterproof HSD Construction
The assembly uses waterproof HSD connector configurations and can be evaluated for connection points requiring environmental protection.
Product FAQ
Can HSD Male and Female Connectors Be Matched by Appearance Alone ?
No. Connector gender describes the basic mating form but does not by itself establish compatibility. HSD connectors also have mechanical coding, keying, contact configurations, and specific electrical requirements.
Why Does Impedance Matter in Automotive High-Speed Data Cables ?
High-speed differential signals can be affected by impedance discontinuities, potentially causing reflections or waveform distortion. Connectors, cables, and terminations must therefore be matched to the target system.
During selection, verify characteristic impedance, applicable frequency range, and the target communication protocol, then conduct signal-integrity testing as required. The transmission capability of the complete cable cannot be determined from connector appearance or series name alone.
Can This Cable Be Used Directly with an Automotive Camera ?
It can be considered as a candidate solution, but the camera interface, opposite-end interface, pin assignments, communication protocol, and cable length must be checked. Suitability can be established only when the complete link meets the equipment requirements.
Does Premier Cable Offer Wholesale and OEM Services ?
Premier Cable can evaluate connector integration, custom cable assemblies, OEM manufacturing, and volume procurement according to project requirements.
