IP67 Waterproof FAKRA Male to Male Cable

The IP67 Waterproof FAKRA Male to Male Cable connects two compatible female FAKRA interfaces using Rosenberger 59Z176-C01Z straight male connectors, providing a dedicated coaxial link for automotive camera systems and vehicle RF equipment.

Both ends feature identical light-blue Z-Code connectors, allowing direct male-to-male cable connections without separate gender-changing adapters. The symmetrical design is suitable for compatible automotive harness extensions and RF interface adaptation.

The assembly uses LEONI Dacar 302-4 automotive coaxial cable, with available lengths from 0.2 m to 20 m. Premier Cable also supports custom lengths and OEM cable assembly requirements.

Product Specifications

Specification	Details
Coding	Z-Code
Cable Model	Dacar 302-4
Connector Color	Light Blue
Connector Brand	Rosenberger
Connector Gender	Male to Male
Cable Length	0.2 m to 20 m
Connector Part Number	59Z176-C01Z
Connector Orientation	Straight to Straight
Connector Configuration	Dual IP67 Waterproof FAKRA Male
Product Type	Automotive RF Coaxial Cable Assembly

Connector Configuration

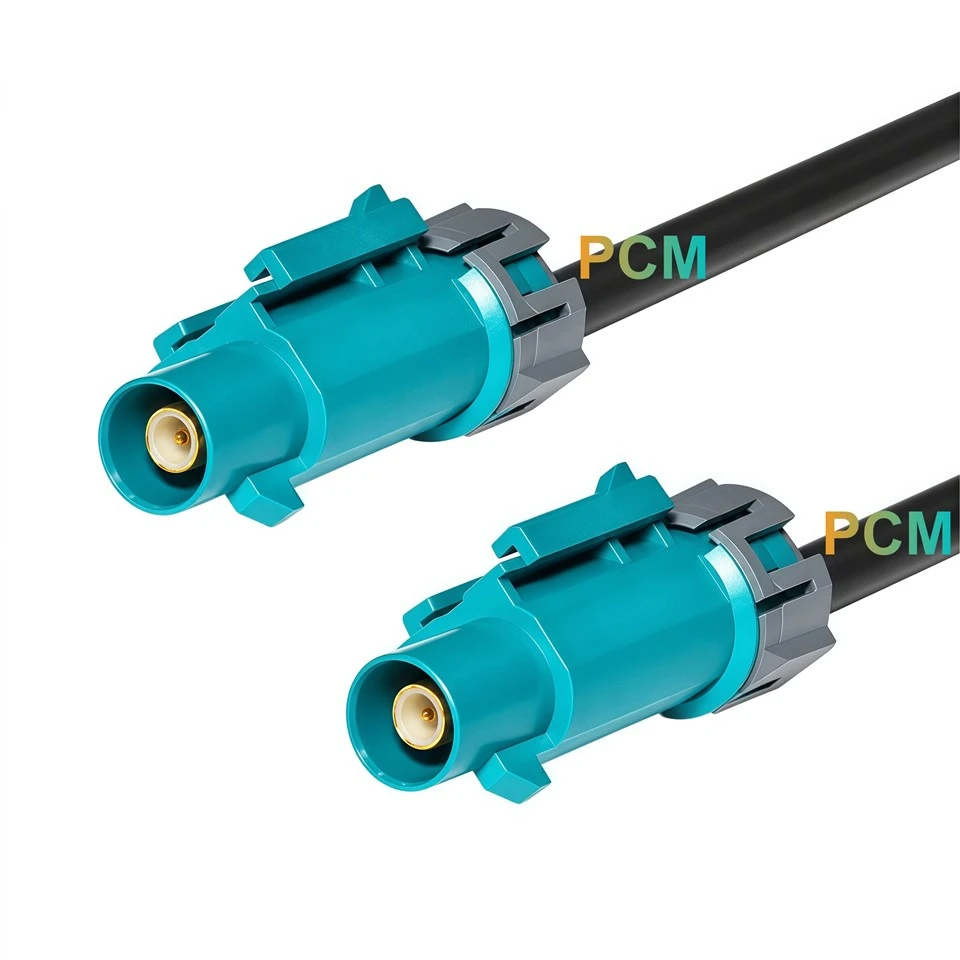

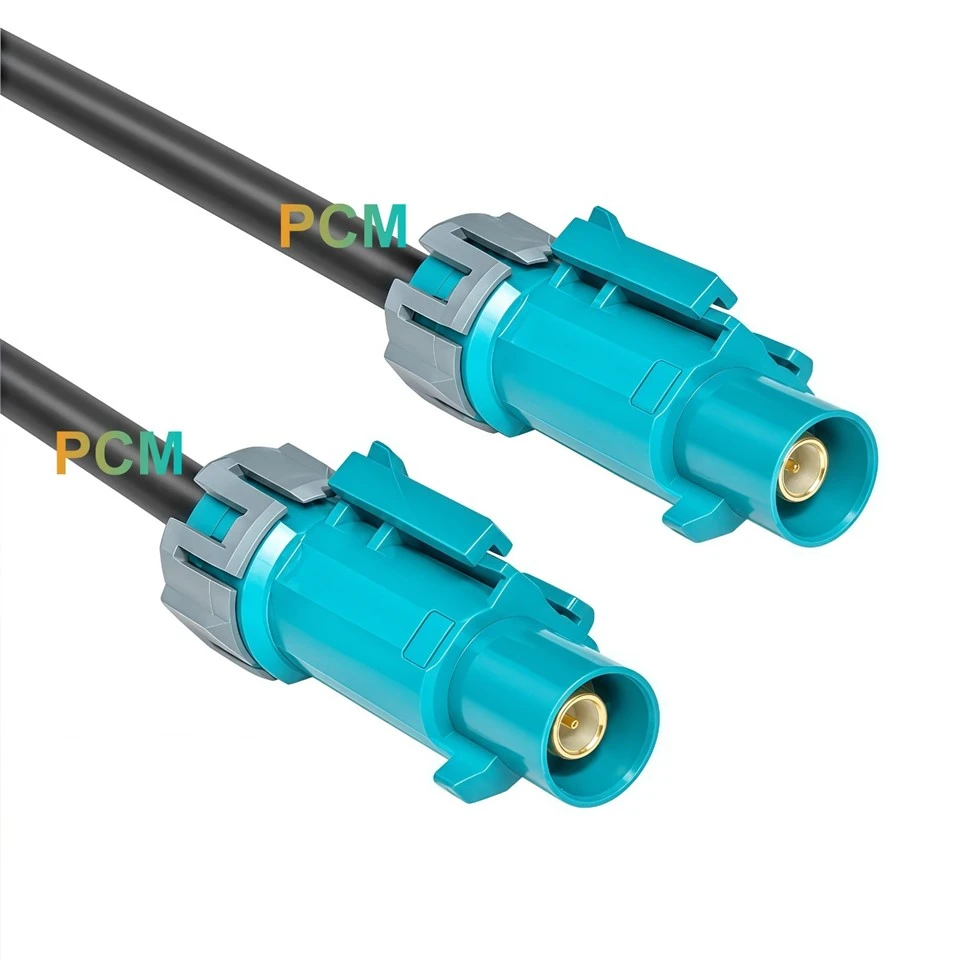

Rosenberger IP67 Waterproof FAKRA Male to Male Cable

Dual Straight Male Z-Code Connection

The cable assembly features two identical Rosenberger 59Z176-C01Z IP67 waterproof FAKRA male connectors, both designed with straight cable exits for convenient installation and reliable connectivity. Both ends utilize Z-Code interfaces, enabling direct interconnection between two compatible female FAKRA ports through a single automotive coaxial cable assembly without requiring additional gender adapters or intermediate connectors. This male-to-male configuration provides a practical connection solution for automotive RF systems, camera modules, and other compatible vehicle electronic applications.

Applications & Benefits

Automotive Camera Harness

Connects compatible female FAKRA interfaces in automotive camera wiring systems. The male-to-male construction provides a practical option for harness extensions or replacement connections where both mating points require male cable connectors.

Vehicle RF Module Connections

Provides a coaxial cable connection between compatible vehicle RF modules and electronic equipment equipped with female FAKRA ports. The matching connector arrangement simplifies cable selection for systems using the same interface at both ends.

FAKRA Gender Adaptation

Allows two female FAKRA connection points to be linked through one cable assembly. This reduces the need for additional gender-changing adapters and avoids introducing extra connector interfaces where a direct cable connection is suitable.

Key Product Features

Identical Rosenberger Connectors

Both ends use the same 59Z176-C01Z connector, providing a consistent mechanical configuration without different connector genders or housing styles.

Dual IP67 Waterproof FAKRA Ends

The assembly features IP67 Waterproof FAKRA connectors at both ends for applications requiring compatible sealed connection interfaces.

Straight Male-to-Male Construction

Two straight male connectors provide a simple, reliable and direct inline connection arrangement for compatible female FAKRA interfaces.

LEONI Dacar 302-4 Cable

The specified automotive coaxial cable is consistently used throughout the entire cable assembly, with multiple finished cable lengths available.

Customization Capabilities

Custom Cable Lengths

Premier Cable supports cable lengths from 0.2 m to 20 m, with additional lengths available according to installation distance, harness routing, and project requirements.

Connector Configuration Options

We support alternative FAKRA connector gender combinations, housing styles, and connector configurations for projects requiring different mating interfaces.

Cable Material Selection

LEONI Dacar 302-4 is the specified cable model. Alternative coaxial cable materials can be evaluated according to project requirements and connector compatibility.

OEM Cable Assembly Services

Premier Cable supports custom cable identification, part-number labeling, packaging, and project-specific assembly requirements for automotive electronics manufacturers and cable harness suppliers.

Product FAQ

Q1. What is a FAKRA male-to-male cable used for?

A FAKRA male-to-male cable connects two compatible female FAKRA interfaces. It can be used for automotive RF equipment interconnection, camera harness adaptation, and cable extensions requiring male connectors at both ends.

Q2. Are both connectors IP67 Waterproof?

Both ends use the Rosenberger 59Z176-C01Z connector, specified as an IP67 Waterproof FAKRA version in the supplied product information. The complete connection's protection depends on compatible mating connectors and proper installation.

Q3. Can this cable be used for automotive camera systems?

Yes, when the camera equipment uses fully compatible female FAKRA Z-Code interfaces and the cable assembly meets the system's specific electrical and mechanical connection requirements.

Q4. Can the cable length and connector type be customized?

Yes. Standard cable lengths range from 0.2 m to 20 m, with additional custom lengths available upon request to meet specific OEM wiring harness designs, automotive system integration and installation requirements.
