Products Description
The Waterproof Fakra To SMB Right Angle Cable is a high-performance coaxial cable designed specifically for automotive applications. It utilizes the Rosenberger Fakra 59Z163-003-Z connector and an SMB right-angle double-hole flange mounting interface to ensure stable and reliable signal transmission. The PCM-ZC-0041-X features waterproof, dustproof, and UV-resistant properties, boasting a high waterproof rating and adaptability to harsh weather conditions. It is widely used in antennas, communication systems, and other equipment requiring secure connections. The double-hole flange mounting interface allows for easy cable fixation to equipment, enhancing vibration resistance and ensuring stable connections even in high-vibration environments. Suitable for automotive navigation, RF Bluetooth, and mobile communication applications, it ensures long-term stable signal transmission.
Specification
| Product Name | Waterproof Fakra To SMB Right Angle Cable |
| Part No. | PCM-ZC-0041-X |
| Connector A | Rosenberger Female 59Z163-003-Z |
| Connector B | SMB Female Connector, 2-Hole Flange Mount |
| Wire | Leoni Dacar 462 Coaxial Cable |
| Hole Spacing (SMB) | 13.6mm |
| Contact Resistance | 10m Ohm Max(inner conductor) 5m Ohm Max(Outer conductor) |
| Insulation Resistance | 100 megohm minimum |
| Withstand Voltage | 500V/AC |
| Characteristic Impedance | 50 Ohm |
| Frequency | 0~3GHz |
| Temperature range | -40℃ to+105℃ |
| Waterproof rating | IP67(Fakra) IP69(SMB) |

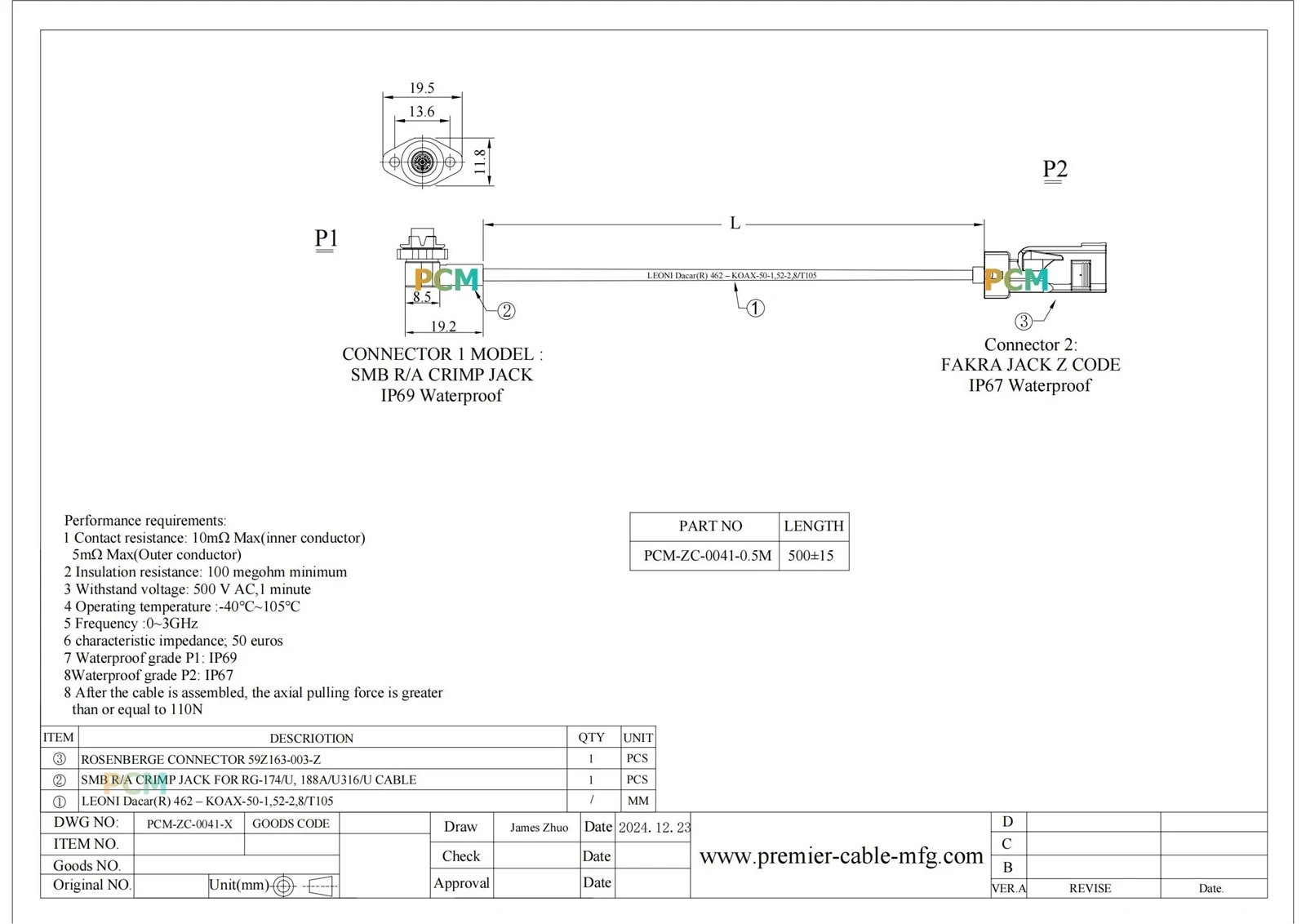

Drawing
