Product Specifications
| Item | Specification |
|---|---|
| Coding | Z Code |
| SMA Male Model | SMA-J2-3 |
| SMA Female Model | SMA-KY-2 |
| Cable Type | Dacar302-4 |
| FAKRA Male Model | 59Z114-000Z |
| FAKRA Female Model | 59Z113-000Z |
| Signal Type | RF Coaxial Signal |
| Connector Type | Rosenberger FAKRA Z Code Connector and SMA RF Connector |
| Product Type | Automotive FAKRA Z Code to SMA RF Coaxial Cable Assembly |
| Connector Gender | Male to Male, Male to Female, Female to Male, Female to Female |
| Custom Options | Cable length, SMA gender, FAKRA gender, labeling, cable routing |
| Protection Note | Standard non-waterproof FAKRA connectors; no IP67 Waterproof rating claimed |
| Cable Length | 0.1m, 0.15m, 0.2m, 0.25m, 0.3m, 0.4m, 0.5m, 0.6m, 0.8m, 1m, 1.5m, 2m, 3m, 4m, 5m |
Available Configurations

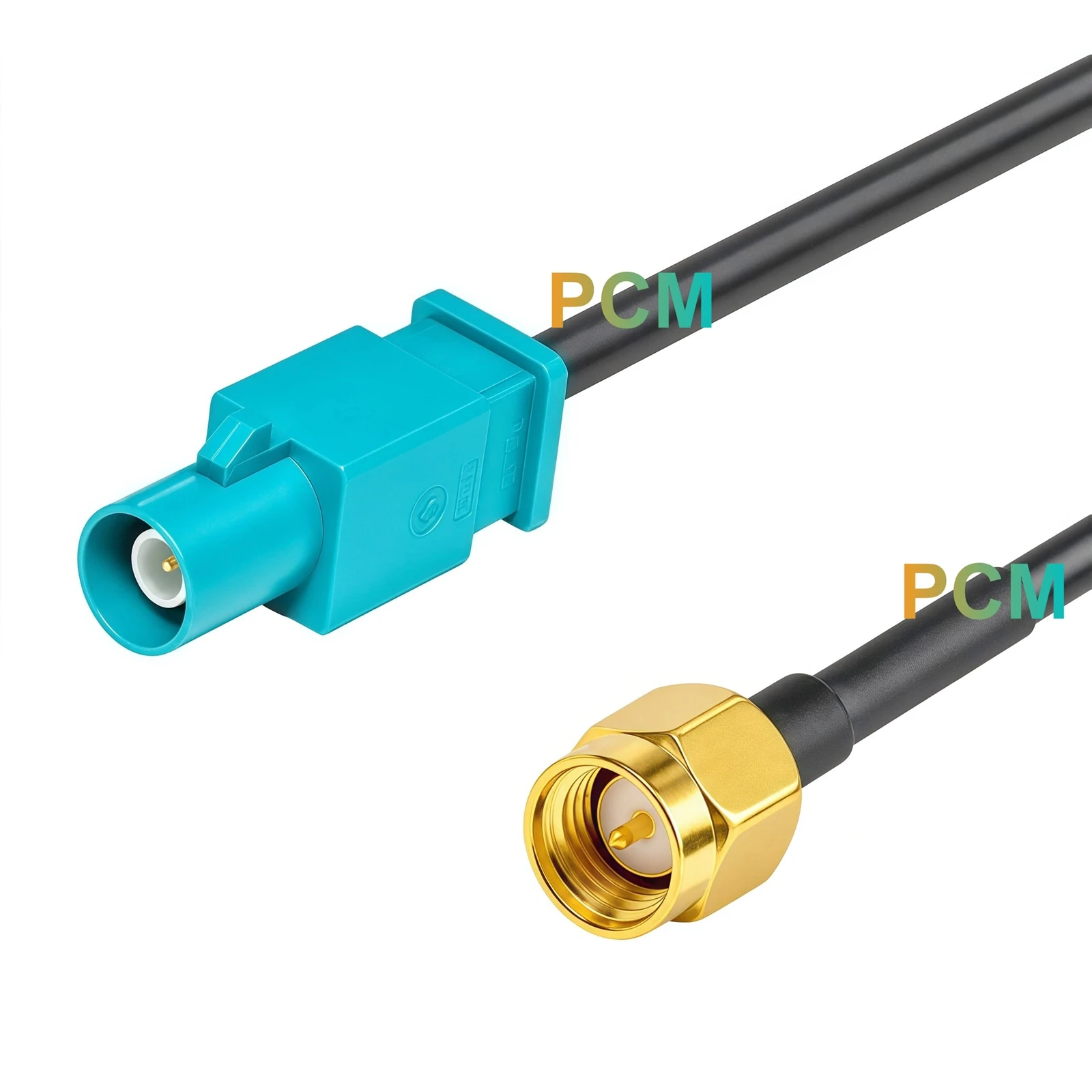

FAKRA Z Code Male to SMA Male Cable
Connection Structure
59Z114-000Z → SMA-J2-3
Unique Difference
Male FAKRA Z Code connector with an SMA male termination.
Suitable Installation
For mating FAKRA female equipment to SMA female RF ports.

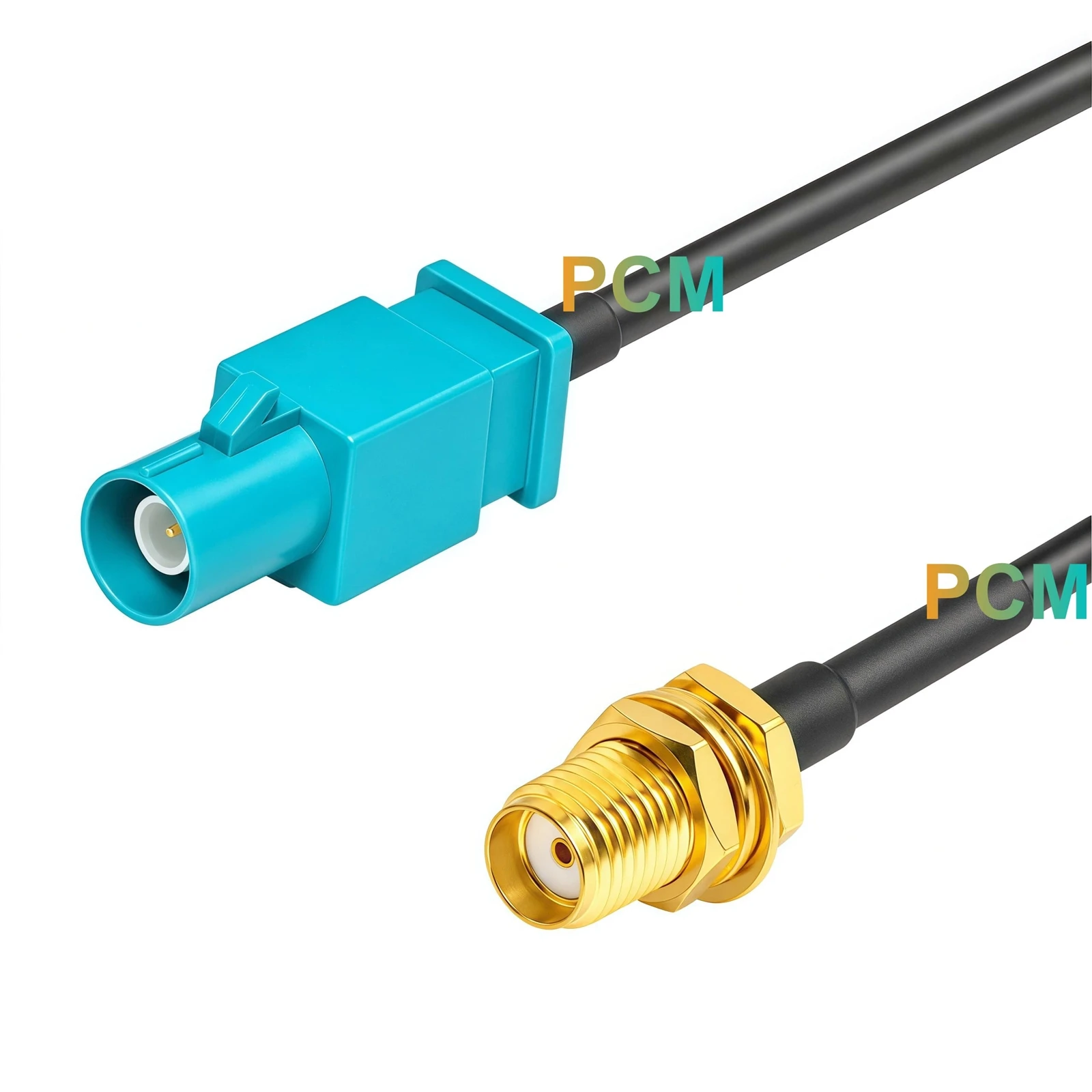

FAKRA Z Code Male to SMA Female Cable
Connection Structure
59Z114-000Z → SMA-KY-2
Unique Difference
Male FAKRA Z Code connector with an SMA female bulkhead termination.
Suitable Installation
For mating FAKRA female equipment to SMA male RF ports.
FAKRA Z Code Female to SMA Male Cable
Connection Structure
59Z113-000Z → SMA-J2-3
Unique Difference
Female FAKRA Z Code connector with an SMA male termination.
Suitable Installation
For mating FAKRA male equipment to SMA female RF ports.

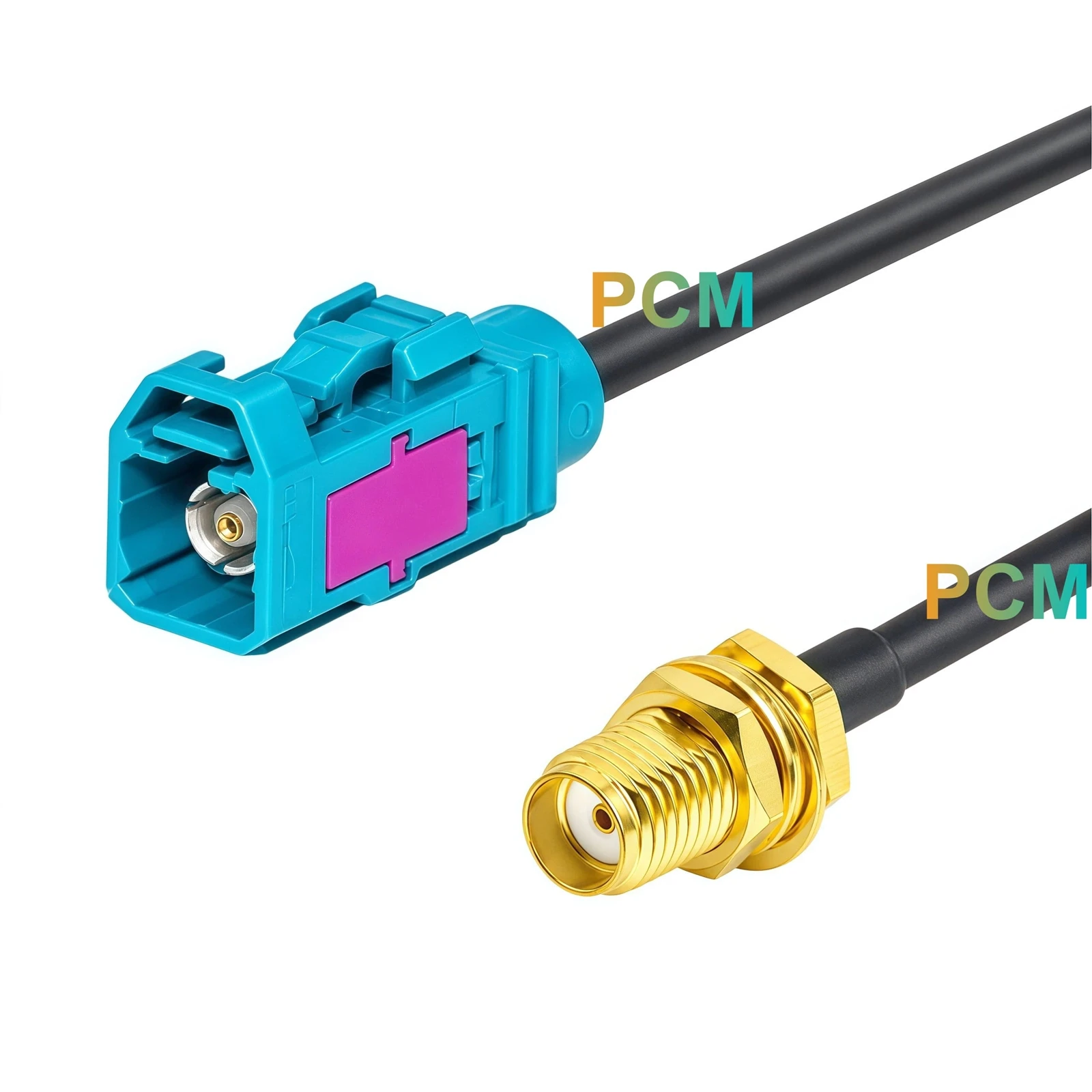

FAKRA Z Code Female to SMA Female Cable
Connection Structure
59Z113-000Z → SMA-KY-2
Unique Difference
Female FAKRA Z Code connector with an SMA female bulkhead termination.
Suitable Installation
For mating FAKRA male equipment to SMA male RF ports.
Applications & Customer Value
Automotive Coaxial Port Conversion
Connect standard FAKRA Z Code automotive RF interfaces to SMA-equipped modules. Choose the correct straight FAKRA gender before assembly.
Automotive Sensor Development
Bring a compatible single-channel camera or sensor RF connection to an SMA test port for prototype evaluation and bench integration.
SMA Instrument Connections
Connect the SMA end to compatible RF instruments and adapters for laboratory signal checks. Confirm impedance and operating frequency before testing.
Production RF Test Fixtures
Use the straight FAKRA end at the device under test and the SMA end at a compatible fixture, with cable length chosen to suit the station layout.
Product Features
Straight FAKRA Z Code Interfaces
Select the straight 59Z114-000Z male or 59Z113-000Z female connector for the required automotive mating port.
SMA Plug and Bulkhead Jack Options
SMA-J2-3 male and SMA-KY-2 female options cover different RF instrument and fixture connector genders.
Dacar302-4 Coaxial Construction
The specified Dacar302-4 cable forms the RF signal path between the FAKRA and SMA connectors.
Short RF Adapters to 5m Cable Runs
Select lengths from 0.1m to 5m for short test adapters, equipment links, and prototype routing.
Customization Capabilities
Premier Cable supports straight FAKRA Z Code to SMA assemblies with selectable connector genders, cable lengths and project-specific fixture layouts.
Connector Customization
Select Rosenberger 59Z114-000Z male or 59Z113-000Z female FAKRA connectors and the corresponding SMA-J2-3 male or SMA-KY-2 female termination.
Cable Assembly Customization
Choose from the listed 0.1m to 5m lengths. Cable routing, identification labels, and assembly layout can be reviewed against customer drawings.
Electrical Customization
Project-specific RF requirements, including impedance, operating frequency, and insertion loss, should be confirmed through drawings and testing.
OEM Manufacturing Support
Premier Cable supports drawing review, prototype evaluation, production planning, labeling, and packaging according to approved project specifications.
Product FAQ
Q1: Which straight FAKRA connectors are available?
Rosenberger 59Z114-000Z straight male and 59Z113-000Z straight female Z Code connectors are available. Both are standard non-waterproof versions.
Q2: Which SMA connectors can be selected?
SMA-J2-3 male and SMA-KY-2 female connectors are available. Match the SMA gender to the mating RF port.
Q3: What cable lengths can be ordered?
Listed lengths are 0.1m, 0.15m, 0.2m, 0.25m, 0.3m, 0.4m, 0.5m, 0.6m, 0.8m, 1m, 1.5m, 2m, 3m, 4m, and 5m.
Q4: Is this FAKRA to SMA cable IP67 Waterproof?
No. The listed FAKRA connectors are standard non-waterproof versions, and no IP67 Waterproof rating is claimed for the complete cable assembly.
Q5: Can Premier Cable customize the assembly?
Yes. Connector gender, cable length, routing, labeling, and OEM production can be reviewed according to customer drawings and application requirements.
