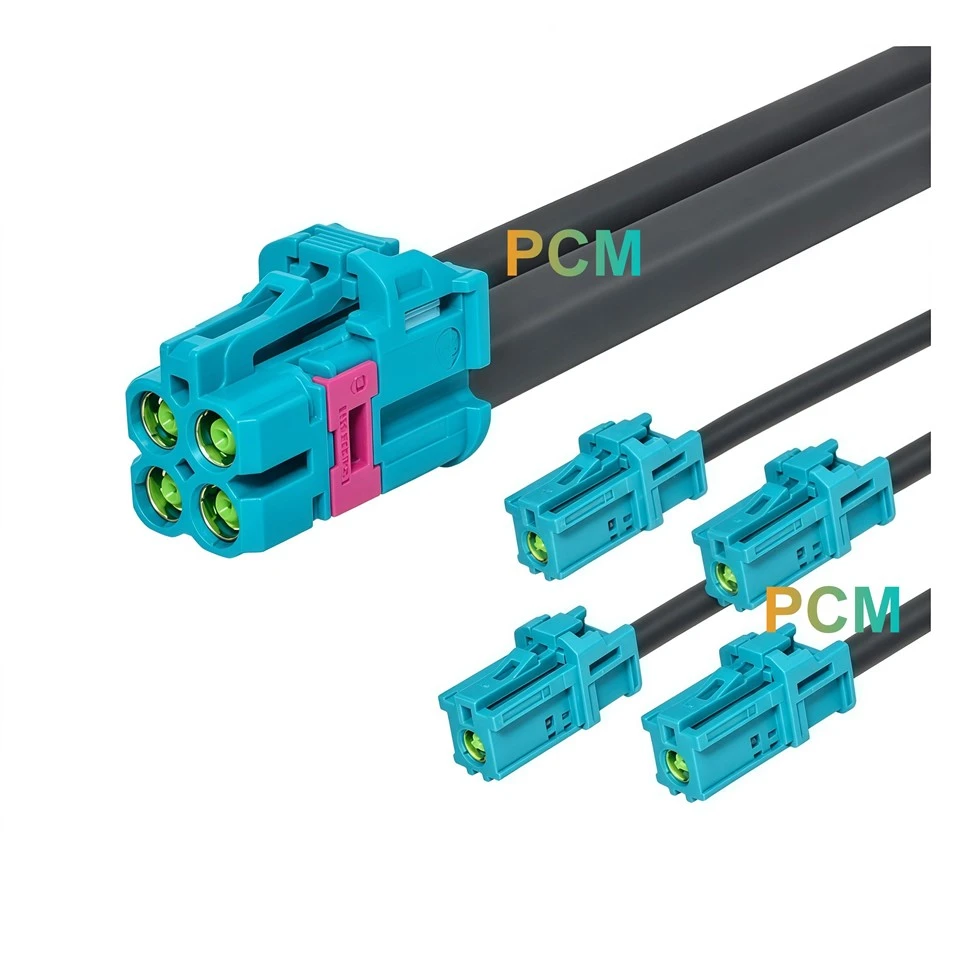

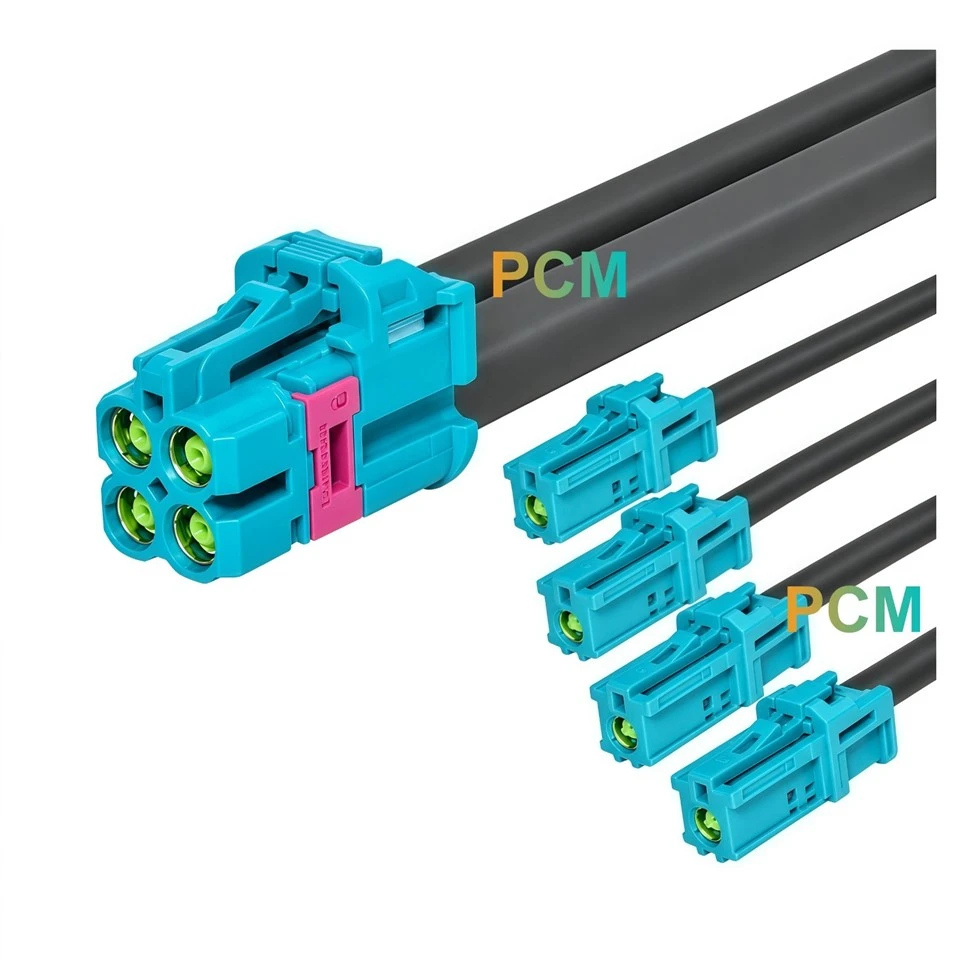

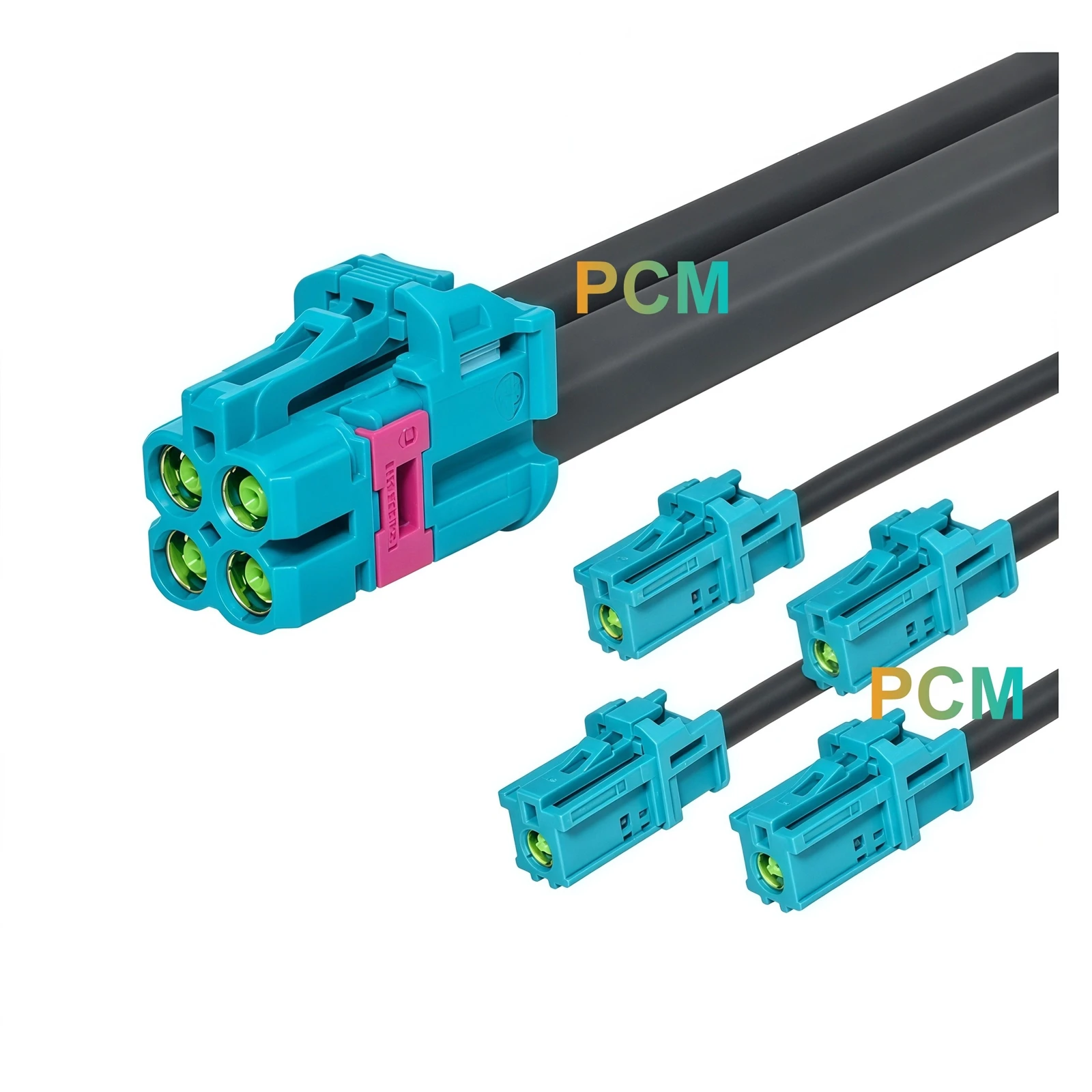

TE Mate-AX 4 Cavity Female to Single Cavity Female Cable

The TE Mate-AX 4 Cavity Female to Single Cavity Female Cable is an automotive high-frequency coaxial cable assembly designed to connect a TE Mate-AX four-cavity female connector with four individual Mate-AX single-cavity female connectors.

The assembly uses a TE Mate-AX 4 Cavity Female connector (P/N: 1-2298721-9) on one side and four TE Mate-AX Single Cavity Female connectors (P/N: 1-2310137-9) on the opposite side, providing a multi-channel connection solution for compatible automotive electronic systems.

Using FDC402 coaxial cable (FORCE QFP12GT50-B 0.4 105°C Cable), the cable assembly features Z-Code light-blue connectors and supports multiple cable length options from 0.5 m to 15 m. It is suitable for automotive camera systems, high-speed signal connections, and OEM vehicle electronics applications.

Product Specifications

Specification	Details
Coding	Z-Code
Channels	4
Connector Color	Light Blue
Cable Length	0.5 m to 15 m
Cable Model	FDC402
Connector Type	Mate-AX Female
Connector Side A	4 Cavity Female
Connector Side B	Single Cavity Female
Connector Quantity	1 to 4
Connector Side A P/N	1-2298721-9
Connector Side B P/N	1-2310137-9 ×4
Cable Specification	FORCE QFP12GT50-B 0.4 105°C Cable
Product Type	Automotive High-Speed Coaxial Cable Assembly

Multi-Channel Mate-AX Distribution Cable

This configuration connects one TE Mate-AX 4 Cavity Female connector (1-2298721-9) to four TE Mate-AX Single Cavity Female connectors (1-2310137-9 ×4), providing individual connection points for compatible automotive electronic modules and cable assemblies. The assembly uses FDC402 coaxial cable with Z-Code light-blue Mate-AX connectors on both ends, supporting multi-channel coaxial signal distribution in automotive applications.

Connection Structure

Connector A

TE Mate-AX 4 Cavity Female
P/N: 1-2298721-9

↓

Connector B

4 × TE Mate-AX Single Cavity Female
P/N: 1-2310137-9

Applications & Benefits

Automotive Camera and Vision Systems

The Mate-AX multi-channel cable assembly supports connections between automotive camera-related components and electronic modules where multiple high-speed coaxial channels are required.

Vehicle Electronics Interconnection

The four-cavity to single-cavity structure provides a practical connection method between compact multi-channel interfaces and distributed single-channel components inside vehicle electronic systems.

Prototype & OEM Harness Integration

The cable assembly helps engineers evaluate Mate-AX interface designs during prototype development and provides a ready-made solution for OEM automotive wiring projects.

Multi-Channel Signal Expansion

Converting one four-cavity Mate-AX interface into four separate single-cavity connections simplifies cable routing and provides greater flexibility when integrating multiple compatible devices.

Customization Capabilities

Custom Cable Lengths

Premier Cable supports customized cable lengths according to vehicle layout, equipment spacing, and harness routing requirements.

Mate-AX Connector Configurations

Different Mate-AX connector combinations, cavity arrangements, and mating structures can be evaluated according to OEM project requirements.

Coaxial Cable Selection

Cable specifications can be reviewed according to application requirements, including signal characteristics, installation environment, and harness design.

OEM Cable Assembly Services

Premier Cable provides OEM/ODM cable assembly services including connector selection, cable length customization, labeling, and packaging requirements.

Product FAQ

Q1. What is the connection structure of this Mate-AX cable?

This cable connects one TE Mate-AX 4 Cavity Female connector (1-2298721-9) to four TE Mate-AX Single Cavity Female connectors (1-2310137-9).

Q2. Is this a FAKRA cable?

No. This product uses TE Mate-AX connectors and is different from FAKRA cable assemblies. Mate-AX is a separate automotive high-speed connector system.
