TE FAKRA Right Angle IP67 Waterproof Cable
The TE FAKRA Right Angle Cable features a TE Connectivity 1-2392990-4 Z-Code female connector with a 360° rotatable outer housing, offering adjustable connector orientation for automotive camera wiring and RF coaxial connections where installation space is limited.
Nine configurations combine this right-angle interface with straight FAKRA male or female connectors from TE Connectivity, Rosenberger, and Amphenol, as well as SMA male and female terminations. The selection includes IP67 Waterproof and non-waterproof connector combinations for different mating and installation requirements.
Available with FDC402 or Dacar 302-4 coaxial cable depending on the version, the assemblies support cable lengths from 0.2 m to 15 m. Their connector arrangements accommodate automotive camera harness integration, RF interface adaptation, prototype development, and equipment testing.
Product Specifications
| Specification | Details |
|---|---|
| FAKRA Coding | Z-Code |
| Signal Channels | Single |
| Connector Rotation | 360° |
| FAKRA Color | Light Blue |
| SMA Gender | Male / Female |
| Cable Length | 0.2 m to 15 m |
| Available Versions | 9 Configurations |
| Cable Options | FDC402 / Dacar 302-4 |
| Connector Orientation | Straight / Right-Angle |
| Main Connector | TE Connectivity 1-2392990-4 |
| Connector Protection | IP67 Waterproof / Non-Waterproof |
| Connector Manufacturers | TE / Rosenberger / Amphenol |
| Product Type | Automotive RF Coaxial Cable Assembly |
Available Configurations

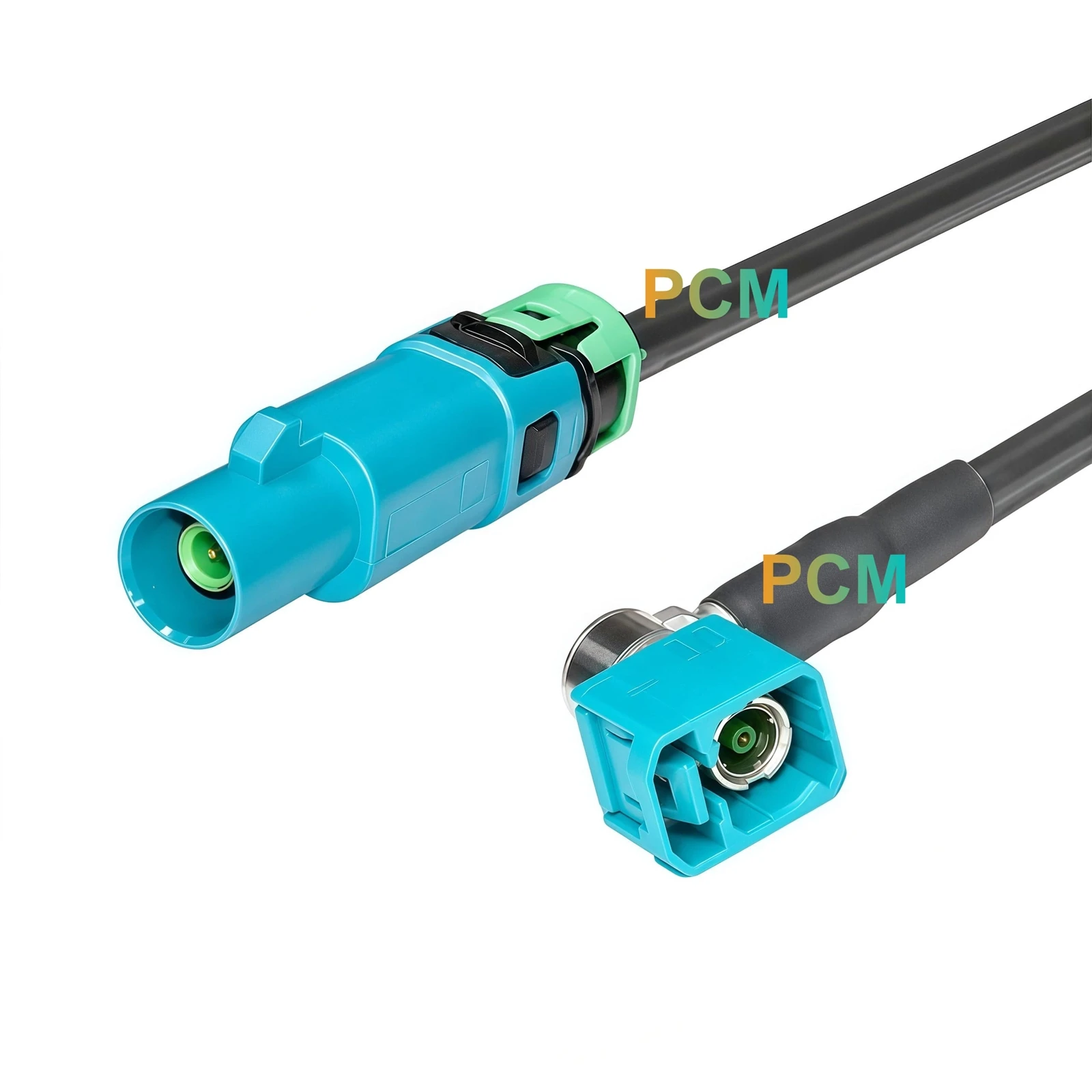

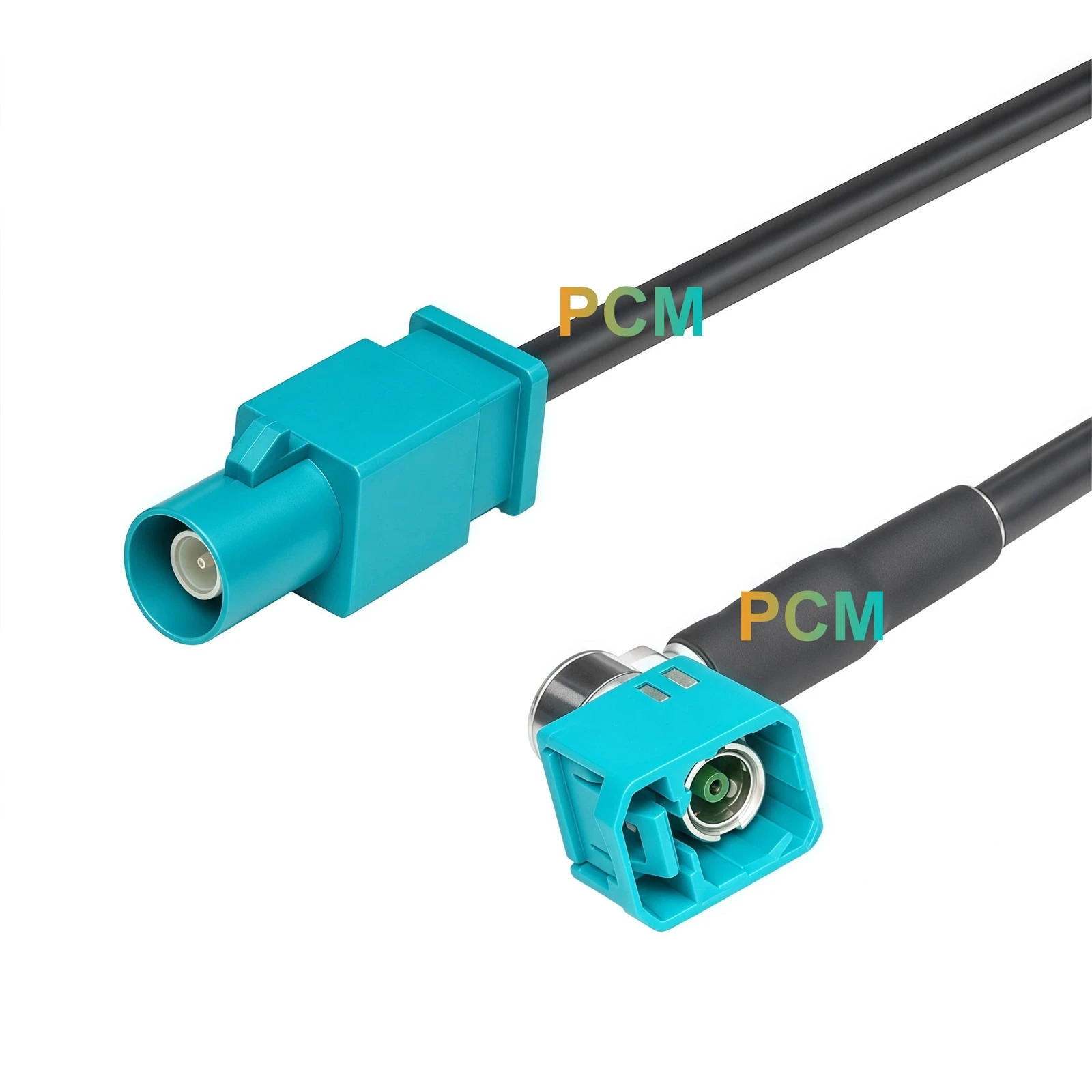

TE IP67 Waterproof FAKRA Male to Right Angle Female Cable
TE-to-TE FAKRA Connection
Combines a TE Connectivity 2-2307198-0 straight male connector with a TE 1-2392990-4 right-angle female connector. Both are specified as IP67 Waterproof FAKRA Z-Code connectors. This FDC402 coaxial cable assembly provides a male-to-female connection for compatible automotive camera modules and equipment requiring TE connector components at both ends.

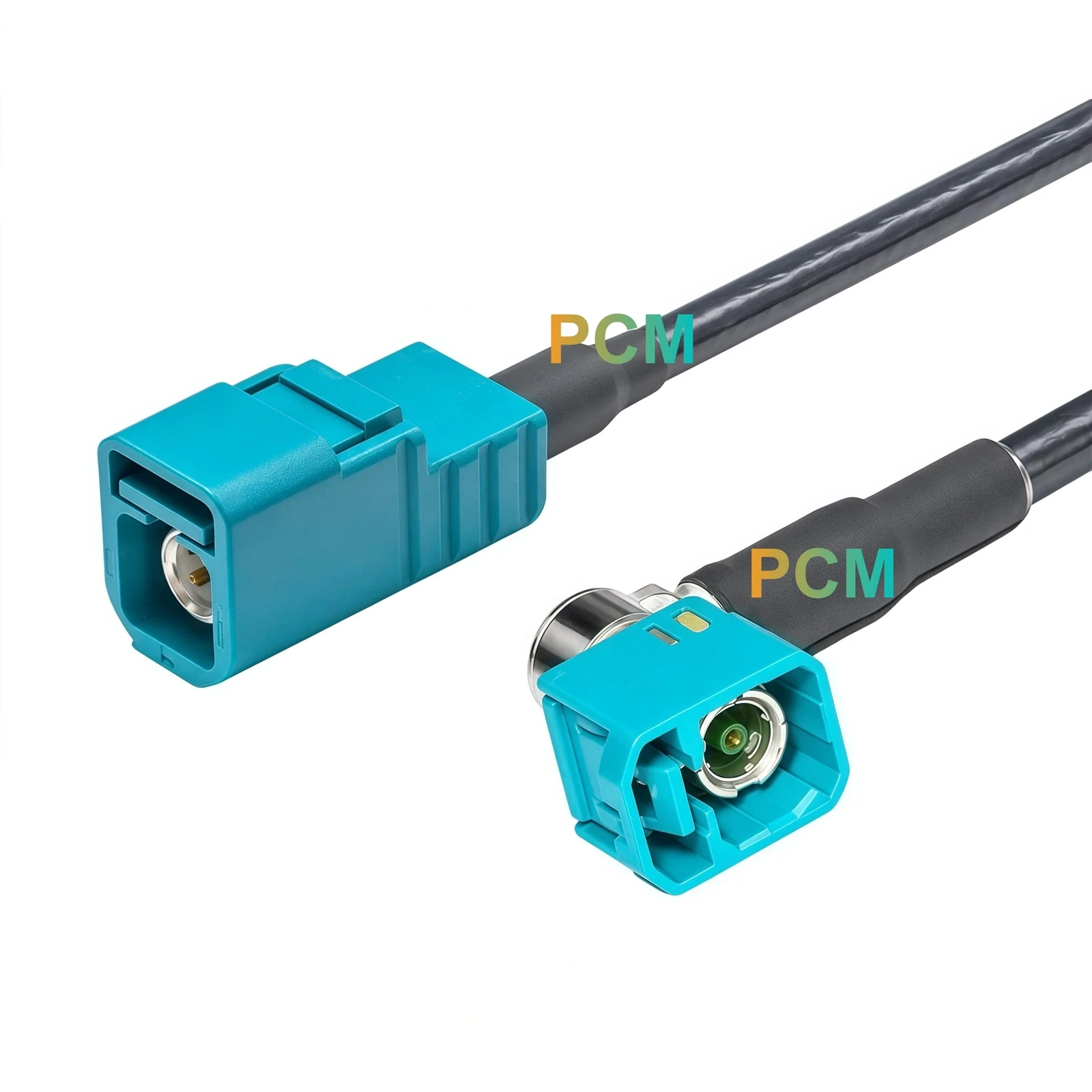

Amphenol IP67 Waterproof FAKRA Female to TE Right Angle Female Cable
Amphenol Straight Female Interface
Pairs an Amphenol 3FA1ENZSJ-C30ES straight female connector with the TE 1-2392990-4 right-angle female connector, using FDC402 coaxial cable. The dual-female arrangement provides an alternative housing configuration for projects requiring an Amphenol mating interface at one end and a TE right-angle connection at the other.
Non-Waterproof FAKRA Male to TE IP67 Waterproof Right Angle Female Cable
Mixed-Protection Male Interface
Connects a Rosenberger 59Z114-000Z non-waterproof straight male connector to the TE 1-2392990-4 IP67 Waterproof right-angle female connector. Using Dacar 302-4 coaxial cable, this version accommodates equipment with different connector protection requirements at the two connection points.

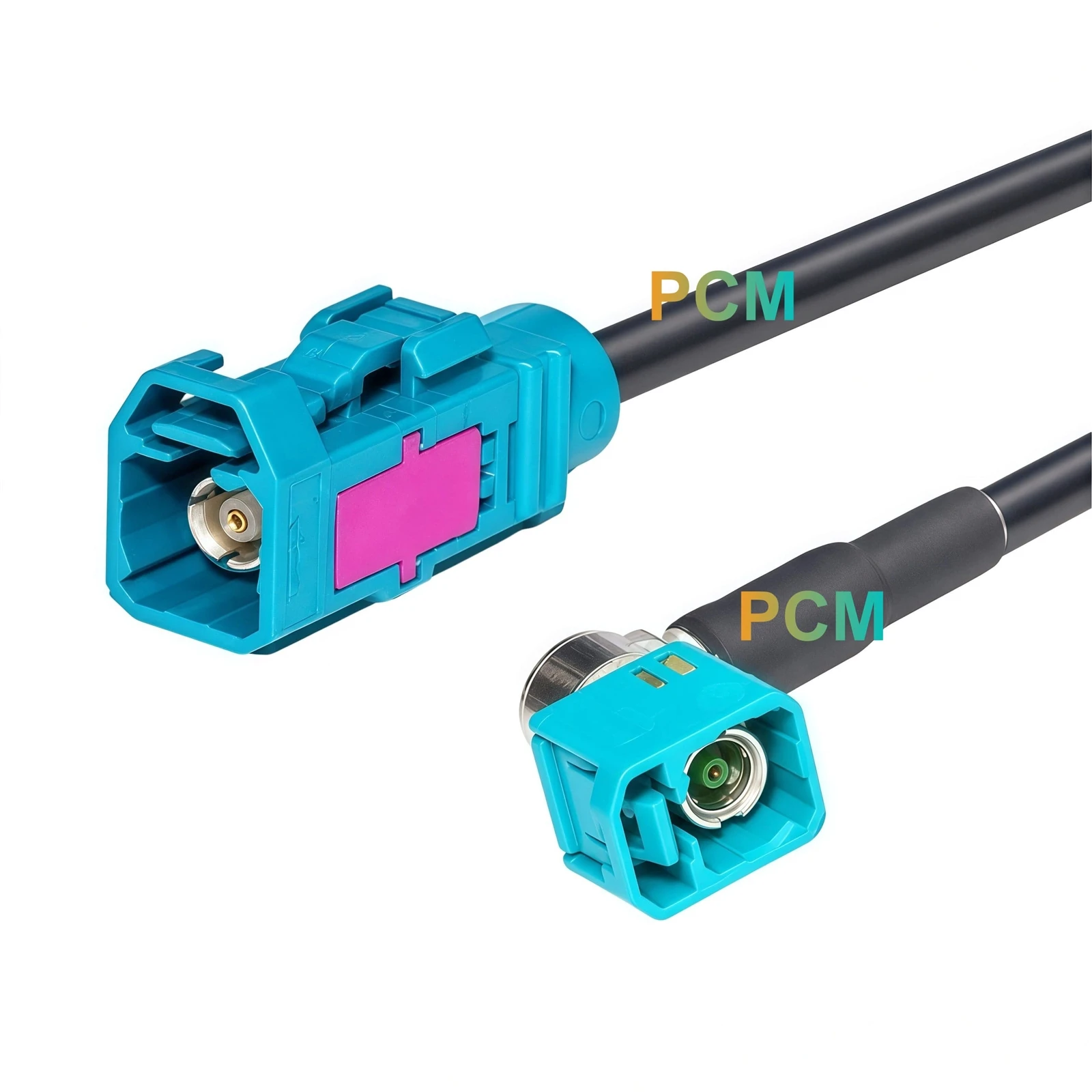

Non-Waterproof FAKRA Female to TE IP67 Waterproof Right Angle Female Cable
Mixed-Protection Female Interface
Features a Rosenberger 59Z113-000Z non-waterproof straight female connector and the TE 1-2392990-4 right-angle female connector. The female-to-female arrangement connects compatible male FAKRA interfaces where one cable end uses a standard connector and the other requires an IP67 Waterproof connector.

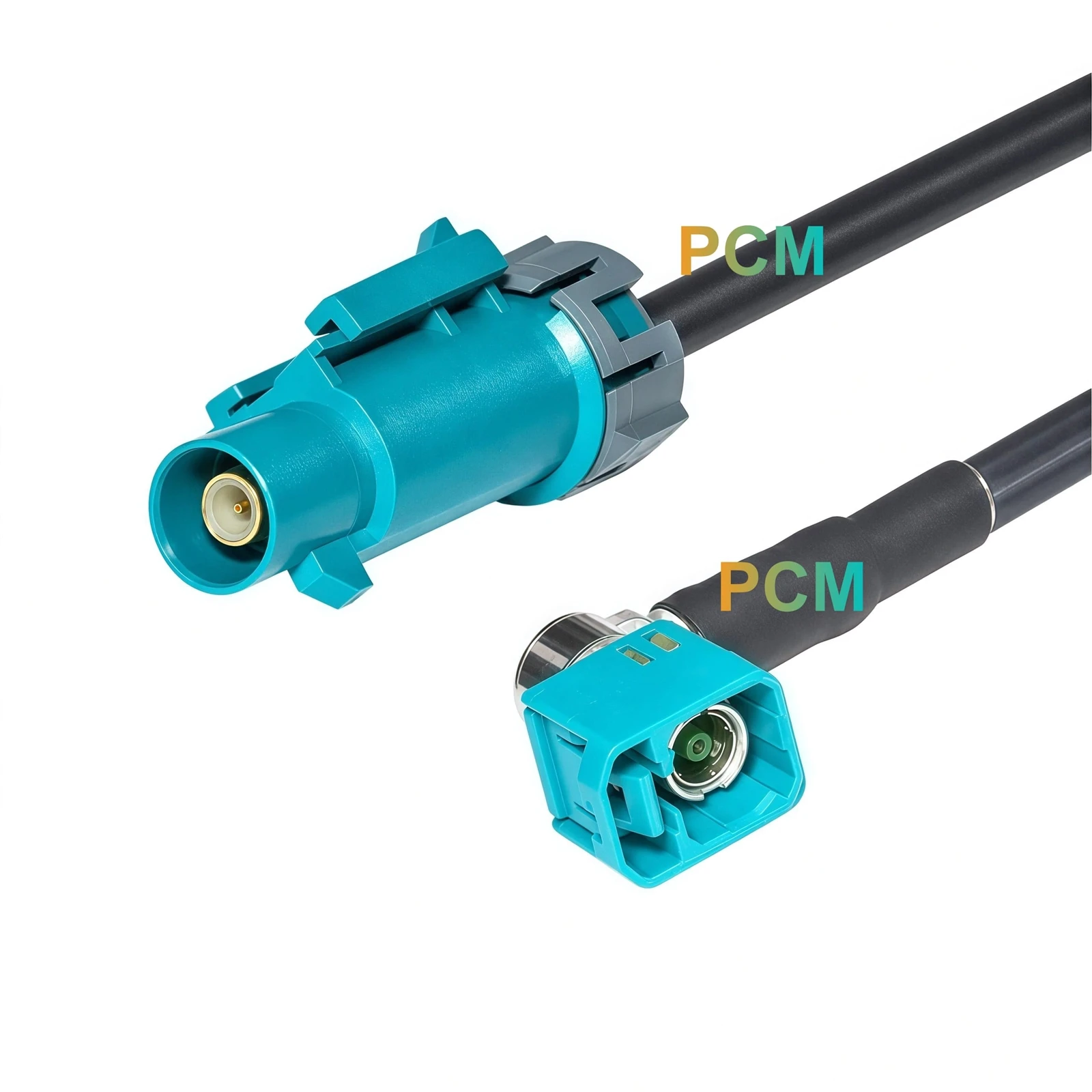

Rosenberger IP67 Waterproof FAKRA Male to TE Right Angle Female Cable
Rosenberger Straight Male Connection
Uses a Rosenberger 59Z176-C01Z IP67 Waterproof straight male connector opposite the TE 1-2392990-4 right-angle female connector. This Dacar 302-4 assembly offers a Rosenberger-to-TE connector combination for automotive coaxial applications requiring a straight male interface and an angled female termination.

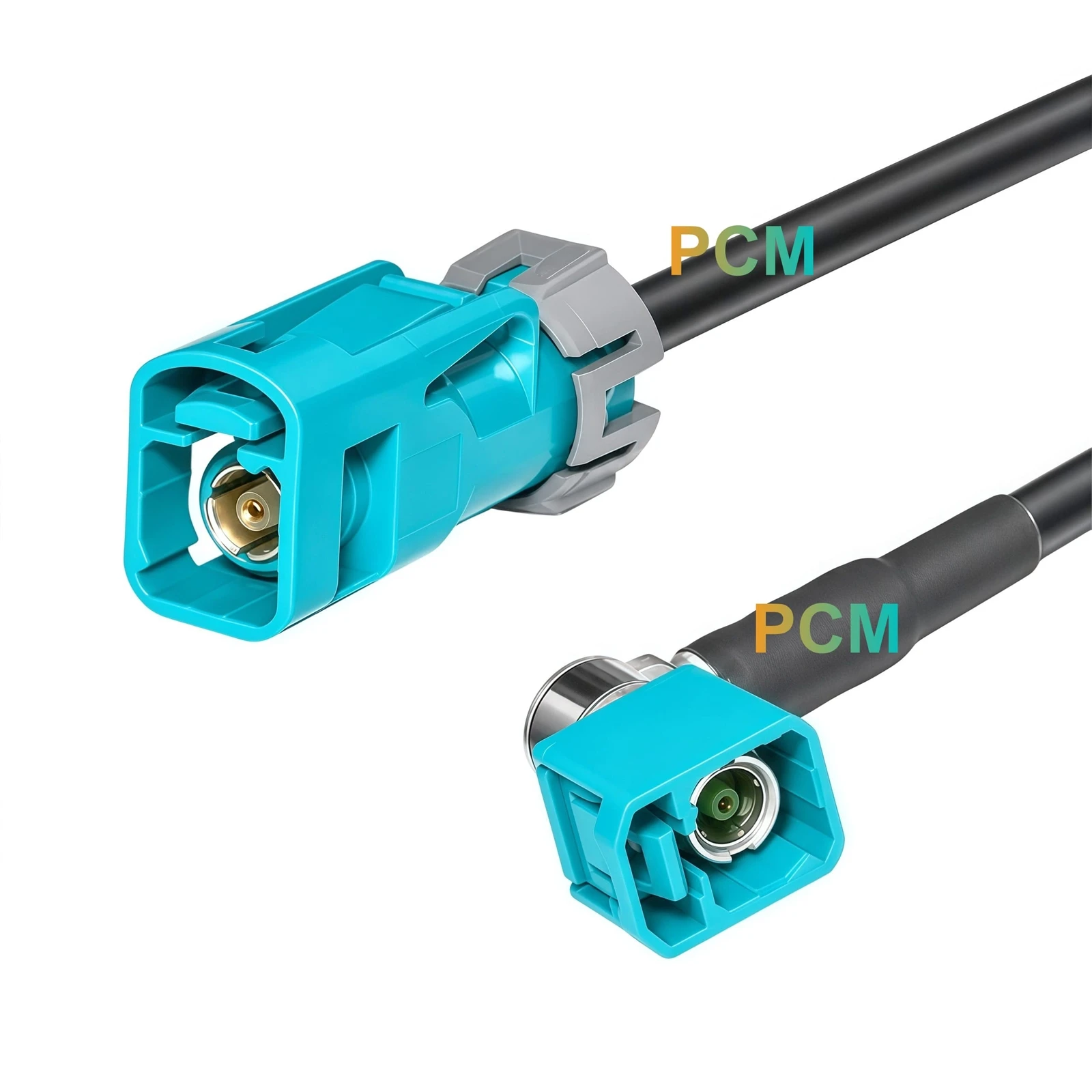

Rosenberger IP67 Waterproof FAKRA Female to TE Right Angle Female Cable
Rosenberger Straight Female Connection
Combines a Rosenberger 59Z163-003Z IP67 Waterproof straight female connector with the TE 1-2392990-4 right-angle female connector. The dual-female configuration provides a connection between compatible male FAKRA interfaces, with different housing orientations at the two cable ends.

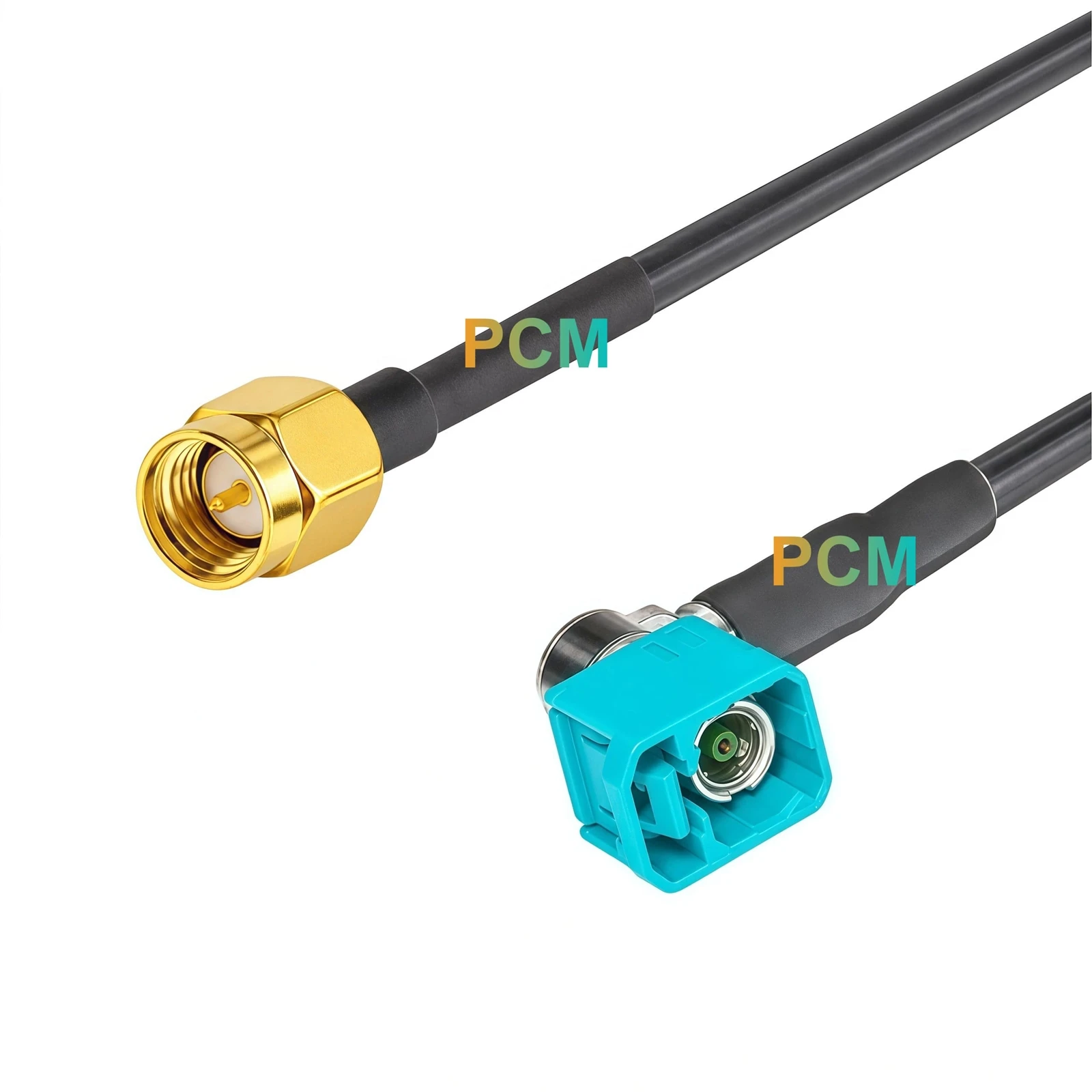

SMA Male to TE IP67 Waterproof FAKRA Right Angle Female Cable
SMA Male RF Interface
Connects an SMA-J2-3 male connector to the TE 1-2392990-4 right-angle FAKRA female connector through Dacar 302-4 coaxial cable. The SMA male termination provides a connection option for compatible RF measurement equipment, development boards, and automotive electronics test fixtures.

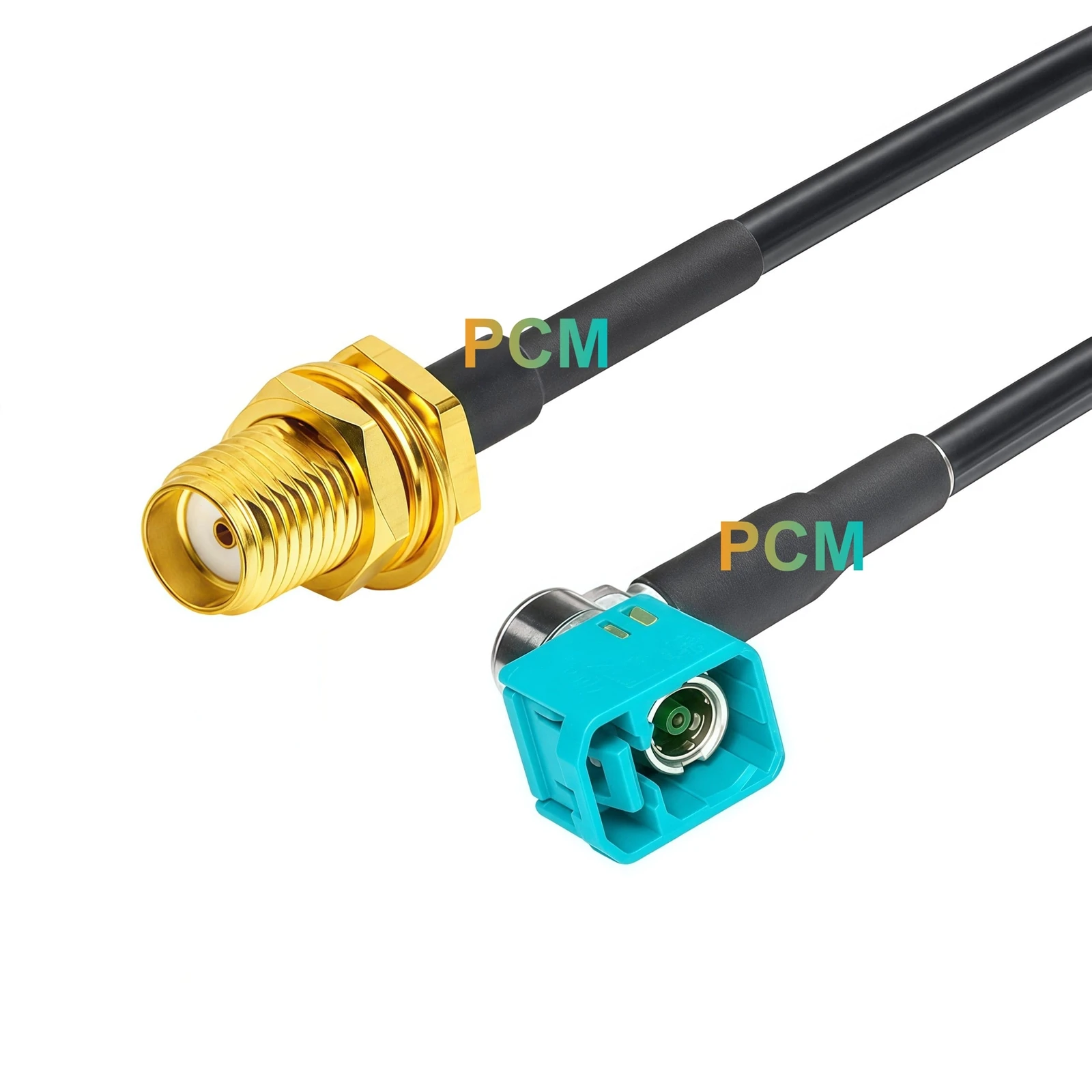

SMA Female to TE IP67 Waterproof FAKRA Right Angle Female Cable
SMA Female RF Interface
Pairs an SMA-KY-2 female connector with the TE 1-2392990-4 right-angle FAKRA female connector. This configuration allows compatible SMA male equipment interfaces to connect with FAKRA-based automotive RF components, making it suitable for laboratory evaluation and prototype integration.

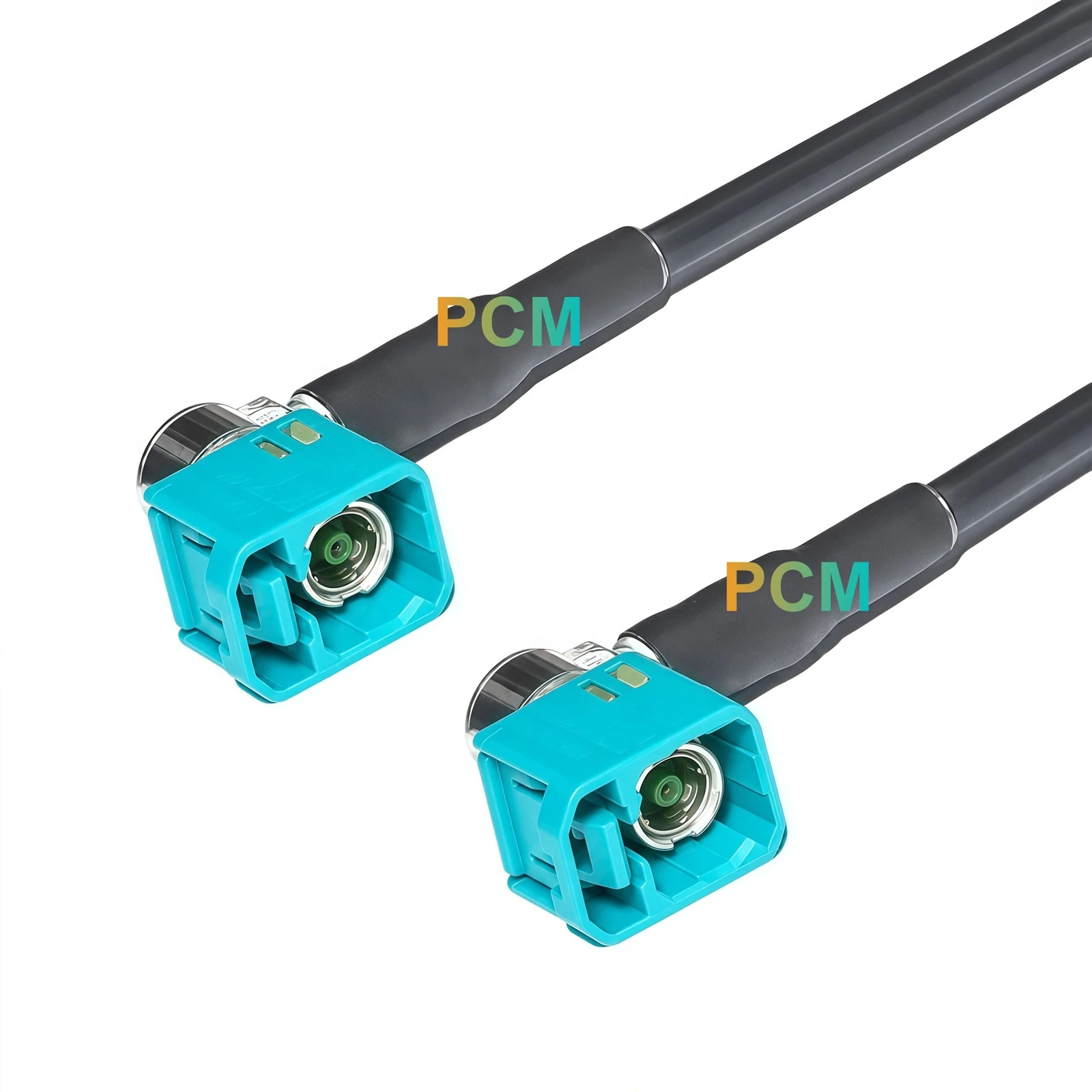

Dual TE IP67 Waterproof FAKRA Right Angle Female Cable
Dual Right-Angle Connection
Features two TE Connectivity 1-2392990-4 IP67 Waterproof right-angle female connectors joined by Dacar 302-4 coaxial cable. The 360° rotatable outer housings allow connector orientation to be adjusted at both ends, providing greater flexibility when connecting two compatible male FAKRA interfaces in confined equipment layouts.
Connector Selection Note: Confirm the required FAKRA or SMA mating interface, connector gender, cable length, and protection requirements before ordering. Connector compatibility and the protection of the completed assembly depend on the selected configuration and installation conditions.
Applications & Benefits
Automotive Camera Module Installation
The right-angle FAKRA connection provides an alternative cable exit direction for camera modules installed near brackets, panels, or surrounding electronic components. This helps accommodate cable routing where rear clearance is limited.
Automotive RF Testing & Development
FAKRA-to-SMA configurations allow compatible automotive RF components to connect with laboratory instruments and test fixtures. Different SMA terminations help engineers match the available equipment interface without additional connector changes.
Vehicle Electronics Harness Integration
Multiple connector combinations support automotive coaxial wiring between compatible camera modules, RF equipment, and electronic control units. Cross-brand FAKRA options provide flexibility when integrating equipment with different connector requirements.
Compact Dual-Ended Connections
The dual right-angle version accommodates installations requiring angled cable exits at both connection points. Independently adjustable connector housings help precisely position the cable according to the available installation space and layout.
Customization Capabilities
Custom Cable Lengths
Premier Cable supports cable lengths from the listed 0.2 m to 15 m options, with additional lengths available according to equipment spacing and harness routing requirements.
FAKRA Connector Combinations
We support different FAKRA connector manufacturers, genders, and housing orientations, including TE Connectivity, Rosenberger, and Amphenol options for project-specific mating interfaces.
Coaxial Cable Selection
FDC402 and Dacar 302-4 cable options can be selected according to the connector configuration and applicable assembly requirements. Alternative cable specifications can be reviewed for OEM projects.
SMA Connector Configurations
SMA male and female connector options are available for RF testing, prototype integration, and equipment-specific coaxial connections.
OEM Cable Assembly Services
Premier Cable supports customized connector combinations, cable identification, part-number labeling, and packaging requirements for automotive camera harnesses and RF coaxial cable assemblies.
Product FAQ
Q1. What is the advantage of the 360° rotatable FAKRA connector?
The rotatable outer housing allows the connector orientation to be adjusted during installation. This is useful when routing cables around nearby equipment or positioning the right-angle connector in limited spaces.
Q2. What is the difference between the FAKRA and SMA versions?
FAKRA versions are intended for compatible automotive coaxial interfaces. SMA versions provide alternative connections for RF instruments, test fixtures, and prototype equipment with matching SMA ports.
Q3. Are all nine versions fully IP67 Waterproof?
No. The available versions include different connector protection arrangements. Some use IP67 Waterproof connectors at both ends, while others combine IP67 Waterproof FAKRA connectors with non-waterproof FAKRA or SMA terminations. The completed assembly's protection depends on its connector configuration and installation conditions.
Q4. Which version is suitable for installations requiring two right-angle connectors?
Version 9 uses TE Connectivity 1-2392990-4 right-angle female connectors at both ends. Their rotatable outer housings allow the connector orientations to be adjusted independently.
Q5. Can the cable length and connector configuration be customized?
Yes. Premier Cable supports custom cable lengths, FAKRA and SMA connector combinations, coaxial cable selection, and OEM identification requirements according to the intended application.
