ECT Mini FAKRA D Code Camera Cable

This camera cable harness connects a four cavity ECT Mini FAKRA interface to four individually terminated FAKRA branches. It brings separate coaxial connections into a grouped equipment interface while allowing the branch ends to follow different installation routes.

The range includes ECT and Rosenberger straight terminations, plus a TE right angle option. Selection depends on the receiving connector and available cable exit space. Each branch forms a separate connection path rather than duplicating one camera signal.

Product Specifications

Available Configurations

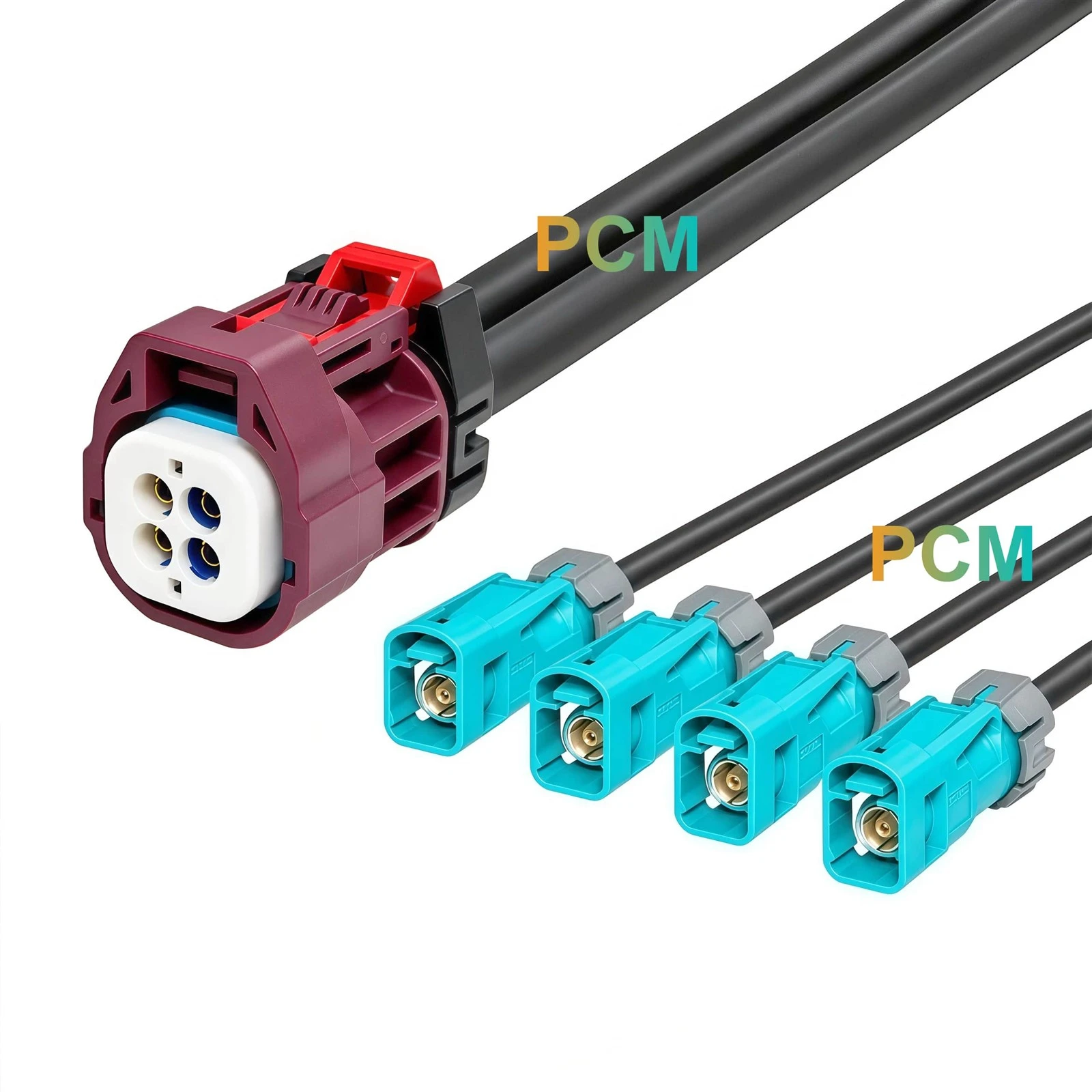

ECT Mini FAKRA to Four ECT Female Cable

Connection Structure: One ECT Mini FAKRA D Code four cavity female connector, 818018736, connects to four sealed ECT FAKRA Z Code straight female connectors, referenced as 818014116.

Unique Difference: Uses ECT connector references at both the grouped end and the four branch ends.

Suitable Installation: Projects specifying ECT branch interfaces, with room for the cables to exit along the connector mating axis.

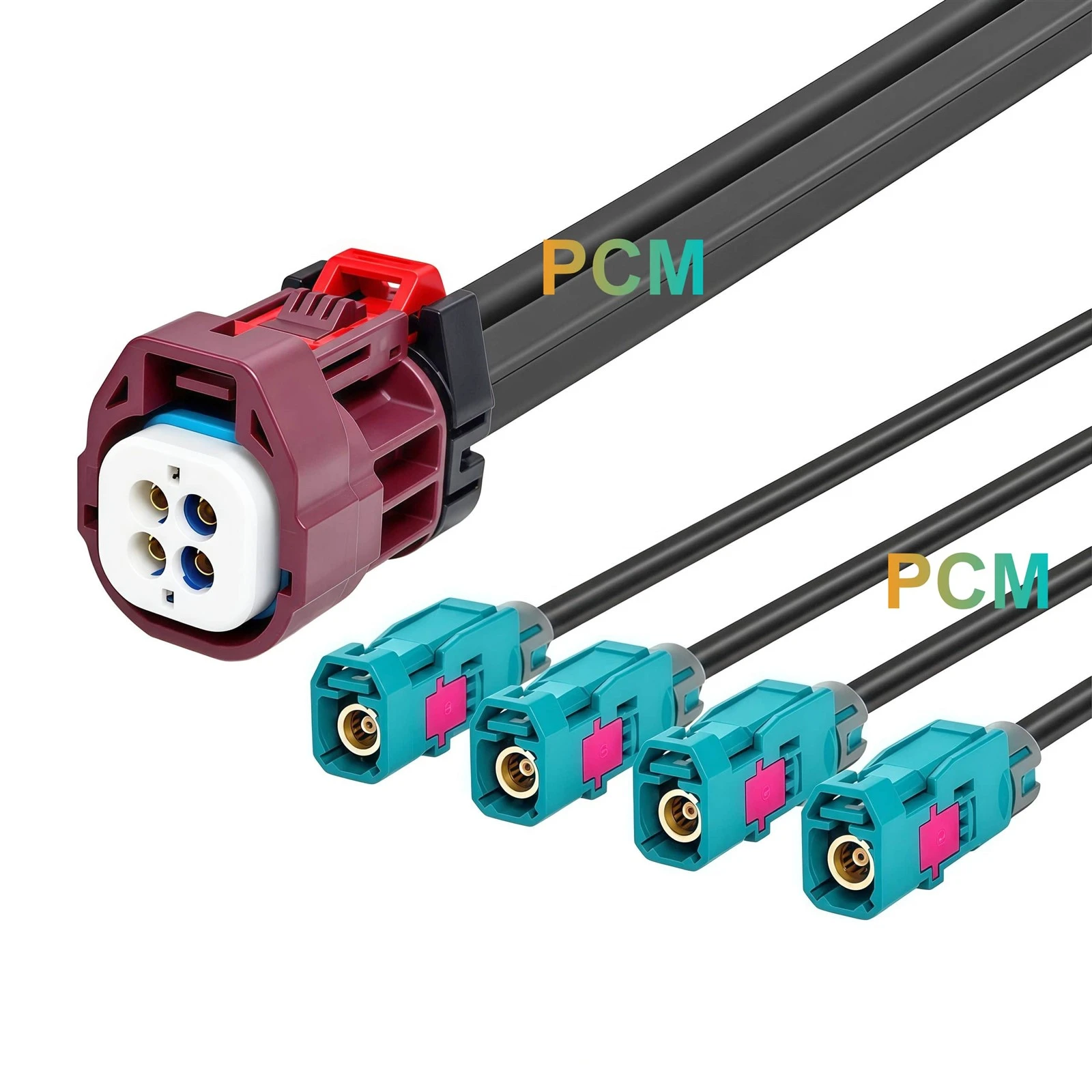

ECT Mini FAKRA to Four Rosenberger Female Cable

Connection Structure: One ECT Mini FAKRA D Code four cavity female connector, 818018736, connects to four sealed Rosenberger FAKRA Z Code straight female ends. The supplied branch housing reference is 59Z163-003Z.

Unique Difference: Retains female branch terminations while changing the branch housing specification to Rosenberger.

Suitable Installation: Assemblies with matching male interfaces where the branch housing reference is specified in the receiving equipment or harness documentation.

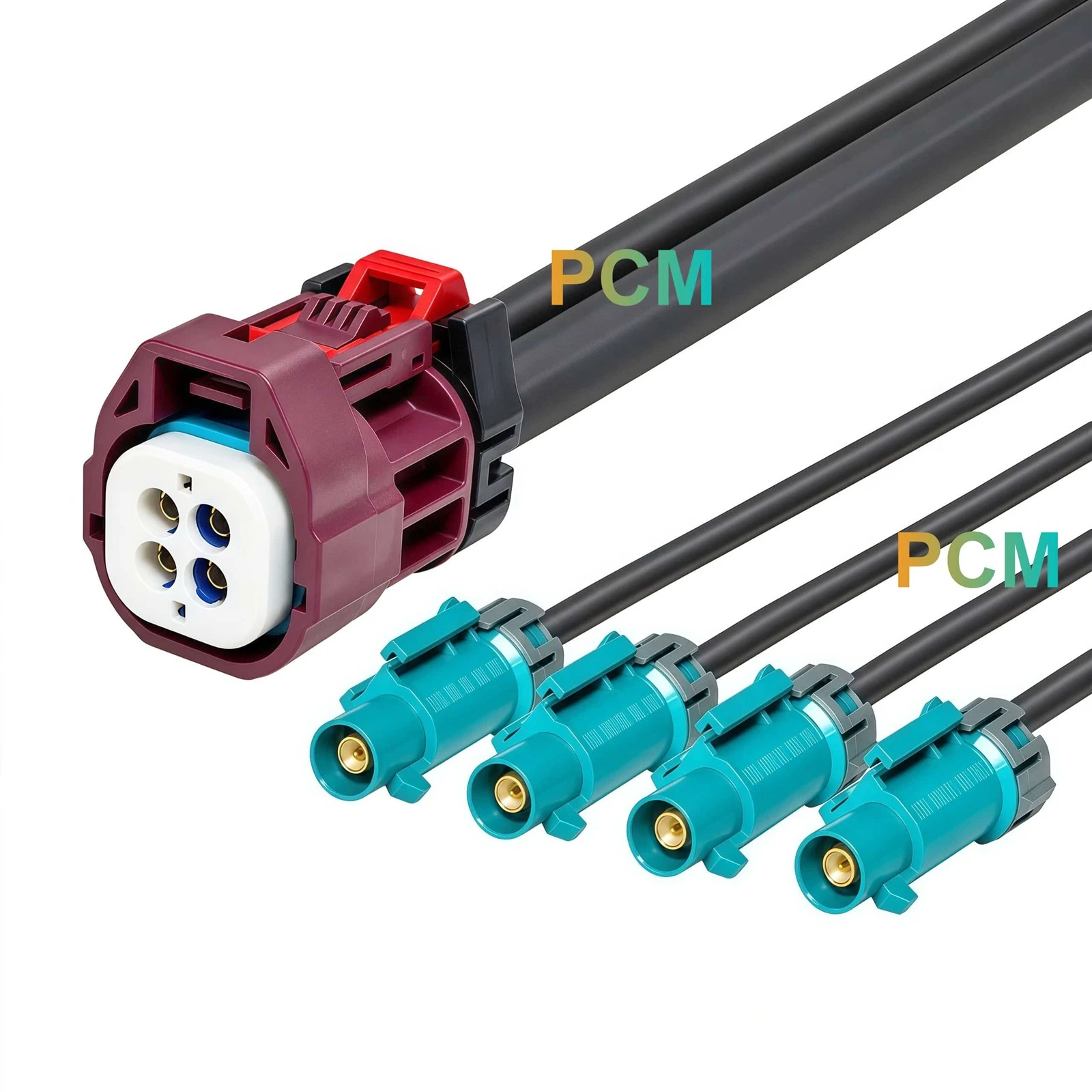

ECT Mini FAKRA to Four Rosenberger Male Cable

Connection Structure: One ECT Mini FAKRA D Code four cavity female connector, 818018736, connects to four sealed Rosenberger FAKRA Z Code straight male ends. The supplied branch housing reference is 59Z176-C01Z.

Unique Difference: Provides male terminations on all four branches, distinguishing it from the female branch versions.

Suitable Installation: Connections to existing female terminated camera leads or matching female interfaces, subject to mating and wiring confirmation.

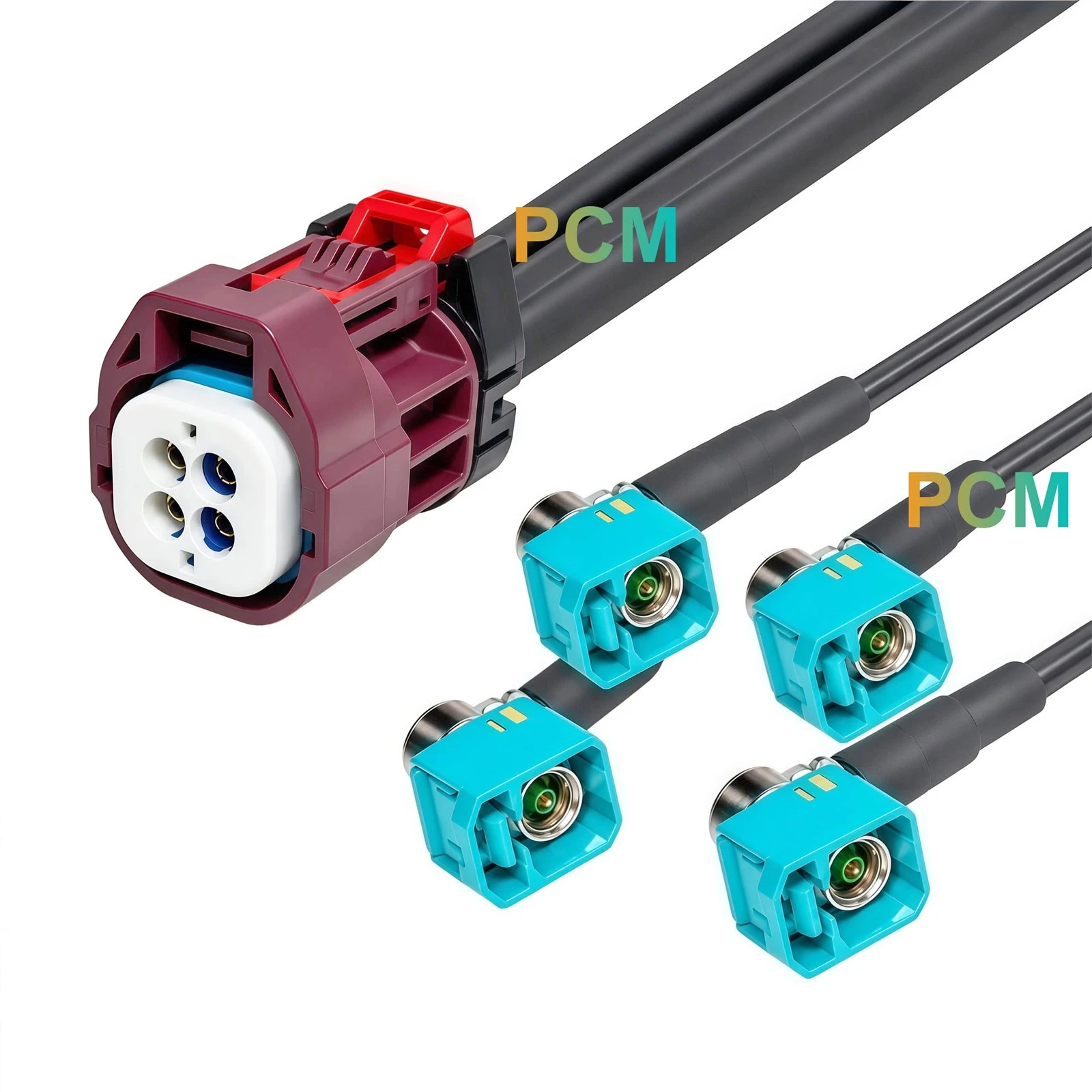

ECT Mini FAKRA to Four TE Right Angle Female Cable

Connection Structure: One ECT Mini FAKRA D Code four cavity female connector, 818018736, connects to four sealed TE FAKRA Z Code right angle female connectors, 1-2392990-4.

Unique Difference: Changes the cable exit direction at each branch connector, allowing the cable to turn beside the mating interface.

Suitable Installation: Recessed connection points or restricted rear clearances where straight cable exits would interfere with nearby panels or components.

Applications & Customer Value

Multiple Camera Routing

Vehicle camera layouts can place individual connections at different distances from the receiving module. Defining each branch around its destination reduces excess cable accumulation and makes the harness easier to position within the available routing space.

Enclosed Camera Installations

Camera connections inside trim, brackets or equipment covers often have limited access. Selecting the termination direction during harness design avoids forcing the cable into an immediate bend behind the connector.

Camera System Development

Development teams may need to evaluate several camera connections together. An identified branch arrangement makes it easier to associate each cable with its assigned channel and reproduce the same wiring layout during subsequent tests.

Production Assembly

Installation teams need consistent branch lengths and recognizable connection points. An approved harness drawing and branch identification support repeatable assembly across multiple vehicles or equipment builds.

Product Features

Customization Capabilities

Premier Cable supports:

Connector Customization

Premier Cable reviews connector type, gender, coding and housing design against the specified mating parts. Alternative combinations can be evaluated while preserving the required four channel connection arrangement.

Cable Customization

Overall length and individual branch lengths can be defined from the installation drawing. Jacket material, shielding and cable structure can also be reviewed, with cable selection checked against the chosen contact and sealing components.

Electrical Customization

Channel assignment and wiring definitions can be documented to match the equipment interface. Requests involving circuit configuration, resistance values or power ratings require engineering review before inclusion in the assembly specification.

OEM Manufacturing

Premier Cable supports drawing review, prototype preparation and mass production following sample approval. Channel labels, product identification and packaging can be arranged for installation tracking and repeat purchasing.

Product FAQ

Q1. Is this a four way RF signal splitter?

No. The harness carries four separate coaxial connections. It does not divide a single input signal among four outputs.

Q2. Are the straight female versions interchangeable?

Versions 1 and 2 use different branch connector references. Their suitability should be checked against the complete mating components and assembly requirements rather than inferred from gender alone.

Q3. Can this harness be used with any automotive camera?

Camera compatibility depends on the connector interface, channel wiring and electrical requirements. No specific camera model or communication protocol has been confirmed for this assembly.

Q4. Does the sealed construction confirm an IP67 rating?

No numerical protection rating is established by the supplied images. If IP67 Waterproof performance is required, specify the mating conditions and validation requirements before ordering.

Q5. What is needed to order branches with different lengths?

Provide the selected version, quantity and a drawing showing the required length for each branch. Include the channel mapping and any label requirements so the finished harness can be checked against the installation plan.
