Details:

TE MATE-AX to Fakra Camera Cable for NVIDIA DRIVE AGX Thor System is designed for automotive and communications applications. Made with high-quality materials, it provides stable signal transmission, supports Mini Fakra and Fakra connectors, and features interference immunity and high-temperature resistance. Suitable for in-vehicle networks, GPS, cameras, and other devices. PCM Cable # : PCM-ZC-0014

Send Inquiry

Online Store: www.premier-cable.store

Small Orders: Buy online at retail price

Bulk Orders: Contact sales for volume pricing

Description

Send Inquiry

Products Description

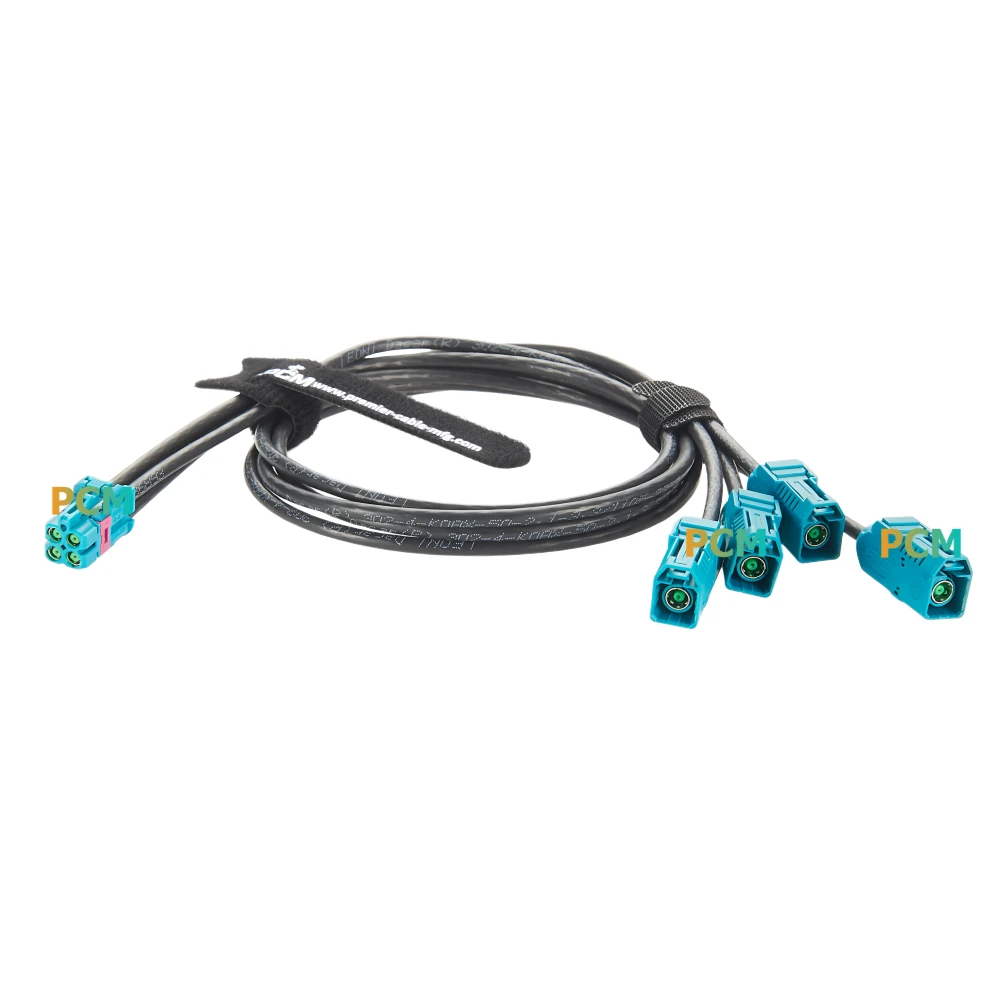

TE MATE-AX To Fakra RF Coaxial Cable

The TE MATE-AX to Fakra Camera Cable for NVIDIA DRIVE AGX Thor System is a high-performance component that enables interconnection between the MATE-AX Mini Fakra 2298721-9 coaxial terminal and the standard FAKRA 2-232910-0 interface. The PCM-ZC-0014 supports 50-ohm impedance matching, operates in a frequency range up to 6GHz, and can withstand harsh automotive operating environments from -40°C to +105°C. Designed specifically to meet the high-frequency, high-speed data transmission requirements of automotive applications, it supports protocols such as LVDS and GMSL, and is suitable for applications such as ADAS cameras, surround-view systems, and infotainment networks.

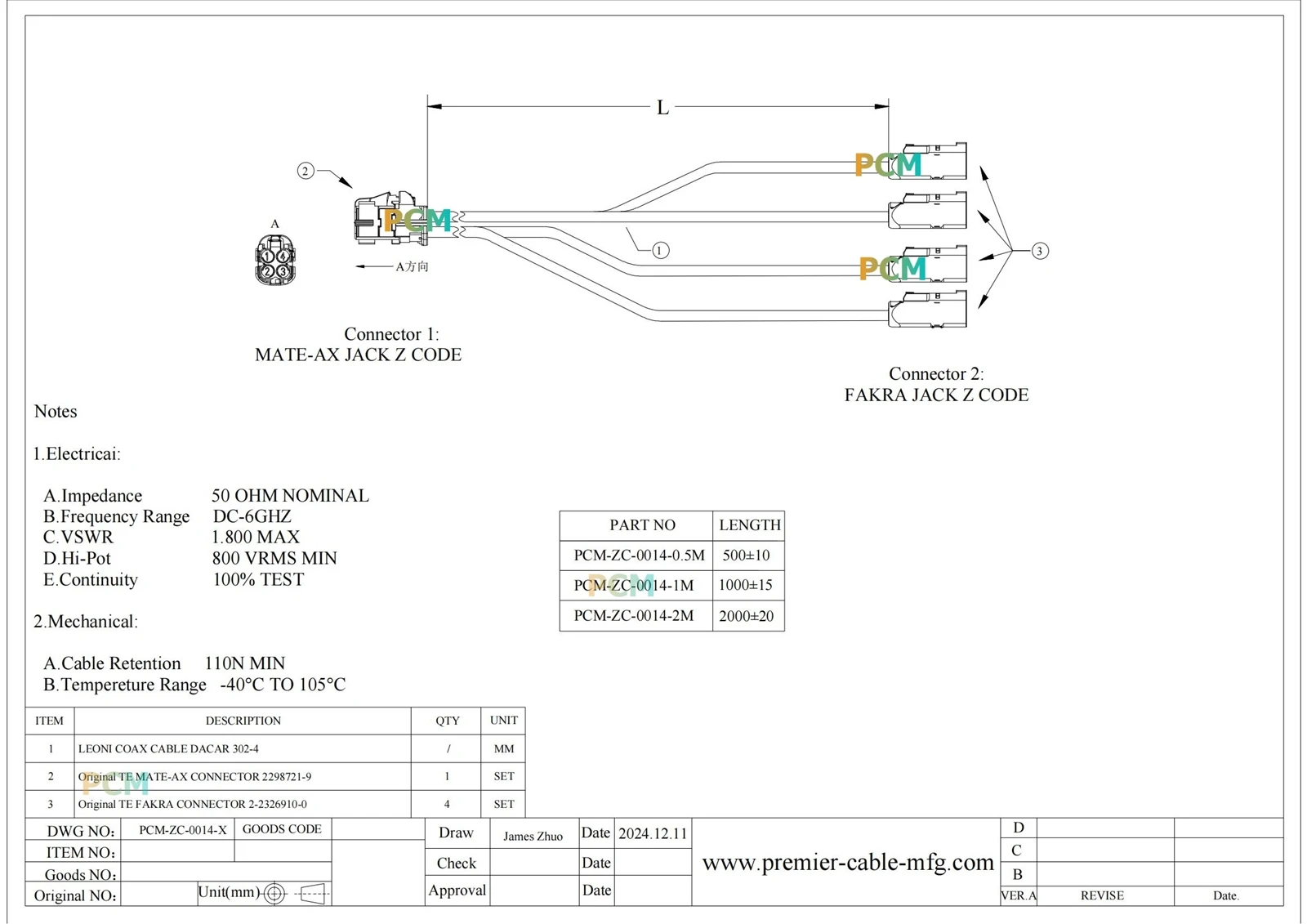

Specification

Product Name	TE MATE-AX To Fakra RF Coaxial Cable
Part No.	PCM-ZC-0014
Connector A	TE-MATE-AX Mini Fakra 2298721-9 Female
Connector B	TE Fakra 2-2326910-0 Female
Wire	Leoni Dacar 302-4 Coaxial Cable
Impedance	50 Ohm
Frequency	DC-6GHz
Temperature range	-40℃ to+105℃
Cable Length	1m,1.5m,2m,OEM
Compatible	TE 2360001-1

Functions

The TE MATE-AX to FAKRA RF coaxial cable is used in ADAS and camera functions in the following ways:

◇ Surround View: The cable transmits high-definition video streams from four surround view cameras simultaneously to the surround view controller via a 4-in-1 integrated design, ensuring real-time, zero-latency 360° image synthesis.

◇ Lane Assist and Blind Spot Detection: The cable reliably transmits signals from the front camera (for lane recognition) and the side and rear radar (for blind spot monitoring) to the ADAS domain controller for processing at high speed.

◇ Traffic Sign Recognition: The cable transmits image data from the front camera to the recognition unit. Its high bandwidth ensures no loss of image detail, guaranteeing high recognition accuracy.

◇ Rearview: The cable connects the trunk camera to the main unit, transmitting reversing images. Its automotive-grade vibration resistance and wide-temperature design can withstand frequent tailgate opening and closing and various weather conditions.

◇ Driver Monitoring: The cable transmits video streams from the cabin camera to the cockpit domain controller for analyzing driver fatigue or distraction.
