Product Specifications
| Parameter | Specification |
|---|---|
| Channel Count | 1 |
| Mate-AX Cavity Count | 1 |
| Cable Type | FDC402 |
| Signal Type | Coaxial |
| Mate-AX Gender | Female |
| Housing Color | Turquoise |
| Mate-AX Connector Reference | 2-2312192-9 |
| FAKRA Female Reference | 2-2380551-0 |
| FAKRA Male Reference | 2-2307198-0 |
| Coding | Z Code at both ends |
| Product Type | Automotive camera coaxial cable |
| Gender | Female to female or female to male |
| Sealing Design | Sealed connector versions at both ends |
| Connector Type | Single cavity Mate-AX and straight FAKRA |
| Interface | Mate-AX to Mate-AX or Mate-AX to FAKRA |
| Custom Options | Cable length; other modifications subject to engineering review |
Available Configurations

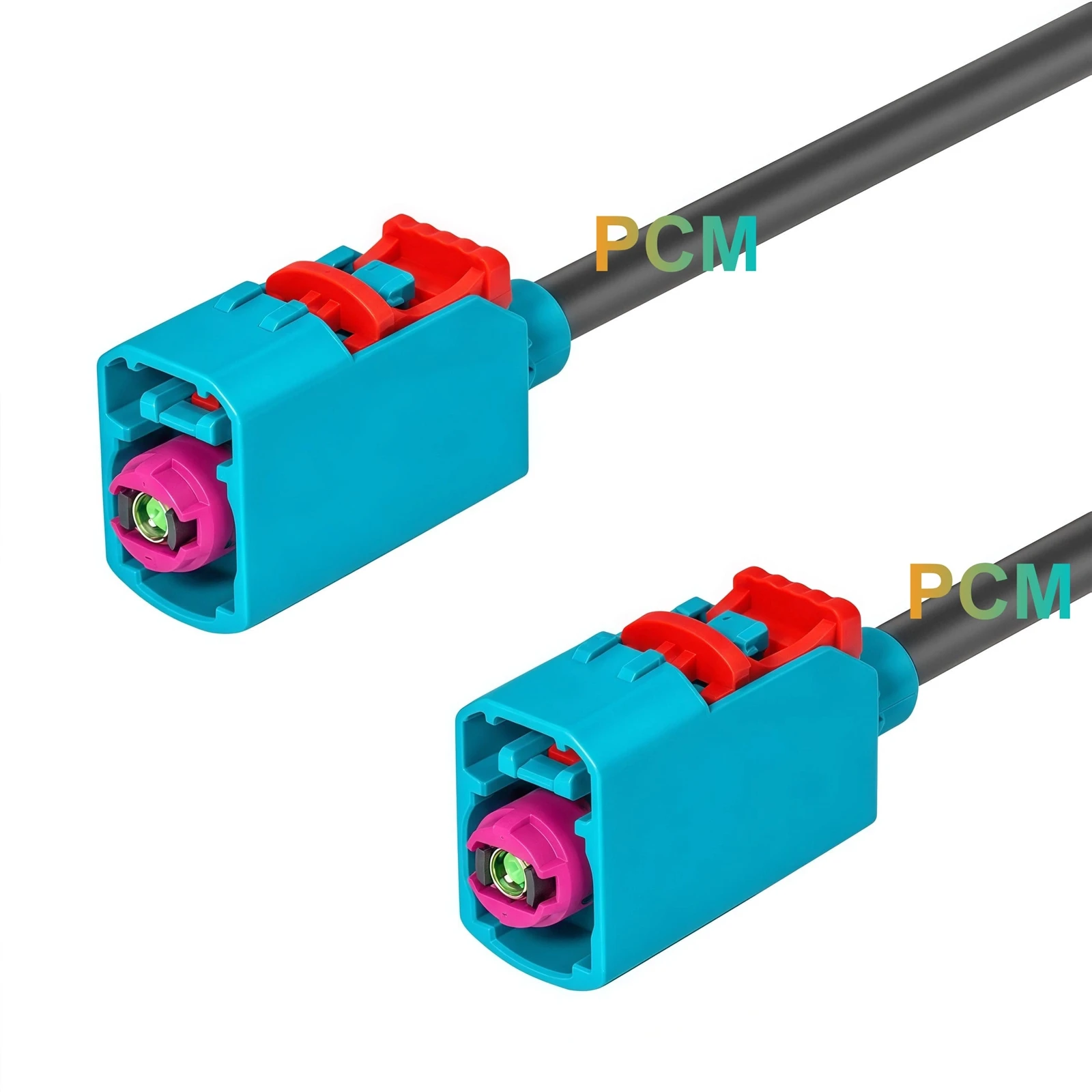

Mate-AX Single Cavity Female to Female Cable
Connection Structure: One 2-2312192-9 Mate-AX single cavity female connector at each end. Both interfaces use Mate-AX Z Code.
Unique Difference: Retains the same connector family and gender throughout the assembly, with the red retaining pin visible on both housings.
Suitable Installation: Interconnection between two corresponding Mate-AX male ports where no change to FAKRA is required.

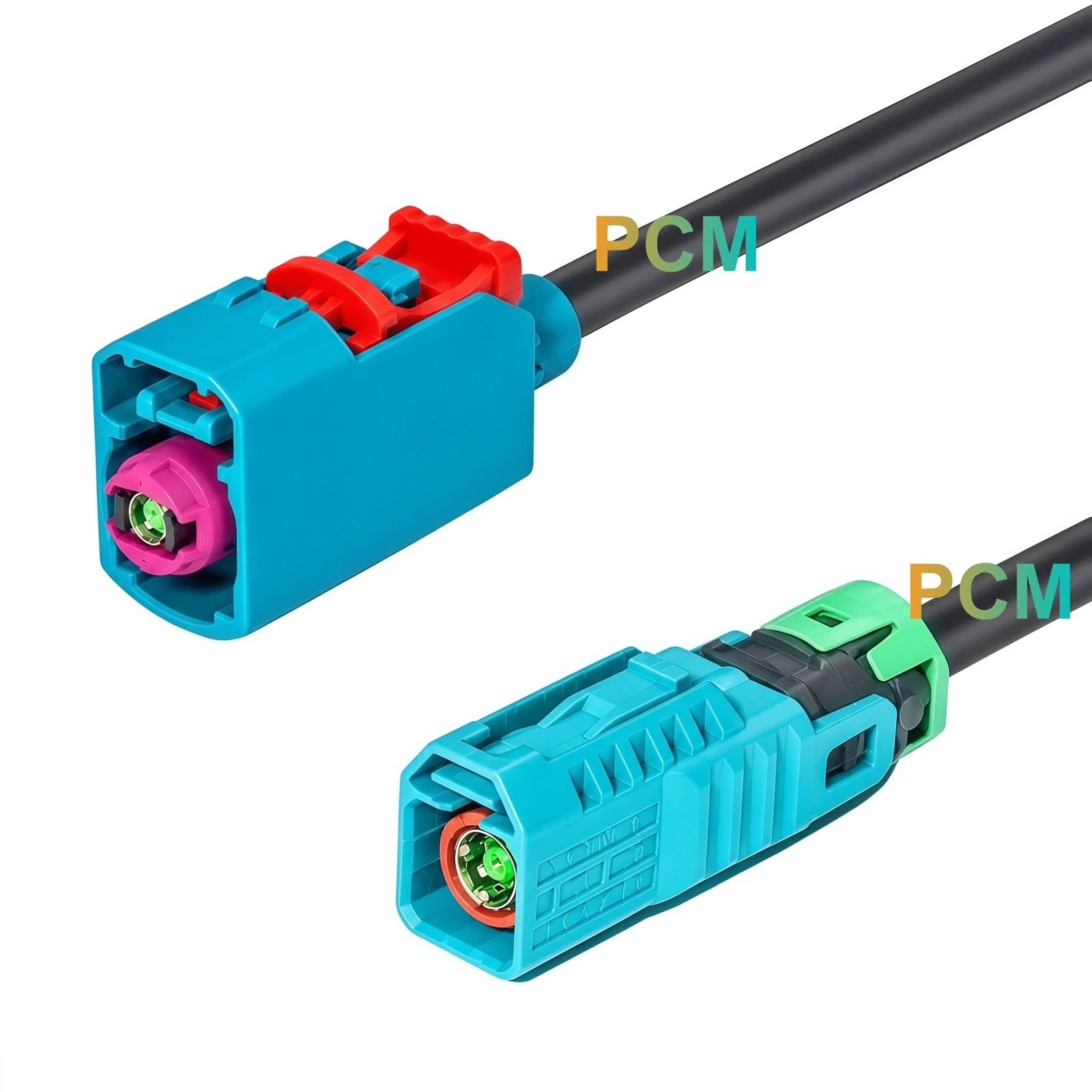

Mate-AX Female to Straight FAKRA Female Cable
Connection Structure: One 2-2312192-9 Mate-AX female connector connected to one 2-2380551-0 straight FAKRA female connector. Both ends use Z Code within their respective connector systems.
Unique Difference: Changes the connector family while keeping female terminations at both ends.
Suitable Installation: A corresponding Mate-AX male camera interface connected to equipment or an adapter presenting a FAKRA male port.

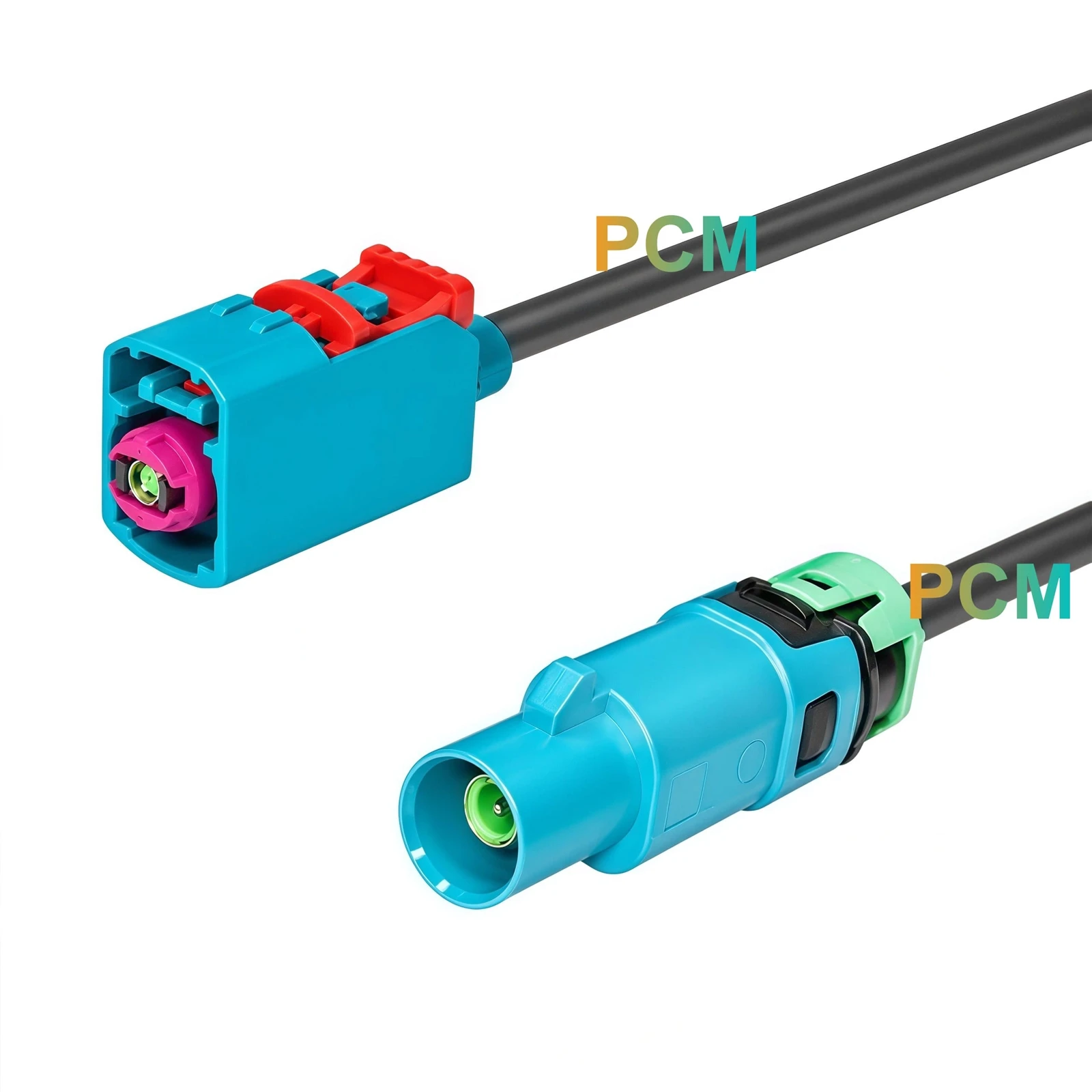

Mate-AX Female to Straight FAKRA Male Cable
Connection Structure: One 2-2312192-9 Mate-AX female connector connected to one 2-2307198-0 straight FAKRA male connector. Both ends use Z Code within their respective connector systems.
Unique Difference: Adds the male FAKRA termination needed to mate with an existing female cable interface.
Suitable Installation: Camera harness adaptation where the receiving cable already terminates in a corresponding FAKRA female connector.
Applications & Customer Value
Camera Module Interface Changes
A camera replacement may introduce a different connector family while the receiving equipment remains unchanged. A dedicated transition harness allows the connection arrangement to be adapted without replacing the entire cable route.
Existing Vehicle Harness Integration
An installed cable may have a fixed mating gender. Selecting the appropriate remote termination avoids an unnecessary additional gender adapter and keeps the connection layout simpler.
Connections Requiring Sealed Endings
Some installations require sealed connector construction at both connection points. These assemblies offer that structural option for evaluation against the actual exposure conditions and required protection specification.
Prototype to Production Builds
During development, connector selection and cable routing need to become repeatable assembly instructions. An approved harness drawing gives purchasing and installation teams one defined configuration to order and reproduce.
Product Features
Single Cavity Mate-AX Housing
The 2-2312192-9 houses one individual coaxial connection position. The construction concentrates on one dedicated signal route without the additional cavities used in grouped camera interfaces.
Visible Red Retaining Pin
The pictured Mate-AX housing includes a red retaining pin that is visually distinct from the turquoise housing. Its required position and operating sequence should be established from the connector assembly instructions.
Connector Specific Sealing Construction
Illustrated Mate-AX and FAKRA terminations are sealed. Seal compatibility depends on cable specifications, termination processes, and mating counterparts; assembly protection remains unspecified.
FDC402 Cable Termination
FDC402 coaxial cable is specified for all three versions. Manufacturing requirements must define cable preparation, contact termination, and inspection criteria rather than relying solely on appearance.
Customization Capabilities
Premier Cable supports:
Connector Customization
Connector type, gender, coding and housing design can be reviewed against the camera and equipment mating drawings. Proposed alternatives require confirmation of mechanical engagement and sealing compatibility.
Cable Customization
Length, jacket, shielding and cable structure can be reviewed for the installation route. The drawing can define measurement points, length tolerance and any protective covering required by the project.
Electrical Customization
Pin assignment, wiring definition and circuit configuration can be reviewed from the system requirements. Resistance value and power rating requirements can be evaluated where applicable; neither is an established specification of the pictured harness.
OEM Manufacturing
Premier Cable supports drawing review, prototypes and mass production to an approved specification. Labels and packaging can be defined for equipment assembly, spare parts identification and production delivery.
Product FAQ
Q1. Does a Mate-AX to FAKRA cable convert the camera signal?
No. It changes the physical connector interface. It does not perform protocol conversion, signal processing or data rate conversion.
Q2. Does Z Code mean Mate-AX and FAKRA can mate directly?
No. Coding belongs to each connector system. Mate-AX and FAKRA still require their respective mating interfaces, even when both are described as Z Code.
Q3. Can this harness carry both camera data and power over coax?
That capability is not confirmed by the supplied material. Provide the camera system specification, supply voltage, current and required cable length so the complete assembly can be evaluated.
Q4. What information is needed to confirm signal performance?
Provide the operating frequency or camera data rate, required impedance, permitted insertion loss and return loss, and operating environment. Validation should cover the selected connectors and finished cable length.
Q5. What should be included in a custom order request?
Specify the configuration number, mating connector references, required length and quantity. Include environmental requirements, electrical acceptance criteria, retaining pin assembly requirements and any labeling or packaging instructions.
