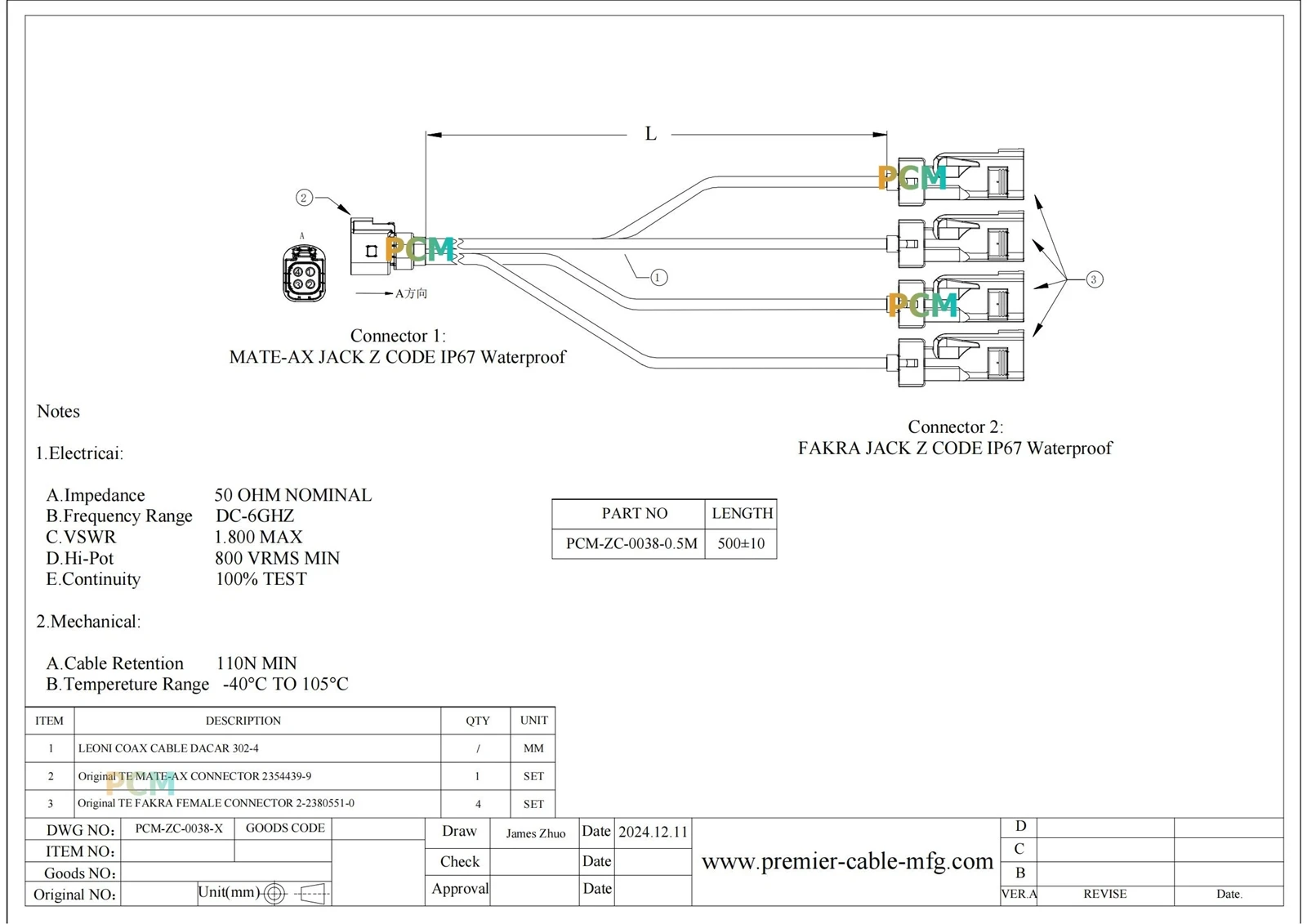

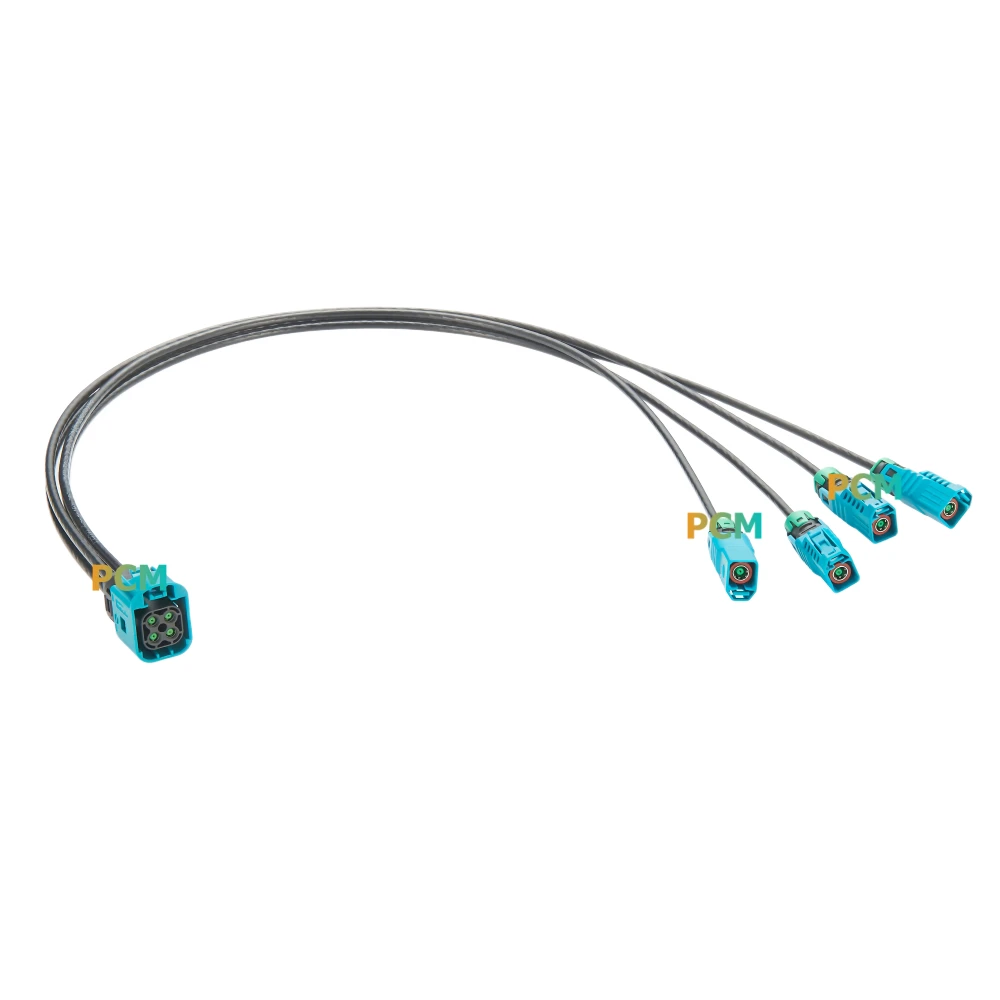

IP67 Waterproof TE Mini Fakra Cable 1-2360000-1

A: No, they are not directly interchangeable. Although TE (MATE-AX series) and Rosenberger (HFM series) both fall under the Mini Fakra category, their key structures, terminal definitions, and physical dimensions are defined by different patents or designs, making them incompatible. The choice usually depends on the brand or model of the interface provided on the automotive module (such as a T-Box or antenna).

A: The Leoni Dacar 302-4 is a professional automotive coaxial cable. Its special feature is its optimization for the harsh automotive environment: excellent resistance to fuel, oil, and abrasion, while maintaining low-loss RF transmission characteristics (typically supporting 6GHz). Its flexible yet robust outer sheath is suitable for long-term cabling in high-temperature, high-vibration environments such as engine compartments.

A: The "four-in-one" design is primarily for saving space and simplifying assembly. Modern vehicles integrate multiple radio frequency functions (such as 4G master/diversity, GNSS, and V2X). If each antenna were connected with a separate cable, it would occupy a significant amount of module space and result in messy wiring. The multi-in-one cable transmits multiple signals simultaneously through a single composite interface, improving the integration of the vehicle module and increasing production and assembly efficiency.

A: It depends on the specific frequency band. This cable is DC-6GHz, perfectly covering 5G signals in the Sub-6GHz band (such as n77, n78, n79, etc.), but it does not support millimeter-wave 5G, which requires frequencies above 20GHz. For current mainstream automotive 5G applications (based on Sub-6GHz), this cable is perfectly suitable.
