Mini-FAKRA AMF 4 Cavity Female Cable Assembly
The Mini-FAKRA AMF 4 Cavity Female Cable Assembly is an automotive coaxial cable solution featuring a Z-Code four-cavity female connector (P/N: 818018737). It is designed for high-speed signal connections in vehicle camera systems and automotive electronic applications.
The main connector integrates four coaxial channels in a compact Mini-FAKRA interface. According to different application requirements, the opposite side can be configured with FAKRA, HFM, Mate-AX, or SMA connectors.
The cable assembly supports RTK031 coaxial cable options, including Dacar 302-4 and ECT302L. Different connector combinations and cable lengths provide flexible solutions for OEM automotive harness development and camera system integration.
Product Specifications
| Specification | Details |
|---|---|
| Coding | Z-Code |
| Channels | 4 |
| Color | Blue |
| Cable Length | 0.1 m to 5 m |
| Cable Type | RTK031 Coaxial Cable |
| Cable Options | Dacar 302-4 / ECT302L |
| Connector Side A | AMF 4 Cavity Female |
| Connector Side B | FAKRA / HFM / Mate-AX / SMA |
| Main Connector | P/N 818018737 |
| Connector Protection | IP67 Waterproof / Standard |
| Product Type | Automotive Coaxial Cable Assembly |
Available Configurations

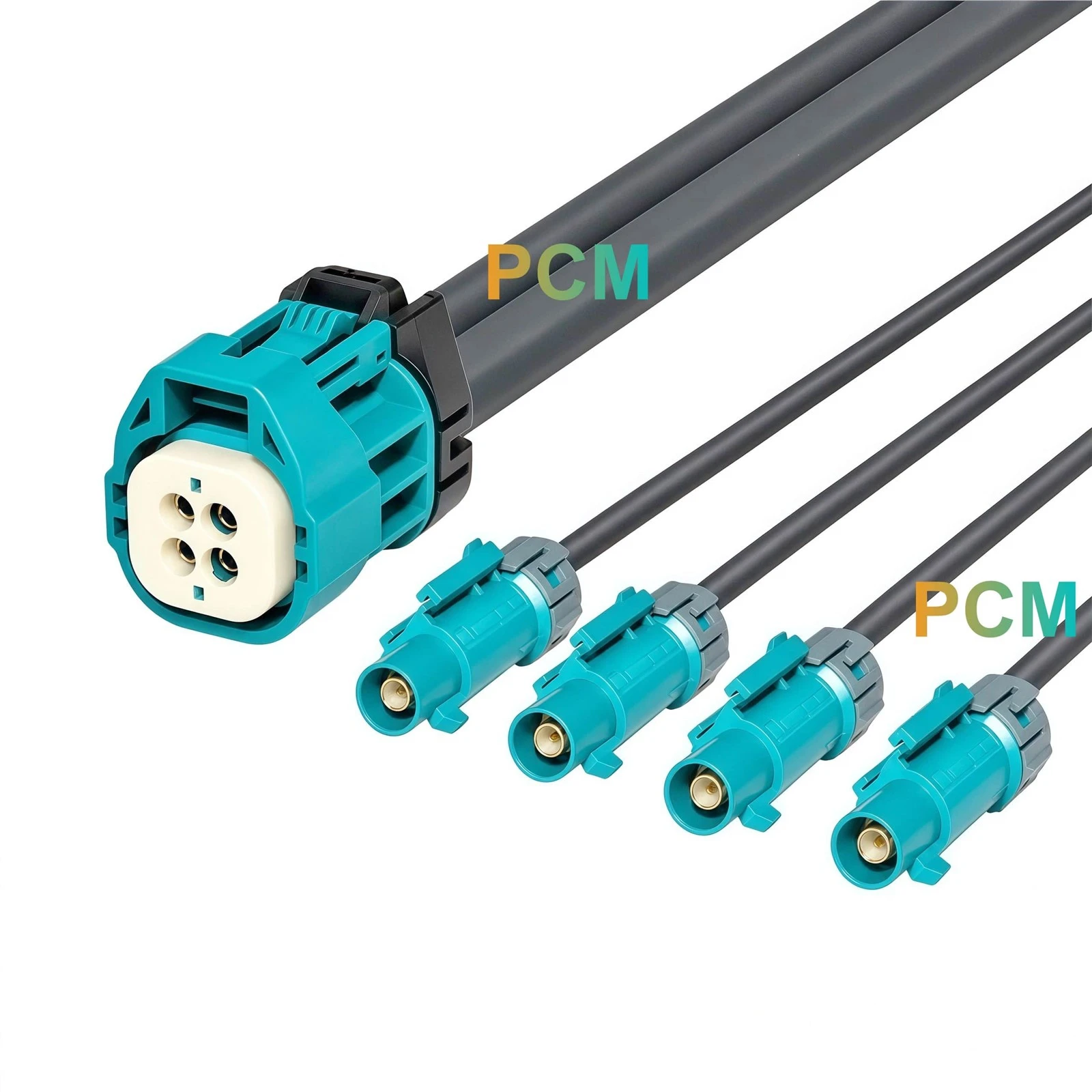

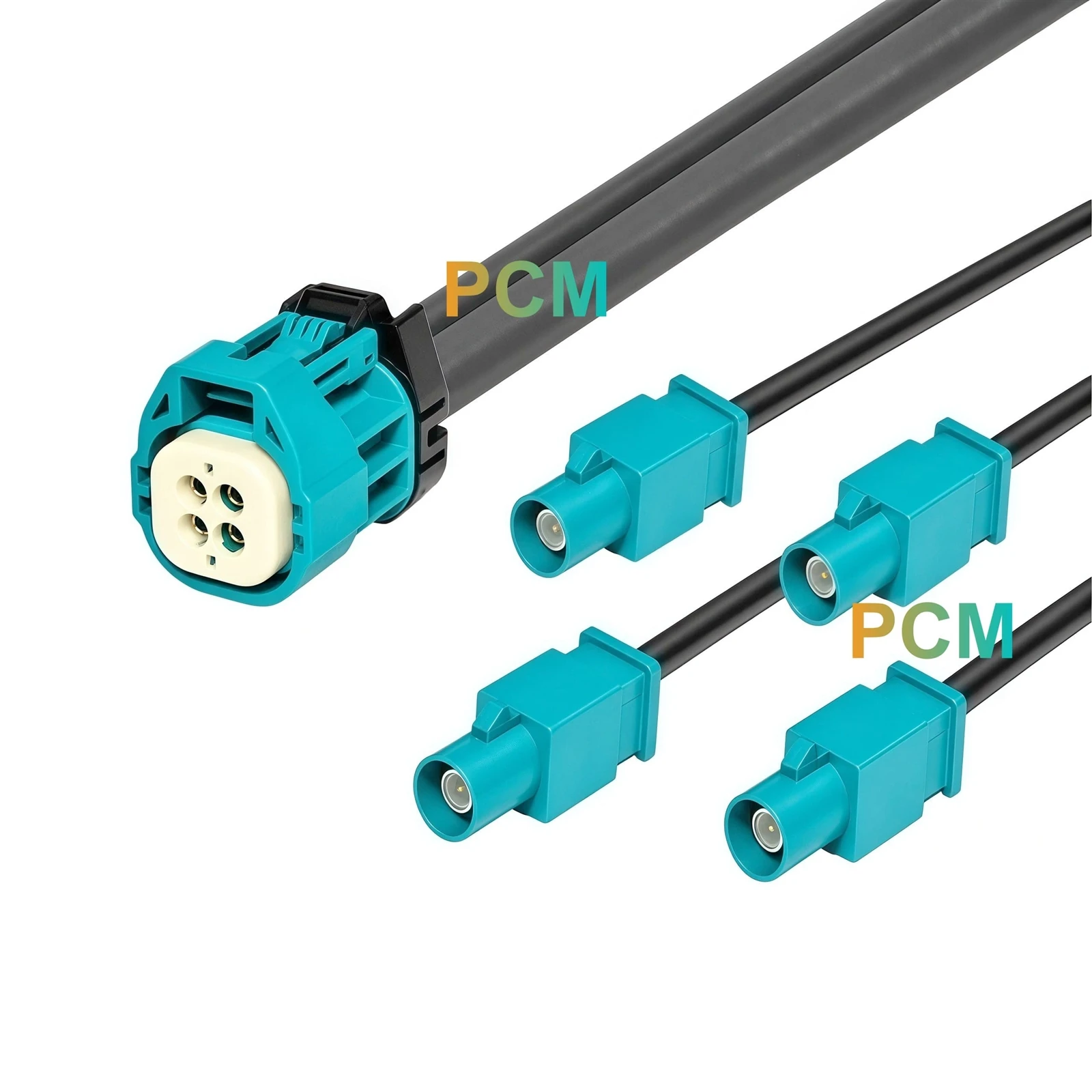

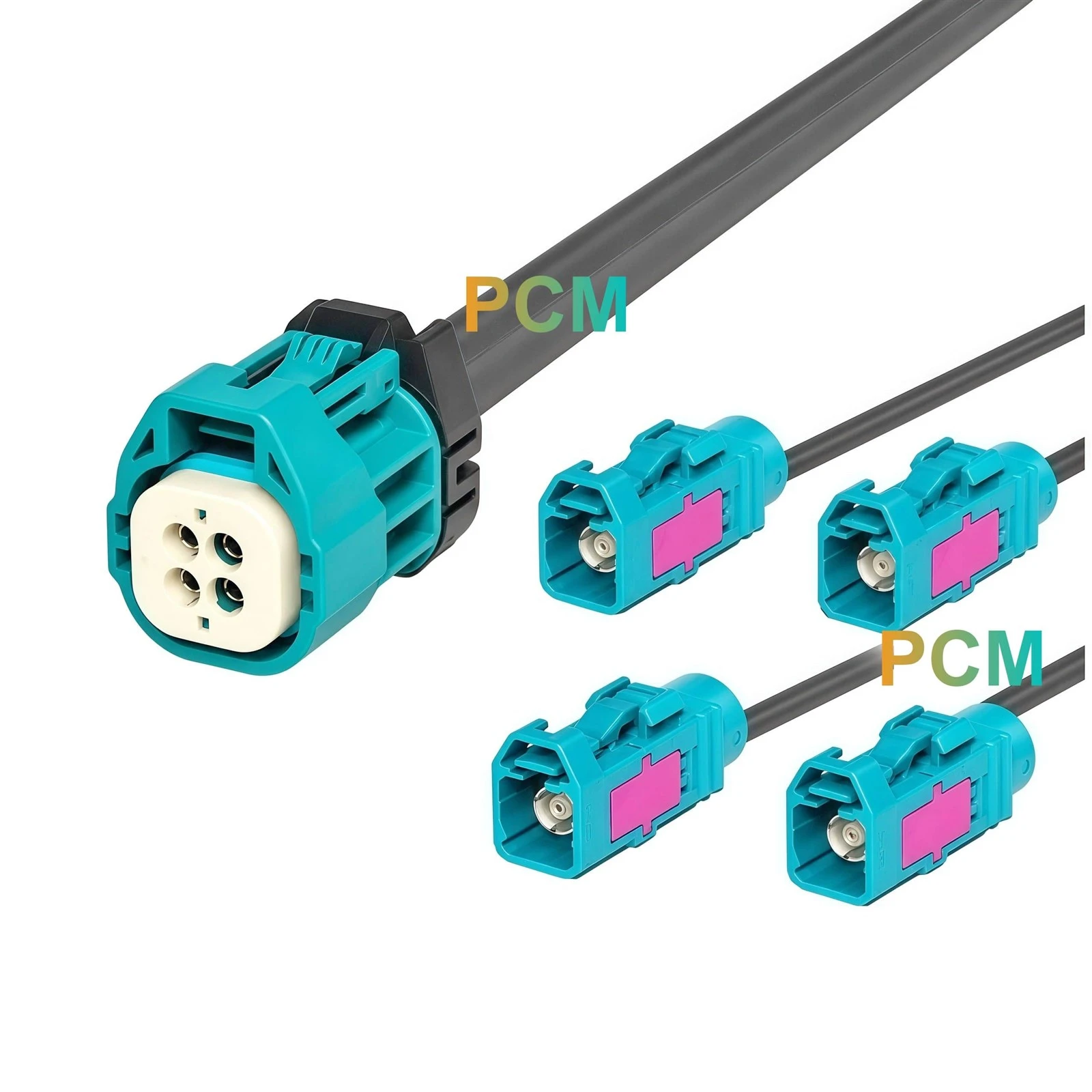

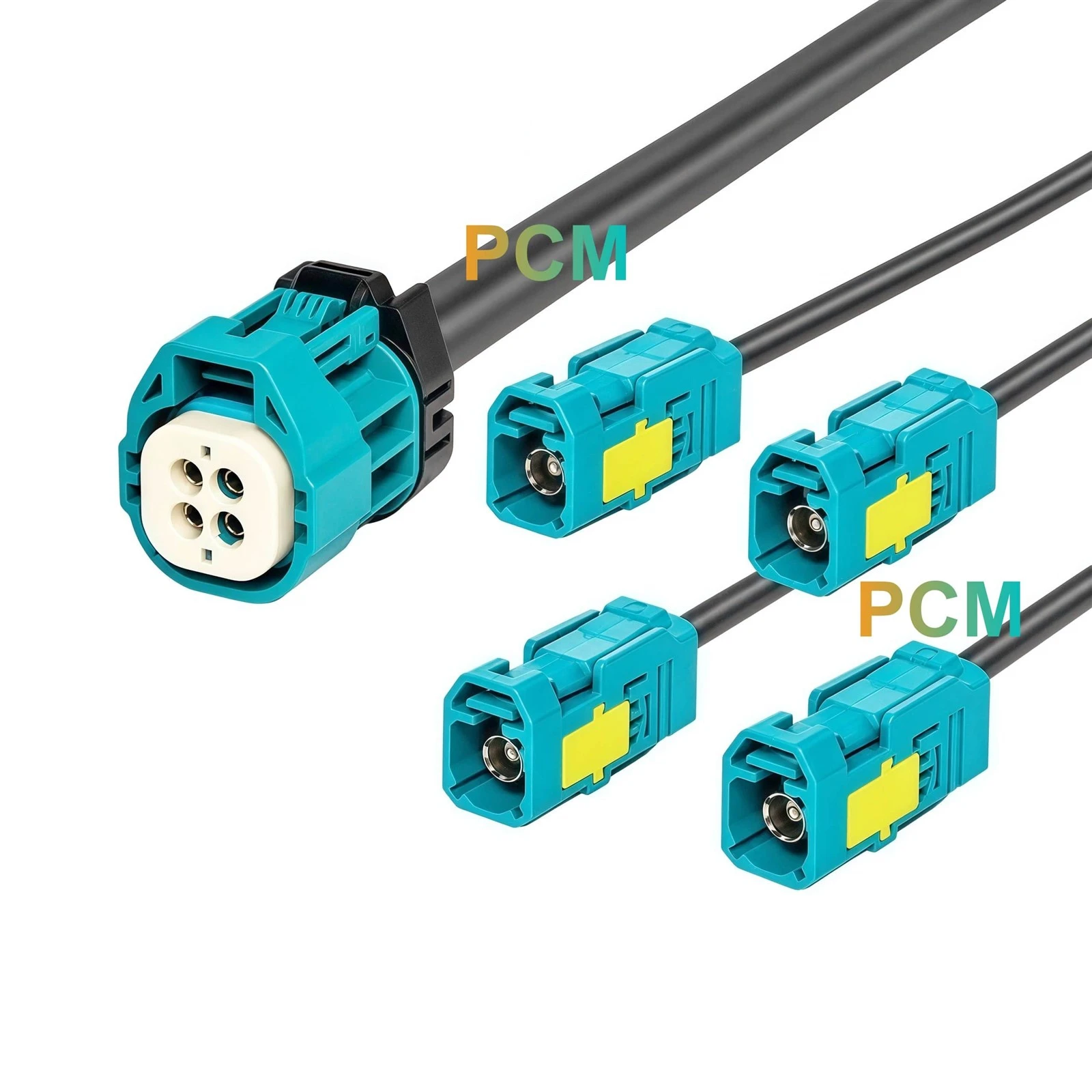

Mini-FAKRA AMF 4 Cavity Female to FAKRA Female Cable
This configuration connects the IP67 Waterproof Mini-FAKRA AMF four-cavity female connector with four standard FAKRA female connectors.
It provides a practical solution for connecting Mini-FAKRA multi-channel systems with existing FAKRA interfaces, making it suitable for vehicle camera modules and electronic harness conversion applications.

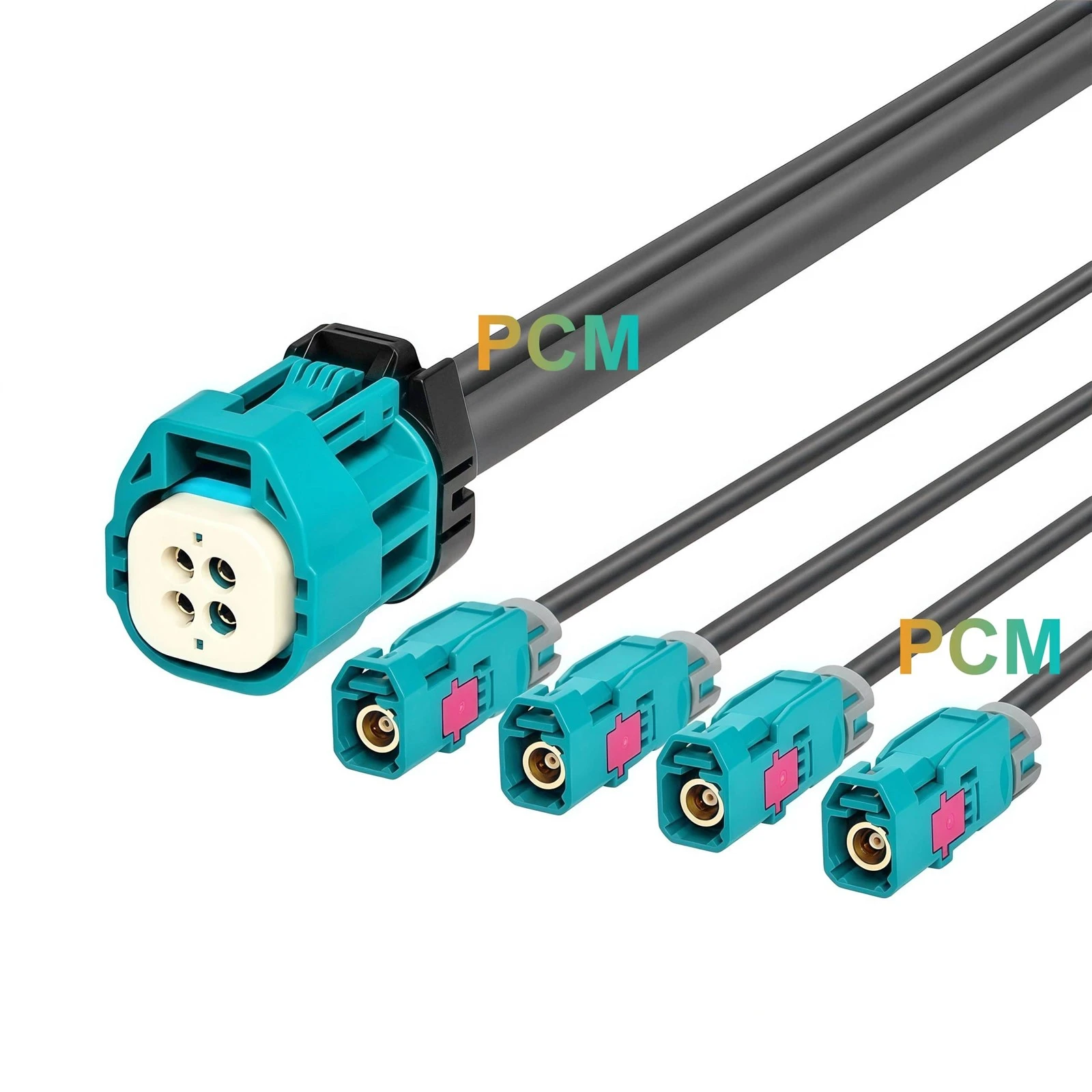

Mini-FAKRA AMF 4 Cavity Female to Rosenberger FAKRA Female Cable
This version uses Rosenberger FAKRA straight female connectors on the secondary side.
Compared with the standard FAKRA option, it provides compatibility with Rosenberger FAKRA-based automotive systems and is suitable for OEM applications requiring specific connector brand matching.

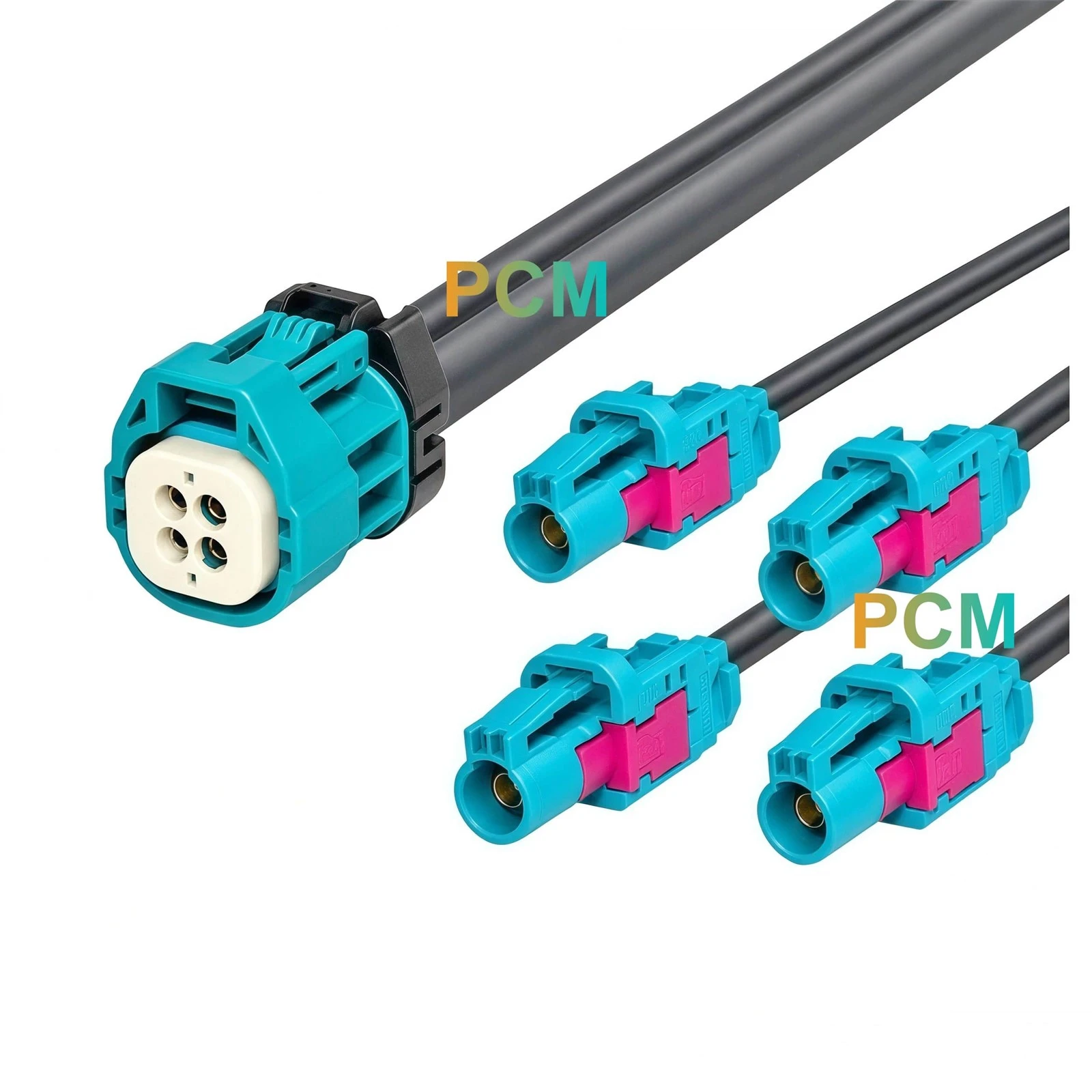

Mini-FAKRA AMF 4 Cavity Female to Rosenberger FAKRA Male Cable
This configuration converts the Mini-FAKRA AMF four-cavity interface into four Rosenberger FAKRA male outputs.
The male FAKRA termination allows direct connection with compatible female FAKRA ports, providing flexibility for different vehicle wiring layouts and module interfaces.

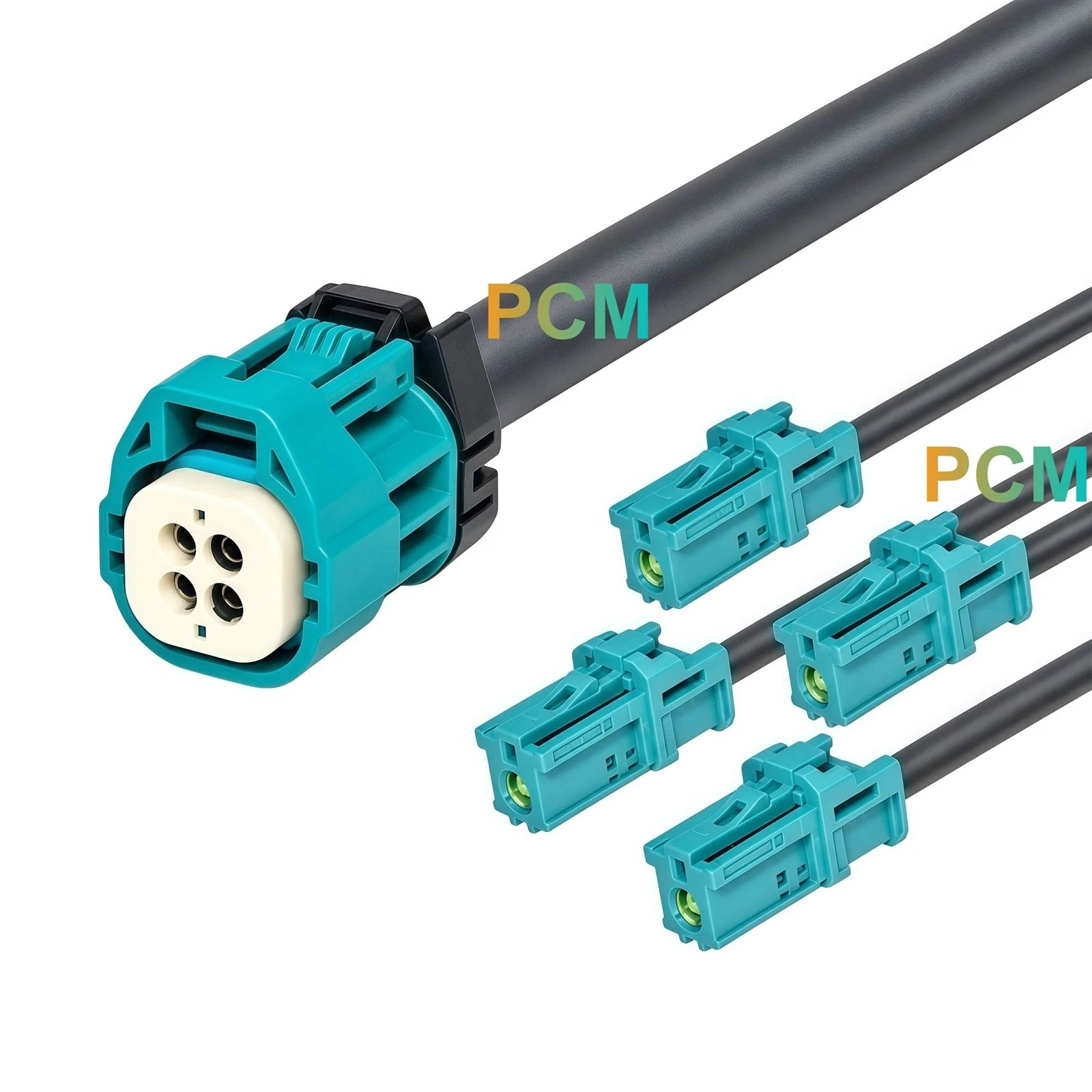

Mini-FAKRA AMF 4 Cavity Female to Rosenberger HFM Female Cable
This version integrates Rosenberger HFM single-cavity female connectors with the Mini-FAKRA AMF four-cavity interface.
The compact HFM connector design makes it suitable for applications requiring smaller automotive high-speed interfaces and space-saving harness layouts.
Mini-FAKRA AMF 4 Cavity Female to TE Mate-AX Female Cable
This configuration connects the Mini-FAKRA AMF connector with TE Mate-AX single-cavity female connectors.
It provides an interface conversion solution between different automotive connector platforms, suitable for vehicle electronics requiring Mate-AX compatibility.

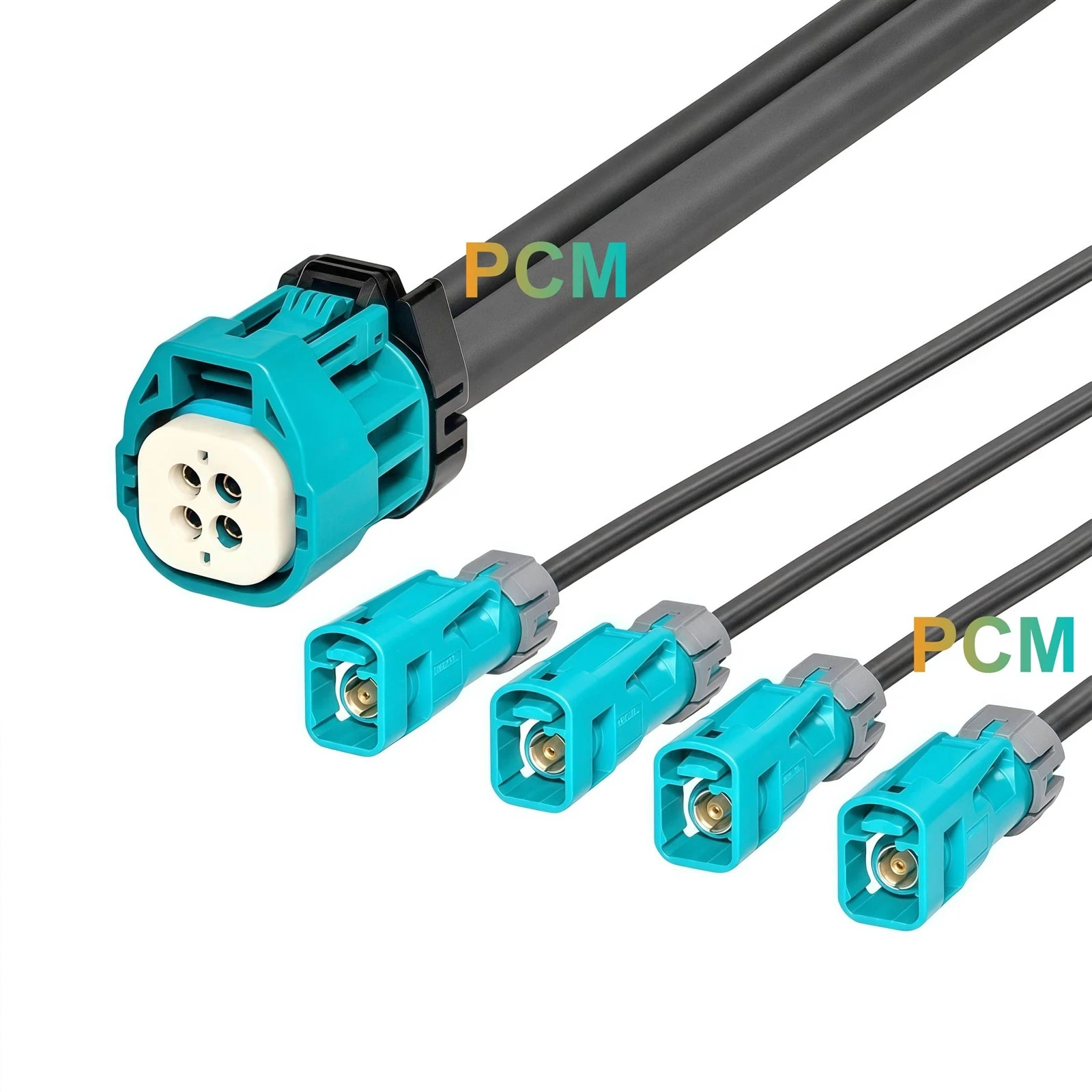

Mini-FAKRA AMF 4 Cavity Female to FAKRA Waterproof Female Cable
This version combines IP67 Waterproof connectors on both sides by using a waterproof FAKRA female connector.
It is designed for automotive environments where moisture protection and reliable coaxial connections are required.
Mini-FAKRA AMF 4 Cavity Female to Rosenberger Waterproof FAKRA Female Cable
This configuration uses Rosenberger IP67 Waterproof FAKRA female connectors.
It provides a waterproof connection option with Rosenberger interface compatibility for automotive camera systems and outdoor vehicle electronics.
Mini-FAKRA AMF 4 Cavity Female to Rosenberger Waterproof FAKRA Male Cable
This version features Rosenberger IP67 Waterproof FAKRA male connectors on the output side.
It is suitable for systems requiring male waterproof FAKRA connections while maintaining the compact Mini-FAKRA multi-channel input structure.

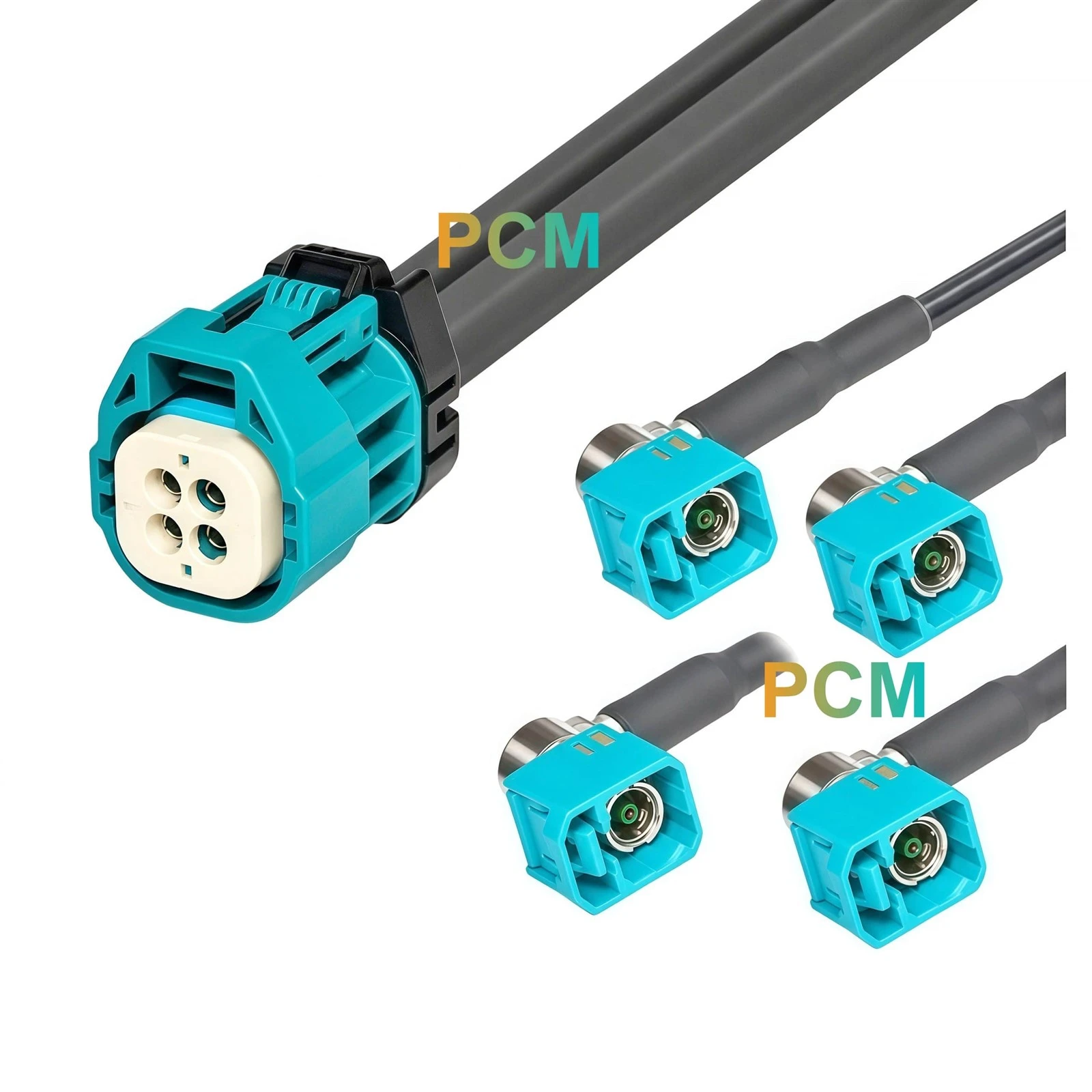

Mini-FAKRA AMF 4 Cavity Female to TE Waterproof FAKRA Right Angle Female Cable
This configuration uses a TE IP67 Waterproof FAKRA right-angle female connector.
The right-angle structure helps reduce cable bending space and provides better routing flexibility in compact automotive installation areas.

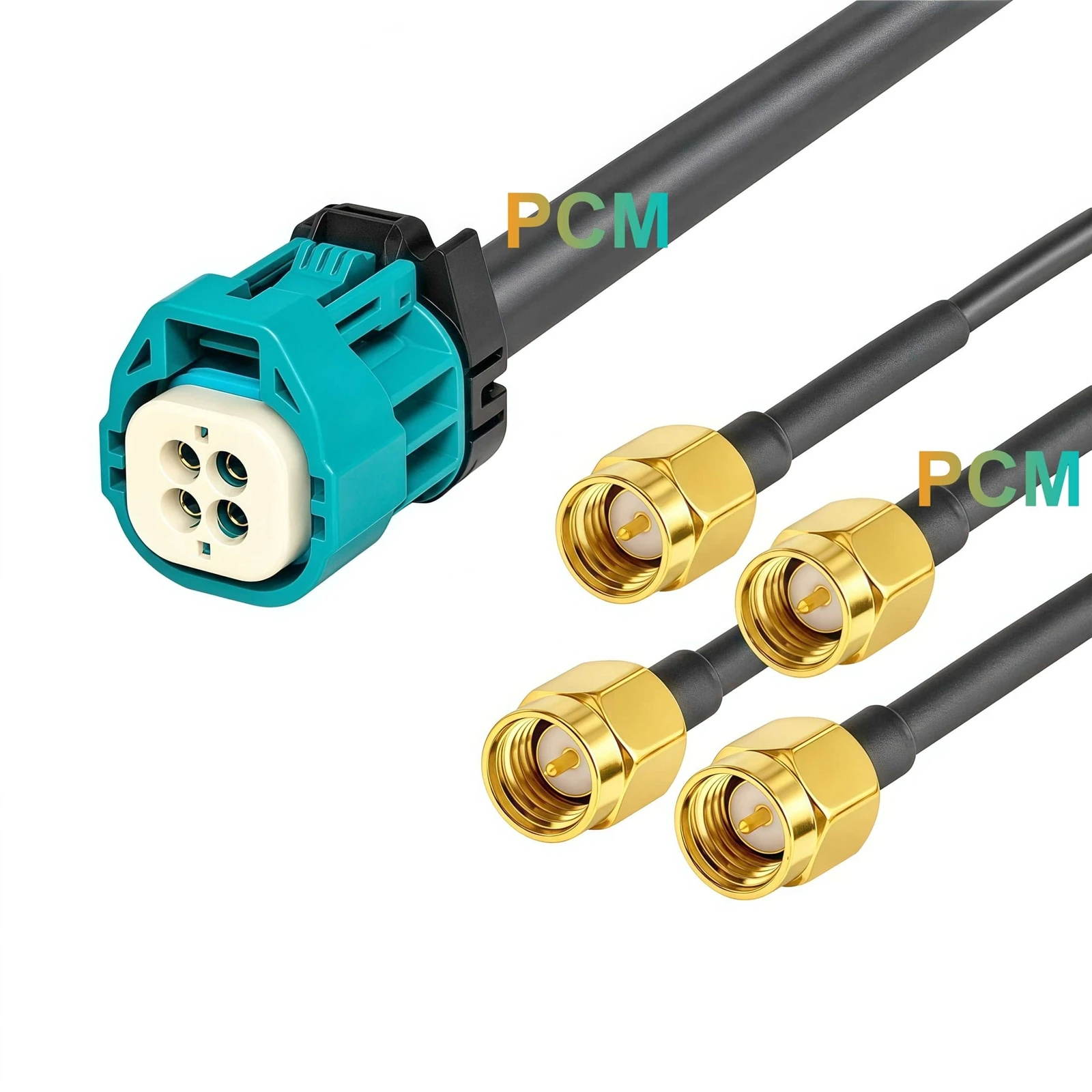

Mini-FAKRA AMF 4 Cavity Female to SMA Male Cable
This version converts the Mini-FAKRA AMF interface to SMA male connectors.
The SMA interface provides compatibility with RF test equipment, development platforms, and engineering validation systems requiring threaded coaxial connections.

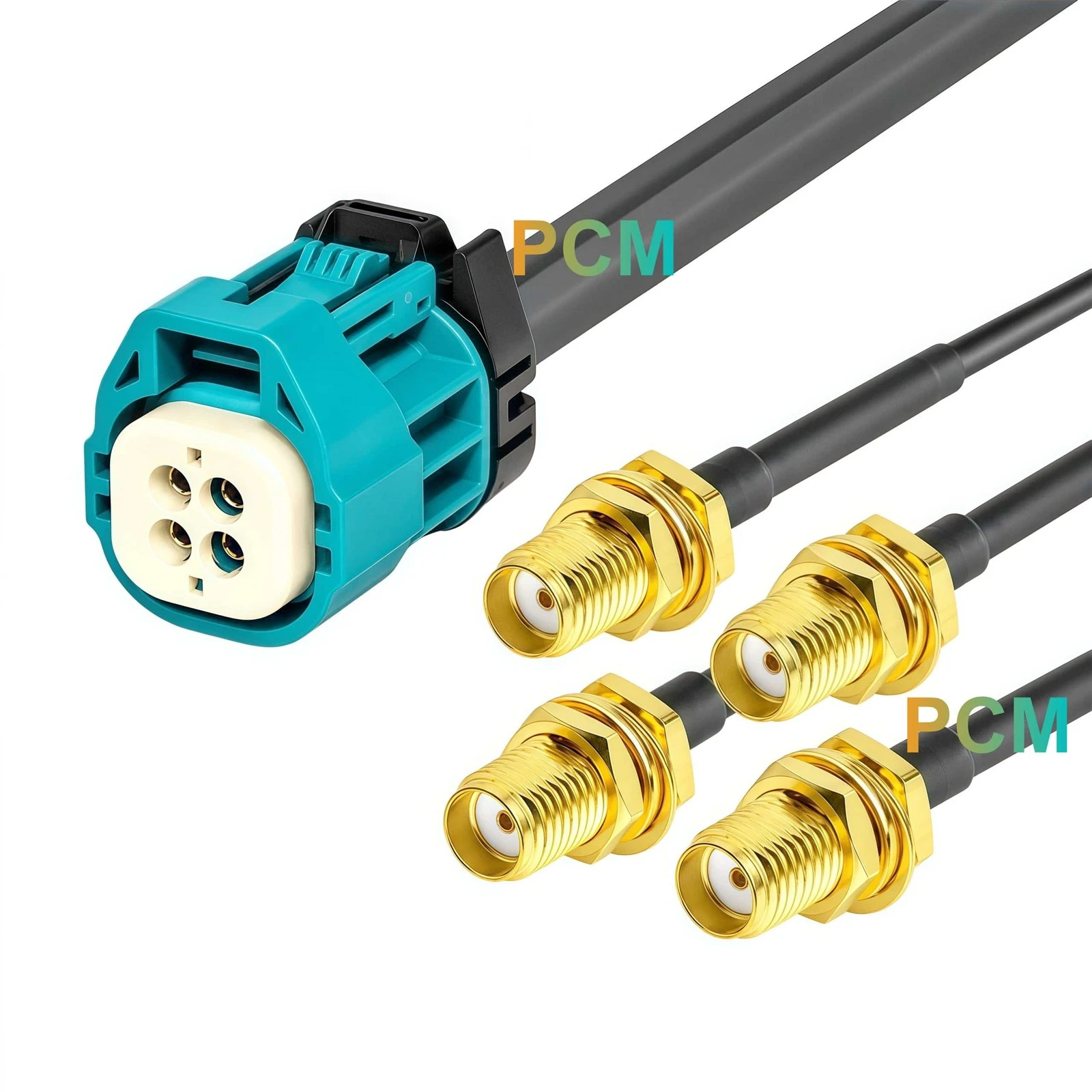

Mini-FAKRA AMF 4 Cavity Female to SMA Female Cable
This configuration uses SMA female connectors on the output side.
It is suitable for RF testing, laboratory development, and electronic validation applications where SMA female interfaces are required.
Applications & Benefits
Automotive Camera Systems
Designed for vehicle camera modules, vision systems, and automotive electronic applications requiring compact coaxial connections.
Multi-Connector Platform Integration
Supports connections between Mini-FAKRA and different automotive connector platforms including FAKRA, HFM, Mate-AX, and SMA.
Compact Multi-Channel Connection
The four-cavity Mini-FAKRA structure combines multiple coaxial channels into one compact connector interface design solution.
OEM Harness Development
Flexible connector combinations help engineers develop prototype harnesses and customized automotive cable assemblies with greater design flexibility.
Customization Capabilities
Connector Combination Customization
Premier Cable supports Mini-FAKRA AMF connections with different FAKRA, HFM, Mate-AX, and SMA connector options.
Cable Length Customization
Cable lengths can be customized according to installation requirements and vehicle harness design for various automotive system integration needs.
Cable Selection
Compatible coaxial cable options including Dacar 302-4 and ECT302L can be selected according to project requirements and vehicle system needs.
OEM Cable Assembly Service
Support includes connector selection, cable assembly, labeling, and packaging customization for different customer project requirements and applications.
Product FAQ
Q1. What is the main connector used in this cable?
The main connector is Mini-FAKRA AMF 4 Cavity Female, Z-Code, P/N 818018737.
Q2. What connectors can be used on the other side?
Available options include FAKRA, HFM, Mate-AX, and SMA connectors.
Q3. Is this cable IP67 Waterproof?
The AMF four-cavity connector side is IP67 Waterproof. Other side protection depends on the selected connector configuration.
Q4. What coaxial cables are available?
The cable assembly supports RTK031 coaxial cable options such as Dacar 302-4 and ECT302L.
Q5. Can different connector combinations be customized?
Yes. Premier Cable supports customized connector combinations, cable lengths, and OEM cable assembly requirements.
