Hirose LF Series 4-Pin Waterproof Panel Mount Connectors LF10WBR,LF10WBRB
Hirose LF Series 4-pin waterproof panel mount connectors are industrial-grade receptacles engineered for rugged, high-current, and space-saving power or signal distribution.
Designed to withstand harsh environmental conditions, these chassis-mount connectors provide a secure, vibration-resistant interface for equipment enclosures.
We offer these genuine Hirose receptacles in both Front-Mount LF10WBR and Rear-Mount LF10WBRB styles with male or female contact configurations to perfectly match your panel thickness and internal wiring layouts.
Technical Features & Performance Advantages
High-Current Capability & Safety Certified: Despite its compact miniature footprint, the 4-position configuration supports a high current rating of up to 10A and a voltage rating of 125V AC/DC. It is fully compliant with stringent TÜV and UL safety standards for global industrial markets.
IP67/IP68 Environmental Sealing: Features a high-performance rubber gasket that ensures robust dust-tight and watertight sealing when mated with LF series cable plugs, protecting internal electronics from liquid ingress.
Vibration-Resistant Bayonet Lock: Utilizes a secure, short-turn bayonet locking mechanism. This design guarantees quick, tactile mating and prevents accidental decoupling caused by high vibration, mechanical shock, or heavy cable pull.
Superior EMI Shielding: Encased in a rugged, nickel-plated zinc alloy shell, providing excellent structural integrity and low-resistance electrical grounding for robust EMI/RFI protection.
PRODUCT SPECIFICATIONS
| Connector Type |
|
Series | Hirose LF Series |
| Connector A |
|
Mating connector |
|
| Water Resistance |
|
Rated Voltage |
|
| Operating Temperature |
|
Rated Current | 10A |
Application Scenarios
Industrial Robots & AGV Systems
The bayonet locking structure and metal construction make the LF10 connector suitable for robotic controllers, AGVs, AMRs and automated production equipment where vibration-resistant connections are important.
Factory Automation & Industrial Machinery

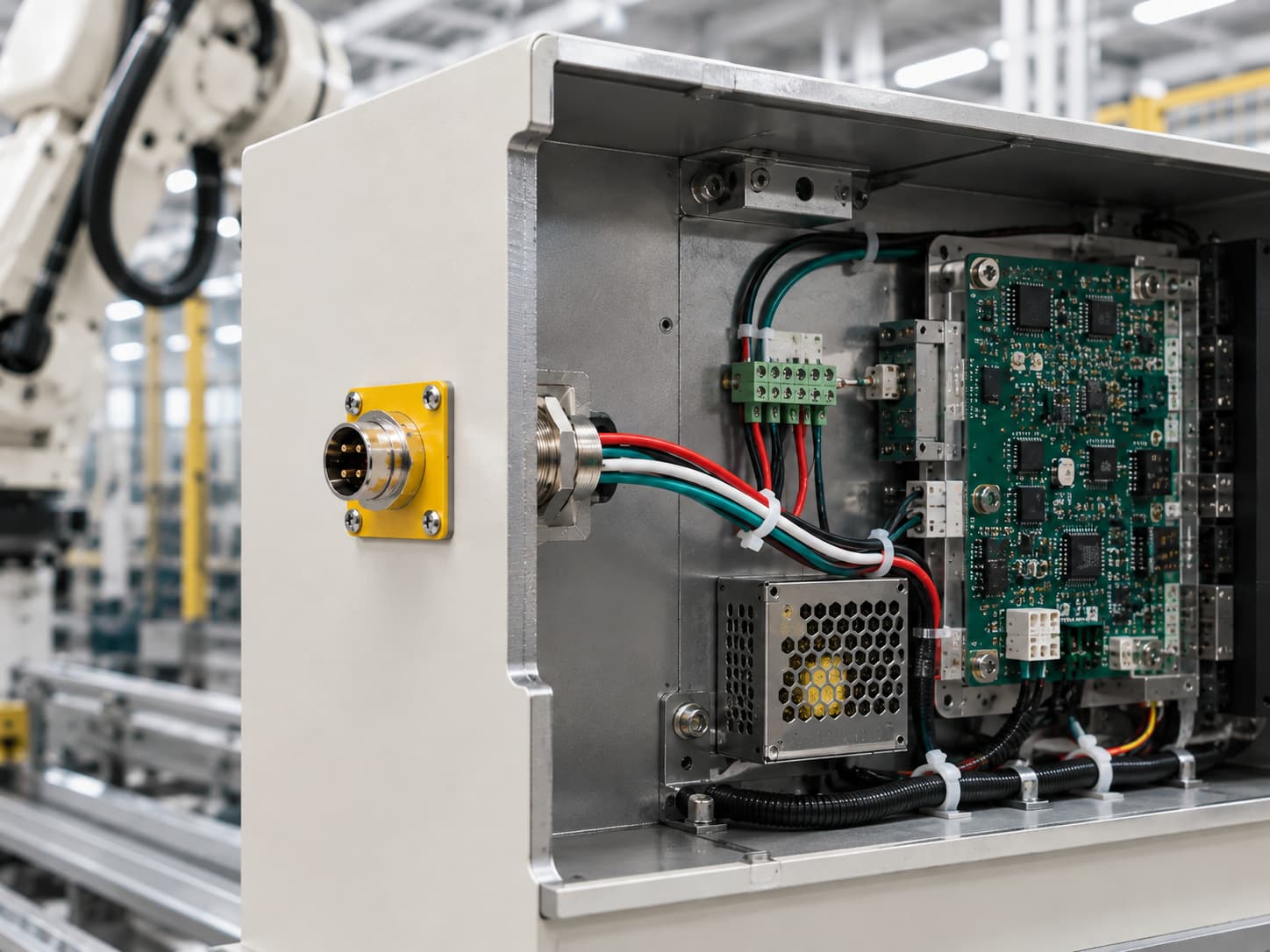

Suitable for control cabinets, servo systems, CNC machinery, industrial controllers and distributed automation equipment requiring a compact and secure panel-mounted power or signal interface.
Product Selection Guide
To satisfy diverse bulkhead integration requirements, the LF series 4-pin receptacles are divided into two mounting configurations
Front-Mount Installation LF10WBR Series
Standard front-panel mounting where the connector flange is secured from the outside of the enclosure. Best for easy exterior installation and maintenance.
Male Receptacle Pin : LF10WBR-4P
Female Receptacle Socket : LF10WBR-4S
Rear-Mount Installation LF10WBRB Series
Rear-panel mounting where the connector is secured from the inside of the enclosure. Ideal for panels with aesthetic design requirements or strict exterior space constraints.
Male Receptacle Pin : LF10WBRB-4P
Female Receptacle Socket : LF10WBRB-4S
