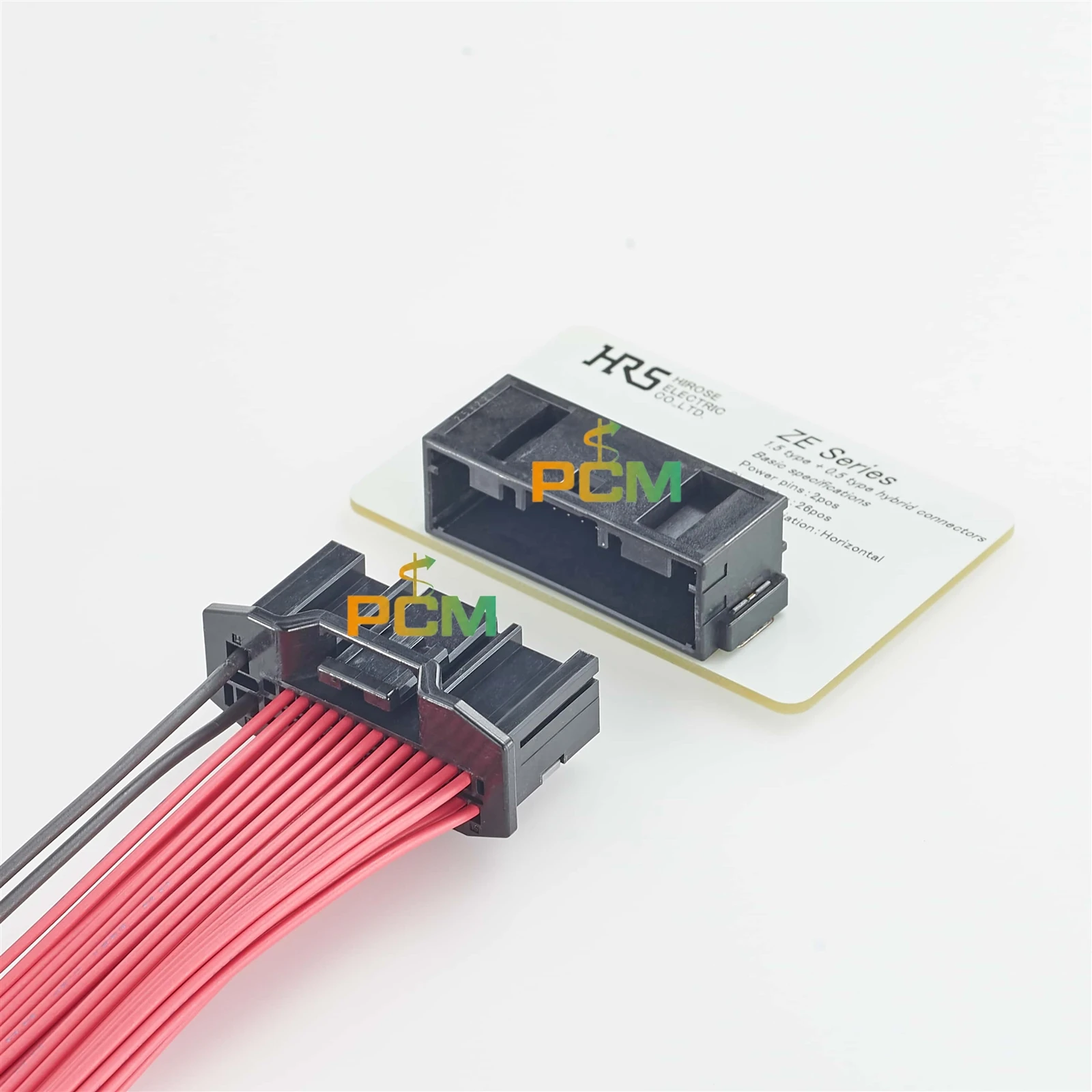

Products Description
Premier Cable manufactures Hirose ZE05 Series Cable Assemblies using original Hirose connectors, providing customized OEM cable harness solutions for automotive electronics, battery systems, sensors, ECUs, inverters, charging systems, and industrial automation equipment.
The Hirose ZE05 Series is a compact 2.0 mm-pitch automotive interface connector designed for applications requiring space efficiency, high-temperature resistance, vibration resistance, and reliable electrical connection.
We can manufacture complete ZE05 cable assemblies according to customer drawings, BOMs, pin assignments, cable specifications, and required cable lengths.
Available standard configurations include 2, 4, 5, 8, 12, 16, 20 and 24 positions, with both connector and cable assembly configurations available according to the customer's application.
What Is the Hirose ZE05 Series ?
The Hirose ZE05 Series is a high-temperature and vibration-resistant automotive interface connector featuring a compact 2.0 mm contact pitch.
Its compact 0.5-size terminal design helps reduce the required PCB mounting area while maintaining reliable electrical and mechanical performance.
Product Configuration
8-Pin ZE05
ZE05-8DS-HU/R(A) Plug
ZE05H-8DP-2H(A) Receptacle
20 Pin ZE05
ZE05-20DS-HU/R(A) Plug corresponding ZE05 20-position Receptacle
12-Pin ZE05
ZE05-12DS-HU/R Plug + corresponding ZE05H 12-position Receptacle
24 Pin ZE05
ZE05-24DS-HU/R(A) Plug + ZE05H-24DP-2H(A) Receptacle
16-Pin ZE05
ZE05-16DS-HU/R Plug
ZE05-16DP-2H Receptacle
Application Scenarios
Automotive Inverters
High-temperature resistance and vibration-resistant construction make ZE05 suitable for control and monitoring circuits within automotive inverter systems.

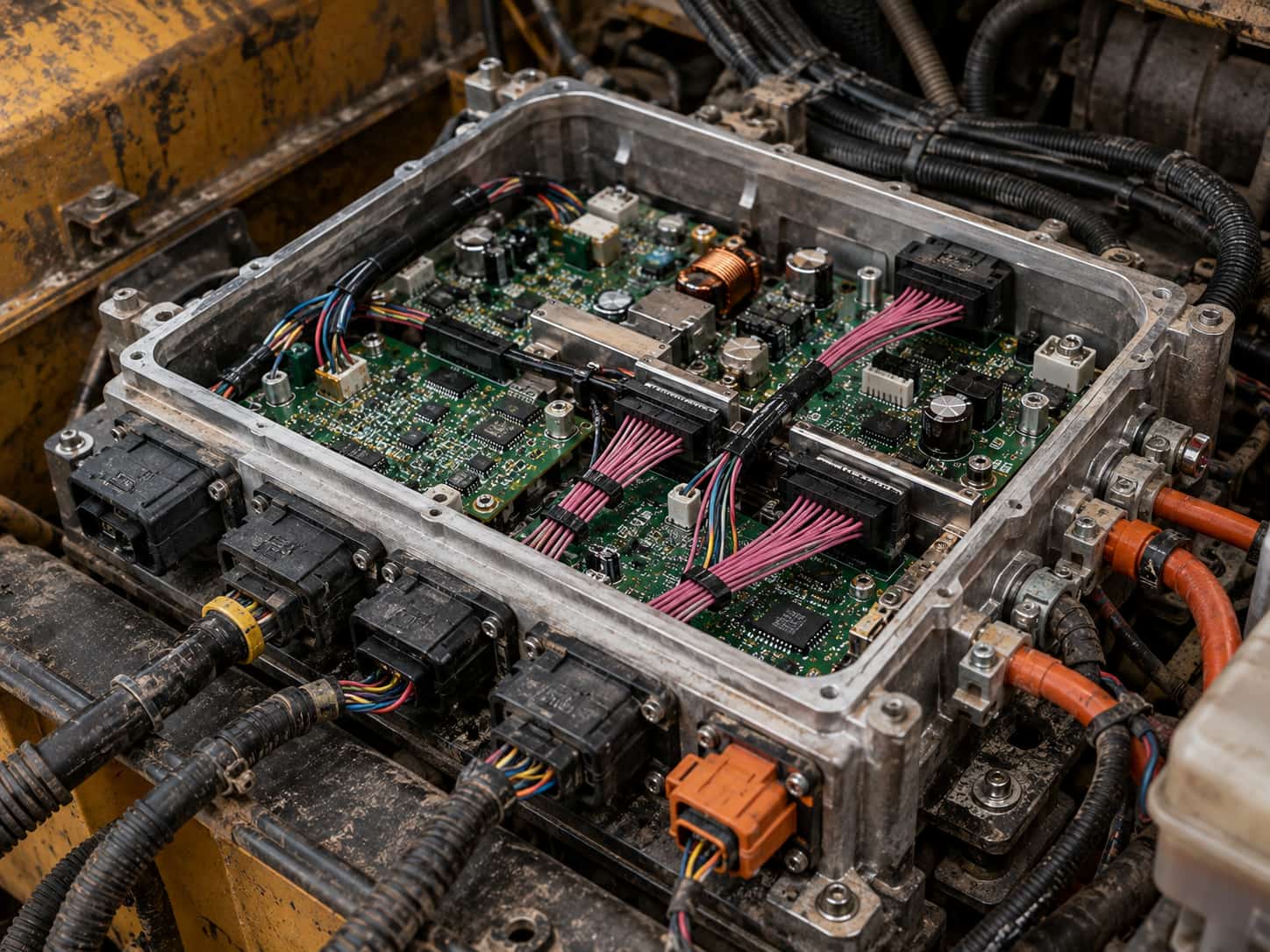

Heavy-Duty Vehicles
Custom ZE05 harnesses can be integrated into electronic control systems for commercial vehicles, construction equipment, agricultural machinery, and other heavy-duty platforms.
Why Choose ZE064W for Harsh Automotive Applications ?
Original Hirose Connector
We can manufacture cable assemblies using specified original Hirose ZE05 connectors.
Complete OEM Cable Assembly
Customers receive a finished cable harness rather than loose connectors and terminals.
Multiple Pin Configurations
Support for standard ZE05 configurations including 8, 12, 16, 20 and 24 positions.
Custom Wiring
Pin-to-pin wiring can be manufactured according to customer drawings and specifications.
Custom Cable Length
Standard or non-standard cable lengths can be produced according to the customer's application.
Prototype to OEM Production
Suitable for prototypes, engineering samples, small-batch orders and OEM production programs.
Hirose ZE05 Cable Assembly Supplier
If you are looking for a supplier capable of manufacturing Hirose ZE05 Series Cable Assemblies with original Hirose connectors, Premier Cable can provide a complete OEM cable harness solution.
We can support 8-pin, 12-pin, 16-pin, 20-pin and 24-pin ZE05 cable assemblies, including custom cable lengths, wire specifications, pin assignments and connector combinations.
For projects requiring a specific Hirose ZE05 part number, simply send us the Hirose connector part number, drawing, BOM, pin assignment or existing sample cable.
Our engineering team can verify the connector configuration and manufacture the corresponding OEM cable assembly.
