Molex 2451360420 Mega-Fit 4 Circuits Wire-to-Board Cable Assembly

This Molex 2451360420  Mega-Fit 4-pin in-stock cable assembly is a high-performance wire-to-board connection solution designed for low-to-medium power and medium-to-high power applications, particularly suitable for environments requiring high current and high reliability. The assembly features a Mega-Fit to Mega-Fit two-terminal connection, is identical in design to the Molex 2451360420, has a 5.70mm connector pitch, and includes 4 pins for high-density electrical connections in a compact space. Each contact supports up to 23A of current and 600V of voltage, meeting the power delivery needs of industrial automation, automotive, and other demanding applications.

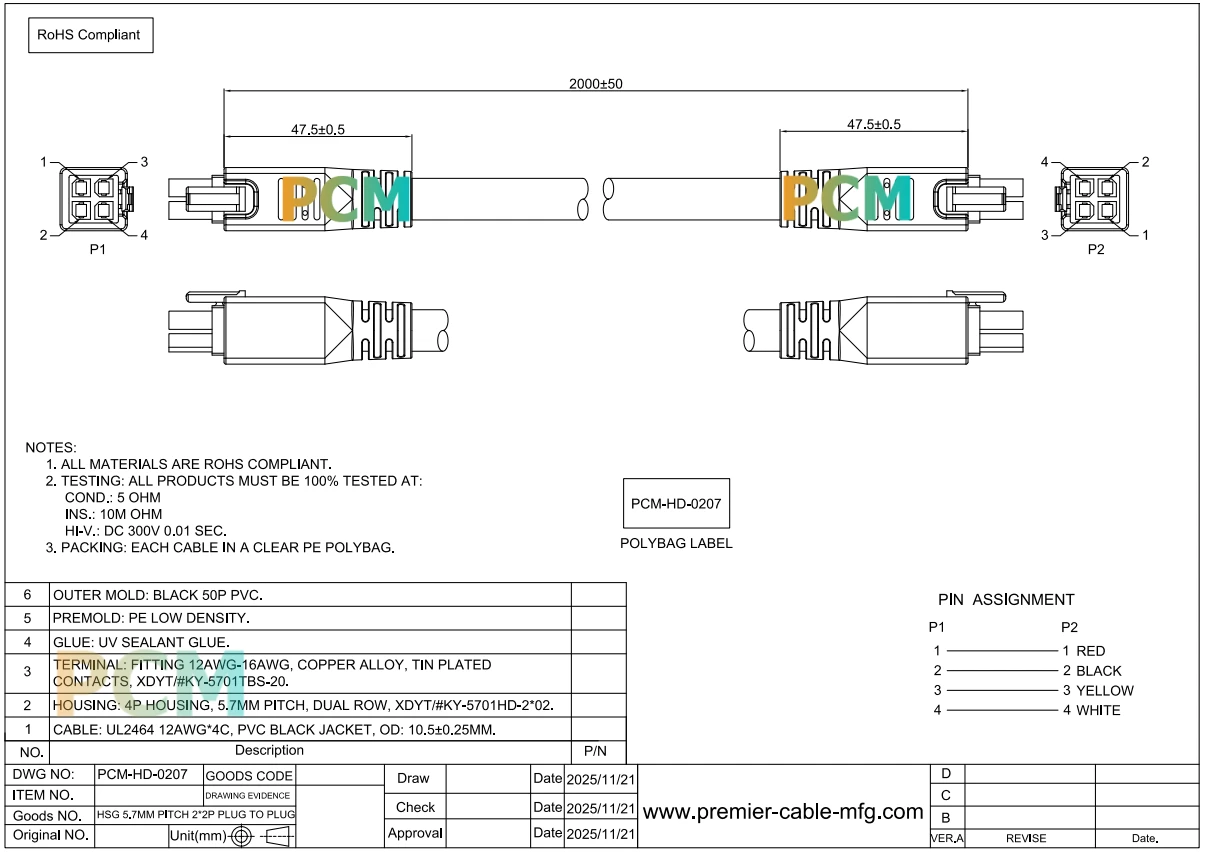

The double-ended connection of the PCM-HD-0207 provides great flexibility for equipment installation and maintenance, allowing users to easily wire and configure according to their specific needs. PCM Co, Ltd. provides OEM automotive wiring harness solutions for passenger and commercial vehicles. Our product portfolio includes automotive wiring harnesses, automotive cable assemblies, ECU harnesses, automotive wiring harness assemblies, and automotive electrical wiring harnesses, designed for power, signal, and data transmission in harsh automotive environments.







⊙ 5.7mm Pitch

The connector spacing is 5.70mm, featuring a compact design suitable for high-density space layouts, ensuring efficient electrical connections.

⊙ 600V Voltage

Supports a maximum voltage of 600V, suitable for high-voltage power systems, ensuring safety and reliability in high-voltage environments.

⊙  23A Current

Each contact supports a maximum current of 23A, providing strong current carrying capacity to meet the needs of high-power equipment.

⊙ Standard connector

Utilizes a Mega-Fit male-to-female connection method, providing a stable connection structure to ensure good electrical contact and long-term reliability.

⊙  Plug-in structure

The high-retention force plug-in design ensures stable connection, preventing plug loosening and guaranteeing reliable equipment operation.

⊙  Terminal plating

The terminals use high-quality plating to reduce contact resistance, ensuring efficient and stable electrical transmission and extending service life.

⊙ Suitable

This cable assembly is ideal for mass production, OEM assembly, and rapid product development, meeting the needs for efficient assembly and customization.
