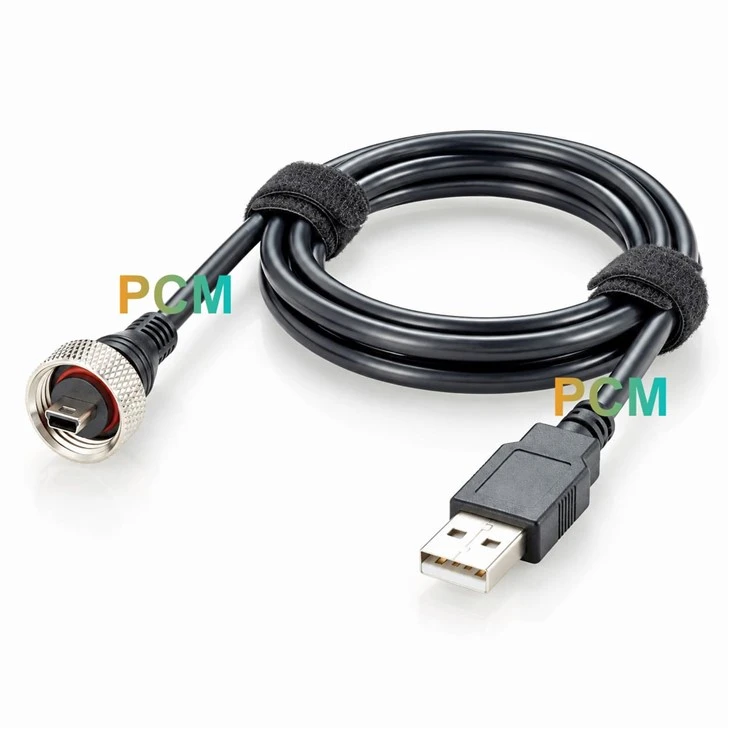

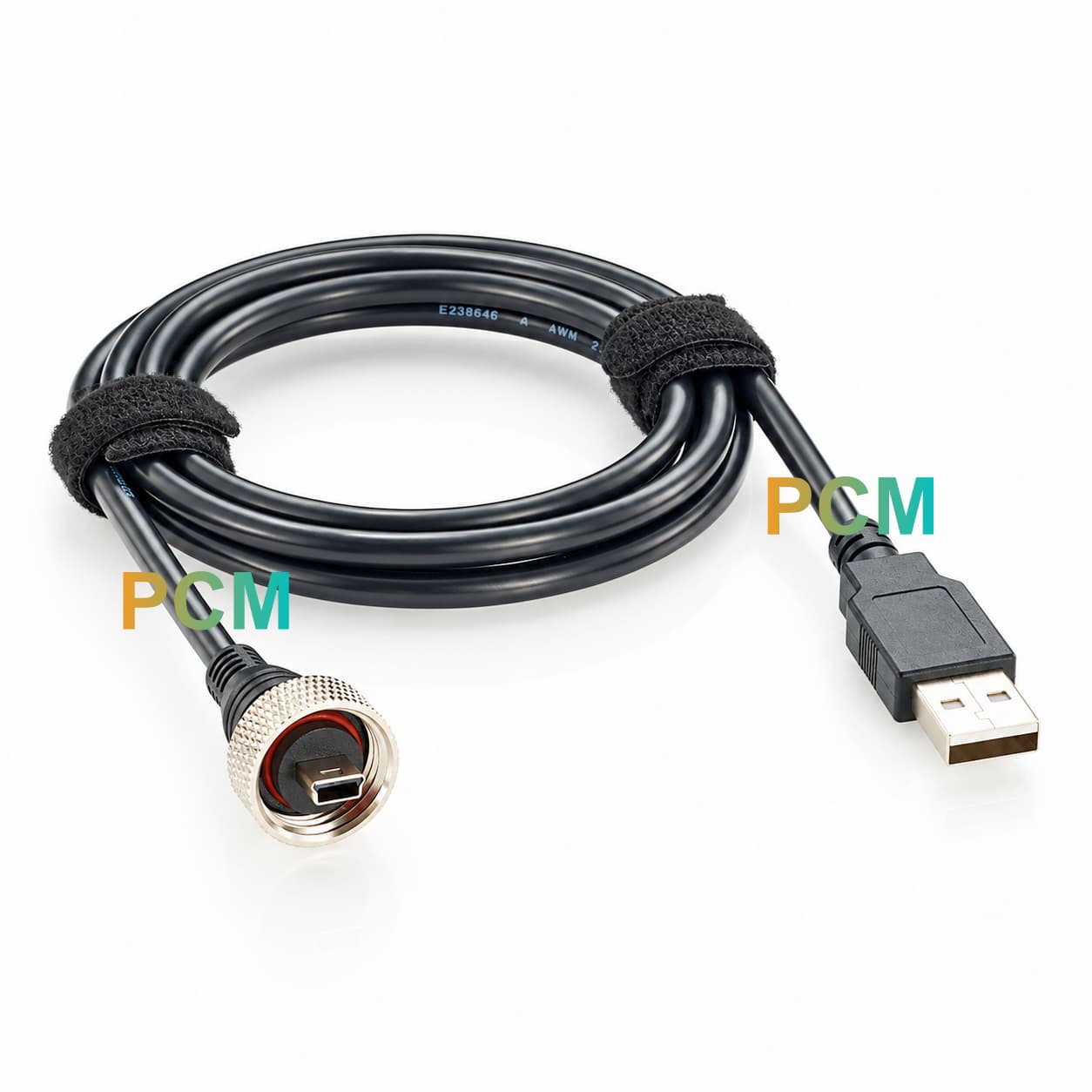

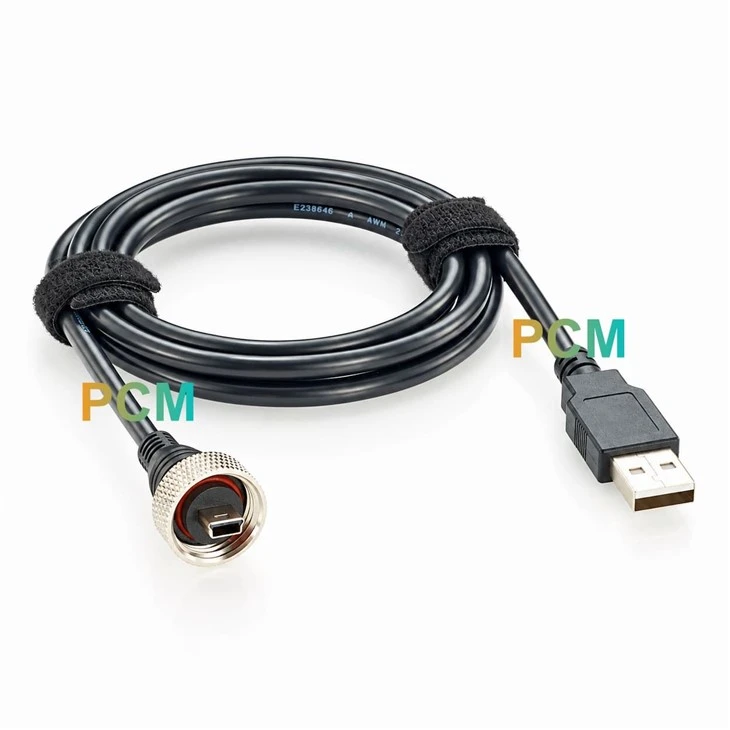

PCM-1018 is a newly developed industrial USB 2.0 Type-A male to sealed Mini USB-B male cable from Premier Cable, designed for equipment that requires USB communication together with a mechanically secured panel connection.

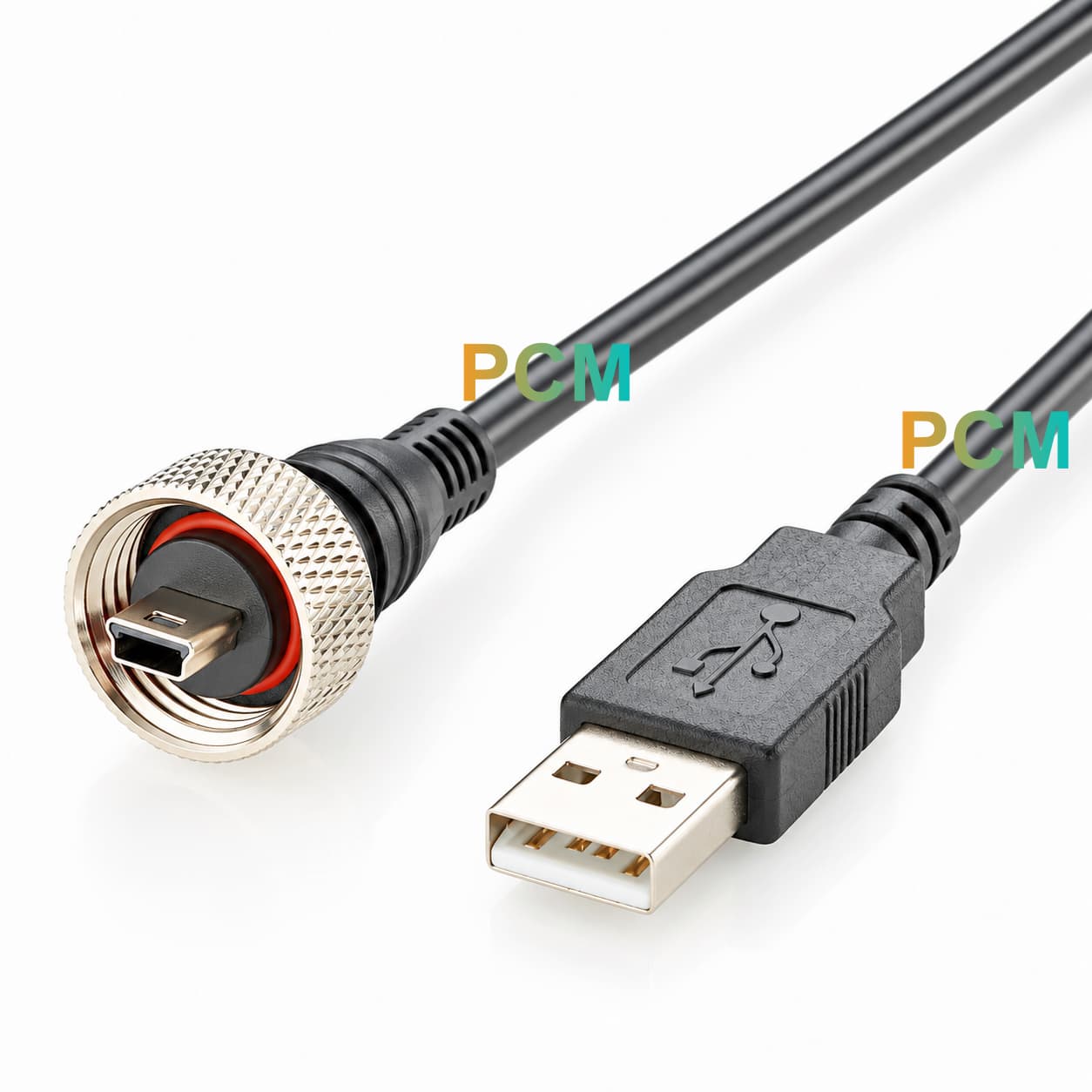

Unlike a conventional USB-A to Mini USB cable, the Mini USB-B side of PCM-1018 is integrated into a circular protective body with a threaded locking interface, sealing components and metal fastening hardware. This allows the Mini USB connection to be used as part of a more controlled industrial interconnect system rather than relying only on USB plug retention.

PCM-1018 is positioned as a Bulgin PX0441 compatible cable and is intended to mate with a Bulgin PX0443 front-panel Mini USB-B socket. Bulgin officially describes PX0441 as a Standard USB Type-A to sealed Mini USB Type-B cable and specifically lists PX0443 among its compatible mating connectors.

For OEMs maintaining existing Mini USB Buccaneer-style installations or developing equipment requiring a sealed panel USB interface, PCM-1018 provides a practical platform for custom USB cable, wholesale cable assembly and manufacturer-level production projects.

Products Specification

Drawing No.	PCM-1018
Product Type	USB 2.0 Type-A Male to Locking Mini USB 2.0Type-B Male Cable
P1	USB 2.0 Type-A Male

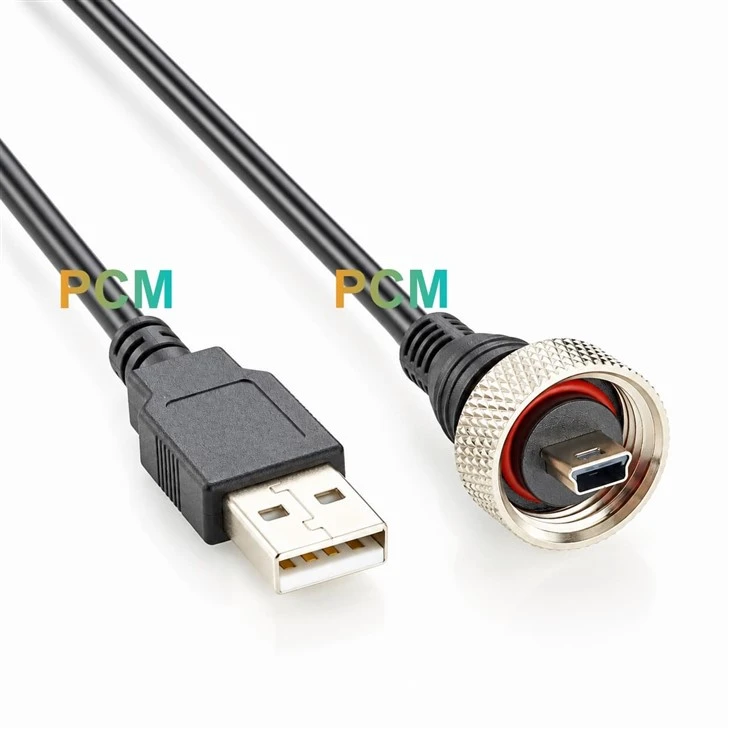

P2	Mini USB 2.0 Type-B Male with Threaded Locking Structure
Total Length	1500 + 25 mm
Cable OD	4.5 mm
Cable standard	UL2725
Power conductors	24 AWG × 2 Conductors

Key Design Value

PCM-1018 goes beyond simple USB-A to Mini USB-B conversion by adapting a conventional USB interface into a locking connection solution for equipment integration.

The threaded Mini USB interface helps resist axial separation and reduces accidental disconnection caused by vibration, movement, or long-term operation. Internally, 28AWG data conductors and shielding provide a stable USB signal path.

A typical architecture is Equipment → Panel Socket → Locking Mini USB Plug → USB-A Host, reducing reliance on standard Mini USB insertion force alone and making the assembly better suited for industrial equipment, instrumentation, and fixed-installation systems.

Product Features

Standard USB 2.0 Interface

USB 2.0 Type-A male to Mini USB 2.0 Type-B male, compatible with standard USB-A hosts for industrial PCs, controllers and test equipment.

Threaded Locking Design

The Mini USB-B end features a threaded locking housing that mates securely with a compatible panel socket, reducing accidental disconnection under vibration or movement.

Data, Power & Shielding

A 28 AWG data pair, 24 AWG power conductors and shielding integrate USB data, power and signal protection into one cable assembly.

PX0441-Compatible Design

Designed for Bulgin PX0441-compatible applications and PX0443-style panel sockets, supporting replacement parts, equipment maintenance and OEM integration.

Core Performance Advantages

◆ Secure Locking & Reduced Connector Stress

The threaded locking structure transfers part of the pulling force and mechanical load to the connector housing, reducing stress on the Mini USB interface and minimizing accidental disconnection caused by vibration, movement or cable pulling.

◆ USB Compatibility & OEM Integration

The design retains a standard USB-A host interface while adding a locking Mini USB connection on the equipment side. It improves connection reliability without changing the existing USB architecture and supports standardized cable length, construction and OEM assembly.

Typical Applications

Test and Measurement Instruments

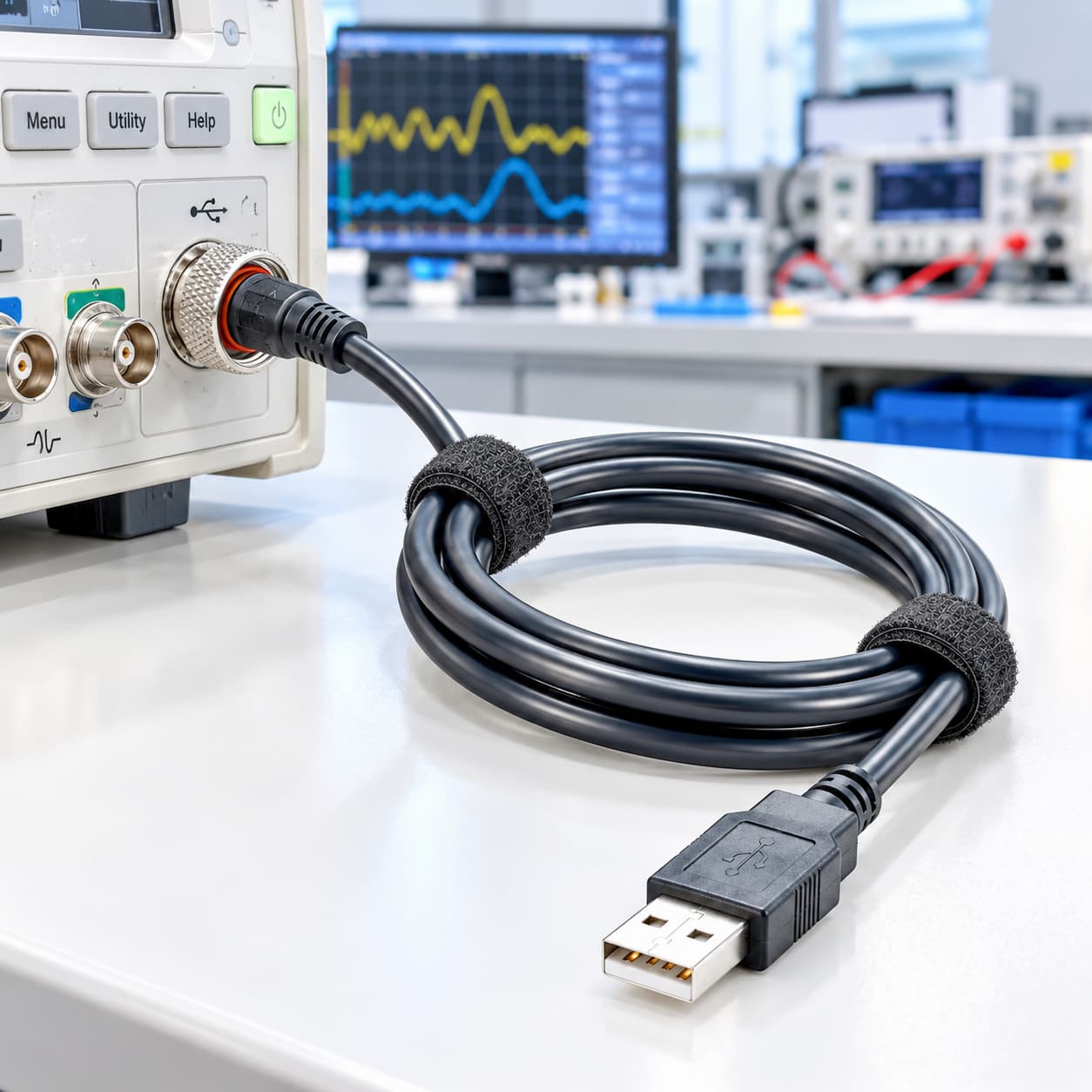

Designed for test controllers, data acquisition systems and instrumentation requiring accessible USB service connections.

Outdoor Monitoring Equipment

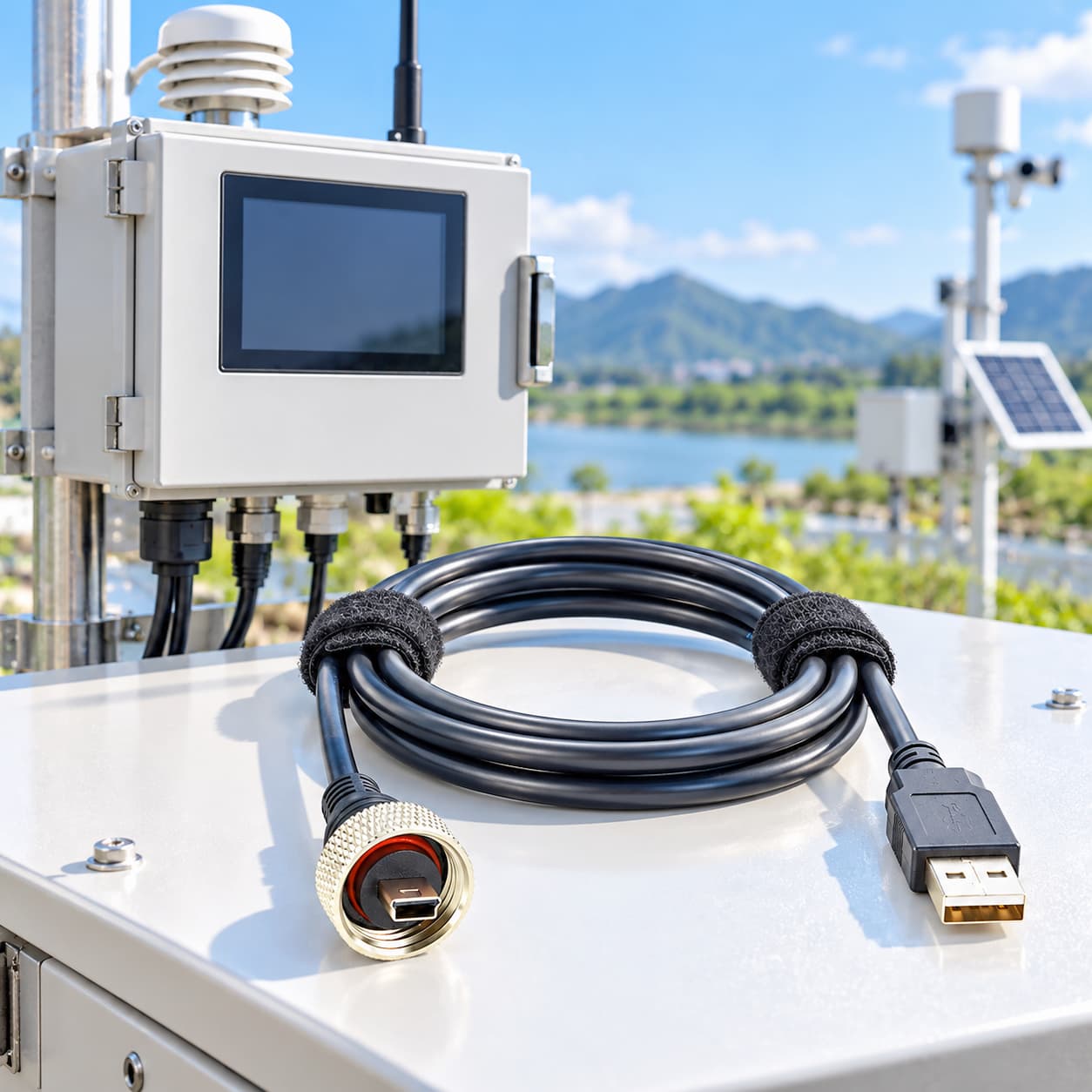

Applicable to monitoring enclosures, sensor controllers and outdoor communication systems where the USB interface requires additional environmental protection.

Installation Requirmeents

Interface & Mechanical Compatibility

Before specifying PCM-1018, confirm compatibility with the intended PX0443-style Mini USB-B panel socket, including the coupling thread, mechanical dimensions, and panel mounting structure. Adequate panel cutout and internal connection space should also be considered for proper mating and secure locking.

USB System & Cable Specifications

Confirm that the equipment uses a USB 2.0 architecture with a USB-A female host interface, and verify whether the standard 1500 ±25 mm cable length meets the installation requirement. Shield termination and grounding requirements should also be defined according to the equipment design.

Protection & System Requirements

For outdoor, industrial, or wet environments, confirm the required protection after mating and whether system-level IP validation is needed. Final protection depends on panel installation, sealing design, and the complete system.

Product FAQ

What Is PCM-1018 ?

PCM-1018 is a USB 2.0 Type-A male to sealed Mini USB-B male cable assembly featuring a threaded locking and sealing structure on the Mini USB end. It is designed for industrial equipment, instrumentation, and panel-mounted USB connections.

Can PCM-1018 Mate with PX0443 ?

Yes. The sealed Mini USB male end of PCM-1018 is designed for mating with a PX0443-style front-panel Mini USB-B socket. Thread, dimensions, and actual mating compatibility should be verified for production applications.

Is PCM-1018 a Standard Circular Aviation Cable ?

No. The internal data interface remains Mini USB 2.0 Type-B. The circular outer structure mainly provides sealing, protection, and mechanical locking. Therefore, the product is more accurately classified as a Waterproof Mini USB Cable / Sealed Mini USB Cable.

Do You Support Wholesale and OEM Customization ?

Yes. Premier Cable provides custom cable, wholesale cable assembly, and OEM manufacturer services, including cable length, cable construction, labeling, packaging, and selected mechanical customization. Sample mating and system verification are recommended before volume production.
