The Type-C Industrial Waterproof Panel Feedthrough Connector series provides a female-to-female USB Type-C connection for industrial equipment, control cabinets, enclosures, instruments, and embedded systems.

All three configurations use the basic architecture:

External Type-C female ↔ Internal Type-C female

Unlike a captive female-to-male extension cable, this series does not require a permanently attached cable. Independent Type-C cables can be connected on both sides of the panel.

A typical connection path is:

External USB-C device → Type-C cable → Panel Type-C female → Internal Type-C female → Internal Type-C cable → Host/controller

This modular architecture separates the panel interface from both external and internal cables, simplifying OEM assembly, maintenance, and cable replacement.

Type 1:

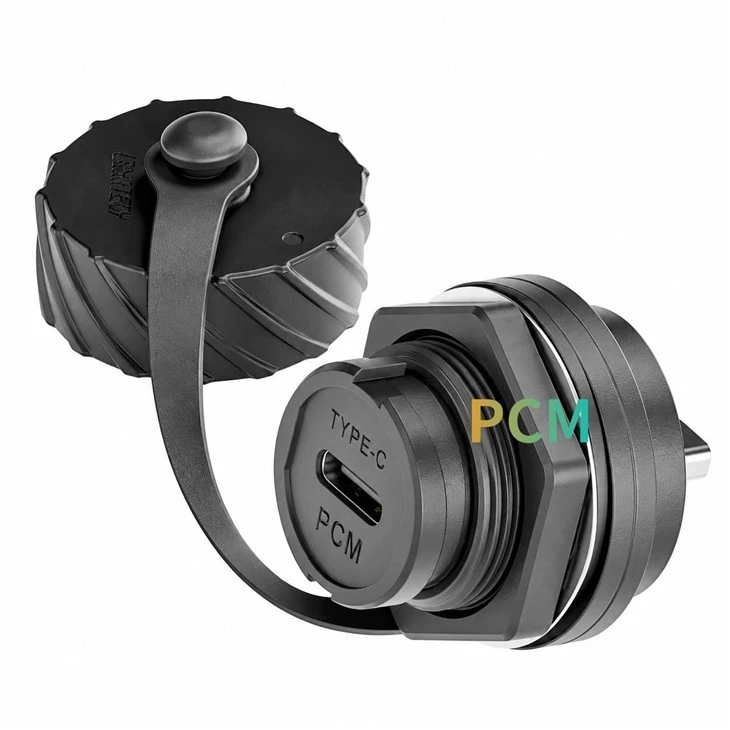

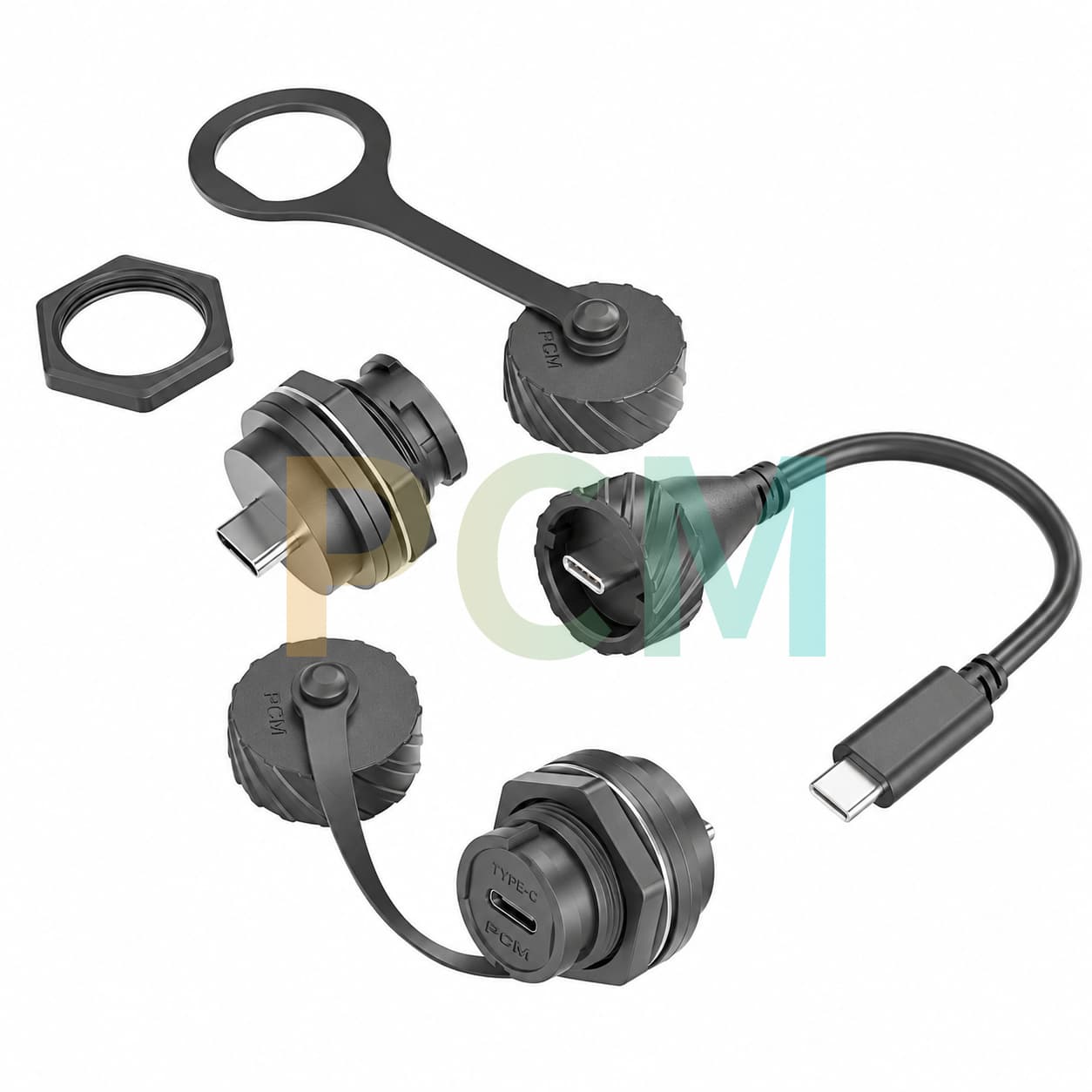

Type-C Tethered-Cap Female-to-Female Panel Connector

Product 1 is a Type-C female-to-female waterproof panel feedthrough connector with a tethered screw cap.

The external Type-C interface is protected by a removable screw-on cap that remains attached to the connector through a tether.

According to the supplied drawing:

Arc diameter: Ø20.8 mm
D-shaped anti-rotation width: 19.40 mm

The panel should therefore be machined with the complete D-shaped anti-rotation profile rather than a simple Ø20.8 circular hole.

Type 2

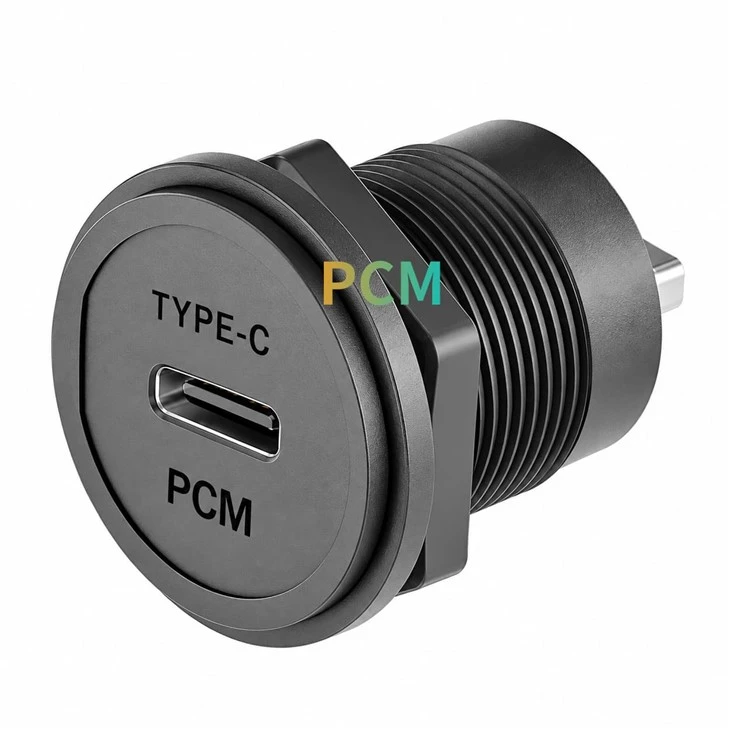

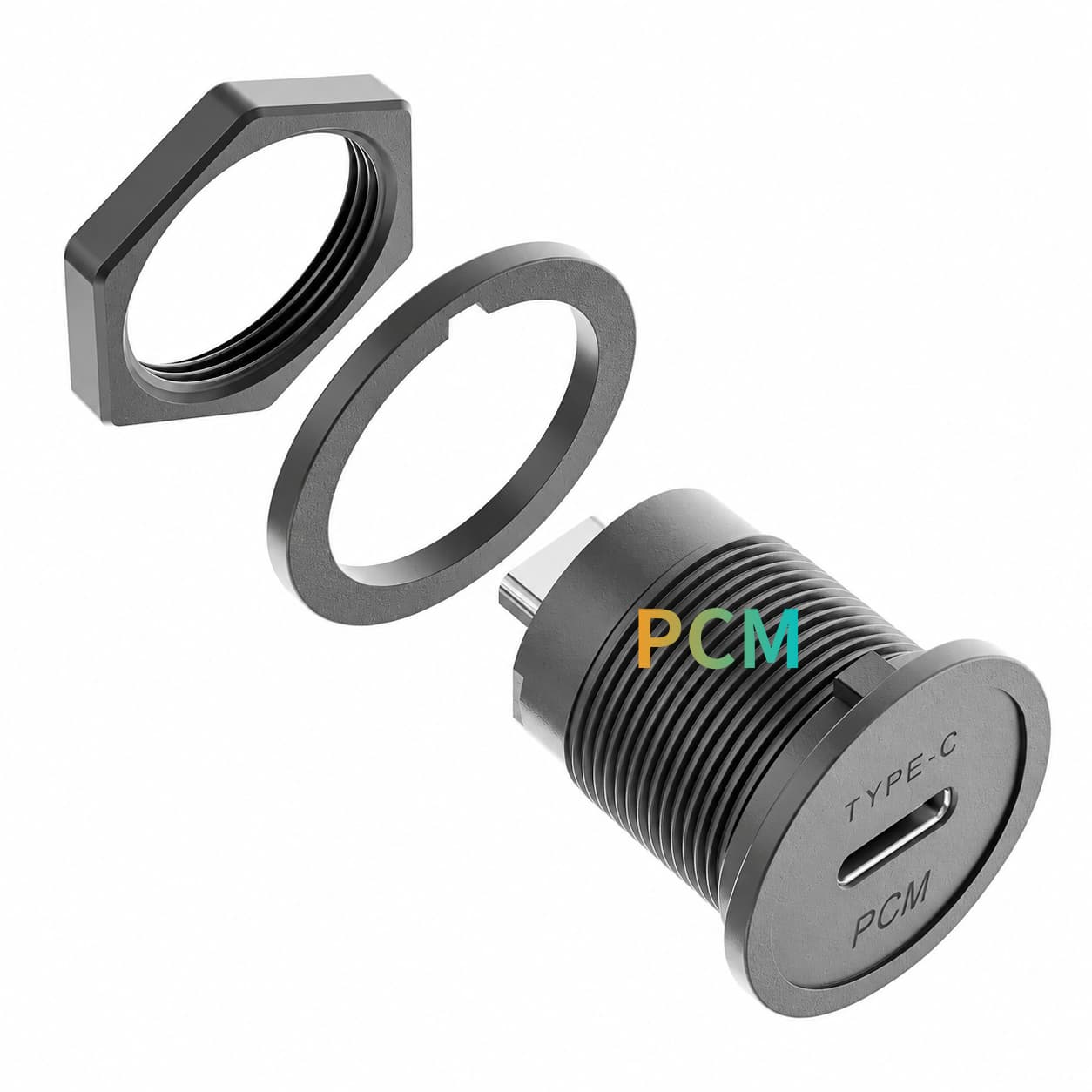

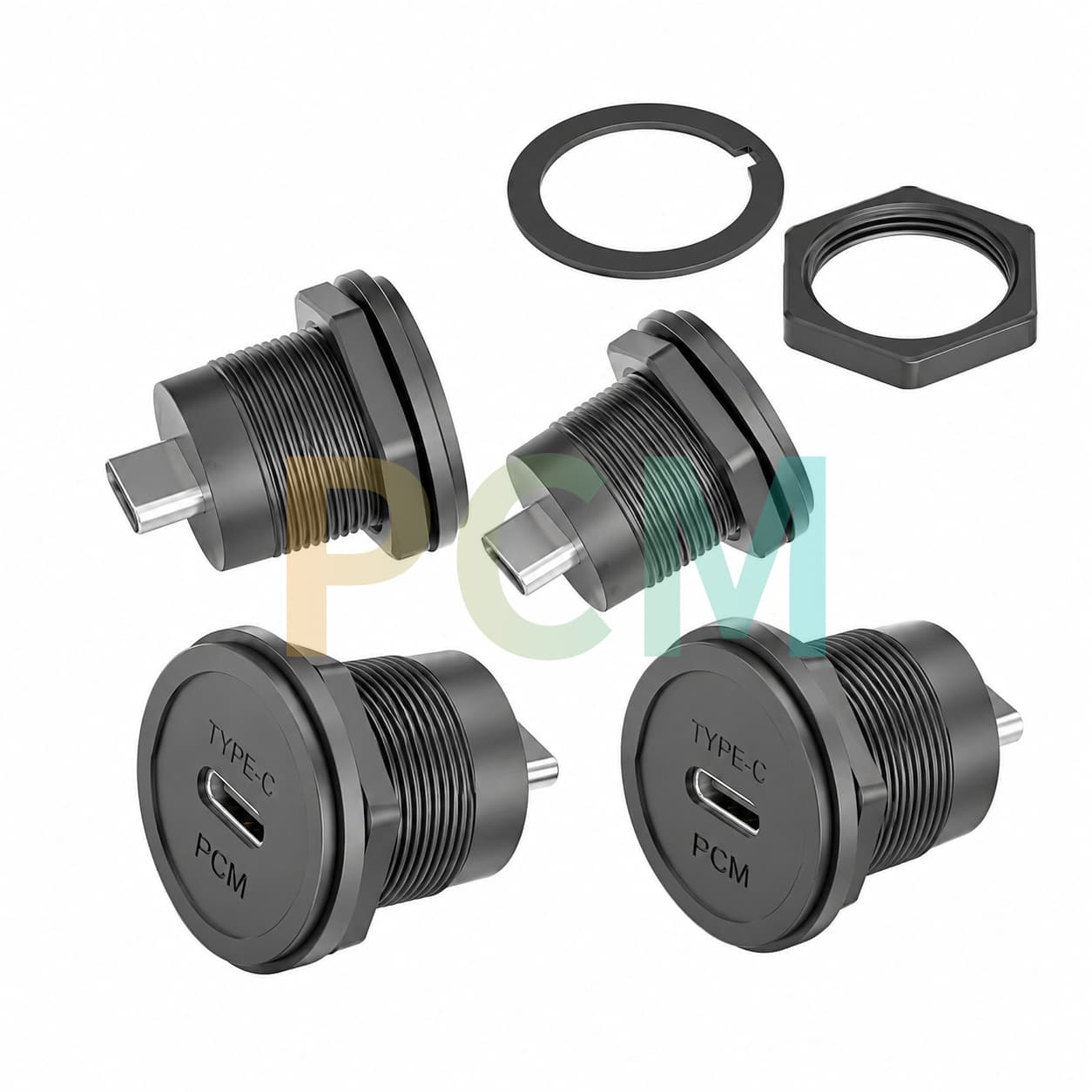

Type-C Capless Thick-Panel Female-to-Female Feedthrough

Product 2 is a capless Type-C female-to-female feedthrough adapter designed for panel and thick-panel installation.

It provides direct USB-C access without requiring the operator to remove a protective cap.

According to the supplied drawing:

Main circular cutout: Ø22.50 mm
Top locating slot: 3.30 mm
Overall cutout height: 24.00 mm

The locating slot provides orientation and anti-rotation positioning and should be included in the complete panel cutout.

Type 3:

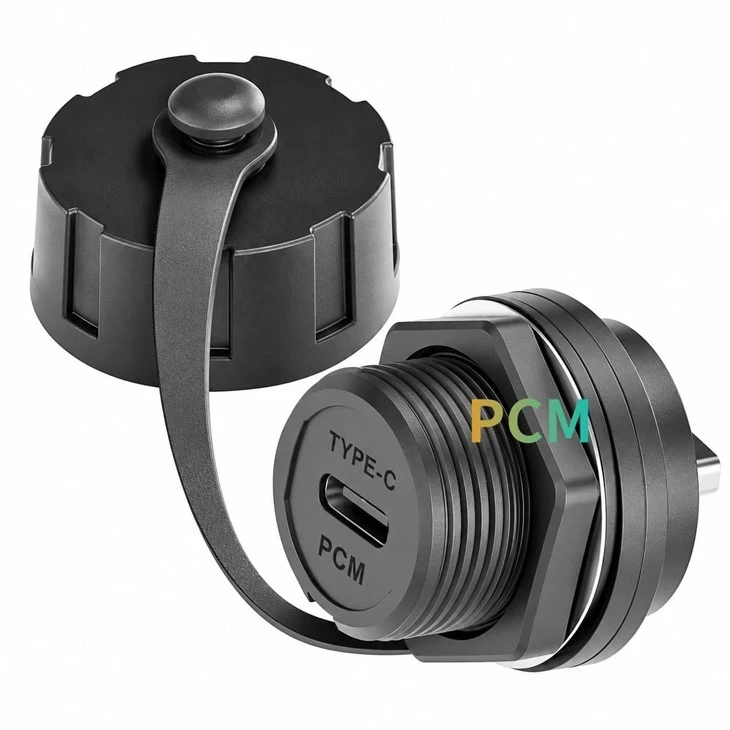

M21 Full-Thread Type-C Waterproof Feedthrough Connector

Product 3 is an M21 full-thread Type-C female-to-female waterproof feedthrough connector with an externally threaded tethered cap.

Its primary mechanical difference from Product 1 is the full-thread body, which provides additional axial adjustment for panel mounting.

According to the supplied drawing:

Arc diameter: Ø20.8 mm
D-shaped anti-rotation width: 19.40 mm

The D-flat provides rotational positioning while the threaded body and nut provide axial retention.

Product Features

Type-C Female-to-Female Feedthrough

All three products use a Type-C female-to-female architecture, allowing internal and external cables to be independently connected and replaced.

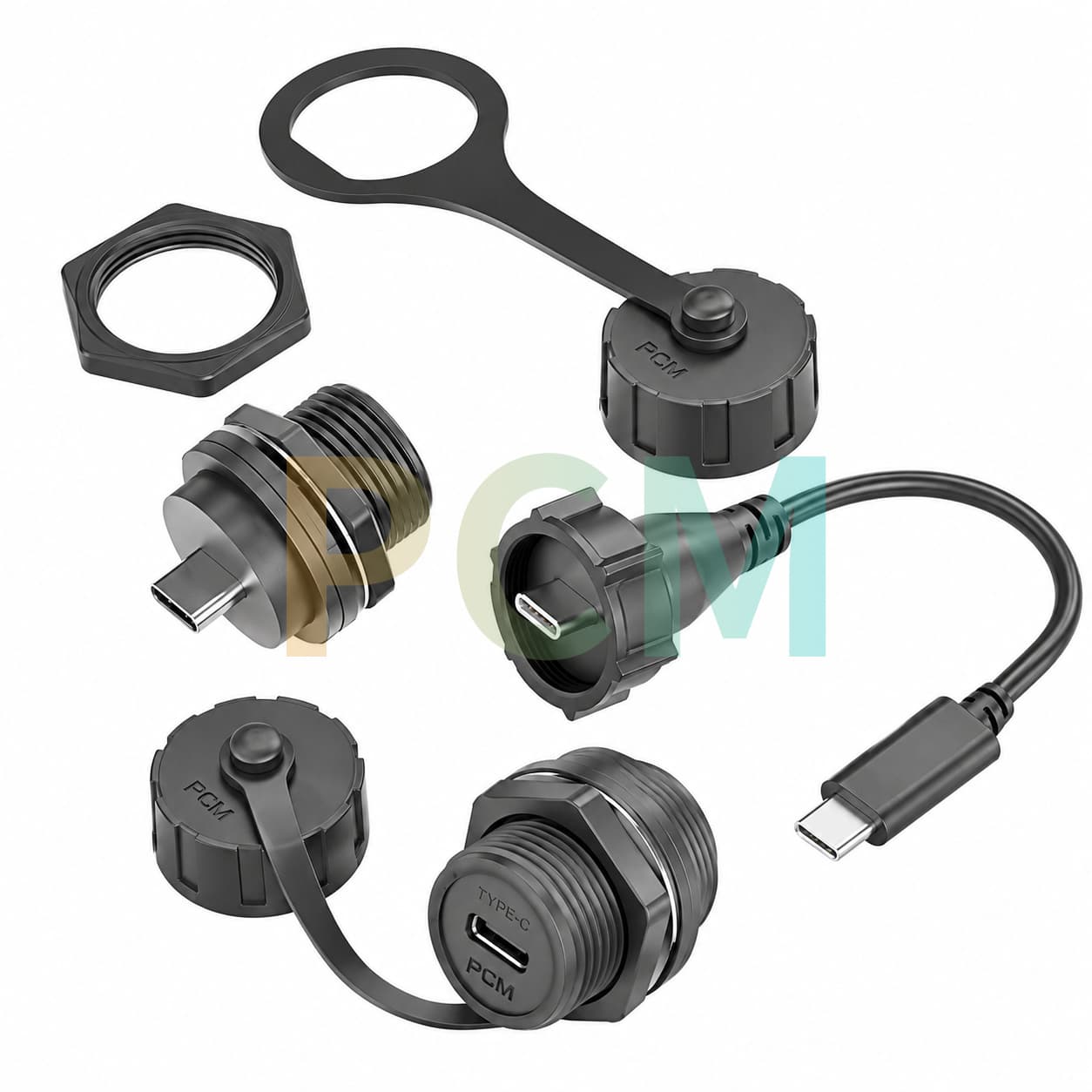

Three Mechanical Installation Designs

Available structures include tethered-cap panel mount, capless thick-panel mount, and M21 full-thread mounting.

Anti-Rotation Panel Design

The Ø20.8 versions use D-shaped flats, while the Ø22.5 version uses a 3.30 mm locating slot to maintain connector orientation.

Multiple Port Protection Options

Tethered-cap and capless options allow equipment designers to balance interface coverage with rapid accessibility.

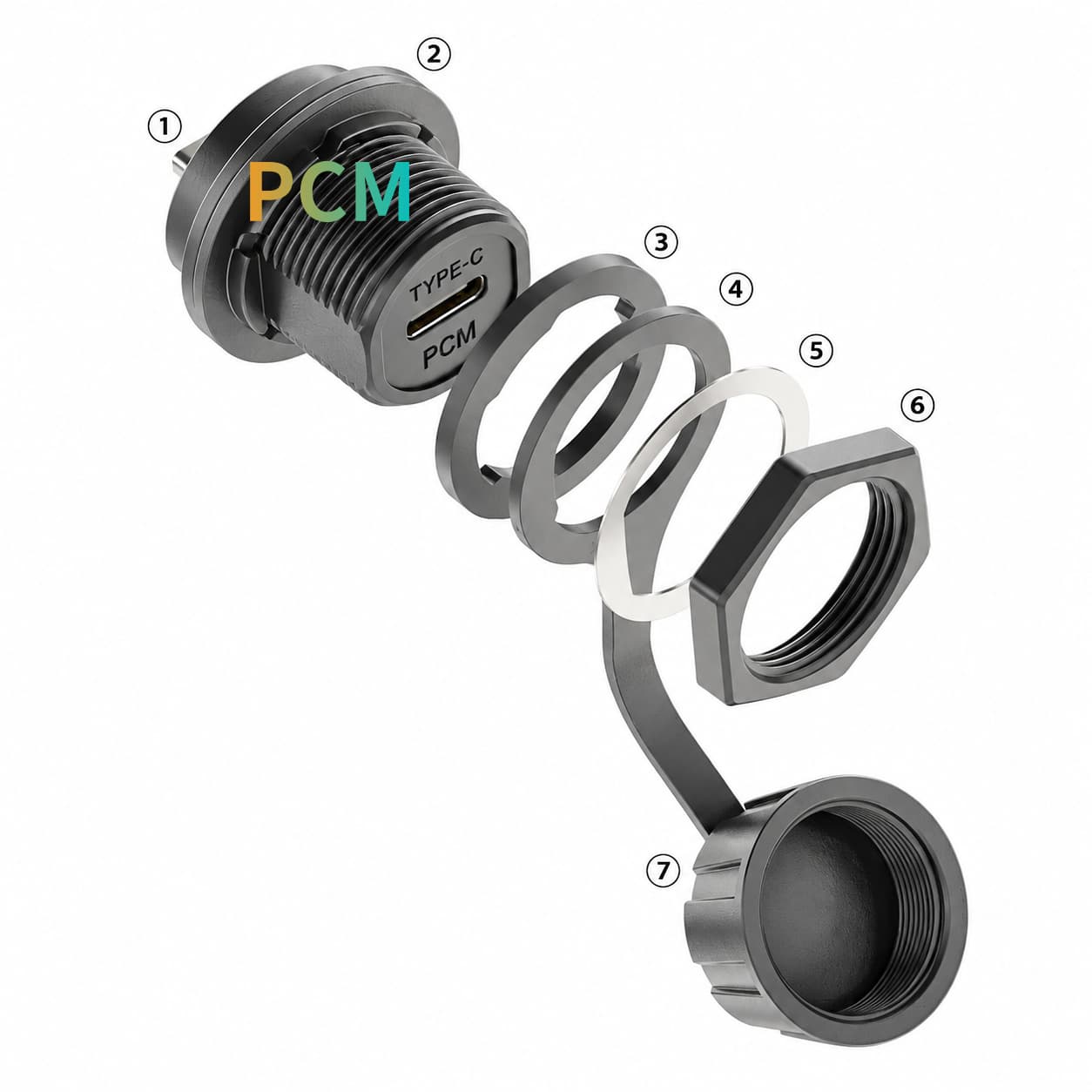

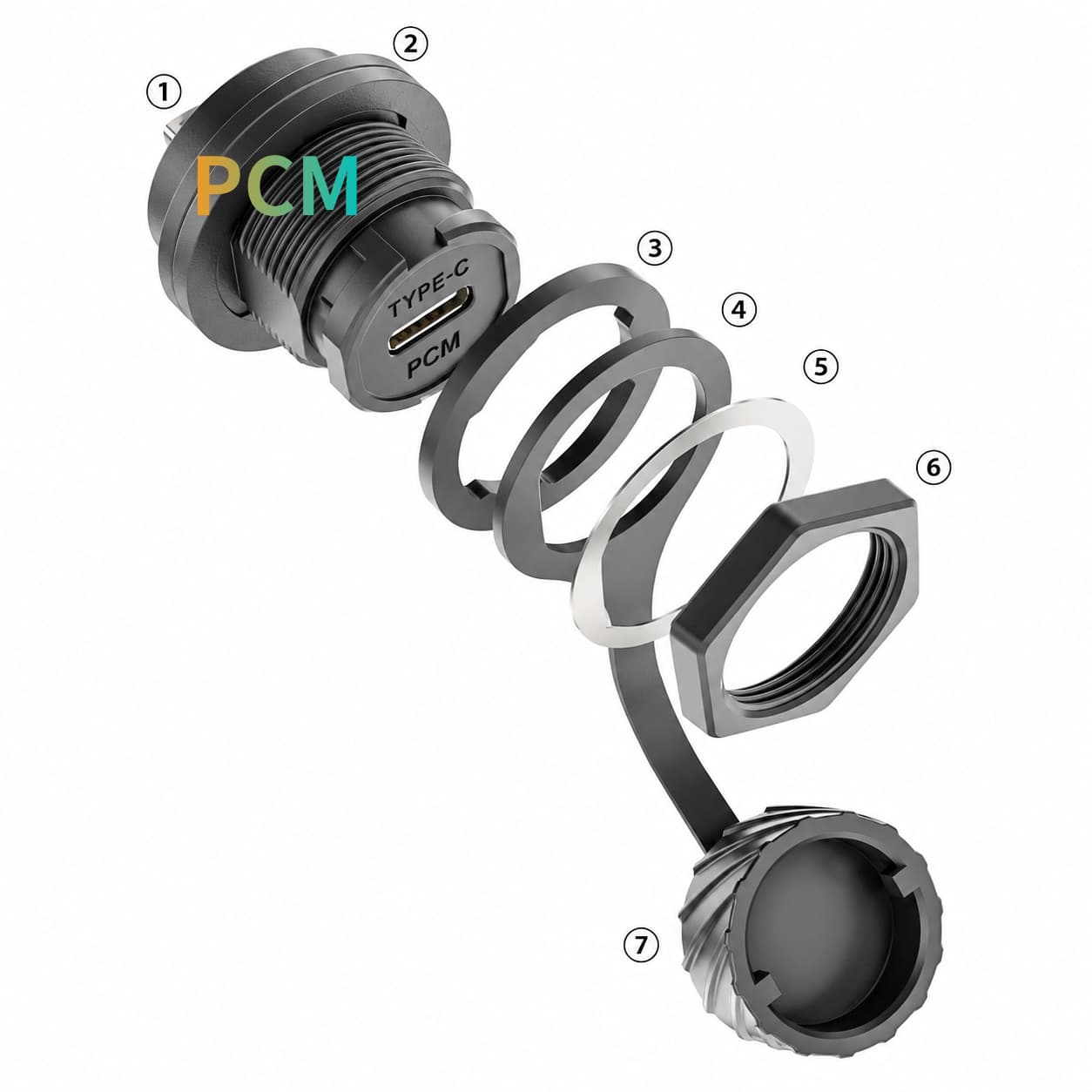

Product Breakdown

Why Is This Product Needed ?

A standard USB-C port is normally located directly on a computer, PCB, or controller. In industrial equipment, however, the host-port location is often different from the required external interface location.

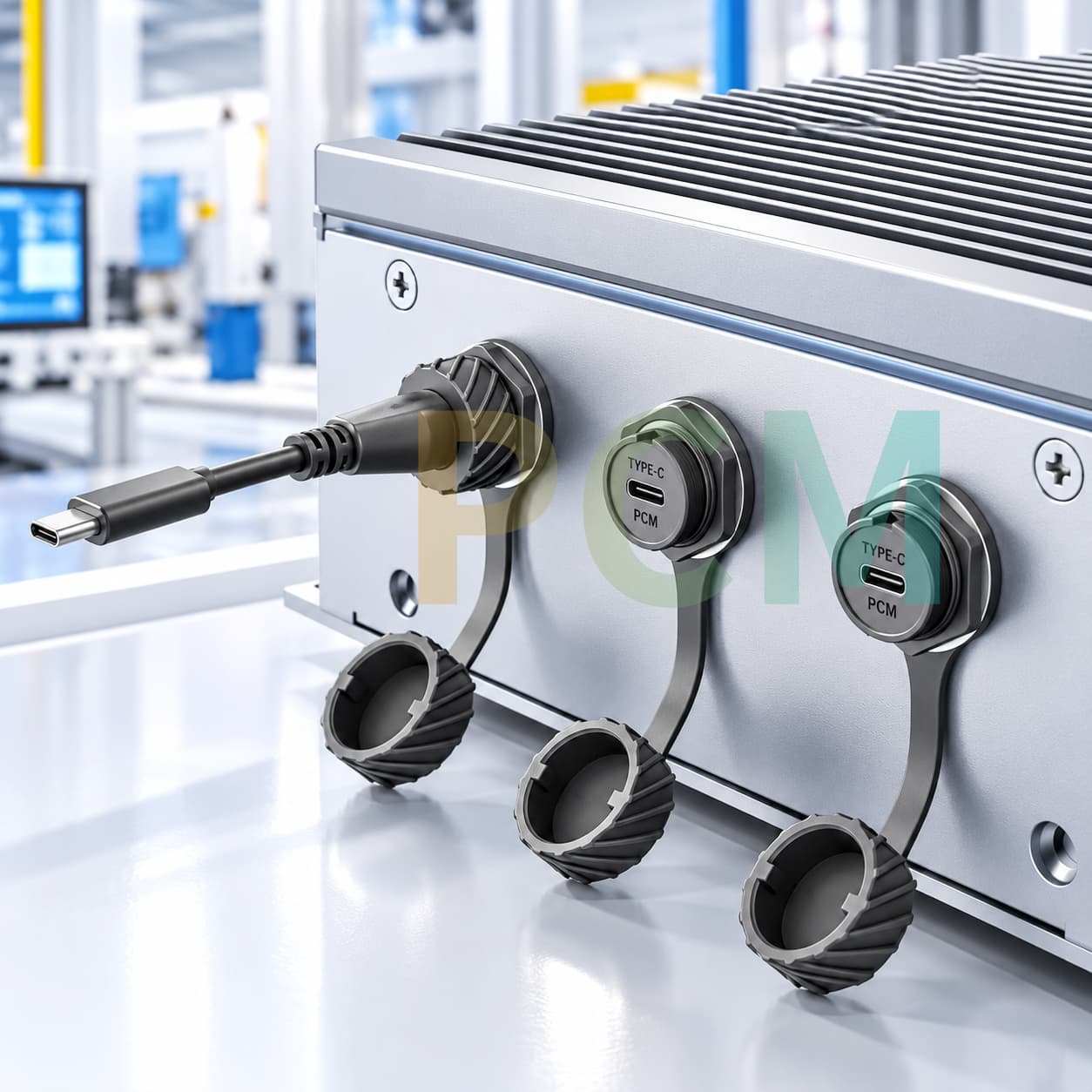

A panel feedthrough connector relocates the USB-C connection to the equipment enclosure while keeping the internal host connection independent.

This improves mechanical integration, cable routing, maintenance access, and OEM interface standardization.

Typical Applications

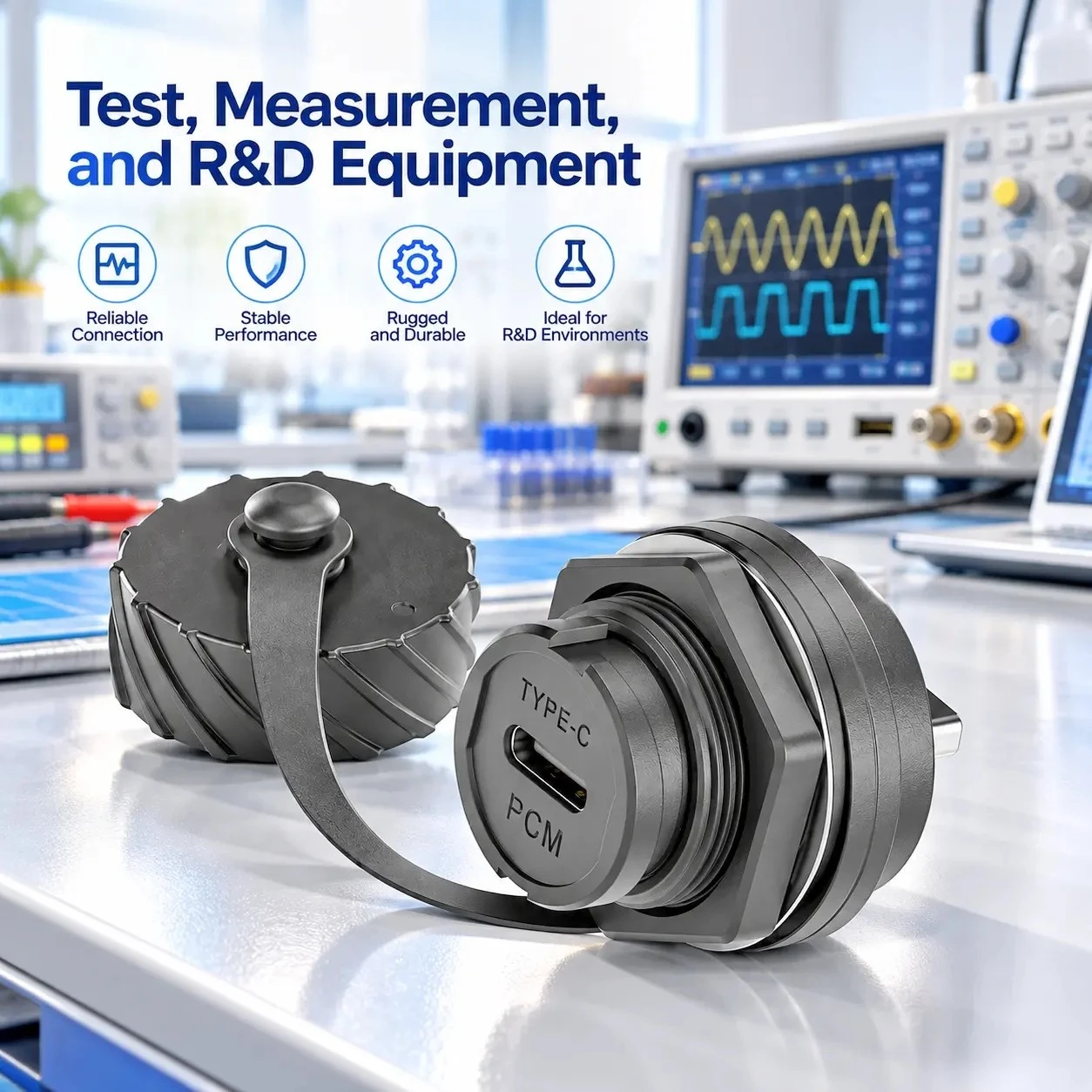

Test, Measurement, and R&D Equipment

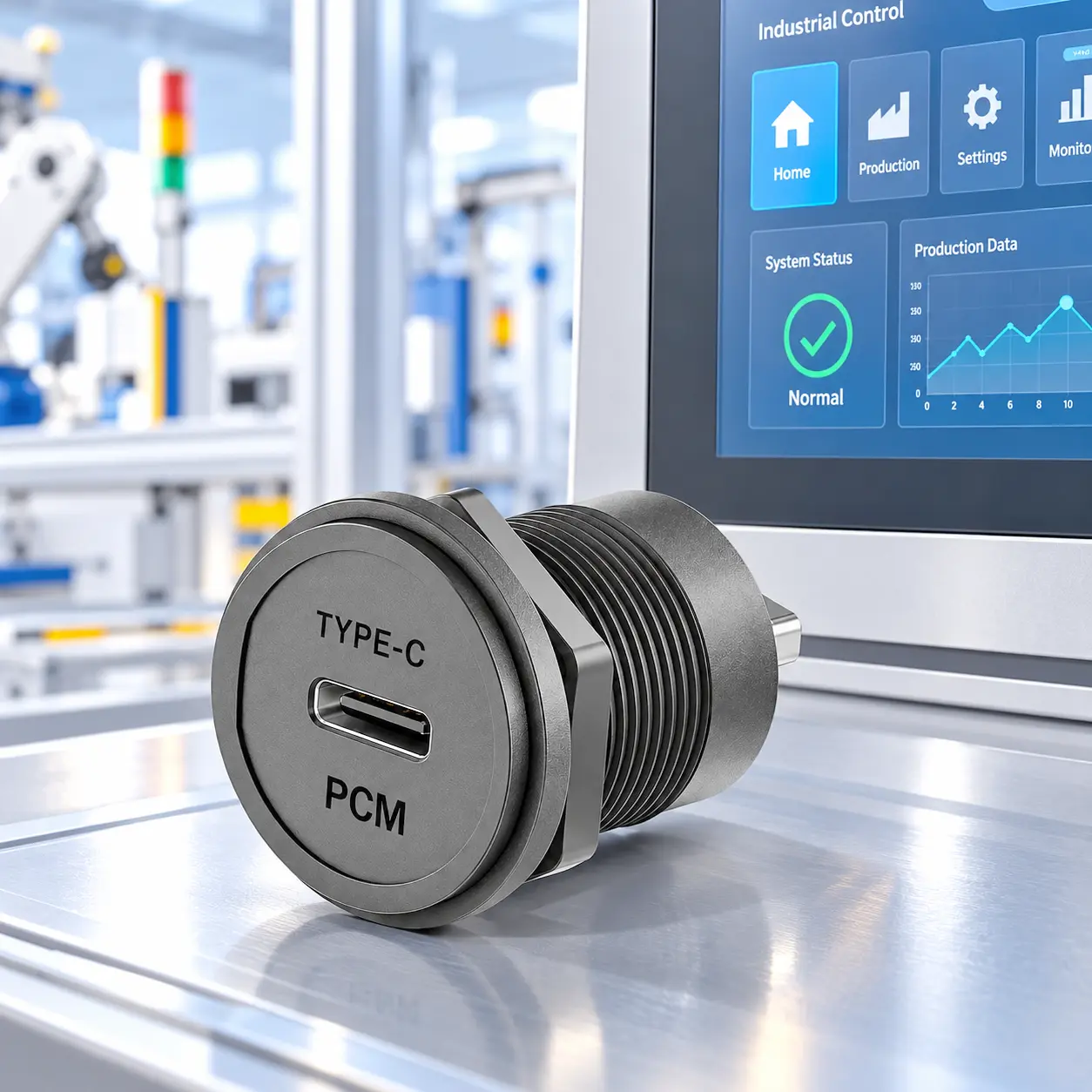

HMI and Industrial Display Equipment

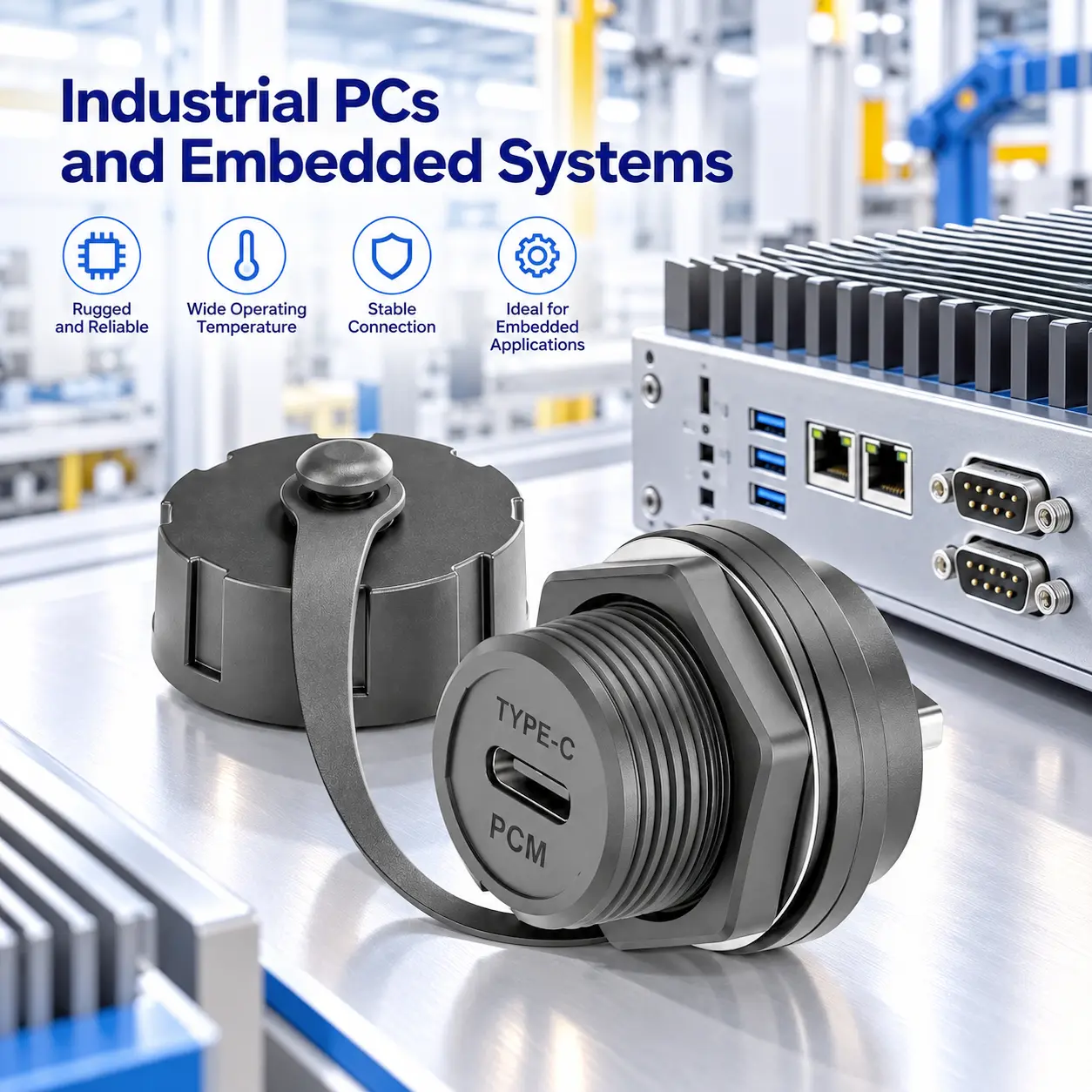

Industrial PCs and Embedded Systems

Core Performance Advantages

Independent Internal and External Cable Replacement

The female-to-female feedthrough architecture allows internal and external cables to be replaced independently without replacing the panel connector.

Reduced Mechanical Stress on Internal Host Ports

Routine connection occurs at the equipment panel rather than directly at the internal host or PCB port.

Improved Modular Maintenance

The panel interface can remain mechanically independent from internal hosts, PCBs, or cable assemblies.

Frequently Asked Questions

Product FAQ

What Are the Main Differences ?

All three are Type-C female-to-female feedthrough connectors. Their primary differences are protective-cover design, panel cutout, and threaded mounting structure.

Are All Three Female-to-Female ?

Yes. All three use a Type-C female-to-female feedthrough architecture.

What Is the Advantage of Female-to-Female Feedthrough ?

The main advantage is that internal and external cables can be independently removed and replaced without replacing the panel connector.

Are Custom, Wholesale, and OEM Services Available ?

OEM projects can support custom Type-C waterproof connectors, wholesale Type-C female-to-female adapters, custom M21 Type-C connectors, industrial Type-C connector manufacturing, and OEM USB-C panel feedthrough connectors.

A recommended process is:

Drawing → Cutout → Panel thickness → USB capability → Sample → Data/power testing → Volume production.

Contact Premier Cable for Your Custom Harness Project

Send us your connector part number, pinout, cable specification, length, application and quantity. Our team can support prototype samples and volume production.
